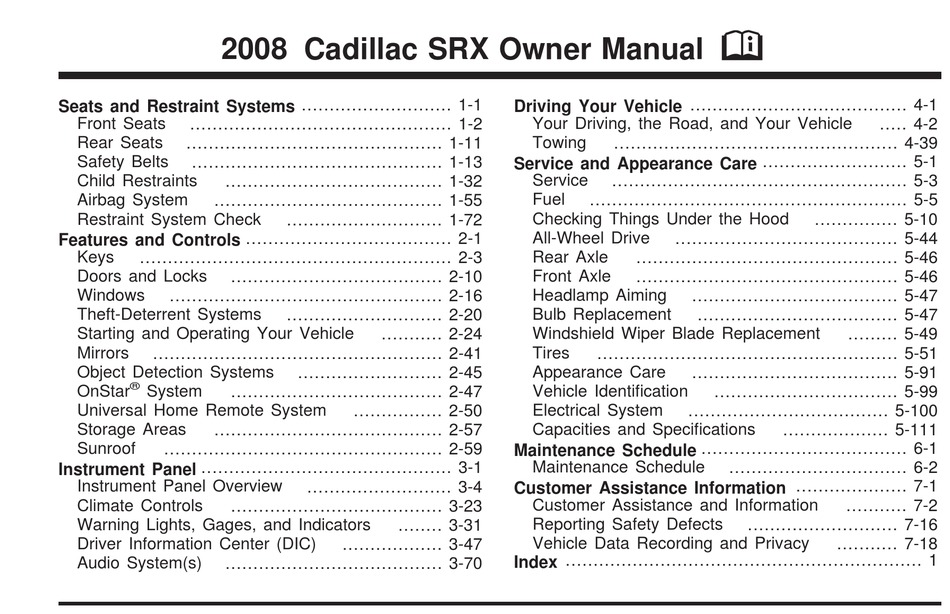

Page 1 2008 Cadillac SRX Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-11 Safety Belts ... 1-13 Child Restraints ... 1-32 Airbag System ... 1-55 Restraint System Check ... 1-72 Features and Controls ... 2-1 Keys ...
Page 2: Canadian Owners
GENERAL MOTORS, GM, the GM Emblem, CADILLAC, the CADILLAC Crest and Wreath, and the name SRX are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes to the product after that time without notice.
Page 3: Using This Manual
Using this Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle to learn about the vehicle’s features and controls. Pictures and words work together to explain things. Index A good place to quickly locate information about the vehicle is the Index in the back of the manual.
Page 4: Vehicle Symbols
Vehicle Damage Warnings You will also ﬁnd notices in this manual. Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Power Seats ...1-3 Power Lumbar ...1-4 Heated Seats ...1-4 Memory Seat and Mirrors ...1-5 Reclining Seatbacks ...1-6 Head Restraints ...1-9 Rear Seats ...1-11 Rear Seat Operation ...1-11 Stowable Seat ...1-12 Safety Belts ...1-13 Safety Belts: They Are for Everyone ...1-13 How to Wear Safety Belts Properly ...1-18 Lap-Shoulder Belt ...1-26...
Page 6: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 7: Power Seats
Power Seats If the vehicle has power seats, the controls used to operate them are located on the outboard side of the seats. • Move the seat forward or rearward by sliding the horizontal control forward or rearward. • Raise or lower the front part of the seat cushion by moving the front of the horizontal control up or down.
Page 8: Power Lumbar
Power Lumbar Your vehicle may have this feature. The driver’s and passenger’s seatback lumbar support can be adjusted by moving the control located on the outboard side of the seat cushions. To increase or decrease support, hold the control forward or rearward.
Page 9: Memory Seat And Mirrors
Memory Seat and Mirrors On vehicles with the memory feature the buttons are located on the driver’s door. 1: Saves the seating position for driver 1. 2: Saves the seating position for driver 2. : Recalls the easy exit position. To program the buttons: 1.
Page 10: Reclining Seatbacks
Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 11 To recline the seatback: 1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright position, do the following: 1.
Page 12: Power Reclining Seatbacks
Power Reclining Seatbacks If your seats have power reclining seatbacks, use the vertical power seat control located on the outboard side of each seat. • To recline the seatback, press the control toward the rear of the vehicle. • To raise the seatback, press the control toward the front of the vehicle.
Page 13: Head Restraints
CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
Page 14 Pull the restraint up to raise it. To lower it, press the button, located on the top of the seatback, and push the head restraint down. The front seat head restraints can also tilt forward and rearward. The second row seat head rests do not tilt. Pull up or push down to adjust the second and third row seat head rests, if the vehicle has them.
Page 15: Rear Seats
Rear Seats Rear Seat Operation Adjusting the Second Row Seat The second row seat can be adjusted forward or rearward. Pull up on the lever under the seat cushion and slide the seat. Release the lever and try to move the seat forward and rearward to be sure it is locked into place.
Page 16: Stowable Seat
Stowable Seat If your vehicle has a third row seat, it is a power folding seat. The head rests must be removed before folding the third row seat, see Head Restraints on page 1-9. The buttons to operate the power folding third row seat are inside the liftgate and behind the second row seat on the passenger’s side of the vehicle.
Page 17: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 18: Why Safety Belts Work
After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter... a lot! Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it.
Page 19 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-15...
Page 20 or the instrument panel... 1-16 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.
Page 21 Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Page 22: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-32 or Infants and Young Children on page 1-35.
Page 23 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 24 What is wrong with this? The lap belt is too loose. It will not give as much protection this way. 1-20 CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 25 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 26 What is wrong with this? The belt is over an armrest. 1-22 CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
Page 27 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 28 What is wrong with this? The belt is behind the body. 1-24 CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 29 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 30: Lap-Shoulder Belt
Lap-Shoulder Belt All seating positions in your vehicle have a lap-shoulder belt. Here is how to wear a lap-shoulder belt properly. 1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index.
Page 31 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-32. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if necessary.
Page 32: Safety Belt Pretensioners
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close a door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 33: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 34 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 1-30 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured.
Page 35: Safety Belt Use During Pregnancy
4. Buckle, position, and release the safety belt as described previously in this section. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guide, squeeze the belt edges together so that you can take them out of the guide.
Page 36: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer/retailer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 37 The manufacturer’s instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: • Sit all the way back on the seat. Do the knees bend at the seat edge? If yes, continue.
Page 38 CAUTION: Never do this. Here two children are wearing the same belt. The belt cannot properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. 1-34 CAUTION: Never do this.
Page 39: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 40 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms.
Page 41 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 42 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 43: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 44 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window. 1-40 Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly...
Page 45: Where To Put The Restraint
When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 46 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 47: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 48: Top Tether Anchor
Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 49 Each outboard seating position in the second row has exposed metal lower anchors in the crease between the seatback and the seat cushion. To assist you in locating the top tether anchors, the top tether anchor symbol is located near the top tether anchors.
Page 50: Securing A Child Restraint Designed For The Latch System
Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. See Where to Put the Restraint on page 1-41 for additional information. Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to...
Page 51 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed.
Page 52 2.3. Route, attach and tighten the top tether according to your child restraint instructions and the following instructions: If the position you are using does not have a headrest or head restraint and you are using a single tether, route the tether over the seatback.
Page 53: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle. If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-43 for how to install your child restraint using LATCH.
Page 54 3. Push the latch plate into the buckle until it clicks. 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if necessary.
Page 55 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 56: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-41. In addition, your vehicle has a passenger sensing system which is designed to turn off the right front passenger’s frontal airbag under certain conditions.
Page 57 If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-43 for how to install your child restraint using LATCH. If you secure a child restraint using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH) on page 1-43 for top tether anchor locations.
Page 58 4. Push the latch plate into the buckle until it clicks. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if necessary. 1-54 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 59: Airbag System
If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint. If, after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion.
Page 60 With roof-rail airbags, the word AIRBAG will appear along the headliner or trim. Airbags are designed to supplement the protection provided by safety belts. Even though today’s airbags are also designed to help reduce the risk of injury from the force of an inﬂating bag, all airbags must inﬂate very quickly to do their job.
Page 61 CAUTION: Airbags inﬂate with great force, faster than the blink of an eye. Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Do not sit unnecessarily close to the airbag, as you would be if you were sitting on the edge of your seat or leaning forward.
Page 62: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-34 for more information.
Page 63 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. Driver Side shown, Passenger Side similar The seat-mounted side impact airbags for the driver and right front passenger are in the side of the seatbacks closest to the door.
Page 64 Driver Side shown, Passenger Side similar The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows. 1-60 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 65: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? Frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inﬂate if the impact exceeds a predetermined deployment threshold.
Page 66 In addition, your vehicle has a dual-stage driver airbag. Dual-stage airbags adjust the restraint according to crash severity. Your vehicle has electronic frontal sensors, which help the sensing system distinguish between a moderate frontal impact and a more severe frontal impact. For moderate frontal impacts, dual-stage airbags inﬂate at a level less than full deployment.
Page 67: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In a deployment event, the sensing system sends an electrical signal triggering a release of gas from the inﬂator. Gas from the inﬂator ﬁlls the airbag causing the bag to break out of the cover and deploy. The inﬂator, the airbag, and related hardware are all part of the airbag module.
Page 68: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags and seat-mounted side impact airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize an airbag inﬂated. Roof-rail airbags may still be at least partially inﬂated for some time after they deploy.
Page 69: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 70 The passenger sensing system will turn off the right front passenger’s frontal airbag under certain conditions. The driver’s airbags are not part of the passenger sensing system. The passenger sensing system works with sensors that are part of the right front passenger’s seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger’s frontal airbag should be enabled (may inﬂate) or not.
Page 71 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. • The system determines that a small child is present in a child restraint.
Page 72 The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the airbag to be enabled, the on indicator will light and stay lit to remind you that the airbag is active.
Page 73 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the airbag(s).
Page 74: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. Your dealer/retailer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-17.
Page 75 In addition, your vehicle has a passenger sensing system for the right front passenger’s position, which includes sensors that are part of the passenger’s seat. The passenger sensing system may not operate properly if the original seat trim is replaced with non-GM covers, upholstery or trim, or with GM covers, upholstery or trim designed for a different vehicle.
Page 76: Restraint System Check
Restraint System Check Checking the Restraint Systems Safety Belts Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts.
Page 77: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 78 NOTES 1-74...
Page 79: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry (RKE) System ...2-4 Remote Keyless Entry (RKE) System Operation ...2-5 Remote Vehicle Start ...2-7 Doors and Locks ...2-10 Door Locks ...2-10 Central Door Unlocking System ...2-10 Power Door Locks ...2-10 Delayed Locking ...2-11 Programmable Automatic Door Locks ...2-11 Rear Door Security Locks ...2-12...
Page 80 Section 2 Object Detection Systems ...2-45 Ultrasonic Rear Parking Assist (URPA) ...2-45 ® OnStar System ...2-47 Universal Home Remote System ...2-50 Universal Home Remote System ...2-50 Universal Home Remote System Operation (With Three Round LED) ...2-50 Features and Controls Storage Areas ...2-57 Glove Box ...2-57 Cupholder(s) ...2-57 Center Console Storage ...2-57...
Page 81: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing...
Page 82: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System Your Remote Keyless Entry (RKE) system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 83: Remote Keyless Entry (Rke) System Operation
Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions, including lock, unlock, power liftgate, vehicle locator/ panic alarm and remote vehicle start, if your vehicle has this feature, will work up to 195 feet (60 m) away. If your vehicle has the remote vehicle start feature, you will be able start your vehicle with the RKE transmitter.
Page 84: Battery Replacement
You can program your vehicle so that the exterior lamps will ﬂash when you unlock the doors with the RKE transmitter. See DIC Vehicle Customization on page 3-62 for more information on programming this feature. If your vehicle is programmed for remote conﬁrmation, the doors must be closed for this feature to work.
Page 85: Remote Vehicle Start
Notice: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter. To replace the battery: 1. Insert a ﬂat object with a thin edge into the notch, located above the metal base, and separate the bottom half from the top half of the transmitter.
Page 86 Laws in some communities may restrict the use of remote starters. For example, some laws may require a person using remote start to have the vehicle in view when doing so. Check local regulations for any requirements on remote starting of vehicles. Do not use the remote start feature if your vehicle is low on fuel.
Page 87 To manually shut off a remote start: • Aim the RKE transmitter at the vehicle and press the remote start button until the parking lamps turn off. • Turn on the hazard warning ﬂashers. • Turn the ignition switch on and then off. The remote vehicle start feature provides two separate starts, each with 10 minutes of engine running, or it provides one start with 10 minutes of engine running...
Page 88: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 89: Delayed Locking
Delayed Locking With this feature, you can delay the actual locking of the doors. When the power door lock switch or the lock button on the remote keyless entry transmitter is pressed when the key is not in the ignition and the driver’s door is opened, a chime will sound three times indicating that delayed locking is active.
Page 90: Rear Door Security Locks
Rear Door Security Locks Your vehicle has rear door security locks. These prevent passengers from opening the rear doors from the inside. The rear door security locks are located on the inside edge of each rear door. The rear doors must be open to access them.
Page 91: Power Liftgate
Power Liftgate Power Liftgate Operation Your vehicle has a power liftgate. The vehicle must be in PARK (P) to power open or close the liftgate. The liftgate must be completely closed to power open or completely opened to power close. The taillamps will ﬂash and a chime will sound at the beginning of each power operation cycle.
Page 92 If you shift the transmission out of PARK (P) while the power function is in progress, the liftgate power function will continue to completion. If you shift the transmission out of PARK (P) and accelerate before the power liftgate latches closed, the liftgate may reverse to the open position.
Page 93 Manual Liftgate Operation With the doors unlocked, the power liftgate can always be manually opened and closed. To open the liftgate, pull up on the handle on the outside of the liftgate. To close the liftgate, use the pull cup to lower the liftgate and close.
Page 94: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 95: Power Windows
Power Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome from extreme heat in warm or hot weather and suffer permanent injuries or even death from heat stroke. Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed.
Page 96: Programming The Power Windows
Express-Down Window This feature is on all windows. Press the switch to the second position and release the switch to activate the express-down feature. To stop the window as it is lowering, press down or pull up brieﬂy on the switch again.
Page 97 Express Window Anti-Pinch Override CAUTION: If express override is activated, the window will not reverse automatically. You or others could be injured and the window could be damaged. Before you use express override, make sure that all people and obstructions are clear of the window path.
Page 98: Sun Visors
Sun Visors Swing down the primary visor to block out glare. It can also be detached from the center mount and moved to the side to block glare from that direction. The driver’s sunshade may also have buttons for a built-in garage door opener.
Page 99: Testing The Alarm
If a door or a liftgate is opened without a key or a RKE transmitter, the horn will sound and the lamps will ﬂash for up to 30 seconds. The theft-deterrent system will not arm if you lock the doors with a key, use the manual door lock or if the liftgate is ajar.
Page 100: Pass-Key Iii+ Operation
® PASS-Key III+ ® The PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 101 If the engine does not start and the security light on the instrument panel cluster comes on when trying to start the vehicle, there may be a problem with your theft-deterrent system. Turn the ignition off and try again. If the engine still does not start, and the key appears to be undamaged, try another ignition key.
Page 102: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines for the ﬁrst 500 miles (805 km): • Do not drive at any one constant speed, fast or slow.
Page 103: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn the key to four different positions. To shift out of PARK (P), ignition must be in the ON/RUN or ACC/ACCESSORY and the regular brake pedal must be applied. Notice: If your key seems stuck in LOCK/OFF and you can’t turn it, be sure you are using the correct key;...
Page 104: Retained Accessory Power (Rap)
Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime will sound, when you open the driver’s door. Always remember to remove your key from the ignition and take it with you.
Page 105: Starting Procedure
Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. Do not race the engine immediately after starting it.
Page 106: Adjustable Throttle And Brake Pedal
Adjustable Throttle and Brake Pedal If your vehicle has this feature, you can change the position of the throttle and brake pedals. This feature is designed for shorter drivers, since the pedals cannot move farther away from the standard position, but can move closer for better pedal reach.
Page 107: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. For the 3.6L V6 engines, the cord is located in the engine compartment on the passenger’s side of the vehicle in front of the fuse block. For the 4.6L V8 engine, the cord is on the front center of the vehicle above the radiator.
Page 108: Automatic Transmission Operation
Automatic Transmission Operation The shift lever is located on the center console between the front seats. There are several different positions for the shift lever. PARK (P): This position locks the rear wheels. It is the best position to use when you start the engine because your vehicle cannot move easily.
Page 109 Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped. REVERSE (R): Use this gear to back up. At low vehicle speeds, you can also use REVERSE (R) to rock your vehicle back and forth to get out of snow, ice, or sand without damaging your transmission.
Page 110 Driver Shift Control (DSC) Notice: If you drive your vehicle at high RPMs without upshifting while using Driver Shift Control (DSC), you could damage your vehicle. Always upshift when necessary while using DSC. Your automatic transmission has a Driver Shift Control (DSC) feature that allows you to change gears similar to a manual transmission.
Page 111: Tow/Haul Mode
The transmission will only allow you to shift into gears appropriate for the vehicle speed and engine Revolutions Per Minute (RPM). The transmission will not automatically shift to the next higher gear if the engine RPM is too high. If shifting is prevented for any reason, the currently selected gear will ﬂash multiple times, indicating that the transmission has not shifted gears.
Page 112: Parking Brake
When Tow/Haul is activated the Tow/Haul symbol will illuminate on the instrument panel cluster. See Tow/Haul Mode under Towing a Trailer on page 4-41 for more information. Grade Braking Grade Braking assists when driving on a downhill grade. It maintains the vehicle’s speed by automatically implementing a shift schedule that uses the engine and the transmission to slow the vehicle.
Page 113 If the ignition is on, the brake system warning light on the instrument panel cluster should come on. If it does not, you need to have your vehicle serviced. See Brake System Warning Light on page 3-38 for more information. To release the parking brake, pull the release lever located to the left of the steering wheel on the instrument panel.
Page 114: Shifting Into Park (P)
Shifting Into PARK (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 115: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 116: Shifting Out Of Park (P)
Shifting Out of PARK (P) This vehicle is equipped with an electronic shift lock release system. The shift lock release is designed to: • Prevent ignition key removal unless the shift lever is in PARK (P) with the shift lever button fully released, and •...
Page 117: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • The exhaust system sounds strange or different. •...
Page 118: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 119: Mirrors
Mirrors Automatic Dimming Rearview ® Mirror with OnStar The vehicle may have an automatic dimming inside ® rearview mirror with OnStar controls. For more ® information about OnStar , see OnStar on page 2-47. (On/Off): The on/off button, located on the lower left side of the mirror, is used for the automatic dimming functions of the rearview mirror.
Page 120: Compass Calibration
Compass Operation Press the on/off button once to turn the compass on or off. When the ignition and the compass feature are on, the compass will show two character boxes for approximately two seconds. After two seconds, the mirror will display the current compass direction.
Page 121: Outside Power Heated Mirrors
3. Once the zone number appears on the display, press the on/off button quickly until you reach the correct zone number. If C appears in the compass window, the compass may need calibration. See “Compass Calibration” listed previously. Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner.
Page 122: Outside Automatic Dimming Mirror
Outside Automatic Dimming Mirror The driver’s outside mirror may have an automatic dimming feature that helps to reduce glare from other vehicles headlamps. This feature is controlled by the on and off settings on the automatic dimming rearview mirror. See Automatic Dimming Rearview Mirror with ®...
Page 123: Object Detection Systems
Object Detection Systems Ultrasonic Rear Parking Assist (URPA) If your vehicle has the Ultrasonic Rear Parking Assist (URPA) system, it helps you park easier and avoid other vehicles while in REVERSE (R). It operates at speeds less than 3 mph (5 km/h). It can determine how close objects are to the rear bumper, up to 5 feet (1.5 m) behind your vehicle.
Page 124: How The System Works
How the System Works URPA comes on automatically when the shift lever is moved into REVERSE (R). The rear display will then brieﬂy illuminate to let you know the system is working. URPA operates only at speeds less than 3 mph (5 km/h). If you are above this speed, the red light on the rear display will ﬂash.
Page 125: Onstar System
® OnStar System OnStar uses several innovative technologies and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 126: Onstar Virtual Advisor
Available Services with Safe & Sound Plan • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • AccidentAssist • Remote Door Unlock/Vehicle Alert •...
Page 127: How Onstar Service Works
On some vehicles, you may have to hold the button for a few seconds and give the command “ONSTAR” in order to activate the OnStar Hands-Free Calling feature. On some vehicles, the mute button can be used to dial numbers into voicemail systems, or to dial phone extensions.
Page 128: Universal Home Remote System
Universal Home Remote System Universal Home Remote System The Universal Home Remote System provides a way to replace up to three hand-held radio-frequency (RF) transmitters used to activate devices such as garage door openers, security systems, and home lighting. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 129 Do not use this system with any garage door opener that does not have the stop and reverse feature. This includes any garage door opener model manufactured before April 1, 1982. Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person available to assist you in programming the transmitter.
Page 130 2. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. It can usually be found where the hanging antenna wire is attached to the motor-head unit and may be a colored button. Press this button.
Page 131 Programming Universal Home Remote — Fixed Code If you have questions or need help programming the Universal Home Remote System, call 1-866-572-2728 or go to www.learcar2u.com. Most garage door openers sold before 1996 are Fixed Code units. Programming a garage door opener involves time-sensitive actions, so read the entire procedure before you begin.
Page 132 Your garage door opener receiver (motor head unit) may also have a row of dip switches that can be used when programming the Universal Home Remote. If the total number of switches on the motor head and hand held transmitter are different, or if the dip switch settings are different, use the dip switch settings on the motor head unit to program your Universal Home Remote.
Page 133 2. Write down the eight to 12 switch settings from left to right as follows: • When a switch is in the up position, write “Left.” • When a switch is in the down position, write “Right.” • If a switch is set between the up and down position, write “Middle.”...
Page 134: Reprogramming Universal Home Remote Buttons
5. After entering all of the switch positions, again, ﬁrmly press and release all three buttons at the same time. The indicator lights will turn on. 6. Press and hold the button you would like to use to control the garage door until the garage door moves.
Page 135: Storage Areas
To erase either Rolling Code or Fixed Code on the Universal Home Remote device: 1. Press and hold the two outside buttons at the same time for approximately 20 seconds, until the indicator lights, located directly above the buttons, begin to blink rapidly. 2.
Page 136: Luggage Carrier
Luggage Carrier CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along.
Page 137: Cargo Cover
Cargo Cover If your vehicle has a cargo cover, you can use it to cover items in the rear of the vehicle. Pull the cover from the passenger’s side to the driver’s side and slide the ends into the slots to secure it. When it is not in use, take the ends out of the slots and allow the cover to roll back up.
Page 138 The sunroof/sunshade switches are located in the headliner between the driver and front passenger. One switch operates the sunroof and the other switch operates the sunshade. Press the back of the sunroof switch to open the sunroof. When the switch is pressed to the ﬁrst stop the sunroof will open to a desired position.
Page 139: Sunroof (Ultra View Plus)
Sunroof (Ultra View Plus) CAUTION: People who are in a crash and not wearing a safety belt properly can suffer much worse injuries. They can hit things inside the vehicle or be ejected from it, and be seriously injured or killed. This is true for any vehicle occupant, in any motor vehicle.
Page 140 Press the back of the front sunshade switch (B) to open it. Press it to the ﬁrst stop to open the front sunshade to a desired position. Press it again to express open the sunshade. Press the front of the front sunshade switch to close it.
Page 141 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Heated Steering Wheel ...3-7 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-9 Windshield Wipers ...3-9 Windshield Washer ...3-10 Rear Window Wiper/Washer ...3-11 Headlamp Washer ...3-12...
Page 142 Section 3 Warning Lights, Gages, and Indicators ...3-31 Instrument Panel Cluster ...3-32 Speedometer and Odometer ...3-33 Tachometer ...3-33 Engine Speed Limiter ...3-33 Safety Belt Reminders ...3-33 Airbag Readiness Light ...3-34 Passenger Airbag Status Indicator ...3-35 Charging System Light ...3-37 Brake System Warning Light ...3-38 Antilock Brake System Warning Light ...3-39 Traction Control System (TCS) Warning Light ...3-39 Engine Coolant Temperature Warning Light ...3-40...
Page 143 NOTES...
Page 144: Instrument Panel Overview
Instrument Panel Overview...
Page 145 The main components of the instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-29. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-32. D.
Page 146: Hazard Warning Flashers
Hazard Warning Flashers The hazard warning ﬂashers let you warn the police and others that you have a problem. The front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located towards the center of the instrument panel.
Page 147: Heated Steering Wheel
To tilt the wheel, hold the steering wheel and pull the lever. Then move the steering wheel to a comfortable position and release the lever to lock the wheel in place. Heated Steering Wheel Your vehicle may have a heated steering wheel. The button with this symbol is located on the left side of the...
Page 148: Turn And Lane-Change Signals
Turn and Lane-Change Signals To signal a turn, move the lever all the way up or down. The lever returns automatically when the turn is complete. An arrow on the instrument panel cluster will ﬂash in the direction of the turn or lane change.
Page 149: Flash-To-Pass
Flash-to-Pass This feature allows you to use the high-beam headlamps to signal the driver in front of you that you want to pass. Pull and hold the turn signal/multifunction lever toward you to use this feature. When this is done the following will occur: •...
Page 150: Windshield Washer
(Delay Adjustment): Use this band to set the length of the delay between wipes when using the delay feature. The closer you move the band toward mist, the longer the delay. The windshield wiper lever must be in delay for this feature to work. (Low Speed): Put the lever in this position for slow, steady wiping cycles.
Page 151: Rear Window Wiper/Washer
Rear Window Wiper/Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. The switch for the rear washer/wiper is located in the overhead console. (Rear Wiper): Press this side of the button to turn the rear wiper on.
Page 152: Headlamp Washer
Headlamp Washer Your vehicle may have headlamp washers. The headlamp washers clear debris from the headlamp lenses. The headlamp washers are located to the inside of the headlamps. To wash the headlamps, press the washer button located at the end of the windshield wiper lever. Both the headlamps and the windshield will be washed.
Page 153 When the brakes are applied, the cruise control shuts off. ® If your vehicle has the StabiliTrak limit wheel spin while using cruise control, the cruise control automatically disengages. See StabiliTrak System on page 4-7. Turn the cruise control back on, when road conditions allow safe usage.
Page 154: Setting Cruise Control
Setting Cruise Control Cruise control will not work if the parking brake is set, or if the master cylinder brake ﬂuid level is low. The cruise control light on the instrument panel cluster comes on after the cruise control has been set to the desired speed.
Page 155 Reducing Speed While Using Cruise Control To reduce the vehicle speed while using cruise control: • Press and hold the SET– button on the steering wheel until the desired lower speed is reached, and then release the button. • To slow down in very small amounts, press the SET–...
Page 156: Headlamps
Headlamps The exterior lamp control is located in the middle of the turn signal/multifunction lever. (Exterior Lamp Control): Turn the control with this symbol on it to operate the exterior lamps. The exterior lamp control has four positions: (Off): Turn the control to this position to turn off all lamps, except the Daytime Running Lamps (DRL).
Page 157: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 158: Light Sensor
Light Sensor The light sensor for the DRL and AUTO headlamp feature is located on top of the instrument panel. If you cover the sensor, it will prevent it from sensing light, and the exterior lamps may come on whenever the ignition is on.
Page 159: Exterior Lighting Battery Saver
Exterior Lighting Battery Saver The exterior lamps turn off about 10 minutes after the ignition is turned to LOCK/OFF, if the parking lamps or headlamps have been left on. This protects against draining the battery. The battery saver does not work if the headlamps are turned on after the ignition is turned to LOCK/OFF.
Page 160: Reading Lamps
Reading Lamps The reading lamps are located on the overhead console. These lamps come on automatically when any door is opened. For manual operation, press the button next to each lamp to turn it on or off. If the reading lamps are left on, they automatically shut off 10 minutes after the ignition has been turned off.
Page 161: Accessory Power Outlet(S)
Accessory Power Outlet(s) The accessory power outlets can be used to plug in electrical equipment such as a cellular telephone, CB radio, etc. The vehicle has one outlet in front of the center console on the instrument panel and one in the rear compartment.
Page 162: Analog Clock
Ashtray The ashtray is located under the climate control panel on the instrument panel. Press on the door to release the ashtray. To empty the ashtray, remove it from the instrument panel by gripping the edges and pulling straight out. To reinstall, push the tray back into place.
Page 163: Climate Controls
Climate Controls Dual Climate Control System The heating, cooling, defrosting, and ventilation for the vehicle can be controlled with this system. Dual Climate Control System Automatic Operation The climate control system automatically adjusts the air temperature, air delivery mode, fan speed, and air conditioning for best comfort in the vehicle.
Page 164: Manual Operation
«ª (Driver’s Temperature Controls): Press the up or down buttons closest to the driver to manually increase or decrease the temperature inside the vehicle. «ª (Passenger’s Temperature Controls): Press the up or down buttons closest to the passenger to manually increase or decrease the temperature for the front passenger.
Page 165 PASS (Passenger’s Climate Control): Press this button to turn the passenger’s climate control system on or off. Then press the up or down buttons to choose the desired setting. Pressing the button again automatically sets the passengers temperature to the drivers setting. Turning the passenger’s temperature display off does not turn off the climate control system for the passenger.
Page 166: Air Conditioning
Air Quality Sensor: Your vehicle may have an air quality sensor to help limit the climate control system from pulling in irritating or harmful exhaust fumes from other vehicles. This sensor, when active, monitors the air quality in front of your vehicle and switches to air recirculation when poor quality air is detected outside your vehicle.
Page 167 Sensors There is a solar sensor located on top of the instrument panel, near the windshield. There is an interior temperature sensor located below the climate control system next to the steering wheel. An ambient sensor is located behind the grille in front of the vehicle.
Page 168: Rear Window Defogger
Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear fog from the windshield.
Page 169: Outlet Adjustment
Outlet Adjustment Use the knobs located in the center of each outlet to change the direction of the airﬂow. Use the thumbwheels to open or close the outlets. Operation Tips • Clear away any ice, snow, or leaves from the air inlets at the base of the windshield that could block the ﬂow of air into the vehicle.
Page 170: Passenger Compartment Air Filter
Passenger Compartment Air Filter The passenger compartment air ﬁlter helps remove dust and pollen from the air entering the vehicle. Like the vehicle’s engine air cleaner/ﬁlter, it needs to be changed periodically. For how often to change the passenger compartment air ﬁlter, see Scheduled Maintenance on page 6-4.
Page 171: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 172: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using and many of the other things you will need to know to drive safely and economically.
Page 173: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). See “SPEEDOMETER” under DIC Operation and Displays on page 3-48 for more information. The odometer mileage can be checked without the vehicle running.
Page 174: Airbag Readiness Light
Passenger Safety Belt Reminder Light Several seconds after the engine is started, a chime will sound for several seconds to remind the front passenger to buckle their safety belt. This would only occur if the passenger airbag is enabled. See Passenger Sensing System on page 1-65 for more information.
Page 175: Passenger Airbag Status Indicator
CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the airbag readiness light stays on after you start your...
Page 176 If the word ON or the on symbol is lit on the passenger airbag status indicator, it means that the right front passenger’s frontal airbag is enabled (may inﬂate). CAUTION: If the on indicator comes on when you have a rear-facing child restraint installed in the right front passenger’s seat, it means that the passenger sensing system has not turned off...
Page 177: Charging System Light
CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the airbag(s).
Page 178: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there is a brake problem. Have your brake system inspected right away.
Page 179: Antilock Brake System Warning Light
Antilock Brake System Warning Light For vehicles with the Antilock Brake System (ABS), this light will come on brieﬂy when you start the engine. That is normal. If the light does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem. If the ABS light stays on, turn the ignition off, if the light comes on when you are driving, stop as soon as it is safely possible and turn the ignition off.
Page 180: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light The engine coolant temperature warning light will come on when the engine has overheated. If this happens you should pull over and turn off the engine as soon as possible. See Engine Overheating on page 5-26 for more information. Notice: Driving with the engine coolant temperature warning light on could cause your vehicle to overheat.
Page 181: Tire Pressure Light
Tire Pressure Light This light comes on brieﬂy when the engine is started. This light will also come on when one or more of your tires are signiﬁcantly underinﬂated. A tire pressure message in the Driver Information Center (DIC), may accompany the light. See DIC Warnings and Messages on page 3-53 for more information.
Page 182: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors operation of the fuel, ignition, and emission control systems. It makes sure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment. The check engine light comes on to indicate that there is an OBD II problem...
Page 183: If The Light Is Flashing
If the Light is Flashing The following can prevent more serious damage to your vehicle: • Reduce vehicle speed. • Avoid hard accelerations. • Avoid steep uphill grades. • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 184: Oil Pressure Light
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
Page 185: Maintenance Schedule
The oil light could also come on in the following situations: • The light will come on brieﬂy when the ignition is turned on to show that it is working properly. If it does not come on with the ignition on, there may be a problem with the fuse or bulb.
Page 186: Lights On Reminder
Lights On Reminder This light comes on whenever the parking lamps are on. See Headlamps on Reminder on page 3-16 for more information. Cruise Control Light This light comes on whenever you set the cruise control. The light goes out when the cruise control is turned off. See Cruise Control on page 3-12 for more information.
Page 187: Fuel Gage
Fuel Gage The fuel gage shows approximately how much fuel is in the fuel tank. It works only when the engine is on. If the fuel supply gets low, the FUEL LEVEL LOW message will appear on the Driver Information Center (DIC) and a single chime will sound.
Page 188: Dic Operation And Displays
When the sport mode is active, an S will appear next to the shift position indicator on the center of the DIC display. When the manual mode is active, an M will appear on the DIC display. When the normal mode is active, only the shift position indicator will appear.
Page 189 Trip/Fuel Display Menu Items (Trip/Fuel): The following display menu items can be displayed by pressing the trip/fuel button: TRIP A or TRIP B These displays show the current distance traveled since the last reset for each trip odometer in either miles (mi) or kilometers (km).
Page 190: Battery Voltage
TIMER ON/OFF This display can be used like a stopwatch. You can record the time it takes to travel from one point to another. To access the timer, press the trip/fuel button until 00:00:00 TIMER OFF displays. To turn on the timer, press the set/reset button until TIMER ON displays.
Page 191: Parking Assist
Vehicle Information Display Menu Items (Vehicle Information): The following display menu items can be displayed by pressing the vehicle information button: OIL LIFE REMAINING If the vehicle has this display, it shows the estimated oil life remaining. If you see 99% OIL LIFE REMAINING on the display, that means that 99% of the current oil life remains.
Page 192 FRONT TIRES or REAR TIRES The pressure for each tire can be viewed in the DIC. The tire pressure will be shown in either pounds per square inch (psi) or kilopascals (kPa). Press the vehicle information button until the DIC shows the tire pressure for the front tires.
Page 193: Dic Warnings And Messages
DIC Warnings and Messages These messages appear if there is a problem detected in one of your vehicle’s systems. You must acknowledge a message to clear it from the screen for further use. To clear a message, press the set/reset button. Be sure to take any message that appears on the screen seriously and remember that clearing the message only makes the message disappear,...
Page 194: Check Tire Pressure
CHECK TIRE PRESSURE This message displays when the pressure in one or more of the vehicle’s tires needs to be checked. This message also displays LEFT FRONT, RIGHT FRONT, LEFT REAR, or RIGHT REAR to indicate which tire needs to be checked.
Page 195: Fuel Level Low
ENGINE OVERHEATED IDLE ENGINE Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. Do not increase the engine speed above normal idling speed.
Page 196: Oil Pressure Low Stop Engine
LEFT REAR DOOR OPEN This message displays when the driver side rear door is not closed completely. Make sure that the door is closed completely. OIL PRESSURE LOW STOP ENGINE Notice: If you drive your vehicle while the engine oil pressure is low, severe engine damage may occur.
Page 197: Service Air Bag
REPLACE BATTERY IN REMOTE KEY This message displays when the battery in the Remote Keyless Entry (RKE) transmitter needs to be replaced. To replace the battery, see “Battery Replacement” under Remote Keyless Entry (RKE) System Operation on page 2-5. RIGHT REAR DOOR OPEN This message displays when the passenger side rear door is not closed completely.
Page 198: Service Brake System
SERVICE BRAKE SYSTEM This message displays, while the ignition is on, when the brake ﬂuid level is low. The brake system warning light on the instrument panel cluster also comes on. See Brake System Warning Light on page 3-38 for more information.
Page 199: Service Tire Monitor System
SERVICE TIRE MONITOR SYSTEM This message displays if a part on the Tire Pressure Monitor System (TPMS) is not working properly. The tire pressure light also ﬂashes and then remains on during the same ignition cycle. See Tire Pressure Light on page 3-41.
Page 200: Theft Attempted
STABILITRAK OFF This message displays when you turn off StabiliTrak or when the stability control has been automatically disabled. To limit wheel spin and realize the full beneﬁts of the stability enhancement system, you should ® normally leave StabiliTrak on. However, you should ®...
Page 201: Turn Signal On
TIGHTEN GAS CAP This message displays when the fuel cap has not been fully tightened. Recheck the fuel cap to ensure that it is on and tightened properly. TIRE LEARNING ACTIVE This message displays when the Tire Pressure Monitor System (TPMS) is re-learning the tire positions on your vehicle.
Page 202: Dic Vehicle Customization
DIC Vehicle Customization Your vehicle has customization capabilities that allow you to program certain features to one preferred setting. Customization features can only be programmed to one setting on the vehicle and cannot be programmed to a preferred setting for two different drivers. All of the customization options may not be available on your vehicle.
Page 203: Display Language
DISPLAY LANGUAGE This feature allows you to select the language in which the DIC messages will appear. Press the customization button until the DISPLAY LANGUAGE screen appears on the DIC display. Press the set/reset button to access the settings for this feature.
Page 204: Remote Door Lock
AUTO DOOR UNLOCK This feature allows you to select whether or not the door(s) will automatically unlock. It also allows you to select which doors and when they will automatically unlock. See Programmable Automatic Door Locks on page 2-11 for more information. Press the customization button until AUTO DOOR UNLOCK appears on the DIC display.
Page 205: Remote Door Unlock
To select a setting, press the set/reset button while the desired setting is displayed on the DIC. REMOTE DOOR UNLOCK This feature allows you to select the type of feedback you will receive when unlocking the vehicle with the Remote Keyless Entry (RKE) transmitter.
Page 206: Exit Lighting
EXIT LIGHTING This feature allows you to select the amount of time you want the exterior lamps to remain on when it is dark enough outside. This happens after the key is turned from ON/RUN to LOCK/OFF. Press the customization button until EXIT LIGHTING appears on the DIC display.
Page 207 CHIME VOLUME This feature allows you to select the volume level of the chime. Press the customization button until CHIME VOLUME appears on the DIC display. Press the set/reset button to access the settings for this feature. Then press the menu up/down button to scroll through the following settings: NORMAL: The chime volume will be set to a normal...
Page 208: Easy Exit Seat
EASY EXIT SEAT If the vehicle has this feature, it allows you to select your preference for the automatic easy exit seat feature. See Memory Seat and Mirrors on page 1-5 for more information. Press the customization button until EASY EXIT SEAT appears in the display.
Page 209: Remote Start
REMOTE START If the vehicle has this feature, it allows you to turn the remote start feature off or on. The remote start feature allows you to start the engine from outside of the vehicle using the Remote Keyless Entry (RKE) transmitter.
Page 210: Audio System(S)
Exiting the Feature Settings Menu The feature settings menu will be exited when any of the following occurs: • The vehicle is shifted out of PARK (P). • The ignition is no longer in ON/RUN. • The trip/fuel or vehicle information DIC buttons are pressed.
Page 211: Setting The Time
While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers. Then, when driving conditions permit, you can tune to your favorite radio stations using the presets and steering wheel controls if the vehicle has them.
Page 212 4. Press the pushbutton located under the currently displayed status of either ON or OFF. The ON display indicates the radio clock display is disabled and the OFF display indicates the radio clock display is enabled. Press this pushbutton to toggle the radio clock display on or off.
Page 213: Setting The Time And Date
Setting the Time and Date For the Single CD Player This type of radio has a (clock) button for setting the time and date. To set the time and date, do the following: 1. Turn the radio on. 2. Press the button and HR, MIN, MM, DD, YYYY (hour, minute, month, day, and year) displays.
Page 214: Changing The Time And Date Default Setting
Changing the Time and Date Default Setting For the Single CD Player To change the time and date default setting, do the following: 1. Change the time default setting from 12 hour to 24 hour or the date default setting from month/day/ year to day/month/year, by pressing the button.
Page 215: Playing The Radio
Radio(s) (MP3) Radio with CD shown, Radio with Six-Disc CD similar Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 216: Finding A Station
Finding a Station BAND: Press to switch between AM, FM, or XM™ (if equipped). The display shows the selection. (Tune): Turn to select radio stations. © ¨ SEEK : Press the arrows to go to the previous or to the next station and stay there. To scan stations, press and hold either arrow for three seconds until a beep sounds.
Page 217 The number of favorites pages can be setup using the MENU button. To setup the number of favorites pages, perform the following steps: 1. Press the MENU button to display the radio setup menu. 2. Press the pushbutton located below the FAV 1-6 label.
Page 218 Finding a Category (CAT) Station CAT (Category): The CAT button is used to ﬁnd XM™ (if equipped) stations when the radio is in the XM™ mode. To ﬁnd XM™ (if equipped) channels within a desired category, perform the following: 1. Press the BAND button until the XM™ (if equipped) frequency displays.
Page 219: Radio Message
Radio Message Locked: This message displays when the ® THEFTLOCK system has locked up the radio. Take the vehicle to your dealer/retailer for service. If any error occurs repeatedly or if an error cannot be corrected, contact your dealer/retailer. XM™ Satellite Radio Service XM™...
Page 220 Playing a CD(s) (Six-Disc CD Player) LOAD : Press to load CDs into the CD player. This CD player holds up to six CDs. To insert one CD, do the following: 1. Press and release the button. 2. Wait for the message to insert the disc. 3.
Page 221 RDM (Random): With the random setting, CD tracks can be played in random, rather than sequential order. This feature is not available in playlist mode. To use random: 1. To play tracks from the CD you are listening to in random order, press the pushbutton positioned under the RDM label.
Page 222 Care of Your CDs If playing a CD-R, the sound quality can be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. Handle them carefully. Store CD-R(s) in their original cases or other protective cases and away from direct sunlight and dust.
Page 223: Using The Auxiliary Input Jack
CD Messages DISC ERROR: If an error message displays and/or the CD comes out, it could be for one of the following reasons: • The radio system does not support the playlist format, the compressed audio format, or the data ﬁle format.
Page 224: Using An Mp3
CD/AUX (CD/Auxiliary): Press to play a CD when a portable audio device is playing. Press again and the system begins playing audio from the connected portable audio player. If a portable audio player is not connected, No Aux Input Device displays. Using an MP3 MP3/WMA CD-R or CD-RW Disc The radio plays MP3 and WMA ﬁles that were recorded...
Page 225 • Minimize the length of the ﬁle, folder or playlist names. Long ﬁle, folder, or playlist names, or a combination of a large number of ﬁles and folders, or playlists can cause the player to be unable to play up to the maximum number of ﬁles, folders, playlists, or sessions.
Page 226 Order of Play Tracks recorded to the CD-R or CD-RW play in the following order: • Play begins from the ﬁrst track in the ﬁrst playlist and continues sequentially through all tracks in each playlist. When the last track of the last playlist has played, play continues from the ﬁrst track of the ﬁrst playlist.
Page 227: Playing An Mp3/Wma
Playing an MP3/WMA Insert a CD-R or CD-RW partway into the slot (Single CD Player), or press the load button and wait for the message to insert disc (Six-Disc CD Player), label side up. The player pulls it in, and the CD-R or CD-RW should begin playing.
Page 228 2. To play songs from all CDs loaded in a six-disc CD player in random order, press the pushbutton positioned under the RDM label until Randomize All Discs displays. Press the same pushbutton again to turn off random play. (Music Navigator): Use the music navigator feature to play MP3/WMA ﬁles on the CD-R or CD-RW in order by artist or album.
Page 229: Xm Radio Messages
XM Radio Messages XL (Explicit Language Channels): These channels, or any others, can be blocked at a customer’s request, by calling 1-800-852-XMXM (9696). XM Updating: The encryption code in the receiver is being updated, and no action is required. This process should take no longer than 30 seconds.
Page 230: Navigation/Radio System
Check XM Receivr: If this message does not clear within a short period of time, the receiver could have a fault. Consult with your dealer/retailer. XM Not Available: If this message does not clear within a short period of time, the receiver could have a fault.
Page 231 (Power): Press this button to turn the RSA on or off. Volume: Turn this knob to increase or to decrease the volume of the wired headphones. The left knob controls the left headphones and the right knob controls the right headphones.
Page 232: Theft-Deterrent Feature
When a CD or DVD audio disc is playing, press this button to go to the beginning of the CD or DVD audio. This function is inactive, with some radios, if the front seat passengers are listening to the CD or DVD audio. When a disc is playing in the CD or DVD changer, press this button to select the next disc, if multiple discs are loaded.
Page 233: Radio Reception
− (Volume): Press the plus or minus volume button to increase or to decrease the radio volume. (Mute/Voice Recognition): Press and release this button to silence the vehicle speakers only. The audio of the wireless and wired headphones, if your vehicle has these features, does not mute. Press and release this button again, to turn the sound on.
Page 234: Rear Side Window Antenna
XM™ Satellite Radio Service XM™ Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or through tunnels could cause loss of the XM™...
Page 235: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunk Driving ...4-2 Control of a Vehicle ...4-3 Braking ...4-3 Antilock Brake System (ABS) ...4-4 Braking in Emergencies ...4-5 Traction Control System (TCS) ...4-5 Magnetic Ride Control ...4-6 Limited-Slip Rear Axle ...4-7 ®...
Page 236: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving Defensive driving means “always expect the unexpected.” The ﬁrst step in driving defensively is to wear your safety belt — See Safety Belts: They Are for Everyone on page 1-13. CAUTION: Assume that other road users (pedestrians, bicyclists, and other drivers) are going to be careless and make mistakes.
Page 237: Control Of A Vehicle
For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological, and developmental reasons for these laws. The obvious way to eliminate the leading highway safety problem is for people never to drink alcohol and then drive.
Page 238: Antilock Brake System (Abs)
If you keep pace with the traffic and allow realistic following distances, you will eliminate a lot of unnecessary braking. That means better braking and longer brake life. If your vehicle’s engine ever stops while you are driving, brake normally but do not pump the brakes. If you do, the pedal could get harder to push down.
Page 239: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply the brakes if that vehicle suddenly slows or stops.
Page 240: Magnetic Ride Control
Notice: Do not repeatedly brake or accelerate heavily when the TCS is off. You could damage your vehicle’s driveline. When the TCS is switched off on AWD vehicles, you may still feel the system working. This is normal and necessary with the AWD hardware on your vehicle. You should turn the system off if your vehicle ever gets stuck in sand, mud or snow and rocking the vehicle is required.
Page 241: Limited-Slip Rear Axle
Limited-Slip Rear Axle Your vehicle may have this feature. A limited-slip rear axle can give you additional traction on snow, mud, ice, sand or gravel. It works like a standard axle most of the time, but when one of the rear wheels has no traction and the other does, this feature will allow the wheel with traction to move the vehicle.
Page 242: Power Steering
Panic Brake Assist Your vehicle has a panic brake assist system that monitors the intention of the driver while braking. If the system senses that the driver has applied hard/fast pressure to the brake pedal, the system will generate additional pressure, making it easier for the driver to maintain brake application.
Page 243: Steering In Emergencies
Speed limit signs near curves warn that you should adjust your speed. Of course, the posted speeds are based on good weather and road conditions. Under less favorable conditions you will want to go slower. If you need to reduce your speed as you approach a curve, do it before you enter the curve, while the front wheels are straight ahead.
Page 244: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 245 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems.
Page 246: Off-Road Driving
Off-Road Driving This off-road guide is for vehicles that have all-wheel drive. If your vehicle does not have all-wheel drive, you should not drive off-road unless you are on a level, solid surface. Many of the same design features that help make your vehicle responsive on paved roads during poor weather conditions —...
Page 247: Environmental Concerns
Loading Your Vehicle for Off-Road Driving CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks. •...
Page 248: Traveling To Remote Areas
• Always carry a litter bag — make sure all refuse is removed from any campsite before leaving. • Take extreme care with open ﬁres where permitted, camp stoves, and lanterns. • Never park your vehicle over dry grass or other combustible materials that could catch ﬁre from the heat of the vehicle’s exhaust system.
Page 249: Scanning The Terrain
Scanning the Terrain Off-road driving can take you over many different kinds of terrain. You need to be familiar with the terrain and its many different features. Here are some things to consider. Surface Conditions: Off-roading can take you over hard-packed dirt, gravel, rocks, grass, sand, mud, snow, or ice.
Page 250: Approaching A Hill
Driving on Off-Road Hills Off-road driving often takes you up, down, or across a hill. Driving safely on hills requires good judgment and understanding of what your vehicle can and cannot do. There are some hills that simply cannot be driven, no matter how well built the vehicle.
Page 251: Driving Uphill
Driving Uphill Once you decide you can safely drive up the hill, you need to take some special steps. • Use a low gear and get a ﬁrm grip on the steering wheel. • Get a smooth start up the hill and try to maintain your speed.
Page 252 What should I do if my vehicle stalls, or is about to stall, and I cannot make it up the hill? If this happens, there are some things you should do, and there are some things you must not do. First, here is what you should do: •...
Page 253: Driving Downhill
Driving Downhill When off-roading takes you downhill, you will want to consider a number of things: • How steep is the downhill? Will I be able to maintain vehicle control? • What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? •...
Page 254 Are there some things I should not do when driving down a hill? Yes! These are important because, if you ignore them, you could lose control and have a serious accident. • When driving downhill, avoid turns that take you across the incline of the hill.
Page 255: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: CAUTION: Driving across an incline that is too steep will make your vehicle roll over.
Page 256: Stalling On An Incline
Stalling on an Incline CAUTION: Getting out on the downhill (low) side of a vehicle stopped across an incline is dangerous. If the vehicle rolls over, you could be crushed or killed. Always get out on the uphill (high) side of the vehicle and stay well clear of the rollover path.
Page 257 Driving in Mud, Sand, Snow, or Ice When you drive in mud, snow, or sand, the wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud — the deeper the mud, the lower the gear.
Page 258: Driving In Water
Driving in Water CAUTION: Driving through rushing water can be dangerous. Deep water can sweep your vehicle downstream and you and your passengers could drown. If it is only shallow water, it can still wash away the ground from under your tires, and you could lose traction and roll the vehicle over.
Page 259: Driving At Night
Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
Page 260: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep-standing or ﬂowing water. CAUTION: Wet brakes can cause accidents.
Page 261: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 262: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep your vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 263: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You might want to put winter emergency supplies in your vehicle. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 264: If You Are Caught In A Blizzard
Accelerate gently. Try not to break the fragile traction. If you accelerate too fast, the drive wheels will spin and polish the surface under the tires even more. See ® StabiliTrak System on page 4-7 and Rocking Your Vehicle to Get It Out on page 4-33. Also see “Winter Tires”...
Page 265 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 266: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes.
Page 267: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right to clear the area around the front wheels. Turn off any traction or stability system. See Traction Control System (TCS) on page 4-5 and StabiliTrak page 4-7.
Page 268 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and...
Page 269 The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 −...
Page 270 Example 2 Item Description Vehicle Capacity Weight for Example 2 = Subtract Occupant Weight 150 lbs (68 kg) × 5 = Available Cargo Weight = 4-36 Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating...
Page 271 Certiﬁcation/Tire Label United States version shown, Canada similar A vehicle speciﬁc Certiﬁcation/Tire label is attached to either the driver’s door edge or the lower center pillar on the driver’s side of the vehicle. This label shows the gross weight capacity of your vehicle and is called the Gross Vehicle Weight Rating (GVWR).
Page 272 Similar appearing vehicles may have different GVWRs and payloads. Please note the Certiﬁcation/Tire label on your truck or consult your dealer for additional details. CAUTION: Do not load your vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR).
Page 273: Towing
Towing Towing Your Vehicle Consult your dealer/retailer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Service on page 7-8. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see Recreational Vehicle Towing following.
Page 274: Level Control
Dolly Towing Notice: Towing an all-wheel-drive vehicle with all four wheels on the ground, or even with only two of its wheels on the ground, will damage drivetrain components. Do not tow an all-wheel-drive vehicle if any of its wheels will be on the ground. 4-40 If you have a Rear-Wheel Drive (RWD) vehicle, it can be towed using a dolly.
Page 275: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 276: If You Do Decide To Pull A Trailer
If You Do Decide to Pull a Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you will be driving.
Page 277 Press this button, located below the climate control system, to enable/disable the tow/haul mode. A light on the instrument panel will illuminate to indicate that tow/haul mode has been selected. The vehicle will automatically turn off tow/haul every time it is started. Driving with tow/haul activated without a heavy load or with no trailer will cause reduced fuel economy and unpleasant engine and transmission driving...
Page 278: Weight Of The Trailer Tongue
4-44 You can ask your dealer for our trailering information or advice, or you can write us at: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 33169 Detroit, MI 48232-5169 In Canada, write to:...
Page 279 If you are using a weight-carrying hitch or a weight-distributing hitch, the trailer tongue (A) should weigh 10-15 percent of the total loaded trailer weight (B). After you have loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 280 But let us say your speciﬁc vehicle is equipped with some of the latest options and you have a front seat passenger and two rear seat passengers with some luggage and gear in the vehicle as well. You may add 300 lbs (136 kg) to the front axle weight and 400 lbs (181 kg) to the rear axle weight.
Page 281: Driving With A Trailer
Hitches It is important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you will need the right hitch. Here are some rules to follow: • The rear bumper on your vehicle is not intended for hitches.
Page 282: Making Turns
Before you start, check all trailer hitch parts and attachments, safety chains, electrical connector, lamps, tires and mirror adjustment. If the trailer has electric brakes, start your vehicle and trailer moving and then apply the trailer brake controller by hand to be sure the brakes are working.
Page 283: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. Check with your dealer. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 284: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine, • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3.
Page 285: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-4 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-6 California Fuel ...5-6 Additives ...5-7 Fuels in Foreign Countries ...5-7...
Page 286 Section 5 When It Is Time for New Tires ...5-67 Buying New Tires ...5-68 Different Size Tires and Wheels ...5-70 Uniform Tire Quality Grading ...5-70 Wheel Alignment and Tire Balance ...5-72 Wheel Replacement ...5-72 Tire Chains ...5-74 If a Tire Goes Flat ...5-75 Changing a Flat Tire ...5-76 Removing the Spare Tire and Tools ...5-77 Removing the Flat Tire and Installing...
Page 287: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks: Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to your vehicle they can affect your vehicle’s performance and safety, including such things as, airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like...
Page 288: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 289: Adding Equipment To The Outside Of Your Vehicle
If you want to do some of your own service work, you should use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-17.
Page 290: Gasoline Speciﬁcations
If your vehicle has the 4.6L V8 engine (VIN Code A), use premium unleaded gasoline with a posted octane rating of 91 or higher. You can also use regular unleaded gasoline rated at 87 octane or higher, but your vehicle’s acceleration could be slightly reduced, and you might notice a slight audible knocking noise, commonly referred to as spark knock.
Page 291: Additives
Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that help prevent engine and fuel system deposits from forming, allowing the emission control system to work properly. In most cases, you should not have to add anything to the fuel. However, some gasolines contain only the minimum amount of additive required to meet U.S.
Page 292: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 293 CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 294: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 295: Hood Release
Hood Release To open the hood, do the following: 1. Pull the hood release lever with this symbol on it. It is located inside the vehicle on the lower left side of the instrument panel. 2. Then go to the front of the vehicle and ﬁnd the secondary hood release lever.
Page 296: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.6L V6 engine, you will see the following: 5-12...
Page 297 A. Underhood Fuse Block. See Underhood Fuse Block on page 5-101. B. Remote Negative (-) Terminal. See Jump Starting on page 5-40. C. Remote Positive (+) Terminal. See Jump Starting on page 5-40. D. Battery. See Battery on page 5-39. E.
Page 298 When you open the hood on the 4.6L V8 engine, you will see the following: 5-14...
Page 299 A. Remote Negative (-) Terminal. See Jump Starting on page 5-40. B. Remote Positive (+) Terminal. See Jump Starting on page 5-40. C. Battery. See Battery on page 5-39. D. Passenger Compartment Air Filter. See Passenger Compartment Air Filter on page 3-30. E.
Page 300: Engine Oil
Engine Oil Your vehicle could have an oil pressure light on the instrument cluster. There is also an OIL PRESSURE LOW STOP ENGINE message on the Driver Information Center (DIC). If the light and/or message appears, check the engine oil level right away. For more information, see “OIL PRESSURE LOW STOP ENGINE”...
Page 301: When To Add Engine Oil
When to Add Engine Oil 3.6L V6 Engine 4.6L V8 Engine If the oil is below the cross-hatched area at the tip of the dipstick, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use.
Page 302: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for three things: • GM4718M Your vehicle’s engine requires a special oil meeting GM Standard GM4718M. Oils meeting this standard may be identiﬁed as synthetic. However, not all synthetic oils will meet this GM standard. Look for and use only an oil that meets GM Standard GM4718M.
Page 303: Engine Oil Additives
Substitute Engine Oil: When adding oil to maintain engine oil level, oil meeting GM Standard GM4718M might not be available. You can add substitute oil designated SAE 5W-30 with the starburst symbol at all temperatures. Substitute oil not meeting GM Standard GM4718M should not be used for an oil change.
Page 304: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and ﬁlter based on vehicle use. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change the oil prior to a CHANGE ENGINE OIL SOON message being turned on, reset the system.
Page 305: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter 4.6L V8 shown, 3.6L V6 similar The engine air cleaner/ﬁlter is in the engine compartment on the driver’s side of the vehicle, near the front. See Engine Compartment Overview on page 5-12 for more information on location. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II...
Page 306 To inspect or replace the ﬁlter, do the following: 1. Remove the two screws located on the top of the cover. 2. Disconnect the coolant recovery hose so that it is not going across the top of the engine air cleaner/ﬁlter.
Page 307: Automatic Transmission Fluid
Automatic Transmission Fluid How to Check Automatic Transmission Fluid It is not necessary to check the transmission ﬂuid level. A transmission ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take the vehicle to the dealer/retailer service department and have it repaired as soon as possible.
Page 308: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 309: Checking Coolant
Checking Coolant The coolant surge tank and pressure cap are located on the driver’s side of the vehicle, toward the rear of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 310: Adding Coolant
Adding Coolant If more coolant is needed, add the proper DEX-COOL coolant mixture at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 311: If Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Turn it off and get everyone away from the vehicle until it cools down.
Page 312: Overheated Engine Protection Operating Mode
If you get the overheat warning with no sign of steam, try this for a minute or so: 1. In heavy traffic, let the engine idle in NEUTRAL (N) while stopped. If it is safe to do so, pull off the road, shift to PARK (P) or NEUTRAL (N) and let the engine idle.
Page 313: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: 3.6L V6 shown, 4.6L V8 similar A. Electric Engine Cooling Fans B. Coolant Surge Tank and Pressure Cap Some vehicles may be equipped with an engine driven fan, as well as the electric pusher fans (A) which are located behind the vehicle’s grille.
Page 314: How To Add Coolant To The Coolant Surge Tank
When the engine is cold, the coolant level should be at or slightly above the FULL COLD/FROID line on the side of the coolant surge tank. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system.
Page 315 CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the coolant surge tank pressure cap — even a little — they can come out at high speed. Never turn the cap when the cooling system, including the coolant surge tank pressure cap, is hot.
Page 316 If no coolant is visible in the surge tank, add coolant as follows: 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise (left) about one-quarter turn and then stop.
Page 317: Power Steering Fluid
4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. The upper radiator hose is the largest of the hoses which comes out of the radiator, on the passenger’s side of the vehicle.
Page 318: Windshield Washer Fluid
How to Check Power Steering Fluid To check the power steering ﬂuid, do the following: 1. Turn the key off and let the engine compartment cool down. 2. Wipe the cap and the top of the reservoir clean. 3. Unscrew the cap and wipe the dipstick with a clean rag.
Page 319: Brakes
Notice: • When using concentrated washer ﬂuid, follow the manufacturer’s instructions for adding water. • Do not mix water with ready-to-use washer ﬂuid. Water can cause the solution to freeze and damage your washer ﬂuid tank and other parts of the washer system. Also, water does not clean as well as washer ﬂuid.
Page 320: Checking Brake Fluid
It is not a good idea to top off the brake ﬂuid. Adding brake ﬂuid will not correct a leak. If ﬂuid is added when the linings are worn, there will be too much ﬂuid when new brake linings are installed. Add or remove brake ﬂuid, as necessary, only when work is done on the brake hydraulic system.
Page 321: What To Add
What to Add When you do need brake ﬂuid, DOT-3 brake ﬂuid is recommended for use. DOT-4 brake ﬂuid is also compatible with your vehicle’s brake system parts. However, if you choose to use DOT-4 ﬂuid, it is recommended that you ﬂush the brake hydraulic system and reﬁll it with new DOT-4 ﬂuid at a regular maintenance service every two years.
Page 322: Brake Adjustment
Brake Wear Your vehicle has disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 323: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality brake parts. When you replace parts of the braking system —...
Page 324: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 325 4. Open the hoods and locate the positive (+) and negative (−) terminal locations or the remote positive (+) and remote negative (−) terminals of the other vehicle. Then locate the remote positive (+) location on your vehicle. See Engine Compartment Overview on page 5-12 for more information on locations the terminals.
Page 326 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 327 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
Page 328: All-Wheel Drive
Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 329: How To Check Lubricant
How to Check Lubricant A. Drain Plug B. Fill Plug To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, located on the transfer case, you’ll need to add some lubricant.
Page 330: Rear Axle
Rear Axle When to Check Lubricant It is not necessary to regularly check rear axle ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 331: Headlamp Aiming
How to Check Lubricant A. Drain Plug B. Filler Plug To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, located on the front axle, you may need to add some lubricant.
Page 332: High Intensity Discharge (Hid) Lighting
High Intensity Discharge (HID) Lighting CAUTION: The low beam high intensity discharge lighting system operates at a very high voltage. If you try to service any of the system components, you could be seriously injured. Have your dealer/retailer or a qualiﬁed technician service them.
Page 333: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking. See Scheduled Maintenance on page 6-4 for more information. It’s a good idea to clean or replace the wiper blade assembly on a regular basis or when worn. For proper windshield wiper blade length and type, see Normal Maintenance Replacement Parts on page 6-14.
Page 334 5. Squeeze the tab together and pull the wiper blade assembly down far enough to release it from the J-hooked end of the wiper arm. Slide the assembly away from the arm. Allowing the wiper blade arm to touch the windshield when no wiper blade is installed could damage the windshield.
Page 335: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. CAUTION: • Poorly maintained and improperly used tires are dangerous.
Page 336: Winter Tires
Low-Proﬁle Performance Tire If your vehicle has P255/50R20 size tires, they are classiﬁed as low-proﬁle performance tires. These tires are designed for very responsive driving on wet or dry pavement. You may also notice more road noise with low-proﬁle performance tires and that they tend to wear faster.
Page 337: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 338 (F) Uniform Tire Quality Grading (UTQG) Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance. For more information see Uniform Tire Quality Grading on page 5-70. (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load.
Page 339 (F) Tire Size A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type, and service description. The letter T as the ﬁrst character in the tire size means the tire is for temporary use only. (G) TPC Spec (Tire Performance Criteria Speciﬁcation) Original equipment tires designed...
Page 340: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight This means the combined weight of optional accessories.
Page 341 GAWR RR Gross Axle Weight Rating for the rear axle. See Loading Your Vehicle on page 4-33. Intended Outboard Sidewall an asymmetrical tire, that must always face outward when mounted on a vehicle. Kilopascal (kPa) The metric unit for air pressure. Light Truck (LT-Metric) Tire light duty trucks and some multipurpose passenger vehicles.
Page 342 Radial Ply Tire A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. A metal support for a tire and upon which the tire beads are seated. Sidewall The portion of a tire between the tread and the bead.
Page 343: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 344: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 345: Tire Pressure Monitor System
If you will be driving at high speeds, speeds of 100 mph (160 km/h) or higher, where it is legal, set the cold inﬂation pressure to the maximum inﬂation pressure shown on the tire sidewall, or 38 psi (265 kPa), whichever is lower.
Page 346: Tire Pressure Monitor Operation
When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Page 347 When a low tire pressure condition is detected, the TPMS illuminates the low tire pressure warning light located on the instrument panel cluster. At the same time a message to check the pressure in a speciﬁc tire appears on the Driver Information Center (DIC) display.
Page 348: Tpms Malfunction Light And Message
TPMS Malfunction Light and Message The TPMS will not function properly if one or more of the TPMS sensors are missing or inoperable. When the system detects a malfunction, the low tire warning light ﬂashes for about one minute and then stays on for the remainder of the ignition cycle.
Page 349 The TPMS sensors can also be matched to each tire/wheel position by increasing or decreasing the tire’s air pressure. If increasing the tire’s air pressure, do not exceed the maximum inﬂation pressure indicated on the tire’s sidewall. To decrease air-pressure out of a tire you can use the pointed end of the valve cap, a pencil-style air pressure gage, or a key.
Page 350: Tire Inspection And Rotation
Tire Inspection and Rotation We recommend that you regularly inspect your vehicle’s tires, including the spare tire, for signs of wear or damage. See When It Is Time for New Tires on page 5-67 for more information. Tire rotation is not recommended if your vehicle has the following tire combinations: •...
Page 351: When It Is Time For New Tires
CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 352: Buying New Tires
The rubber in tires degrades over time, even if they are not being used. This is also true for the spare tire, if your vehicle has one. Multiple conditions affect how fast this aging takes place, including temperatures, loading conditions, and inﬂation pressure maintenance. With proper care and maintenance tires will typically wear out before they degrade due to age.
Page 353 CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes (other than those originally installed on your vehicle), brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes (other than those originally installed on your vehicle), brands, or types may also cause damage to your vehicle.
Page 354: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this could affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover. Additionally, if your vehicle has electronic systems such as anti-lock brakes, rollover airbags, traction control, and electronic stability control, the performance of these systems can be affected.
Page 355 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 356: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis. However, if you notice unusual tire wear or your vehicle pulling to one side or the other, the alignment might need to be checked.
Page 357: Used Replacement Wheels
CAUTION: Using the wrong replacement wheels, wheel bolts, or wheel nuts on your vehicle can be dangerous. It could affect the braking and handling of your vehicle, make your tires lose air and make you lose control. You could have a collision in which you or others could be injured.
Page 358: Tire Chains
Tire Chains CAUTION: If your vehicle has P255/50R20 size tires, do not use tire chains. They can damage your vehicle because there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts.
Page 359: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 360: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your vehicle’s hazard warning ﬂashers. See Hazard Warning Flashers on page 3-6 for more information. 5-76 CAUTION: Changing a tire can be dangerous.
Page 361: Removing The Spare Tire And Tools
When your vehicle has a ﬂat tire, use the following example as a guide to assist you in the placement of wheel blocks. The following information tells you how to use the jack and change a tire. Removing the Spare Tire and Tools The equipment is located in the rear of the vehicle.
Page 362: Removing The Spare Tire
Removing the Spare Tire The compact spare tire is located under the vehicle, ahead of the rear bumper. See Compact Spare Tire on page 5-90 for more information about the compact spare. To remove the spare tire from the vehicle, do the following: A.
Page 363 6. Turn the wrench clockwise until you feel two slips or hear two clicks after removing the spare tire to raise the cable back up. Do not store a full-size or a ﬂat road tire under the vehicle. See Storing a Flat or Spare Tire and Tools on page 5-87.
Page 364: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire To remove the ﬂat tire and install the spare: 1. Do a safety check before proceeding. See Changing a Flat Tire on page 5-76 for more information. 2. Loosen the wheel nuts, but do not remove them yet, using the wheel wrench.
Page 365 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 366 8. Raise the vehicle by turning the wheel wrench clockwise. Raise the vehicle far enough off the ground for the compact spare tire to ﬁt under the vehicle. 5-82 9. Remove all the wheel nuts and the ﬂat tire. 10. Remove any rust or dirt from the wheel bolts, mounting surfaces, and spare wheel.
Page 367 CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 368: Secondary Latch System
15. Tighten the wheel nuts ﬁrmly in a crisscross sequence, as shown. CAUTION: Incorrect or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to a crash. If you have to replace them, be sure to get new original equipment wheel nuts.
Page 369 CAUTION: Someone standing too close during the procedure could be injured by the jack. If the spare tire does not slide off the jack completely, make sure no one is behind you or on either side of you as you pull the jack out from the under spare.
Page 370 8. Grasp the spare tire with both hands and pull it out from under the vehicle. 9. Reach under the vehicle and remove the wheel wrench and jack. 5-86 10. Tilt the retainer and slip it through the wheel opening when the spare tire has been completely lowered.
Page 371: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. Storing the Flat Tire with Third Row Passengers 1.
Page 372: Storing The Spare Tire And Tools
Storing the Flat Tire with a Flat Load Floor 1. Put back all tools as they were stored in the rear storage compartment and put the compartment cover back on. 2. Place the ﬂat tire in the tire storage bag and put the tire in a horizontal position on the ﬂoor in the rear of the vehicle.
Page 373 3. Tilt the retainer downward and slip it through the center hole of the spare tire. Make sure the retainer is fully seated across the underside of the wheel. 4. Attach the wheel wrench to the hoist shaft. 5. Turn the wheel wrench clockwise to lift the spare tire.
Page 374: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inﬂated when the vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on the vehicle, you should stop as soon as possible and make sure the spare tire is correctly inﬂated.
Page 375: Appearance Care
Appearance Care Interior Cleaning Your vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on your upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces. Regular vacuuming is recommended to remove particles from your upholstery.
Page 376: Fabric/Carpet
• Use only mild, neutral-pH soaps. Avoid laundry detergents or dishwashing soaps with degreasers. Using too much soap will leave a residue that leaves streaks and attracts dirt. For liquid cleaners, about 20 drops per gallon (3.78 L) of water is a good guide.
Page 377: Leather
Leather A soft cloth dampened with water can be used to remove dust. If a more thorough cleaning is necessary, a soft cloth dampened with a mild soap solution can be used. Allow the leather to dry naturally. Do not use heat to dry.
Page 378: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 379: Finish Care
Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish. You can get approved cleaning products from your dealer/retailer. See Vehicle Care/Appearance Materials on page 5-98. If your vehicle has a basecoat/clearcoat paint ﬁnish, the clearcoat gives more depth and gloss to the colored basecoat.
Page 380: Aluminun Or Chrome-Plated Wheels And Trim
Aluminum or Chrome-Plated Wheels and Trim Your vehicle may have either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 381: Sheet Metal Damage
Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection. Original manufacturer replacement parts will provide the corrosion protection while maintaining the warranty.
Page 382: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Interior and exterior Polishing Cloth polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. Removes soil and black White Sidewall Tire marks from whitewalls Cleaner and raised white lettering.
Page 383: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Certiﬁcation/Tire and Service Parts labels and the certiﬁcates of title and registration.
Page 384: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer/retailer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 385: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of ﬁres caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 386 Relays Right Side Engine Cooling FAN 2 Fan Motors FAN S/P Series/Parallel Engine Cooling Fan FRT WASH Front Washer Pump 5-102 Usage Relays FOG LAMP SPARE Usage Left Side Engine Cooling FAN 1 Fan Motors Front Fog Lamps Spare...
Page 387 Relays Usage Ignition Switch (ON) STRTR Starter Solenoid PWR/TRN Powertrain/Engine Control Module HI BEAM High-Beam Headlamps SPARE Spare Windshield Wiper System - On/Off Windshield Wiper WPR HI System - Low/High HDLP WASH Headlamp Washer Pump (Option) LO BEAM - Low-Beam Headlamps W/O HID/HID REAR WASH Rear Washer Pump...
Page 388 Mini Fuses Engine Control Module/Transmission ECM/TCM IGN Control Module Ignition Power, Mass Airﬂow Sensor (V6) MISC IGN Air Quality Sensor Pre 02 Sensors, Cam Phasor (V6), EMIS 1 Canister Purge (V6), Intake Manifold Tuning Valve (V6) SPARE Spare Instrument Panel Cluster, Climate DISPLY Control Module, Diagnostic Link Connector...
Page 389: Rear Underseat Fuse Block (Left Side)
Mini Fuses Usage Center Console Accessory AUX OUTLET Power Outlet LT LO BEAM Left Side Low-Beam Headlamp TCM BATT Transmission Control Module (TCM) Rear Wiper Motor & Switch, ACCY WPR Inside Rearview Mirror SPARE Spare SPARE Spare REAR WASH Rear Washer Pump HORN Horn Assembly A/C CLTCH...
Page 390 Relays STOP Not Used Electronic Level Control (ELC) Compressor Motor PRK LAMP Not Used REAR/FOG Not Used 5-106 Usage Relays SPARE RT POS LH/POS/ PRK LAMP SPARE Usage Spare Not Used Front & Rear Park Lamps Spare...
Page 391 Mini Fuses Usage STR/WHL/ Steering Wheel Controls CNTRL Rear Seat Entertainment, RSA/RSE Rear Seat Audio ONSTAR ® OnStar Module, XM™ Radio TV/XM 3RD ROW Flip Fold Seat Switches, Remote SW/RFA Keyless Entry System Module Audio Ampliﬁer REAR SEAT Rear Seat Module, Flip/Fold Motors Driver Door Module (Locks, DRIVER Outside Rearview Mirror,...
Page 392: Right Side
J Case Fuses SPARE Spare Electronic Level Control (ELC) Compressor Circuit Breakers PWR WNDWS Power Window Motors Misc. FUSE PLR Fuse Puller Joint Connector 5-108 Rear Underseat Fuse Block Usage (Right Side) The right side rear fuse block is located under the rear seat on the right side of the vehicle.
Page 393 Relays Usage REAR DEFOG Rear Window Defogger SPARE Spare SPARE Spare Relays Usage UNLCK Rear Door Locks SPARE Spare Rear Door Locks 5-109...
Page 394 Relays Rear Air Conditioning Blower Motor, RUN RLY Climate Control Ignition, Heated Steering Wheel SPARE Spare Mini Fuses WPR ISRVM Rear Wiper Switch, VICS Inside Rearview Mirror THEFT UGDO Garage Door Opener SPARE Spare CNSTR/VENT Canister Vent Solenoid PWER L/GATE Power Liftgate Module REAR DEFOG Rear Window Defogger SPARE Spare...
Page 395: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant Automatic Transmission (Pan Removal and Replacement) 5-Speed Automatic 6-Speed Automatic Cooling System 3.6L V6 4.6L V8 Engine Oil with Filter...
Page 396 Engine 3.6L V6 4.6L V8 5-112 Engine Speciﬁcations VIN Code Transmission Automatic Automatic Spark Plug Gap 0.044 inches (1.10 mm) 0.050 inches (1.27 mm)
Page 397 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 398: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer/retailer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 399 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the Tire and Loading Information label. See Loading Your Vehicle on page 4-33. • are driven on reasonable road surfaces within legal driving limits.
Page 400: Scheduled Maintenance
When you go to your dealer/retailer for your service needs, you will know that trained and supported service technicians will perform the work using genuine parts. If you want to purchase service information, see Service Publications Ordering Information on page 7-17. Owner Checks and Services on page 6-9 tells you what should be checked, when to check it, and what you can easily do to help keep your vehicle in good condition.
Page 401 If the engine oil life system is ever reset accidentally, you must service your vehicle within 3,000 miles (5 000 km) since your last service. Remember to reset the oil life system whenever the oil is changed. See Engine Oil Life System on page 5-19 for information on the Engine Oil Life System and resetting the system.
Page 402: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 403: Maintenance Footnotes
Service and Miles (Kilometers) Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. See footnote (l). If using DOT-4 brake ﬂuid, change brake ﬂuid at a regular maintenance service every two years.
Page 404 (d) Inspect wiper blades for wear, cracking, or contamination. Clean the windshield and wiper blades, if contaminated. Replace wiper blades that are worn or damaged. See Windshield Wiper Blade Replacement on page 5-49 and Windshield and Wiper Blades on page 5-95 for more information. (e) Make sure the safety belt reminder light and safety belt assemblies are working properly.
Page 405: Engine Oil Level Check
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability, and emission control performance of your vehicle. Your dealer/retailer can assist you with these checks and services. Be sure any necessary repairs are completed at once. Whenever any ﬂuids or lubricants are added to your vehicle, make sure they are the proper ones, as shown in Recommended Fluids and Lubricants on page 6-12.
Page 406: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 407: Ignition Transmission Lock Check
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK/OFF in each shift lever position. • The ignition should turn to LOCK/OFF only when the shift lever is in PARK (P). •...
Page 408: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Usage Fluid/Lubricant The engine requires a special engine oil meeting GM Standard GM4718M. Oils meeting this standard can be identiﬁed as synthetic, and should also be identiﬁed with the American Petroleum Institute (API) Certiﬁed...
Page 409 Usage Fluid/Lubricant Manual Transmission Fluid Transfer Case (GM Part No. U.S. 88861800, in Canada 88861801). Multi-Purpose Lubricant, Superlube Hood Hinges (GM Part No. U.S. 12346241, in Canada 10953474). Body Door Hinge Pins, Tailgate Hinge Multi-Purpose Lubricant, Superlube and Linkage, (GM Part No. U.S. 12346241, Folding Seats, in Canada 10953474).
Page 410: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter 3.6L and 4.6L engines Engine Oil Filter 3.6L V6 4.6L V8 Passenger Compartment Air Filter Particle and Odor Filter Particle Filter Spark Plugs 3.6L V6...
Page 411: Engine Drive Belt Routing
Engine Drive Belt Routing 4.6L V8 Engine 3.6L V6 Engine 6-15...
Page 412: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages. You should retain all maintenance receipts.
Page 413 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Stamp Services Performed Reading 6-17...
Page 414 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Stamp Services Performed Reading 6-18...
Page 415: Customer Assistance Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-5 Customer Assistance for Text Telephone (TTY) Users ...7-6 Customer Assistance Offices ...7-6 GM Mobility Reimbursement Program ...7-7 Roadside Service ...7-8 Scheduling Service Appointments ...7-10 Courtesy Transportation ...7-11 Collision Damage Repair ...7-12 Customer Assistance Information Reporting Safety Defects ...7-16...
Page 416: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Cadillac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 417 STEP THREE (United States Owners): Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you should ﬁle with the Better Business Bureau (BBB) Auto Line Program to enforce your rights.
Page 418 STEP THREE (Canadian Owners): General Motors Participation in the Mediation/Arbitration Program In the event that you do not feel your concerns have been addressed after the following the procedure outlined in Steps One and Two. General Motors of Canada Limited wants you to be aware of its participation in a no-charge mediation/Arbitration program.
Page 419: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 420: Customer Assistance For Text Telephone (Tty) Users
(TTY users in Canada can dial 1-800-263-3830.) Customer Assistance Offices Cadillac encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Cadillac, the letter should be addressed to: United States — Customer Assistance Cadillac Customer Assistance Center Cadillac Motor Car Division P.O.
Page 421: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 422: Roadside Service
In the United States or Canada, call 1-800-882-1112. Text Telephone (TTY), U.S. only, call 1-888-889-2438. Service is available 24 hours a day, 365 days a year. As the owner of a new Cadillac vehicle, you are automatically enrolled in the Cadillac Roadside ®...
Page 423 Cadillac Technician Roadside Service (U.S. only) Cadillac’s exceptional Roadside Service is more than an auto club or towing service. It provides every Cadillac owner in the United States with the advantage of contacting a Cadillac advisor and, where available, a Cadillac trained dealer technician who can provide on-site service.
Page 424: Calling For Assistance
Roadside Service is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Cadillac and General Motors of Canada Limited reserve the right to make any changes or discontinue the Roadside Service program at any time without notiﬁcation.
Page 425: Courtesy Transportation
Courtesy Transportation To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for vehicles with the Bumper to Bumper (Base Warranty Coverage period in Canada) and extended powertrain warranty in both the U.S. and Canada. Several courtesy transportation options are available to assist in reducing your inconvenience when warranty repairs are required.
Page 426: Collision Damage Repair
Public Transportation or Fuel Reimbursement If your vehicle requires warranty repairs, and public transportation is used instead of the dealer’s shuttle service, the expense must be supported by original receipts and can only be up to the maximum amount allowed by GM for shuttle service. In addition, for U.S.
Page 427: Repair Facility
Collision Parts Genuine GM Collision parts are new parts made with the same materials and construction methods as the parts with which your vehicle was originally built. Genuine GM Collision parts are your best choice to assure that your vehicle’s designed appearance, durability and safety are preserved.
Page 428: Insuring Your Vehicle
Insuring Your Vehicle Protect your investment in your GM vehicle with comprehensive and collision insurance coverage. There are signiﬁcant differences in the quality of coverage afforded by various insurance policy terms. Many insurance policies provide reduced protection to your GM vehicle by limiting compensation for damage repairs by using aftermarket collision parts.
Page 429 • Remove any valuables from your vehicle before it is towed away. Make sure this includes your insurance information and registration if you keep these items in your vehicle. • Gather the important information you will need from the other driver. Things like name, address, phone number, driver’s license number, vehicle license plate, vehicle make, model and model year, Vehicle Identiﬁcation Number (VIN), insurance company and...
Page 430: Reporting Safety Defects
If another party’s insurance company is paying for the repairs, you are not obligated to accept a repair valuation based on that insurance company’s collision policy repair limits, as you have no contractual limits with that company. In such cases, you can have control of the repair and parts choices as long as cost stays within reasonable limits.
Page 431: Reporting Safety Defects To General Motors
Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 33169 Detroit, MI 48232-5169 In Canada, call 1-888-446-2000, or write: Canadian Cadillac Customer Communication Centre, CA1-163-005 General Motors of Canada Limited 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 Service Publications Ordering...
Page 432: Vehicle Data Recording And Privacy
Current and Past Model Order Forms Technical Service Bulletins and Manuals are available for current and past model GM vehicles. To request an order form, specify year and model name of the vehicle. ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Eastern Time For Credit Card Orders Only (VISA-MasterCard-Discover), visit Helm, Inc.
Page 433: Event Data Recorders
Event Data Recorders This vehicle has an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
Page 434: Onstar
® OnStar ® If your vehicle has OnStar and you subscribe to ® the OnStar services, please refer to the OnStar and Conditions for information on data collection and ® use. See also OnStar System on page 2-47 in this manual for more information. Navigation System If your vehicle has a navigation system, use of the system may result in the storage of destinations,...
Page 435 Accessories and Modiﬁcations ... 5-3 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-70 Additives, Fuel ... 5-7 Add-On Electrical Equipment ... 5-100 Adjustable Throttle and Brake Pedal ... 2-28 Air Cleaner/Filter, Engine ... 5-21 Air Conditioning ... 3-23 Airbag Passenger Status Indicator ... 3-35 Readiness Light ...
Page 436 Audio System ... 3-70 Audio Steering Wheel Controls ... 3-92 Navigation/Radio System, see Navigation Manual ... 3-90 Radio Reception ... 3-93 Rear Seat Audio (RSA) ... 3-90 Setting the Time ... 3-71 Theft-Deterrent Feature ... 3-92 XM™ Satellite Radio Antenna System ... 3-94 Audio System(s) ...
Page 437 Check Engine Light ... 3-42 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ... 5-97 Child Restraints Child Restraint Systems ... 1-39 Infants and Young Children ... 1-35 Lower Anchors and Tethers for Children ... 1-43 Older Children ... 1-32 Securing a Child Restraint in a Rear Seat Position ...
Page 438 Customer Assistance Information (cont.) Customer Satisfaction Procedure ... 7-2 GM Mobility Reimbursement Program ... 7-7 Reporting Safety Defects to General Motors ... 7-17 Reporting Safety Defects to the Canadian Government ... 7-16 Reporting Safety Defects to the United States Government ... 7-16 Roadside Service ...
Page 439 Electrical System (cont.) Rear Underseat Fuse Block ... 5-105, 5-108 Underhood Fuse Block ... 5-101 Windshield Wiper Fuses ... 5-100 Engine Air Cleaner/Filter ... 5-21 Check and Service Engine Soon Light ... 3-42 Coolant ... 5-23 Coolant Heater ... 2-28 Coolant Temperature Gage ...
Page 440 Fuses Fuses and Circuit Breakers ... 5-101 Rear Underseat Fuse Block ... 5-105, 5-108 Underhood Fuse Block ... 5-101 Windshield Wiper ... 5-100 Gage Engine Coolant Temperature ... 3-40 Fuel ... 3-47 Speedometer ... 3-33 Tachometer ... 3-33 Garage Door Opener ... 2-50 Gasoline Octane ...
Page 441 Ignition Positions ... 2-25 Infants and Young Children, Restraints ... 1-35 Inﬂation - Tire Pressure ... 5-59 Instrument Panel Overview ... 3-4 Instrument Panel (I/P) Brightness ... 3-19 Cluster ... 3-32 Jump Starting ... 5-40 Keyless Entry System ... 2-4 Keys ...
Page 442 Lights ... 3-16 Flash-to-Pass ... 3-9 High/Low Beam Changer ... 3-8 On Reminder ... 3-16 Limited-Slip Rear Axle ... 4-7 Loading Your Vehicle ... 4-33 Lockout Protection ... 2-12 Locks Central Door Unlocking System ... 2-10 Delayed Locking ... 2-11 Door ...
Page 443 Navigation System, Privacy ... 7-20 Navigation/Radio System, see Navigation Manual ... 3-90 New Vehicle Break-In ... 2-24 Normal Maintenance Replacement Parts ... 6-14 Odometer ... 3-33 Off-Road Driving ... 4-12 Off-Road Recovery ... 4-10 Engine ... 5-16 Pressure Light ... 3-44 Oil, Engine Oil Life System ...
Page 444 ® PASS-Key III+ ... 2-22 ® PASS-Key III+ Operation ... 2-22 Perchlorate Materials Requirements, California ... 5-4 Power Door Locks ... 2-10 Electrical System ... 5-100 Liftgate ... 2-13 Lumbar Controls ... 1-4 Retained Accessory (RAP) ... 2-26 Seat ... 1-3 Steering Fluid ...
Page 445 Removing the Flat Tire and Installing the Spare Tire ... 5-80 Removing the Spare Tire and Tools ... 5-77 Reporting Safety Defects Canadian Government ... 7-16 General Motors ... 7-17 United States Government ... 7-16 Restraint System Check Checking the Restraint Systems ... 1-72 Replacing Restraint System Parts After a Crash ...
Page 446 Shifting Out of Park (P) ... 2-38 Signals, Turn and Lane-Change ... 3-8 Spare Tire Compact ... 5-90 Installing ... 5-80 Removing ... 5-77 Storing ... 5-87 Speciﬁcations, Capacities ... 5-111 Speedometer ... 3-33 ® StabiliTrak System ... 4-7 Start Vehicle, Remote ... 2-7 Starting the Engine ...
Page 447 Tires (cont.) Installing the Spare Tire ... 5-80 Pressure Monitor Operation ... 5-62 Pressure Monitor System ... 5-61 Removing the Flat Tire ... 5-80 Removing the Spare Tire and Tools ... 5-77 Secondary Latch System ... 5-84 Storing a Flat or Spare Tire and Tools ... 5-87 Tire Sidewall Labeling ...
Page 448 Vehicle Control ... 4-3 Damage Warnings ... iv Loading ... 4-33 Symbols ... iv Vehicle Customization, DIC ... 3-62 Vehicle Data Recording and Privacy ... 7-18 Vehicle Identiﬁcation Number (VIN) ... 5-99 Service Parts Identiﬁcation Label ... 5-99 Vehicle, Remote Start ... 2-7 Ventilation Adjustment ...

Cadillac 2008 SRX Owner's Manual

Section 1 Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Object Detection Systems

Onstar System

Universal Home Remote System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

All-Wheel Drive

Rear Axle

Front Axle

Bulb Replacement

Headlamp Aiming

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Cadillac 2008 SRX

Summary of Contents for Cadillac 2008 SRX
