Read this manual carefully
before installing system.

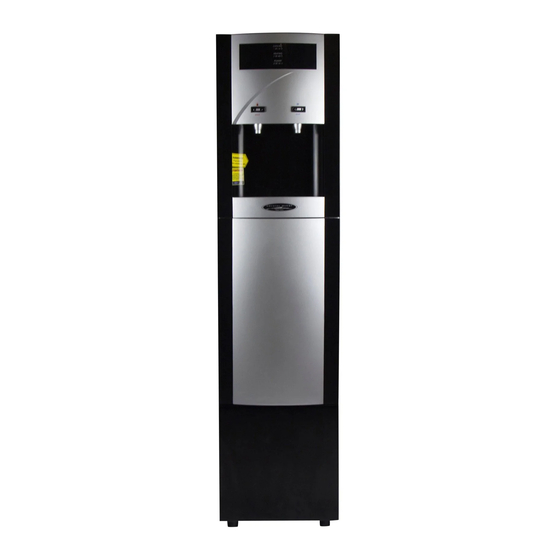

Crystal Quest
Bottleless Water Coolers
Installation and Operation Guide
OPERATING SPECIFICATIONS
Pressure Range:
Temperature Range:
Optimum Service Flow:
®
Point of Use
30-60 psi (2.1-4.1 bar)
40-100ºF (4.4-37.7ºC)
0.50 gpm at 60 psi
(1.1 lpm at 4.1 bar)
Certified Manufacturer
(All drawings, pictures, colors and sizes are
approximate for illustrative purposes only and
may not exactly resemble the end product.)
ISO 9001:2008
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Crystal Quest Turbo
Summary of Contents for Crystal Quest Turbo
- Page 1 ® Crystal Quest Point of Use Bottleless Water Coolers Installation and Operation Guide OPERATING SPECIFICATIONS Pressure Range: 30-60 psi (2.1-4.1 bar) Temperature Range: 40-100ºF (4.4-37.7ºC) Optimum Service Flow: 0.50 gpm at 60 psi (1.1 lpm at 4.1 bar) ISO 9001:2008...
-
Page 2: Table Of Contents
Locate the system near a cold water supply line. Do not set the system farther than 15 ft. from the cold water line. Use copper tubing to avoid water line puncture and rodent bites. Failure to do so may cause major property damage. Crystal Quest accepts no liability for ®... -
Page 3: System Specifications (Turbo/Sharp)
SYSTEM SPECIFICATIONS SYSTEM SPECIFICATIONS not exactly resemble the end product.) ® CRYSTAL QUEST Turbo Floor Turbo CRYSTAL QUEST Turbo Floor Water Cooler ® Water Cooler “Cooling” Indicator Light Premium Floor “Heating” Indicator Cold Water Switch Turbo Light... -
Page 4: System Specifications (Elegant/Hybrid)
ELEGANT / HYBRID ELEGANT / HYBRID SYSTEM SPECIFICATIONS SYSTEM SPECIFICATIONS ® CRYSTAL QUEST Elegant Floor Elegant CRYSTAL QUEST Elegant Floor Water Cooler ® Water Cooler Display Screen On/Off Switch Handle Hot Water Temperature Control Cold Water Temperature Elegant Floor Control with Wheels Hot Water On/Off Switch... -
Page 5: Installation Instructions
Do not use any other plastic water supply line because the ® ® line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your location. Crystal Quest accepts no liability for property ®... -
Page 6: Circuit And Installation Diagrams
CIRCUIT AND CIRCUIT AND INSTALLATION INSTALLATION DIAGRAMS DIAGRAMS Turbo / Sharp Floor / Countertop Point of Use Water Coolers Circuit Diagram Turbo / Sharp Floor Point of Use Water Coolers Install to cold water supply line Turbo / Sharp Countertop... -
Page 7: Install Water Cooler System To Water Supply
INSTALL WATER INSTALL WATER COOLER SYSTEM COOLER SYSTEM TO WATER SUPPLY TO WATER SUPPLY Installing the Saddle Valve System Set-up & Preparation A. Choose the valve location. CAUTION: Adjust the cold water supply line at the T-Valve (Fig 1) by •... -
Page 8: Service Information And Guidelines
SERVICE INFORMATION SERVICE INFORMATION AND GUIDELINES Feedwater Filtered Water Feedwater AND GUIDELINES Filtered Water Servicing the Filter (Fig 3) Shut off water at the water supply line. Turn off hot and cold water switches. Unplug the cord from outlet. Drain tubing completely. Disconnect tube from filter. -
Page 9: Replacement Cartridges
(Optional) UV Light Replace the cartridge as CQE-UV-00101 required or every 12 - 18 months depending on feedwater quality Turbo Countertop Replacement Cartridges Replace the cartridge as CQE-RC-04057 required or every 12 - 18 months depending on feedwater quality... -
Page 10: Troubleshooting Guide (Water Problems)
Problem System Probable Cause Solution Checklist No water Turbo • Water supply is turned OFF. • Turn water ON. Verify Crystal Quest® water shut-off valve is open. Sharp • Floater has tripped. • Lift off cabinet top, remove reservoir’s lid, and adjust the floater. Not enough water Turbo • Water supply is blocked. -
Page 11: Troubleshooting Guide (Unit Problems)
TROUBLE SHOOTING TROUBLE SHOOTING GUIDE (Unit Problems) GUIDE (Unit Problems) Problem Solution Checklist No cold water and compressor rattling • Check voltage received by cooler not running. • Check cold control. • Check wires. • Check compressor relay. • Check compressor overload. •... -
Page 12: Access To Parts Inside The System
ACCESS TO PARTS ACCESS TO PARTS INSIDE THE SYSTEM INSIDE THE SYSTEM Switch Connectors C. Accessing Switch Connectors Acessing the System Inside Unplug the system. Remove two screws and remove the Before beginning the service inspection and/or repair, remove the cooler top and back cabinet lid. -
Page 13: Water Cooler Heating Reservoir Replacement Guide
ACCESS TO ACCESS TO HEATING RESERVOIR HEATING RESERVOIR Turbo Water Cooler Heating Reservoir Replacement Guide Sharp Water Cooler Heating Reservoir Replacement Guide NOTICE: Ensure both heating and cooling switches are turned off, power cord is unplugged from wall and water supply is turned off before servicing the machine to avoid damage or injury. Preparation Preparation •... -
Page 14: Water Coolers (Optional Cartridges & Accessories)
(OPTIONAL CARTRIDGES & ACCESSORIES) CQE-OZ-00101 ® Crystal Quest Ozonator Sterilizer System Automatically sanitizes the cooler through a burst of ozone into the cooling tank and system. Ozonation kills any bacteria in a safe, odorless and taste free way. Ozone is a natural sterilization process that ensures your water is bacteria free. Once ozone has finished its sterilization job, it... -
Page 15: System Warranty
® delay of claim. All claims for shipping damages must be made within five business days from delivery. • If the merchandise was dropped off at your location (this is determined by seeing that the tracking information has a “delivered” status), Crystal Quest cannot be held liable or ® responsible for lost, stolen, or damaged goods. -
Page 16: Ordering Replacement Cartridges
A TASTE OF NATURE ® To order replacement cartridges, To order replacement cartridges, contact your Crystal Quest contact your Crystal Quest Dealer Dealer ® ® or visit us online at: or visit us online at: http://www.crystalquest.com http://www.crystalquest.com Installation and Maintenance Instructions...
