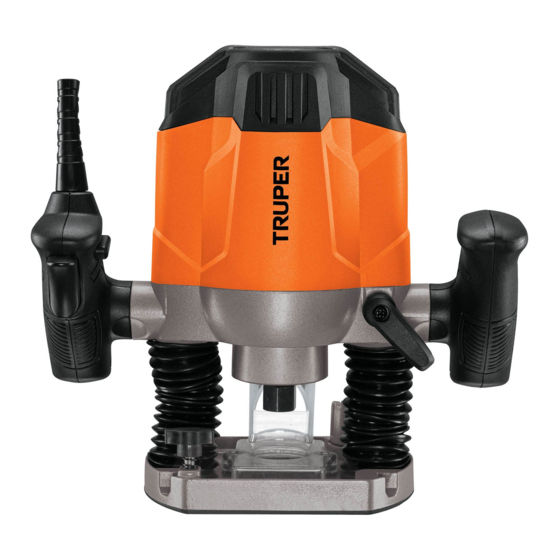

- Page 1 Manual Router Power 1 3/4 Hp Applies for: Code Model 100954 ROU-A3 ROU-A3 Read the user’s manual thoroughly CAUTION before operating this tool.
-
Page 2: Table Of Contents
Manual before Parts using the tool. Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Notes Authorized Service Centers Warranty Policy ROU-A3 ENGLISH... -
Page 3: Technical Data
Technical Data ROU-A3 Code 100954 Description Router Voltage 127 V Frequency 60 Hz Current Power 1 3/4 Hp Speed 19000 - 32 000 RPM Chuck collet 6 mm - 8 mm Work cycle 30 minutes work per 15 minutes idle. -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Routers
Safety warnings for routers WARNING • Install only bits with the right size into CAUTION • Allow the bit to stop completely before the chuck. removing any cut or stuck material around the bit area. CAUTION • Do not try to start the router when the WARNING •... -
Page 6: Assembly
Assembly Dust extractor Dust extracting assembly (optional) • Use the long screws to fit the dust extractor onto the router base. The extractor adaptor is suitable for vacuum cleaner with a 36 mm diameter. Axis lock Bit assembly • Disconnect the router from the power source. •... -
Page 7: Start Up
Start Up Cutting depth adjustment • Install the bit (A) needed for the job. Loosen the fastening knob in the depth stop (B) and loosen the cutting depth safety lock (C) moving it up. • Push the router down until the bit makes contact with the work piece and secure it in position moving the cutting... - Page 8 Start Up Start and operation control • To turn on the router, press the switch (I) and then switch (H). • To interrupt its operation, release the switch (H). Bit speed adjust • Turn the speed adjust disc (J) to increase or lessen the bit speed.
-
Page 9: Maintenance
Start Up Additional advise • When using the router on free hand mode keep in mind the bit rotates in a clockwise direction, so to prevent from kickback is important to move the tool from left to right. For outer edges move the tool in a counterclockwise direction. -
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. DE TODO PARA LA CONSTRUCCIÓN FIX FERRETERÍAS... -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
