Sovereign Q0M-DC-4E1 Original Instruction Manual

3.6v cordless rotary tool kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

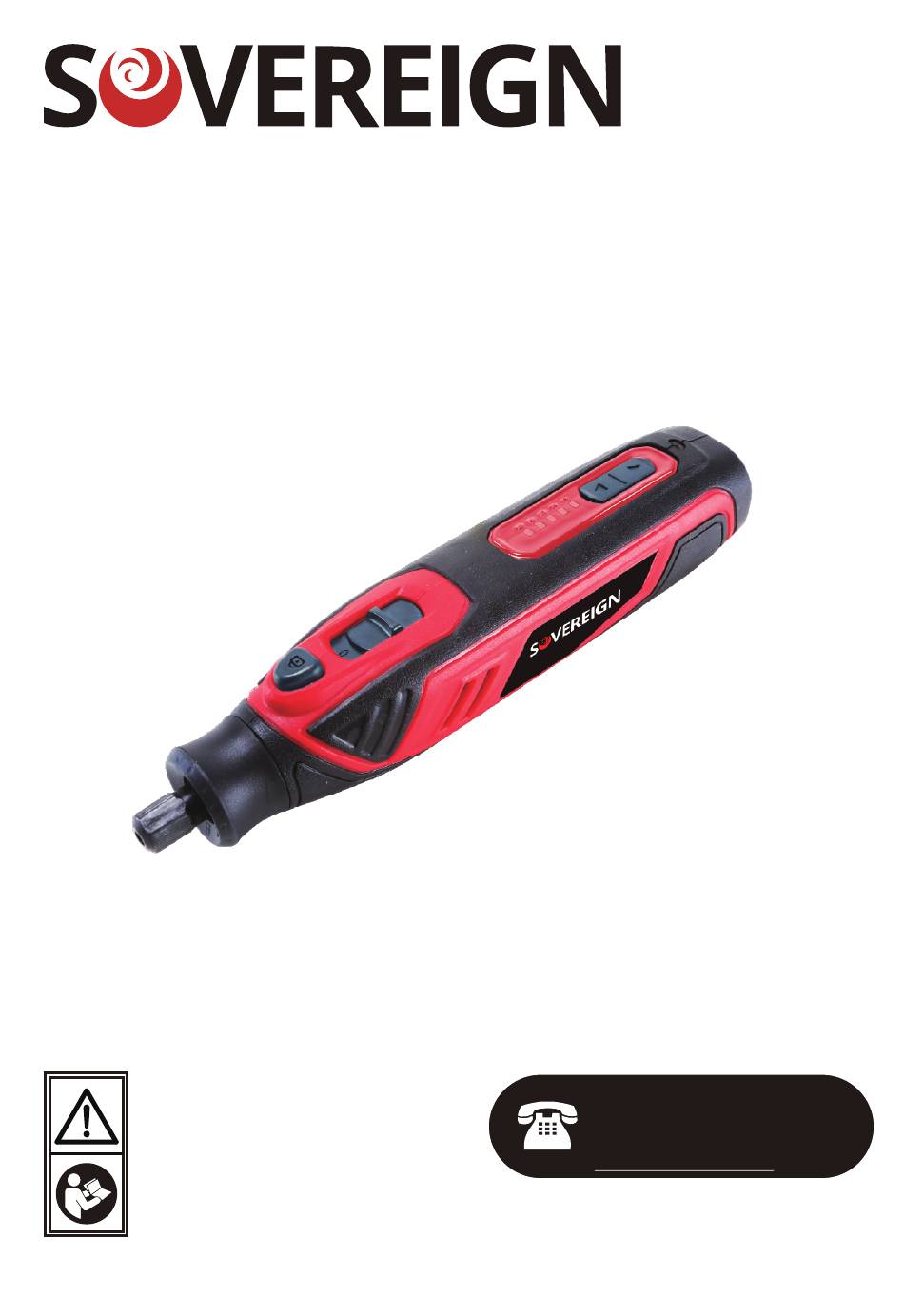

3.6V CORDLESS ROTARY TOOL KIT
Item No. 612324
Model No. Q0M-DC-4E1
ORIGINAL INSTRUCTION MANUAL
Please read these instructions fully before starting assembly.
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
Technical Support & Parts
01904 727509
Mon-Fri 9am-5pm Sat-Sun 11am-4pm
www.coreservice.co.uk
June 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q0M-DC-4E1 and is the answer not in the manual?

Questions and answers

Related Manuals for Sovereign Q0M-DC-4E1

Summary of Contents for Sovereign Q0M-DC-4E1

  • Page 1 3.6V CORDLESS ROTARY TOOL KIT Item No. 612324 Model No. Q0M-DC-4E1 Technical Support & Parts 01904 727509 Mon-Fri 9am-5pm Sat-Sun 11am-4pm www.coreservice.co.uk ORIGINAL INSTRUCTION MANUAL Please read these instructions fully before starting assembly. HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576...

  • Page 2: Table Of Contents

    CONTENTS Contents General safety warnings Warning symbols In the box Operation Maintenance and storage Technical data Recycling and disposal Getting help Warranty...

  • Page 3: General Safety Warnings

    GENERAL SAFETY INFORMATION WARNING! Read all safety warnings, provided with this power tool. Failure to follow all instructions listed below injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.
  • Page 4 tools. reduce risk of electric shock. b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet conditions.
  • Page 5 or medication. A moment of inattention while operating power tools may result in serious personal injury. wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c.
  • Page 6 of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. 4) Power tool use and care a. Do not force the power tool. Use the correct power tool for your application.
  • Page 7 power tool repaired before use. Many accidents are caused by poorly maintained power tools. f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g. Use the power tool, accessories and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 8 SAFETY INSTRUCTIONS FOR ALL OPERATIONS Safety Warnings common for grinding, sanding, wire brushing, polishing, carving or abrasive a) This power tool is intended to function as a grinder, sander, wire brush, polisher, carver or ad all safety warnings, instructions, power tool. Failure to follow all instructions listed injury.
  • Page 9 f) The arbour size of wheels, sanding drums or or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. g) Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet or chuck.
  • Page 10 generated by various operations. The dust mask generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. j) Keep bystanders a safe distance away from the work area. Anyone entering the work area must wear personal protecti t.
  • Page 11 n) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. o) Never lay the power tool down until the accessory has come to a complete stop.
  • Page 12 Further safety instructions for all operations Kickback and related warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation.
  • Page 13 c) Do not attach a toothed saw blade. Such blades create frequent kickback and loss of control. d) Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown).
  • Page 14 size and length. Proper mandrels will reduce the possibility of breakage. pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or snagging of the wheel in the cut and the possibility of kickback or wheel breakage.
  • Page 15 the line of cut and near the edge of the workpiece on both sides of the wheel. h) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
  • Page 16 Safety Warnings for battery cells inside the tool a. Do not dismantle, open or shred cells. b. Do not short-circuit a charging terminal. Do not store power tools haphazardly in a box or drawer where the charging terminal may short-circuit each other or be short-circuited by conductive materials.
  • Page 17 (20°C ± 5°C). electrochemical systems separate from each other. SOVEREIGN. Do not use any charger other than A charger that is suitable for one type another battery. o. Keep the power tool out of the reach of children.
  • Page 18 Safety warnings for the charger WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision...
  • Page 19 For indoor use; do not expose to rain. The charging device must be protected from moisture. Do not use the charging device in the open. Do not short out the contacts of the battery or charger. 11. Do not open the unit, and keep out of the reach of children.
  • Page 20 4.5°C, or above 40.5°C. This is important, as it can prevent serious damage to the battery pack. 18. Charge only battery packs of the same model provided by SOVEREIGN and of models recommended by SOVEREIGN.

  • Page 21: Warning Symbols

    WARNING SYMBOLS Warning! Read the instructions Wear ear protection Wear eye protection Wear a dust mask The product complies with the applicable European directives, and an evaluation method of conformity for these directives was done. Recycle unwanted materials instead of disposing of them as household waste.

  • Page 22: In The Box

    IN THE BOX Description 1. Collet nut 5. Speed selector Spindle lock button 6. Charging indicator 7. Charging socket 4. Speed display 8. Type-C cable Accessories 2 x hss cutters 1 x mandrel for sanding bands 1pc mandrel for sanding bands 1 x madrel for felt wheel 4 x sanding bands 4pc sanding bands...

  • Page 23: Operation

    OPERATION NOTE: Before using the tool, read the instruction book carefully. Intended Use This tool is intended for grinding, polishing metal as well as for cutting metal and drilling in metal and wood. BEFORE PUTTING INTO OPERATION 1. CHARGING (SEE FIG. A) NOTE: a) Do not use any charger cable other than that specifically provided for use with the tool.
  • Page 24 IMPORTANT: When charging, the charger and tool may become warm to the touch, this is normal and does not indicate a problem. WARNING! When the battery charge runs out after continuous use or exposure to direct sunlight or heat, allow time for the tool to cool down before re-charging to achieve the full charge.
  • Page 25 3. FITTING A CUTTING/SANDING WHEEL (SEE FIG. C, D) collet spanner. Insert the screw through the cutting wheel and otherwise the wheel may crack. 4. ASSEMBLING THE FELT WHEEL (SEE FIG. E) The felt wheel is used with the mandrel. Thread the wheel on to the screw carefully.
  • Page 26 5. FITTING THE SANDING ROLL (SEE FIG. F1, F2, F3) of the hole for the rubber wheel, this will allow the rubber to relax. Slide the sanding roll onto the holder. To secure, simply tighten the screw and the rubber roll will swell, gripping the sanding drum.
  • Page 27 6. SWITCH ON/OFF (SEE FIG. G1, G2) To stop, press the switch to “O” OFF position. 7. SPEED ADJUSTMENT (SEE FIG. H) materials, you can adjust the tool speed. It is adjustable from 5000 to 25000rpm. The tool has a variable speed control for precise speed adjustment.
  • Page 28 Select a low speed when working with wood, plastics and polishing. Generally, select a higher speed for small tools while lower speed for larger tools. From number “1” to "5.", the speed is corresponding 5000/10000/15000/20000/25000rpm Gear No-load speed (rpm) 5000 10000 15000 20000 25000 Some guidelines regarding tool speed: •...

  • Page 29: Maintenance And Storage

    9. HOLDING THE TOOL For milling or engraving, hold the tool like a pen. Take care not to cover the ventilation slots. The tool will get warm during normal operation. Observe the rated operating time. 10. USING THE DRILLS The HSS twist drills are used to cut through all types of steels and steel composites.

  • Page 30: Technical Data

    TECHNICAL DATA Model Q0M-DC-4E1 3.6V 2000mAh Li-ion No-load speed 5000-25000/min Max. collect capacity Φ3.2mm Weight 0.3kg NOISE AND VIBRATION DATA A weighted sound pressure (L 77.2 dB(A), k=3dB(A) A weighted sound power (L 88.2 dB(A), k=3dB(A) Vibrations 2.514 The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
  • Page 31 The tightness of the grip on the handles and if any anti-vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome WARNING! To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle, such as running idle but not actually doing the job.

  • Page 32: Recycling And Disposal

    RECYCLING AND DISPOSAL Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. GETTING HELP Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical send an email via support@coreservice.co.uk.

  • Page 33: Warranty

    WARRANTY This product is covered by a 1 year warranty. The warranty covers any manufacturing defect in materials, Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 12 months of the date of purchase.
