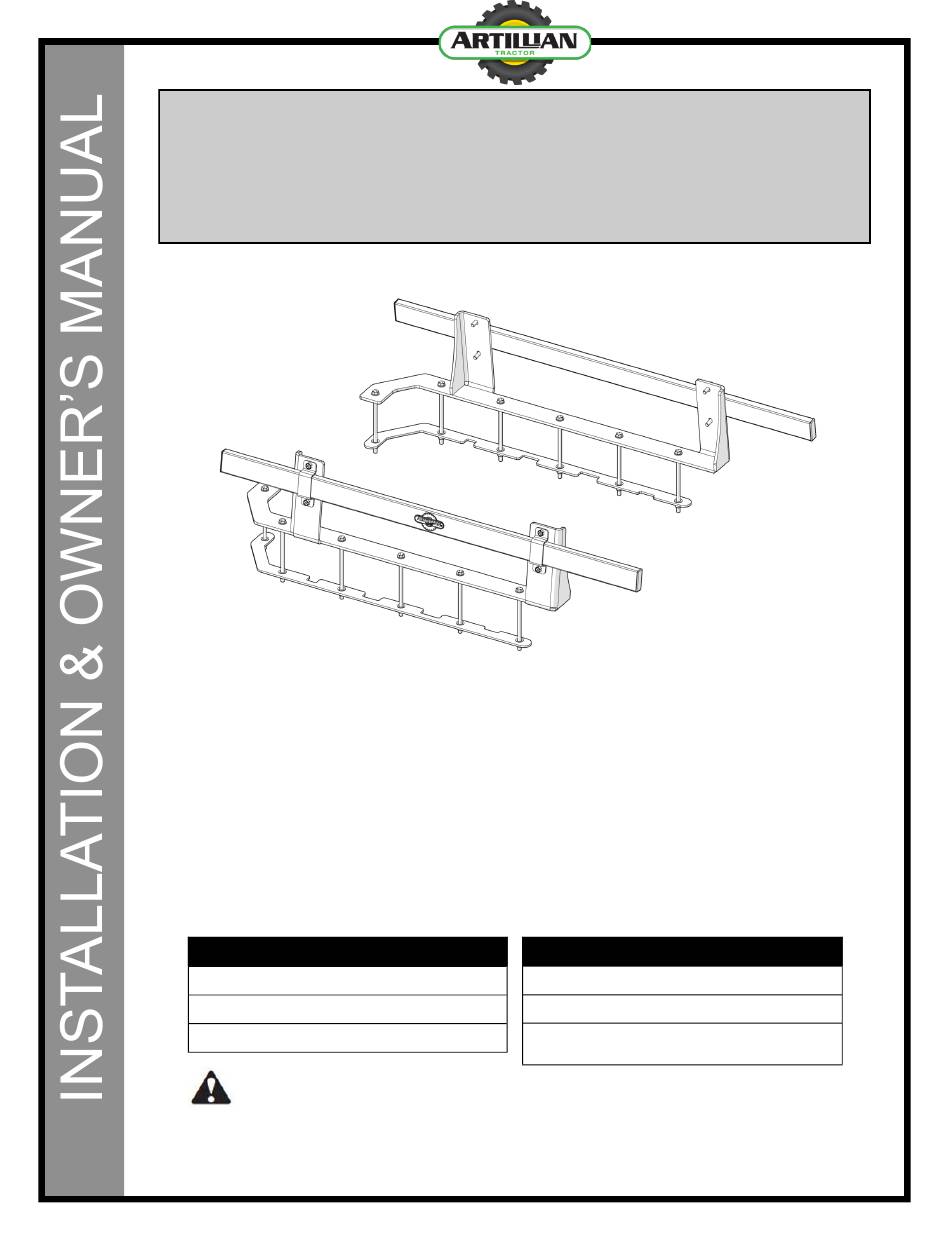

ARTILLIAN UTV BED MOUNTED TOOL BAR FOR
Fits UTV Models: POLARIS RANGER 1000, XP 1000 &
The Artillian UTV Tool Rack is an innovative system for attaching
accessories to the vehicle's bed. It allows for carrying ladders, wood, and
any of the Artillian ROPS Mounted Tool Bar Accessories.
The Artillian UTV Bed Mounted Tool Bar for Polaris Ranger 1000 &
Gravely Atlas JSV 3400SD seamlessly integrates the UTV Tool Rack to
the Polaris Ranger 1000 or Gravely Atlas JSV vehicles.
The proprietary Cam Lever Latching feature found on the many optional
accessories allows for installation and removal of a given accessory in
seconds.
Approximate Installation Time
Experienced Dealer Technician – 30 Minutes
Average Dealer Technician – 45 Minutes
Do-It-Yourself – 60 Minutes
CAUTION
The contents of this envelope are the property of the owner. Leave with the owner when installation is complete.
All images shown are for illustration purposes only. Actual product may vary due to product enhancement.
POLARIS RANGER 1000
P/N: 1UTVTBPR
GRAVELY ATLAS JSV 3400SD
Do not exceed the rated capacity for the Tool Bar or its accessories.
Doing so may result in damage to the Tool Bar and will void the warranty.
Approximate Product Specifications
Mounting Bar Width: 42 inches
Weight: 37 lbs. (not including accessories)
Capacity: 100 lbs./tool bar (including
accessories)
Rev. B, 11/04/2021
1 of 8
p/n: IM-1UTVTBPR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1UTVTBPR and is the answer not in the manual?

Questions and answers

Related Manuals for Artillian 1UTVTBPR

Summary of Contents for Artillian 1UTVTBPR

  • Page 1 It allows for carrying ladders, wood, and any of the Artillian ROPS Mounted Tool Bar Accessories. The Artillian UTV Bed Mounted Tool Bar for Polaris Ranger 1000 & Gravely Atlas JSV 3400SD seamlessly integrates the UTV Tool Rack to the Polaris Ranger 1000 or Gravely Atlas JSV vehicles.

  • Page 2: Tools Required

    2 of 8 WARNINGS, TIPS, & REQUIRED TOOLS Artillian products feature an assembly of parts designed for your vehicle which require adjustment and alignment of components to accommodate vehicle variations and provide proper installation. For accurate installation, proper operation, and years of satisfaction, please read and understand the installation and owner’s manual fully prior to installing the...

  • Page 3: Kit Installation

    Fig. 2; Remove Left Tail Light Artillian strives to continuously improve our products. As such, the actual product may vary from the images shown throughout this manual.
  • Page 4 Backing Plate Inserts on Underside 10. See Installation Manual for Artillian UTV Bed Mounted Tool Rack (1UTVRK) to complete installation of the Fig. 8; Install Left Bracket and Backing Plate tool rack. Once installation of the tool rack is complete, finish the below steps to complete this kit installation.
  • Page 5 Vertical tubes are placed on the top/inside of the assembly. 7. Repeat steps 1-6 on the right side of the vehicle. 8. See Installation Manual for Artillian UTV Bed Mounted Tool Rack (1UTVRK) to complete installation of the tool rack.

  • Page 6: Service Parts

    6 of 8 SERVICE PARTS: BACKING PLATE ASS’Y, RIGHT BACKING PLATE ASS’Y, LEFT TUBE CLAMP ASS’Y. P/N: 8SV-113-00263-L (QTY.: ONE) P/N: 8SV-113-00263-R (QTY.: ONE) P/N: 8SV-110-00068 (QTY.: ONE) MOUNTING BRACKET, LEFT MOUNTING BRACKET, RIGHT MOUNTING BAR ASS’Y. (REF.: 42” LG.) P/N: 8SV-SM-02041-L (QTY.: ONE) P/N: 8SV-SM-02041-R (QTY.: ONE) P/N: 8SV-113-00186 (QTY.: ONE)

  • Page 7: Available Accessories

    7 of 8 AVAILABLE ACCESSORIES: ROPS MOUNTED TOOLBOX, X-LARGE ROPS MOUNTED TOOLBOX, MEDIUM ROPS MOUNTED TOOL RACK P/N: 1RMTBXS P/N: 1RMTBXL P/N: 1RMTRK ROPS MOUNTED CHAINSAW MOUNT ROPS MOUNTED FUEL CAN HOLDER ROPS MOUNTED TOOL BASKET P/N: 1RMCSM P/N: 1RMFCH P/N: 1RMTBSK (chainsaw shown for illustration purposes) (fuel can, etc.
  • Page 8 Artillian, LLC warrants to the original purchaser that this product will be free from defects in material and workmanship for a period of 90 days from the date possession taken by the original purchaser for use with Artillian hydraulic products and used as intended and under normal service and conditions for personal use.
