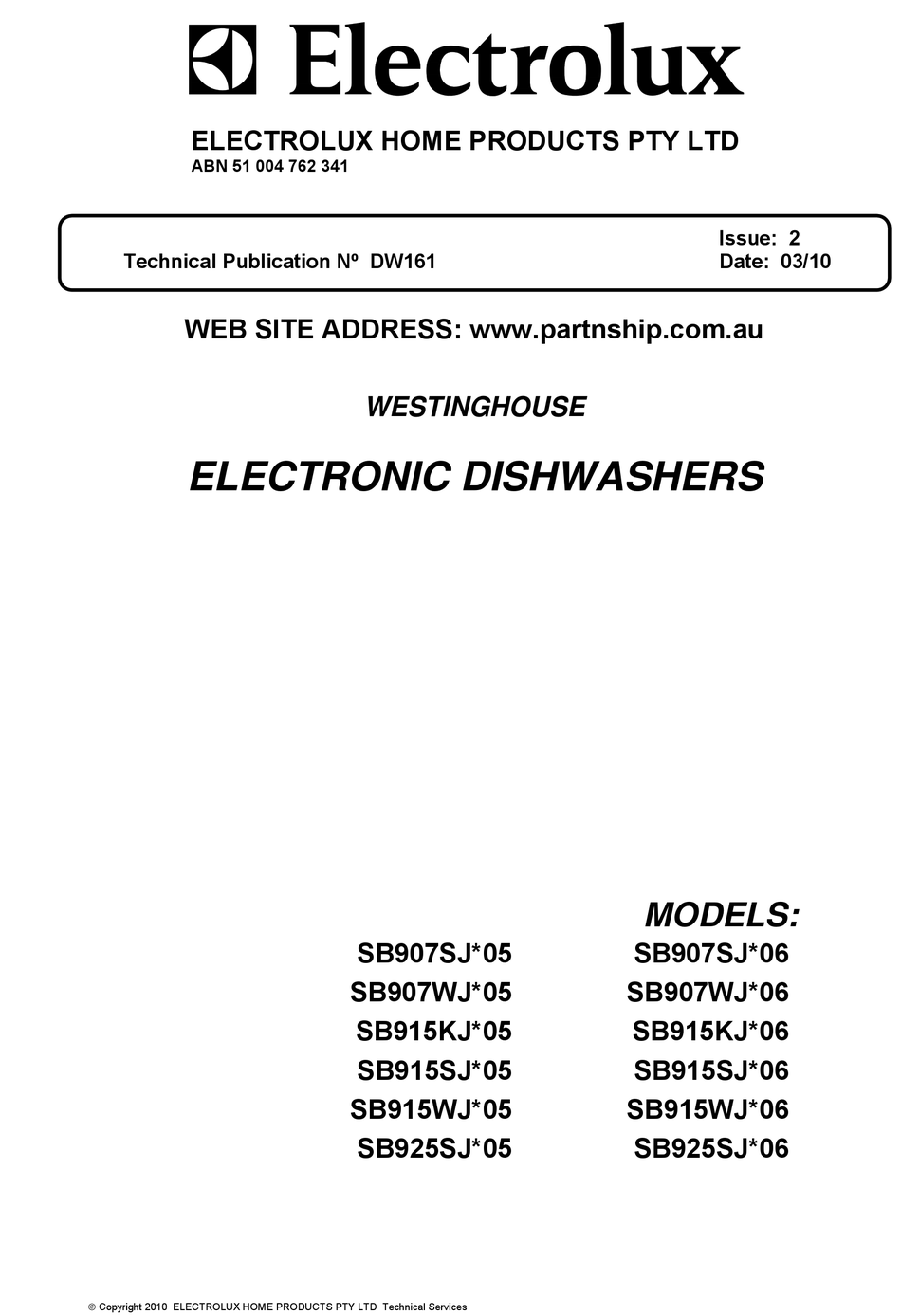

ELECTROLUX HOME PRODUCTS PTY LTD
ABN 51 004 762 341
Technical Publication Nº DW161
WEB SITE ADDRESS: www.partnship.com.au
ELECTRONIC DISHWASHERS
 Copyright 2010 ELECTROLUX HOME PRODUCTS PTY LTD Technical Services
WESTINGHOUSE
SB907SJ*05
SB907WJ*05
SB915KJ*05
SB915SJ*05
SB915WJ*05
SB925SJ*05
Issue: 2
Date: 03/10
MODELS:
SB907SJ*06
SB907WJ*06
SB915KJ*06
SB915SJ*06
SB915WJ*06
SB925SJ*06

Advertisement

loading
Need help?

Need help?

Do you have a question about the SB907SJ05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electrolux SB907SJ05

  • Page 1 ABN 51 004 762 341 Issue: 2 Technical Publication Nº DW161 Date: 03/10 WEB SITE ADDRESS: www.partnship.com.au WESTINGHOUSE ELECTRONIC DISHWASHERS MODELS: SB907SJ*05 SB907SJ*06 SB907WJ*05 SB907WJ*06 SB915KJ*05 SB915KJ*06 SB915SJ*05 SB915SJ*06 SB915WJ*05 SB915WJ*06 SB925SJ*05 SB925SJ*06  Copyright 2010 ELECTROLUX HOME PRODUCTS PTY LTD Technical Services...
  • Page 2 VARIANT CHANGE SUMMARY Introduction of the Solaro Door Seal & Seal Retainers. **NOTE: These are NOT interchangeable on <*05 Service Variants, as the mounting holes for the retainers have been moved back 3mm to the rear of the liner. Outsource Harness, Door Lock Unit, ON/OFF Switch & Bracket Assembly. Hose Drain Modified **NOTE: This change was only a ‘factory process’...
  • Page 3: Table Of Contents

    SECTION PAGE Nº VARIANT CHANGE SUMMARY and FIRST BUILD DATES CONTENTS CABINET and BASE ASSEMBLY 4 – 5 LINER ASSEMBLY 6 – 7 SB907SJ/WJ DOOR ASSEMBLY 8 – 9 SB915KJ/SJ/WJ DOOR ASSEMBLY 10 – 11 SB925SJ DOOR ASSEMBLY 12 – 13 SUMP, PUMP and WATER SYSTEM 14 –...
  • Page 4: Cabinet And Base Assembly

    MODELS: SB907SJ*05 SB907WJ*05 EX. VIEW DRAWING 4350 SB915KJ*05 SB915SJ*05 CABINET and BASE SB915WJ*05 SB925SJ*05 ASSEMBLY Page 4 DW161...
  • Page 5 ITEM PART N° DESCRIPTION Ex. 4350 0150 400 097G Screw Cab. Trims 0545 410 001 Trim Cabinet Top St/St 0545 400 402 Trim Cabinet LH. St/St 0545 400 401 Trim Cabinet RH. St/St 0038 477 004 Wrap - White (Inc. Items 7 & 8) 0038 477 005 Wrap - Black (Inc.
  • Page 6: Liner Assembly

    MODELS: SB907SJ*05 SB907WJ*05 EX. VIEW DRAWING 4365 SB915KJ*05 SB915SJ*05 LINER ASSEMBLY SB915WJ*05 SB925SJ*05 Page 6 DW161...
  • Page 7 ITEM PART N° DESCRIPTION Ex. 4365 0012 400 075 Support Frame Assy. Tapped LH. (Inc. Item 2) 0061 400 004G Pivot Hinge 0125 400 027 Clip Door Pivot 0581 400 014G Pad Guard Door Hinge (LH.) 0150 400 105 Screw M5 Taptite Truss Hd 6* Zc 0045 477 014 Hinge Kit L/H 0045 477 015...
  • Page 8 MODELS: SB907SJ*05 SB907WJ*05 EX. VIEW DRAWING 4375 DOOR ASSEMBLY Page 8 DW161...
  • Page 9 ITEM PART N° DESCRIPTION Ex. 4375 0444 416 002 Trim Insert Control Panel 0444 416 001 Trim Insert Control Panel N.P.N. NOT USED IN THIS MODEL 0038 438 006 Panel Control - Grey 0038 438 004 Panel Control - White 0612 408 003 Button Set - Grey 0612 408 001...
  • Page 10 MODELS: SB915KJ*05 SB915SJ*05 EX. VIEW DRAWING 4375 SB915WJ*05 DOOR ASSEMBLY Page 10 DW161...
  • Page 11 ITEM PART N° DESCRIPTION Ex. 4375 N.P.N. NOT USED IN THIS MODEL 0444 416 005 Trim Insert Control Panel 0444 416 004 Trim Insert Control Panel 0444 416 003 Trim Insert Control Panel 0038 438 005 Panel Control - Black 0038 438 012 Panel Control - St/St 0038 438 011...
  • Page 12 MODEL: SB925SJ*05 EX. VIEW DRAWING 4375 DOOR ASSEMBLY Page 12 DW161...
  • Page 13 ITEM PART N° DESCRIPTION Ex. 4375 N.P.N. NOT USED IN THIS MODEL 0444 416 006 Trim Insert Control Panel 0038 438 013 Panel Control - St/St 0612 408 003 Button Set - Grey N.P.N. NOT USED IN THIS MODEL 0030 400 145 Bracket ON/OFF Switch (Not as Shown) 0701 002 074 Screw Nº...
  • Page 14: Sump, Pump And Water System

    MODELS: SB907SJ*05 SB907WJ*05 EX. VIEW DRAWING 4310 SB915KJ*05 SB915SJ*05 SUMP, PUMP & SB915WJ*05 SB925SJ*05 WATER SYSTEM Page 14 DW161...
  • Page 15 ITEM PART Nº DESCRIPTION Ex. 4310 0130 400 004 Housing Active Dry Refer Item 1 Gasket Housing Active Dry Clamp Hose 15.5mm 8905138 0571 400 138 Hose Inlet to Syphon Break 0026 400 003 Fan Dry Unit Refer Item 5 Gasket Fan Dry Unit 0559 400 003 Duct Condensor Complete...
  • Page 16: Basket Assembly

    MODELS: SB907SJ*05 SB907WJ*05 EX. VIEW DRAWING 4303 SB915KJ*05 SB915SJ*05 BASKET ASSEMBLY SB915WJ*05 SB925SJ*05 Page 16 DW161...
  • Page 17 ITEM PART Nº DESCRIPTION Ex. 4303 890550FW Rack Cup Upper Basket - Pale Grey 0327 400 034 Rack Assy. Utensil - Blue 0203 412 001 Basket Upper - Pale Grey 0203 417 001 Basket Upper - Pale Grey Refer Item 5 Handle Side Internal - Blue 0050 409 001K Handle Kit (Inc.
  • Page 18: Circuit Diagram

    MODELS: SB907SJ*05 SB907WJ*05 EX. VIEW DRAWING SB915KJ*05 SB915SJ*05 CIRCUIT DIAGRAM SB915WJ*05 SB925SJ*05 0165 400 714 NOTE:- Regen. Valve not used. Turbidity sensing SB925 only. IMPORTANT SAFETY NOTICE This diagram has been prepared for use by electrically qualified service technicians. The manufacturer cannot be held responsible for the interpretation of its service publications nor for any injury or damage that may occur in connection with their use.
  • Page 19: Wash Program Overview

    MODELS: SB907SJ*05 SB907WJ*05 WASH PROGRAM OVERVIEW SB915KJ*05 SB915SJ*05 SB915WJ*05 SB925SJ*05 Wash Rinse Total Variable Detected Program Time Load Turbidity Pre-wash Main Wash Rinse 1 Rinse 2 Hot Rinse <65 <65 Heavy 123min 30min 36min 7min 7min 19min 24min Half 9min 40min 8min 21min...
  • Page 20 MODELS: SB907SJ*05 SB907WJ*05 CONTROL PANEL LAYOUT (SB907 Illustrated) Child Lock Option The Child Lock has 3 states: 1) Child Lock On, 2) Temporarily Unlock, 3) Child Lock Off The Child Lock can only be turned on when in this mode. Program Indicators should be on (“- -“...
  • Page 21 MODELS: SB907SJ*05 SB907WJ*05 CONTROL PANEL LAYOUT (cont.) Child Lock Off To turn Child Lock off you must be in Program Selection mode  Firstly “Temporarily unlock” Child Lock as shown above.  Press & hold “LOCK” for 5 seconds  All Program Indicators will flash. ...
  • Page 22 MODELS: SB907SJ*05 SB907WJ*05 FAULT RECALL, OUTPUT TEST, FAULT & OUTPUT INDICATION Fault Recall and Output Test (SB907) PERATION NPUT UTPUT Switch dishwasher off by pressing the ‘POWER’ Enter Test Mode All off Button Press & hold ‘PROGRAM’ Button & ‘START/PAUSE’ Button then switch power on. 'RINSE' LED flashing Keep holding the 2 Buttons for 2 sec.
  • Page 23 MODELS: SB915SJ*05 SB915WJ*05 CONTROL PANEL LAYOUT SB925SJ*05 SB925WJ*05 (SB925 Illustrated) Child Lock Option The Child Lock has 3 states: 1) Child Lock On, 2) Temporarily Unlock, 3) Child Lock Off Program Selection Mode The Child Lock can only be turned on when in this mode. Program Indicators should be on (“- -“...
  • Page 24 MODELS: SB915SJ*05 SB915WJ*05 CONTROL PANEL LAYOUT SB925SJ*05 SB925WJ*05 (cont.) Child Lock Off To turn Child Lock off you must be in Program Selection mode  Firstly “Temporarily unlock” Child Lock as shown above.  Press & hold “LOCK” for 5 seconds ...
  • Page 25 MODELS: SB915SJ*05 SB915WJ*05 FAULT RECALL, OUTPUT TEST SB925SJ*05 SB925WJ*05 FAULT & OUTPUT INDICATION Fault Recall and Output Test (SB925) PERATION NPUT UTPUT Switch dishwasher off by pressing the ‘POWER’ Enter Test Mode All off Button Press & hold ‘PROGRAM’ Button &...
  • Page 26: Specifications

    MODELS: SB907SJ*05 SB907WJ*05 SPECIFICATIONS SB915KJ*05 SB915SJ*05 SB915WJ*05 SB925SJ*05 SPECIFICATIONS MOTOR Part Nº 0214 477 037 Recirc. 50 watt 1600 to 2800 RPM (A tacho generator is used for speed control) Winding resistance:– White - Blue 40 ohm White – Red 130 ohm Drain Motor Part Nº...
  • Page 27: Component Resistance And Measurement

    MODELS: SB907SJ*05 SB907WJ*05 FAULT RECALL, OUTPUT TEST SB915SJ*05 SB915KJ*05 FAULT & OUTPUT INDICATION SB915WJ*05 SB925WJ*05 COMPONENT RESISTANCE and MEASUREMENT 8 7 6 5 2 1 7 5 3 1 11 7 5 3 1 2 1 COMPONENTS CONNECTIONS SPEC. VALUE NOTES (note 1) Power Cable &...
