GEORGIA REGAL
Owner's Operation and Installation Manual
(Also Design Certified As Vented Decorative Appliances)
WARNING: If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage,
personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
i v
i c
i n
y t
f o
h t
s i
r o
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
This is an unvented gas-fired heater. It uses
air (oxygen) from the room in which it is
installed. Provisions for adequate combus-
tion and ventilation air must be provided.
Refer to page 4, Air for Combustion and
Ventilation.

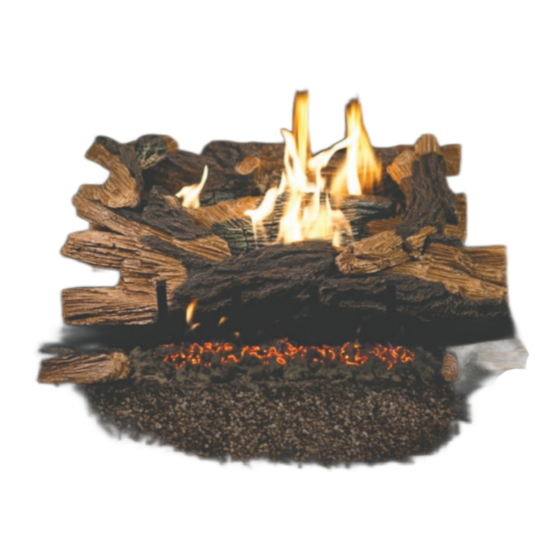

VENT FREE GAS LOG SET
GRVFE24N
a
ny other appliance.
GRVFE24L
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
Thisappliancehasbeentestedandapproved
under ANS Z21.11.2 – 2016 Unvented Gas-
Fired Room Heaters.
WARNING: This appliance is for installation
only in a solid fuel burning masonry or UL127
factory-built fireplace or listed ventless fire-
box enclosure. It has been design certified for
these installations. EXCEPTION: DO NOT in-
stall this appliance in a factory-built fireplace
that includes instruction stating it has not
been tested or should not be used with un-
vented gas logs.
This appliance may be installed in an
aftermarket,* permanently located, manu-
factured (mobile) home, where not prohib-
ited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This app-
liance is not convertible for use with other
gases.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer
ANS Z21.11.2 - 2016
Unvented Heaters
Advertisement
Table of Contents
Related Manuals for SHM GEORGIA REGAL
Summary of Contents for SHM GEORGIA REGAL
- Page 1 GEORGIA REGAL VENT FREE GAS LOG SET Owner’s Operation and Installation Manual (Also Design Certified As Vented Decorative Appliances) GRVFE24N GRVFE24L ANS Z21.11.2 - 2016 Unvented Heaters INSTALLER: Leave this manual with the WARNING: If the information in this manual appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS DANGER: Carbon monoxide poisoning may lead to death! Safety Information ............2 Carbon Monoxide Poisoning: Early signs of carbon Local Codes ..............3 monoxide poisoning resemble the flu, with headaches, Unpacking ..............4 dizziness, or nausea. If you have these signs, the appliance Product Features ............ -
Page 3: Safety Information
SAFETY INFORMATION fireplace if not enough fresh air is available. See Air CONTINUED for Combustion and Ventilation, pages 4 through 6. If appliance keeps shutting off, see Troubleshooting, pages 17 through 20. Keep the appliance area clear and free from 11. -
Page 4: Unpacking
4. Check heater for any shipping damage. If h eater is is provided by the method described in damaged, call SHM International at (800) 229-5647 the National Fuel Gas Code, ANSI Z223.1/ for replacement parts before returning to dealer. - Page 5 Ventilation Air From Outdoors Unusually Tight Construction The air that leaks around doors and windows may provide Provide extra fresh air by using ventilation grills or ducts. enough fresh air for combustion and ventilation. However, in You must provide two permanent openings: one within 12"...
- Page 6 AIR FOR COMBUSTION WARNING: If the area in which the AND VENTILATION heater may be operated does not meet the required volume for indoor combustion CONTINUED air, combustion and ventilation air shall be 3. Add the Btu/Hr of all fuel burning appliances in the provided by one of the methods described space.
-
Page 7: Installation
INSTALLATION CHECK GAS TYPE Use the correct gas type (natural gas or propane) for your WARNING: Before installing in a solid- appliance. If your gas supply is not correct or if you do not fuel-burning fireplace, the chimney flue know your gas type, do not install appliance. and firebox must be cleaned of soot, creo- INSTALLATION ITEMS NEEDED sote, ashes, and loose paint by a qualified... - Page 8 INSTALLATION CONTINUED INSTALLATION CLEARANCES CONNECTING TO GAS SUPPLY WARNING:Maintain the minimum clear- WARNING: This appliance requires a ances. 5/8” UNF (Unified National Fine Thread) and 1/2" NPT (National Pipe Thread) inlet Mantel Clearances for Installation connection and the gas connection tube provided.
- Page 9 CAUTION: Use only new, black iron or CAUTION: Use pipe joint sealant that is steel pipe. Internally-tinned copper tubing resistant to propane gas. may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or We recommend that you install a sediment trap in supply greater to allow proper gas volume to ap- line as shown in Figure 5.
- Page 10 INSTALLATION CONTINUED Test Pressures Equal To or Less Than 1/2 REMOTE CONTROL SET PSIG (3.5 kPa) INSTALLATION AND OPERATION 1. Close equipment shutoff valve (see Figure 6). Remote control set included with log set. - + - + 2. Pressurize supply piping system by either opening propane gas supply tank valve for propane gas or op- ening main gas valve located on or near gas meter of natural gas, or by using compressed air.
- Page 11 INSTALLATION (Continued) LOG SET PLACEMENT Glowing Embers to the area marked with “XXX” (see Figure 6). Do not apply Glowing Embers to the main burner. Figure 6- Glowing Ember Placement DECORATIVE CRUSHED SHALE Included with this Gas Log Set is a bag of Crushed Shale (see Figure 7).
- Page 12 IDENTIFICATION AND PLACEMENT GR24 LOGS Log #1 Log #4 Log #5 Log #2 Log #6 Log #7 Log #3 Log #8 Center in fireplace Place log #1 at back Log #4, in notches at left Log #3, at front of grate Log #2, midway back on grate Log #5, in notches at right Log #6, crossing Log #4...
- Page 13 OPERATING HEATER LIGHTING INSTRUCTIONS REMOTE CONTROL MODELS WARNING: FOR YOUR SAFETY • If fireplace has glass doors, never READ BEFORE LIGHTING operate this heater with glass doors WARNING: If you do not follow closed. If you operate heater with these instructions exactly, a fire or doors closed, heat buildup inside explosion may result causing prop- fireplace will cause glass to burst.
- Page 14 OPERATING HEATER CAUTION: Do not try to adjust continued 4. Press in and turn control knob clockwise heating levels by using the equip- the OFF position (see Figure 7 ). ment shutoff valve. 5. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor.
- Page 15 OPTIONAL HAND HELD MANUAL LIGHTING REMOTE OPERATION PROCEDURE NOTICE: You must light the pilot be- fore using the hand-held remote 1. Follow steps 1 through 5 under Lighting In- control unit. See Lighting Instruct- structions, page 14. ions on page 14. 2.
-
Page 16: Inspecting Burners
INSPECTING BURNERS Continued Check pilot flame pattern and burner patterns • turn Gas Log Set off (see Turning OFF the Ap- often. pliance page 15) PILOT FLAME PATTERN Figure 13 shows a correct pilot flame pattern. • see Cleaning and Maintenance, this page Figure 14 shows an incorrect pilot flame pattern. - Page 17 ( See Fig 18 ). ( See Fig 18 ). Figure 18 - Pilot Inlet Air Hole...
- Page 20 Model Number: GRVFE24(N,L)
- Page 21 Model Number: GRVFE24(N,L) PARTS LIST KEY ITEM DESCRIPTION GRVFE24N GRVFE24L Main Support Assembly RMH-120-LEB24 RMH-120-LEB24 Dual Burner RMH-120EB24AL RMH-120EB24AL Air Shutter, Burner RMH-120-00260 RMH-120-00254 Ember Tray, 24” RMH-120-TEB24 RMH-120-TEB24 Burner, Ember RMH-120-EB24S RMH-120-EB24S Carryover Tube RMH-120-EBCT RMH-120-EBCT Orifice Tube RMH-120-18318 RMH-120-18318 Burner Orifice RMH-120-SP033...
-
Page 22: Specifications
• how heater was malfunctioning You may have further questions about installation, opera- • type of gas used (propane or natural gas) tion or troubleshooting. If so, contact SHM International’s Technical Service Department at (800) 229-5647. • purchase date When calling please have your model and serial Usually, we will ask you to return the part to the factory. - Page 23 NOTES:...
-
Page 24: Warranty Information
SHM International Corp. warrants the components of this appliance to be free from defects in material and workmanship for one (1) year from the date of purchase. SHM International Corp. at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Re- placement will be made with a new manufactured product or component.
