Summary of Contents for Tomtar Rollator XXL

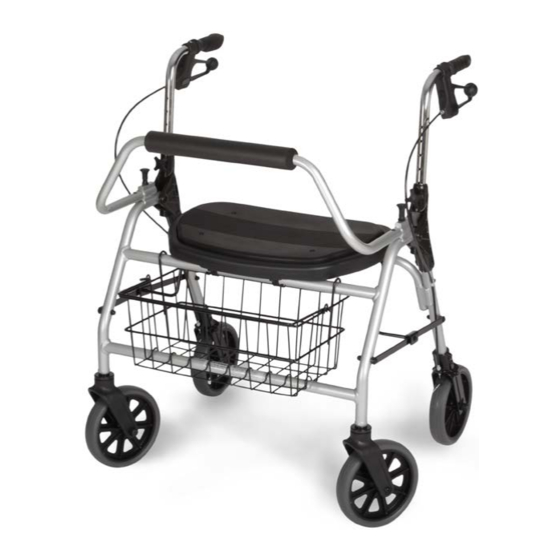

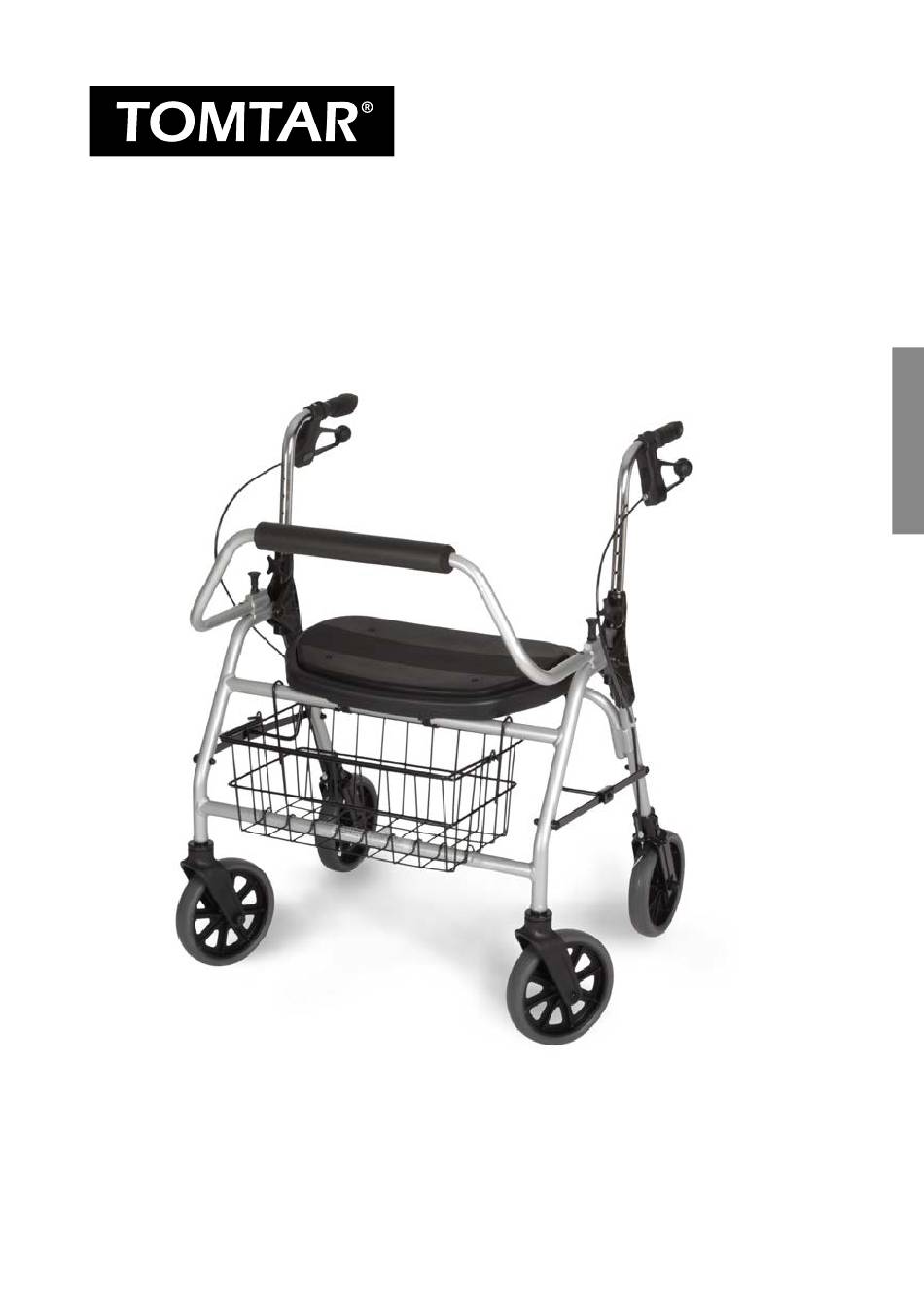

- Page 1 User manual Version 5.0.0 EN Rollator XXL...
- Page 2 USER MANUAL Thank you for purchasing an XXL Rollator from DIETZ. The XXL Rollator is robust, light, and We reserve the right to make changes to the foldable. It provides ideal support during versions shown in this manual as a result of all your daily ventures as well a seat to rest technical further development.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 01 Important information 06 Safety instructions Intended use ......4 Safety instructions .....12 Indication . -
Page 4: Important Information
01 IMPORTANT INFORMATION INTENDED PURPOSE CONTRAINDICATIONS The XXL Rollator is designed for persons with The use of the XXL Rollator is not indicated for restricted mobility with a maximum body Perception disorders weight of 200 kg for use as a walking aid and, Severe disequilibrium to a limited extent, as a seating device for tem- User weights exceeding 200 kg... -
Page 5: Product Description
02 PRODUCT DESCRIPTION SCOPE OF DELIVERY OPTIONAL ACCESSORIES The scope of delivery of the XXL Rollator in- The following optional accessories are available cludes the following components and accesso- for your XXL Rollator: ries: One hand brake system XXL Rollator Art. -
Page 6: Layout Of The Xxl Rollator
03 SETTING UP THE ROLLATOR SETTING UP THE ROLLATOR WARNING The XXL Rollator is fully assembled at the fac- Only use the rollator after the seat surface has tory. The following chapters describe how to set audibly snapped into place. When the seat sur- up the rollator, adjust it to suit your require- face snaps into place, it locks the rollator in an ments and enable you to use it comfortably. -
Page 7: Fixing Backrest In Place
04 SETTING UP THE ROLLATOR WARNING WARNING Ensure that the screws are completely inserted Before each use of the rollator, check that the into the drill hole and firmly locked in place. backrest is firmly locked in place. NOTE In order to use XXL Rollator correctly, it must be adjusted to your individual size. -
Page 8: Using The Rollator
04 USING THE ROLLATOR Familiarise yourself thoroughly with your XXL obstacles early. Rollator before using it for the first time so that Use the brake (see next section) on you feel safe and confident handling it. It is ad- sloping paths and do not use paths that visable to be accompanied by a second person are excessively steep. -
Page 9: Brake Adjustment
04 USING THE ROLLATOR BRAKE ADJUSTMENT WARNING Check that the brakes are correctly adjusted as If problems occur when adjusting the brakes, follows: please contact an authorised specialist retailer! 1. The brake lever and the Bowden cable This is the only way of ensuring the safe use of the rollator. -
Page 10: Folding Your Rollator
04 USING THE ROLLATOR 05 ACCESSORIES FOLDING UP YOUR ROLLATOR ATTACHING AND USING ACCESSORIES To save space for storage, the XXL Rollator can The standard version of the XXL Rollator is fit- be folded up. ted with a shopping basket and backrest. Optional additional accessories can be pur- 1. -
Page 11: Umbrella (Optional)
05 ACCESSORIES / 06 ADD-ONS ADD-ONS & ACCESSORIES OF Your rollator must only be fitted with a THIRD-PARTYS one-hand brake if the hand with which the brake will be operated is sufficiently In general, only original accessories from DIETZ strong to guarantee safe handling. GmbH may be used. -
Page 12: Safety Instructions
06 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Never exceed the maximum combined load of 200 kg for users, incl. additional If the intended use as described in these oper- loads and add-ons! ating instructions is complied with, the use of Avoid exposing the rollator to direct the XXL Rollator does not pose any hazard. - Page 13 06 SAFETY INSTRUCTIONS Never use escalators when on the Rollator, as this causes an increased risk of falling and injury! Stairs must only be negotiated with the help of accompanying persons if no elevators or ramps are present. The wheel bearings can be damaged by sand, seawater and road salt.
-
Page 14: Instructions For General Use
07 INSTRUCTIONS FOR GENERAL USE SERVICING / MAINTENANCE We recommend performing the inspections as listed in the maintenance schedule at regular inter- vals to ensure that the rollator is always safe to use. Defective or neglected care and maintenance of the rollator limits liability. The maintenance sched- ule does not provide any information on the amount of work that will actually need to be performed on the rollator. - Page 15 07 INSTRUCTIONS FOR GENERAL USE Monthly What to check Description Before use 1. It must be possible to firmly lock the screws Push handles: on the push handles. stability 2. The push handles must not wobble. 1. The rollator is correctly unfolded when the seat is pushed all the way downwards Locking the folding and hence lies flat on the frame.
-
Page 16: Fault-Finding And Rectification
07 INSTRUCTIONS FOR GENERAL USE FAULT-FINDING AND RECTIFICATION What Possible causes Measures The wheel bearings are defective or Consult an authorised specialist The front wheels do not the wheel suspension is no longer run in a straight line. retailer correctly attached. The wheel axles/wheel hubs are dirty. -
Page 17: Cleaning
07 INSTRUCTIONS FOR GENERAL USE CLEANING WARNING Clean the rollator by regularly wiping the During disinfection, observe the use and appli- frame parts with a damp cloth. If the cation instructions issued by the cleaning agent/ rollator is very dirty, you can use a mild disinfectant manufacturer. -
Page 18: Storage
Do not store the rollator near a heat source or type plate also contains the serial number of leave objects on it during storage. your rollator. DISPOSAL Rollator XXL 820 mm - If you no longer need the rollator, please con- 200 kg 710 mm 925 mm tact your specialist dealer. -
Page 19: Warranty
08 MANUFACTURER DECLARATIONS WARRANTY Manufacturer/manufacturer's trademark/contact address Warranty services refer to all product defects Maximum load capacity/load which are verifiably attributable to material or manufacturing flaws. incl. payload The warranty period is 24 months as of receipt Date of manufacture of notification of readiness for shipping, but fol- lowing delivery at the latest. -
Page 20: Technical Documentation
09 TECHNICAL DOCUMENTATION SPECIFICATIONS Unit Description XXL Rollator Item number 340NPU Material / colour: Frame Aluminium / silver Material / colour / size: Wheels Rubber (EVA) / black / 200 × 30 Material / colour: Brake handles Polyamide with glass fibre Material / colour: Handles TPE (thermoplastic elastomer) / black Material / colour: Seat... -
Page 21: Product Tests
09 TECHNICAL DOCUMENTATION PRODUCT TESTS Complete test according to rollator EN ISO 11199-2 standard Biocompatibility of the plastic parts ISO 10993 ENVIRONMENTAL CONDITIONS Ambient operation temperature -10°C to +50°C Ambient storage conditions 0°C to 45°C | 20% to 75% relative humidity RECORDING OF IDENTIFICATION DATA We recommend that you write down your product identification data (found on nameplate) below, so that you have these on hand should you require any further information about your product. - Page 22 Product group: Rollators Product: XXL Rollator User manual Version 5.0.0 EN (MSC) Version 02-2020 TOMTAR is a registered trademark of DIETZ GmbH. DIETZ GmbH Reutäckerstraße 12 76307 Karlsbad Germany Tel.: +49 7248.9186-0 Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-rehab.de Misprint, falsities, price and product changes reserved.
