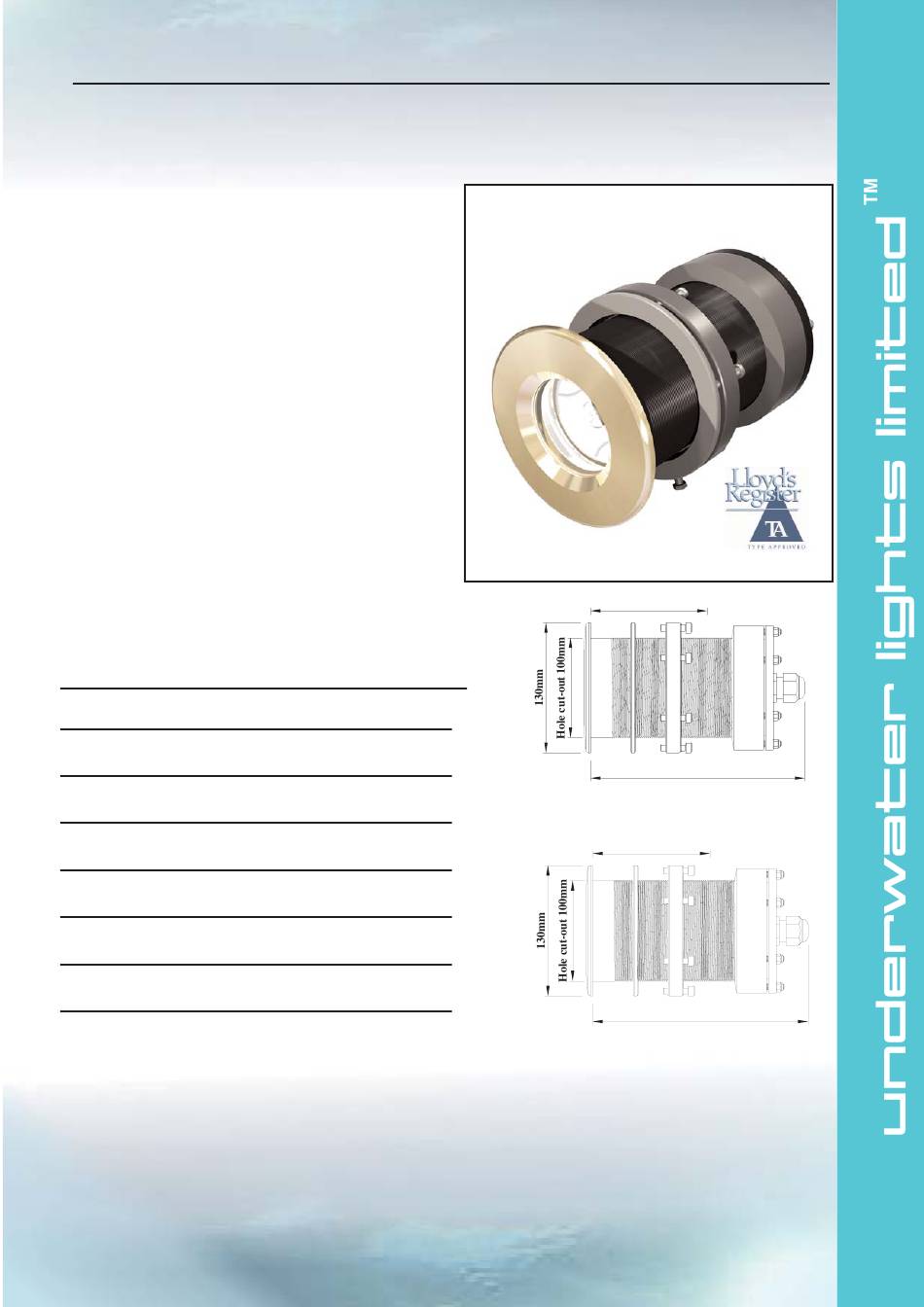

UL Ti MATE RANGE - MODEL- UL Ti MATE 130 SA
underwater lights limited
Manufacturers of the Original

DESCRIPTION

This is the most flexible and powerful
"through-hull" submersible marine light for
the large sports fish yachts and is suitable for
GRP-fibreglass and wooden hulls.
The design and development of the
UL Ti MATE 130 SA gave the marine market
their wish with the internal adjustment (SA)
which allows the beam angle to be varied from
a narrow to wide beam and to universally
move the beam direction by 20 degrees from
within the projector housing.
The UL Ti MATE 130 SA has a larger aperture
which increases the light output by 25%.
We advise that the light be installed 250mm
below the minimum waterline.
The boat must be hauled out for installation,
although maintenance of the light is carried
out from inside the hull.
The light is IPX8 to 10 bar.

TECHNICAL SPECIFICATION

Lamp Type - MSD Metal Halide 150w or 250w
Lamp Life - 3000 Hours - Colour Temp - 7000 K
Voltage/Amps -
150 watt 120(V3)/230(V2)volt - 1.4 /0.7.A
Voltage/Amps - 250 watt 198/264vac- 1.2A
Glass Lens - Borosilicate glass
Material - Aluminium Bronze and 5083 ALU
Light Level - 150w 12,000 Lumens - 250w 19,000 lms

NOTE

Installation Instruction:

The hole cut-out should be 100 mm.
For Lamp Maintenance allow 170mm behind the projector lid.
Hull thickness range 12 to 120 mm.
150w - Recommended maximum distance between ballast and projector 10m.
250w - Recommended maximum distance between ballast and projector 25m.
Cable - 150w-250w High temp. silicone 3 core (Part No S00111, 0.75).
For additional information please visit our web site.
underwater lights ™
Brand Marine Lighting Products since 1991
For sales telephone numbers visit www.underwaterlights.com

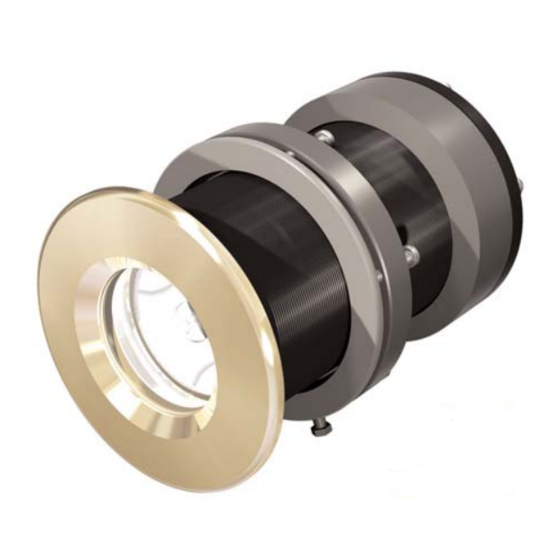

UL Ti MATE 130 SA
12,000 or 19,000 lumen
Max hull thickness 120mm
222mm
UL Ti MATE 130 SA-W1 (250 WATT)
ORDER NUMBER-S00475-SA-V1W1
Max hull thickness 120mm
222mm
UL Ti MATE 130 SA-W2 (150 WATT)
ORDER NUMBER-S00475-SA-V2/V3W2
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UL Ti MATE 130 SA and is the answer not in the manual?

Questions and answers

Related Manuals for UNDERWATER LIGHTS LIMITED UL Ti MATE 130 SA

Summary of Contents for UNDERWATER LIGHTS LIMITED UL Ti MATE 130 SA

  • Page 1 UL Ti MATE RANGE - MODEL- UL Ti MATE 130 SA underwater lights limited ™ underwater lights ™ Manufacturers of the Original Brand Marine Lighting Products since 1991 DESCRIPTION UL Ti MATE 130 SA This is the most flexible and powerful 12,000 or 19,000 lumen “through-hull”...
  • Page 2 150 WATT LIGHTS - 120V. S00475-SA-V3W2. 230V. S00475-SA-V2W2 UL Ti MATE 130 SA INSTALLATION (The UL Ti MATE 130 SA should be no less than 250mm/10” below the water line Qualified/Approved personnel must be used to carry out installation Cut and prepare a 4 inch / 100 mm clearance hole for the body (16). Coat the flange of the body and the area around the hole with 3M 4200FC sealant then slide the body into the hole.
  • Page 3 UL Ti MATE RANGE - 75 SA & 130 SA INFORMATION underwater lights limited ™ underwater lights ™ Manufacturers of the Original Brand Marine Lighting Products since 1991 BEAM ANGLE AND LUX INFORMATION DESCRIPTION The cone angle in the body restricts the width of the light beam angle. The 50 degree is 65 degrees, while the flush and UL Ti MATE 130 have an angle of 100 degrees.
