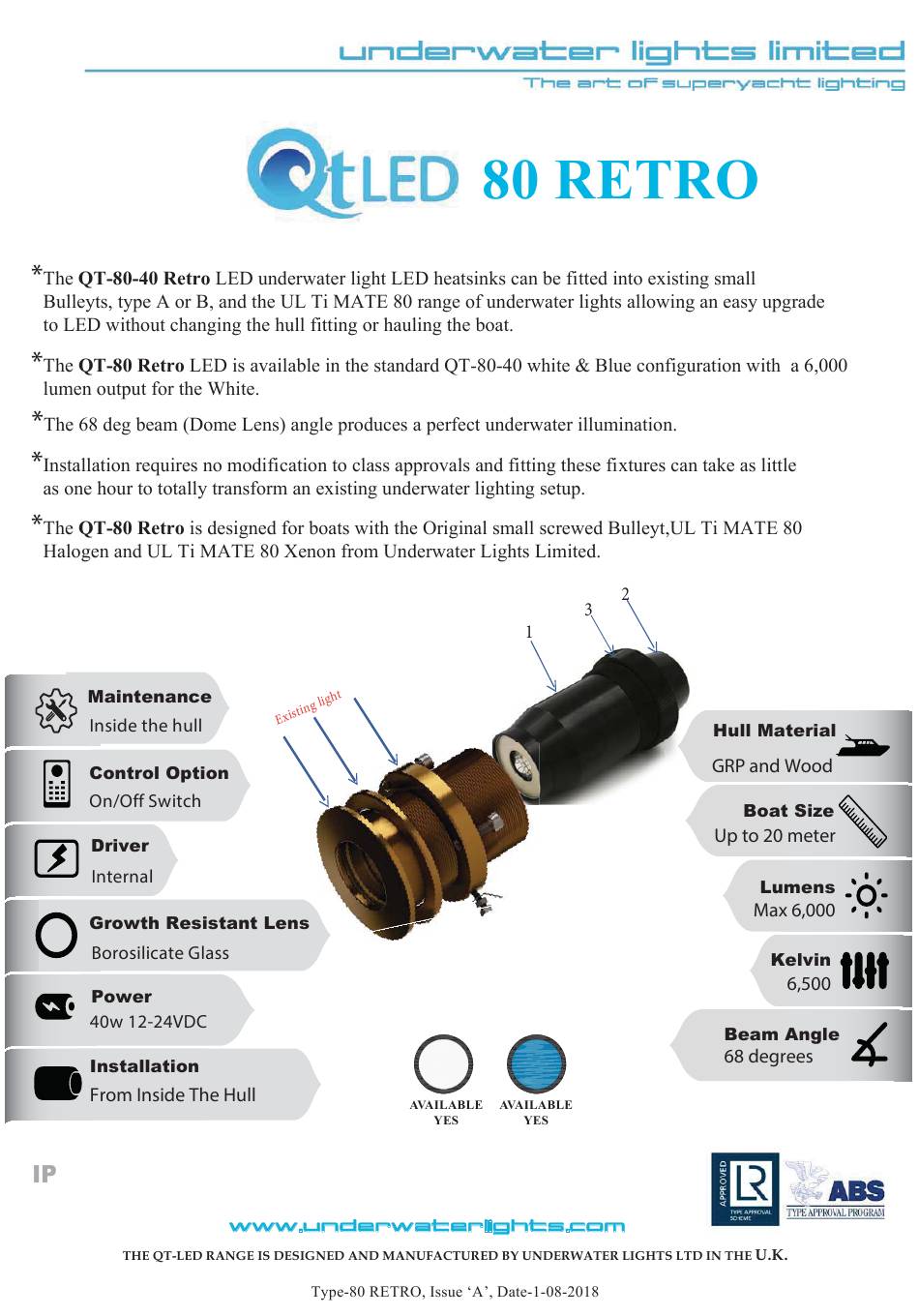

- Page 1 Underwater...
- Page 2 Part Number Color Mounting Technical Physical Your Local Dealer...
- Page 3 LED and the LED could fail. *Caution: do not operate lights unless totally submerged. The QT 80 retro is supplied with 2 meters of cable ready for connection into the IP 68 fused enclosure also supplied. *The fused enclosure connection terminal have a higher rating than 20 amps but we strongly advise a maximum supply current to the enclosure of 20 amps.
- Page 4 LED and the LED could fail. *Caution: do not operate lights unless totally submerged. The QT 80 retro is supplied with 2 meters of cable ready for connection into the IP 68 fused enclosure also supplied. *The fused enclosure connection terminal have a higher rating than 20 amps but we strongly advise a maximum supply current to the enclosure of 20 amps.
- Page 5 Underwater...
- Page 6 Part Number Color Mounting - 100- B W Technical Physical Your Local Dealer...
- Page 7 *Check that the LED heat sink (1) slide into the existing barrel and land on the glass retaining ring. Remove item and check that the existing connecting screws onto the barrel. With these parts successfully checked for fi tting follow the assembly procedures below.
- Page 8 *ith yor rchase yo ill have *t is iortant to locate the connection enclosre close to the and aove the ilge so that yo * t is yor reso ility to rn the correct sie sly cale in 2. s to the light connection...
- Page 9 0 meter + 2 ,000 6,500 Underwater...
- Page 10 Technical Physical Your Local Dealer •...
- Page 12 fi fi fi fi...
-
Page 13: Underwater Lights
Manufacturer of the Original Brand Marine Lighting Products Since 1991 BULLEYT RETRO cute on size big on light INSTRUCTIONS FOR CONVERTING THE SCREWED BULLEYT TO QT-130 (Standard 10,000 lm) or QT-130 HP (18,500 lm Cool White or RGB+W) *The following procedure is achieved from inside the hull.
