Summary of Contents for Audio Technica ATH-CLR100BT

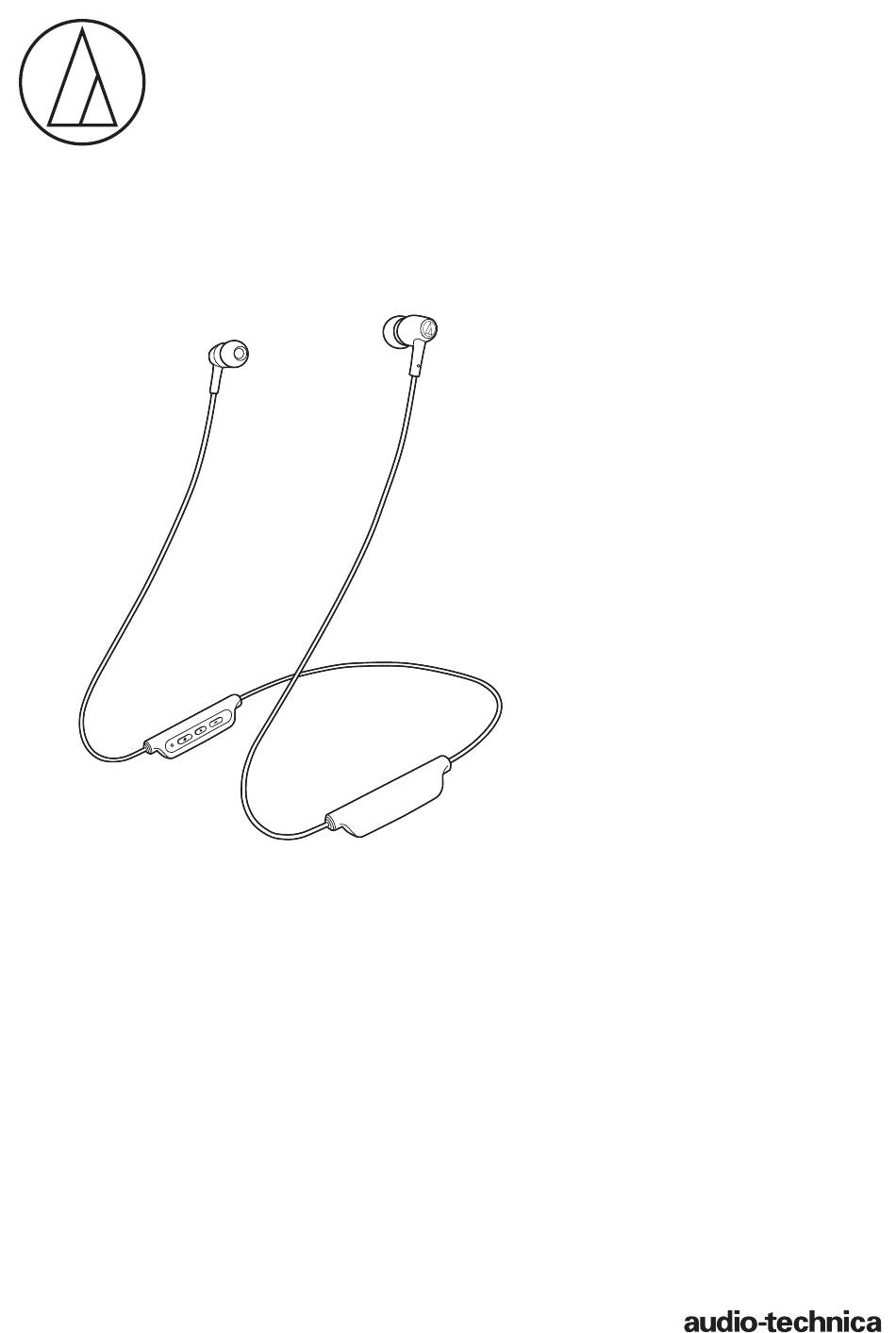

- Page 1 ATH-CLR100BT User Manual Wireless Headphones...
-
Page 2: Safety Precautions
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, please read through the Quick Start Guide and Caution Guide, as well as this user manual when necessary, to ensure that you use the product correctly. Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. -
Page 3: Cautions For Rechargeable Battery
Safety precautions Cautions for rechargeable battery The product is equipped with a rechargeable battery (lithium polymer battery). • If battery fluid gets into eyes, do not rub them. Rinse thoroughly • Do not use, leave or store the battery in the following places: –... -
Page 4: Notes On Use
Notes on use • Be sure to read the connected device’s user manual before use. • Make sure to hold the plug when connecting and disconnecting the USB charging cable. The USB charging cable may become • Audio-Technica will not be liable in any way for any loss of data severed or an accident may occur if you pull on the cable itself. -
Page 5: For A More Comfortable Bluetooth® Communication Experience
For a more comfortable Bluetooth® communication experience The effective communication range of this product varies depending on obstructions and radio wave conditions. For a more enjoyable experience, please use the product as close as possible to the Bluetooth device. To minimize noise and sound Antenna disruptions, avoid placing your body or other obstacles between the product’s antenna and the Bluetooth device. -
Page 6: Part Names And Functions
Part names and functions Housing Left/right (L/R) indicator Bushing The L (left) bushing has a protrusion Power supply/Control button for distinguishing between the left Use to turn the power supply ON/OFF, play/ and right. pause music, and answer phone calls. Volume buttons Adjust the volume using + and -. -
Page 7: Charging The Battery
Charging the battery • Fully charge the battery when using for the first time. • When the rechargeable battery is running low, the product will emit a low battery level warning sound through the headphones, and the indicator lamp will flash in red. In this case, charge the battery. •... -
Page 8: Connecting Via Bluetooth Wireless Technology
2. Use your Bluetooth device to begin the pairing process and search for the product. When your Bluetooth device finds the product, “ATH-CLR100BT” will be displayed on the device. • For information about using your Bluetooth device, refer to the device’s user manual. -
Page 9: Using The Product
Using the product The product can use Bluetooth wireless technology to connect to your device and play music, receive phone calls, etc. Use the product for whichever of these purposes suits your needs. Note that Audio-Technica cannot guarantee the operation of displays, such as the battery level display, or applications via Bluetooth devices. -
Page 10: Listening To Music
Using the product Listening to music • To connect for the first time, pair the product and your device via Bluetooth wireless technology. If you have already paired the product and your Bluetooth device, turn on the Bluetooth device’s Bluetooth connection before turning on the product. -
Page 11: Talking On The Phone
Using the product Talking on the phone • If your Bluetooth device supports telephone features, you can use the product to talk on the phone. • When your Bluetooth device receives a phone call, the product sounds a ring tone. •... -
Page 12: Indicator Lamp Display
Indicator lamp display The indicator lamp of the product indicates the product's status as explained below. Status Indicator lamp display pattern White Flashing Pairing Searching for devices ( : Gradually lights up) Flashing in 8-second intervals Waiting to be connected ( : Gradually lights up) Connection Connecting... -
Page 13: Eartip Size
Cleaning Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint thinners, or other solvents for cleaning purposes. • To clean, wipe with a dry cloth. Eartip •... -
Page 14: Troubleshooting
Troubleshooting Problem Solution Power is not supplied. • Charge the product. Unable to pair. • Confirm that the Bluetooth device communicates using Ver. 2.1+EDR or higher. • Place the product and the Bluetooth device within 1 m (3.3') of each other. •... -
Page 15: Specifications
Specifications Headphones Type Dynamic Driver 8.7 mm Sensitivity 100 dB/mW Frequency response 20 to 20,000 Hz Impedance 16 Ω Microphone Type Electret condenser Polar pattern Omnidirectional Sensitivity -44 dB (1 V/Pa, at 1 kHz) Frequency response 50 to 4,000 Hz Communication specifications Communication system Bluetooth version 5.0...
