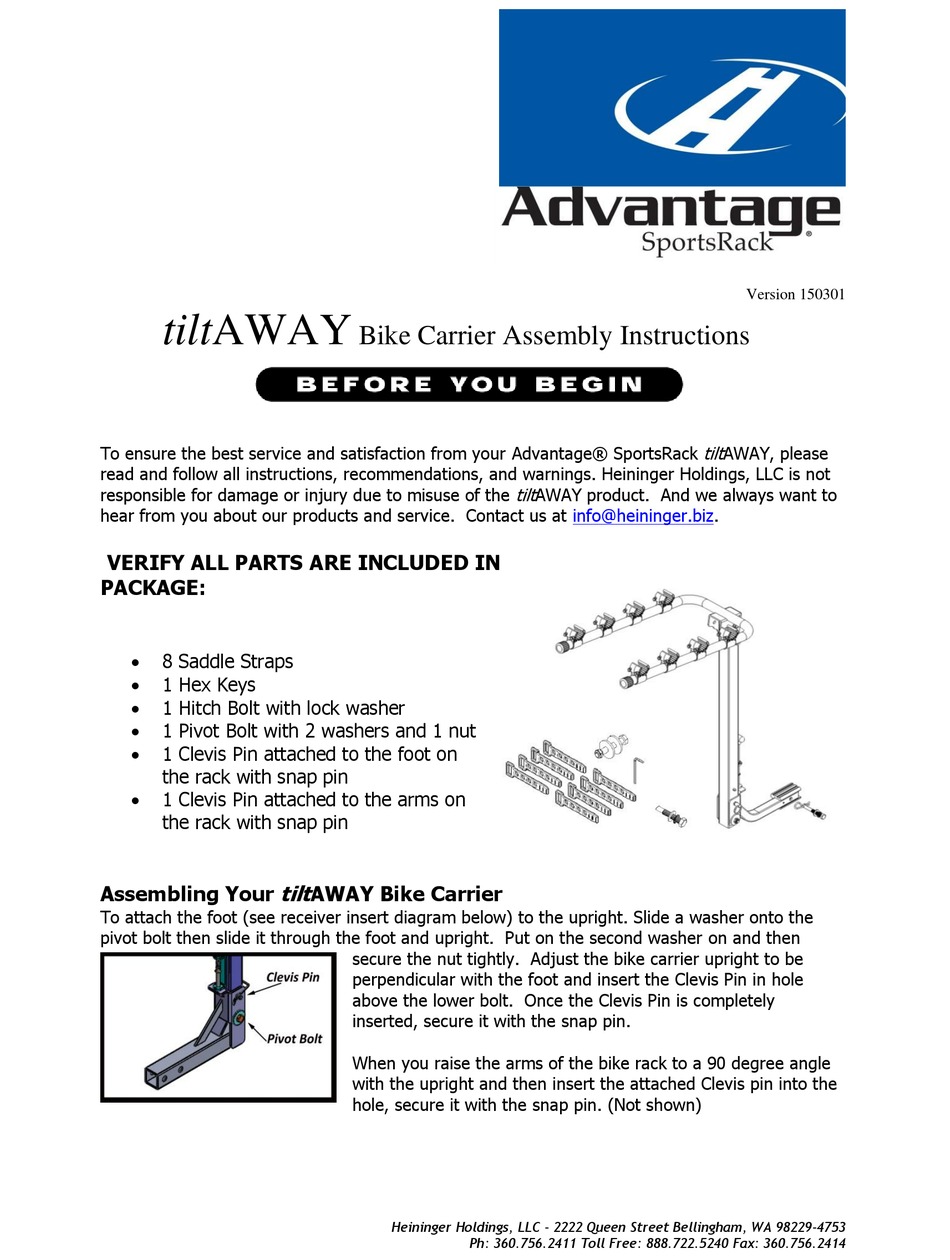

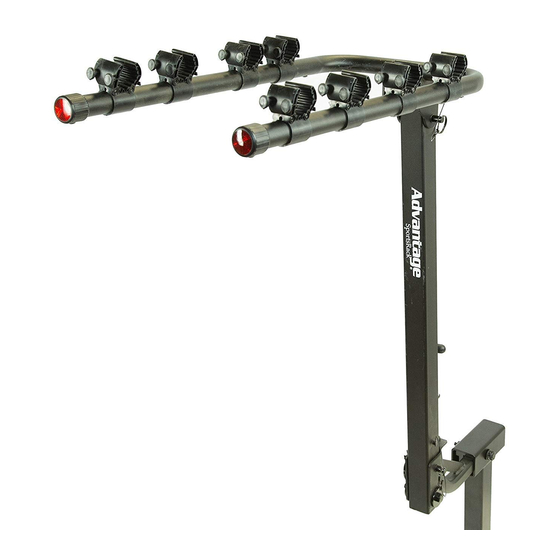

Advantage SportsRack tiltAWAY Assembly Instructions

tiltAWAY
To ensure the best service and satisfaction from your Advantage® SportsRack
read and follow all instructions, recommendations, and warnings. Heininger Holdings, LLC is not
responsible for damage or injury due to misuse of the
hear from you about our products and service. Contact us at info@heininger.biz.
VERIFY ALL PARTS ARE INCLUDED IN
PACKAGE:
 8 Saddle Straps
 1 Hex Keys
 1 Hitch Bolt with lock washer
 1 Pivot Bolt with 2 washers and 1 nut
 1 Clevis Pin attached to the foot on
the rack with snap pin

1 Clevis Pin attached to the arms on
the rack with snap pin
Assembling Your
To attach the foot (see receiver insert diagram below) to the upright. Slide a washer onto the
pivot bolt then slide it through the foot and upright. Put on the second washer on and then
Bike Carrier Assembly Instructions
tilt
AWAY Bike Carrier
secure the nut tightly. Adjust the bike carrier upright to be
perpendicular with the foot and insert the Clevis Pin in hole
above the lower bolt. Once the Clevis Pin is completely
inserted, secure it with the snap pin.
When you raise the arms of the bike rack to a 90 degree angle
with the upright and then insert the attached Clevis pin into the
hole, secure it with the snap pin. (Not shown)
Heininger Holdings, LLC - 2222 Queen Street Bellingham, WA 98229-4753
tilt
AWAY product. And we always want to
Ph: 360.756.2411 Toll Free: 888.722.5240 Fax: 360.756.2414
Version 150301
tilt
AWAY, please
