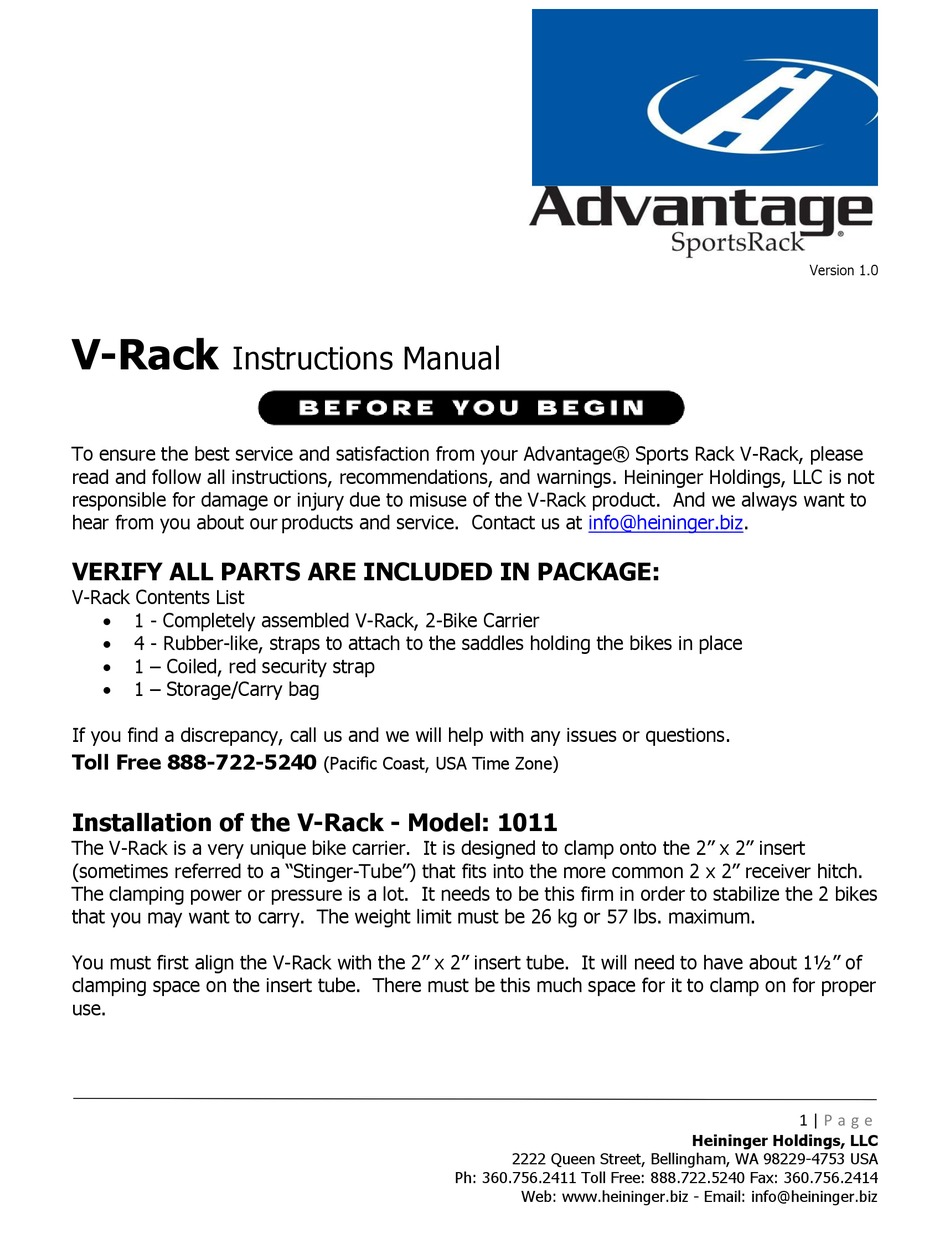

V-Rack
Instructions Manual
To ensure the best service and satisfaction from your Advantage® Sports Rack V-Rack, please
read and follow all instructions, recommendations, and warnings. Heininger Holdings, LLC is not
responsible for damage or injury due to misuse of the V-Rack product. And we always want to
hear from you about our products and service. Contact us at info@heininger.biz.
VERIFY ALL PARTS ARE INCLUDED IN PACKAGE:
V-Rack Contents List
1 - Completely assembled V-Rack, 2-Bike Carrier
4 - Rubber-like, straps to attach to the saddles holding the bikes in place
1 – Coiled, red security strap
1 – Storage/Carry bag
If you find a discrepancy, call us and we will help with any issues or questions.
Toll Free 888-722-5240
Installation of the V-Rack - Model: 1011

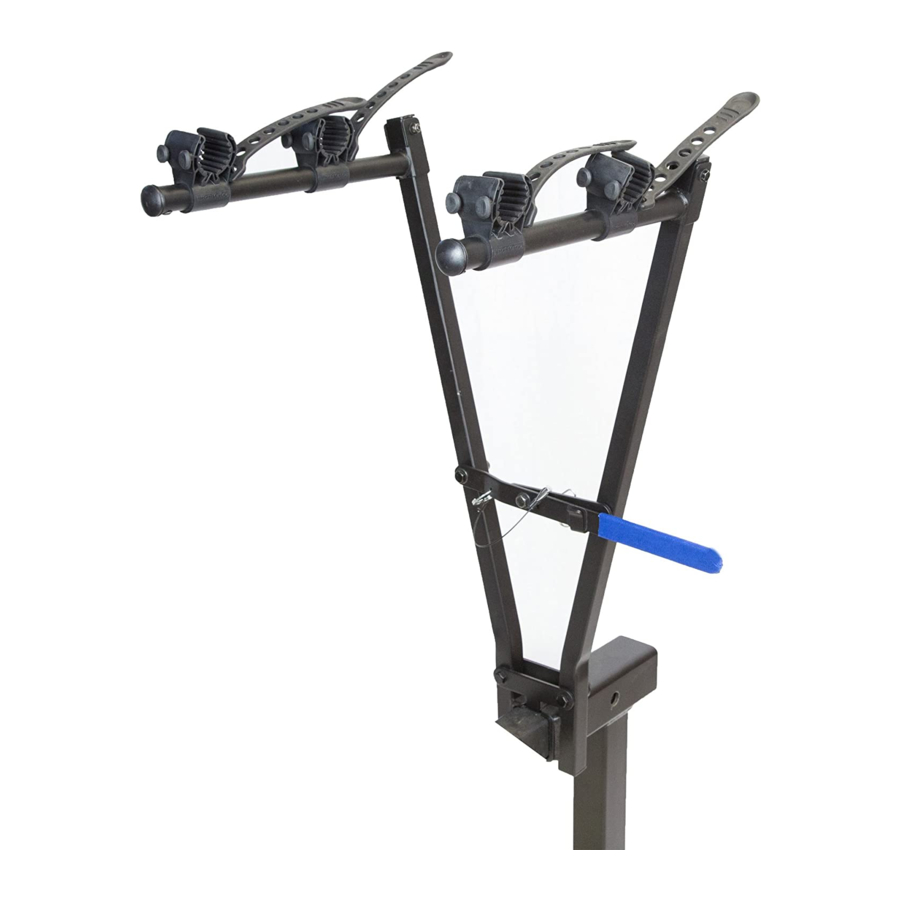

The V-Rack is a very unique bike carrier. It is designed to clamp onto the 2" x 2" insert
(sometimes referred to a "Stinger-Tube") that fits into the more common 2 x 2" receiver hitch.
The clamping power or pressure is a lot. It needs to be this firm in order to stabilize the 2 bikes
that you may want to carry. The weight limit must be 26 kg or 57 lbs. maximum.
You must first align the V-Rack with the 2" x 2" insert tube. It will need to have about 1½" of
clamping space on the insert tube. There must be this much space for it to clamp on for proper
use.
(Pacific Coast, USA Time Zone)
Ph: 360.756.2411 Toll Free: 888.722.5240 Fax: 360.756.2414
2222 Queen Street, Bellingham, WA 98229-4753 USA
Web: www.heininger.biz - Email: info@heininger.biz
Version 1.0
1 |
P a g e
Heininger Holdings, LLC
Advertisement
Table of Contents
Related Manuals for Advantage SportsRack V-Rack 1011
Summary of Contents for Advantage SportsRack V-Rack 1011
- Page 1 V-Rack Instructions Manual To ensure the best service and satisfaction from your Advantage® Sports Rack V-Rack, please read and follow all instructions, recommendations, and warnings. Heininger Holdings, LLC is not responsible for damage or injury due to misuse of the V-Rack product. And we always want to hear from you about our products and service.
- Page 2 Version 1.0 1. Flip the supporting arms to be horizontal, turn the cradles upward. Now slide the lower “jaws” of the V- Rack over the open area of the insert and spread the top of the tubes away from each other so they nest on the 2 x 2 insert tube.
- Page 3 Version 1.0 3. Insert the security pin, and turn 180 degrees. Then insert the bridge pin through the small hole in the pin. 4. Mount bikes on the V-Rack carrier. Use either of the little mushrooms (R or L) to attach the loose end of the strap.
- Page 4 Version 1.0 5. Load bikes alternatively and secure them by using rubber straps. 6. Pass the safety strap through wheels and frames to secure the bikes. When in USE Do not stand or ride on V-Rack while the vehicle is in motion. ...
- Page 5 For more information on 3-In-One Oil, please visit www.3inone.com Please share & show your bikes on the V-Rack by uploading a photo/comments onto the Advantage Sports Rack Facebook page. P a g e Heininger Holdings, LLC 2222 Queen Street, Bellingham, WA 98229-4753 USA Ph: 360.756.2411 Toll Free: 888.722.5240 Fax: 360.756.2414...
- Page 6 In no event shall Heininger Holdings, be liable for damages in excess of the purchase price of the Advantage Sports Rack product, for any loss of use, loss of time, inconvenience, commercial loss, lost profits or savings or any incidental, special, consequential, direct or indirect damages arising out of the use or inability to use such product, to the full extent as such may be disclaimed by the law.
