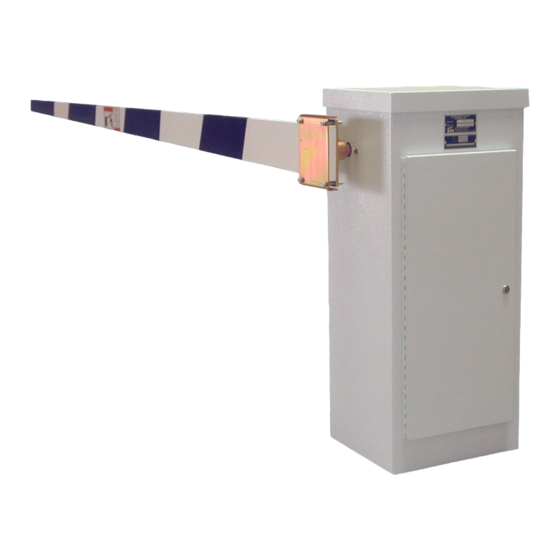

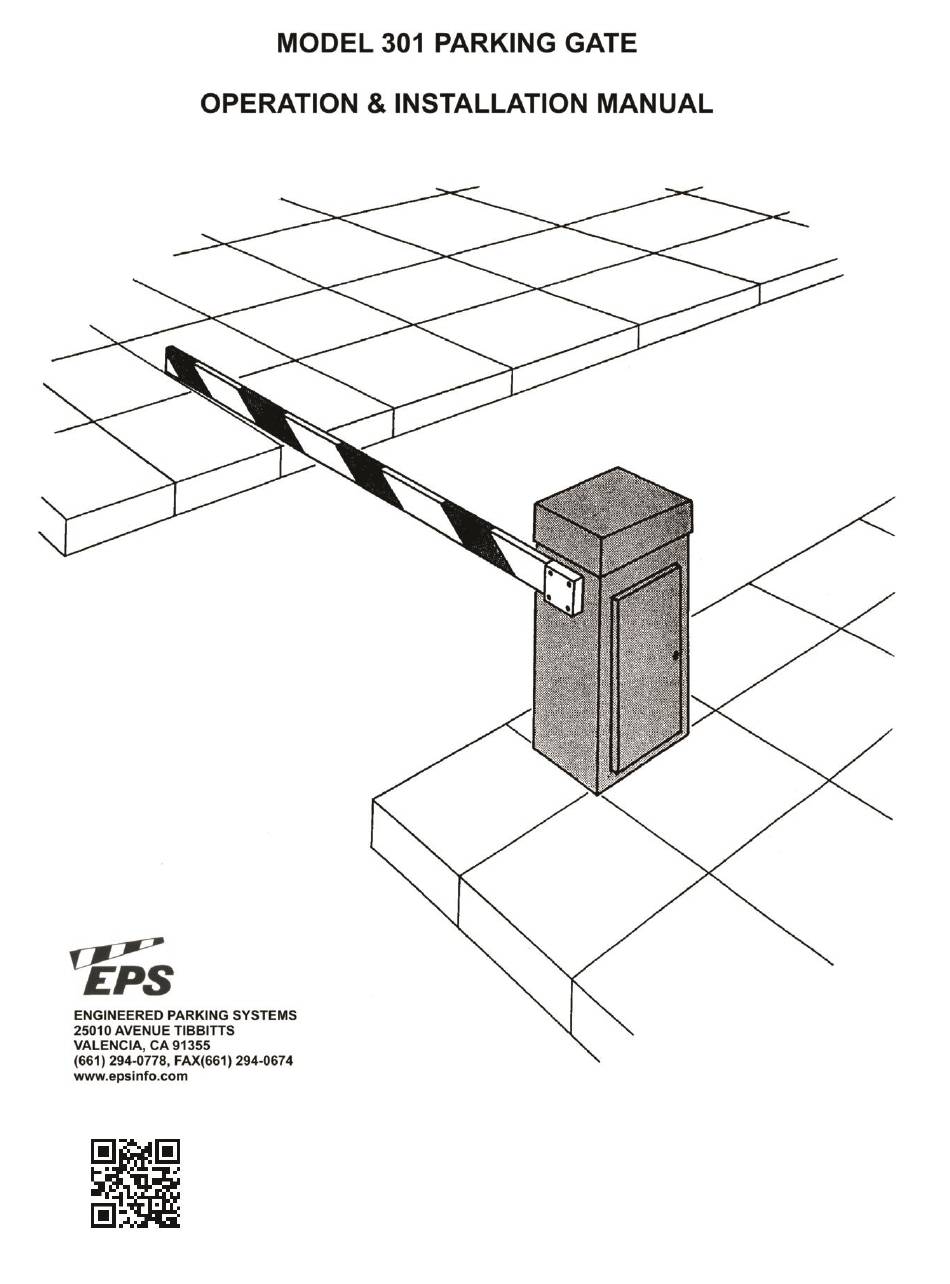

- Page 1 REVA16...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARNINGS GENERAL INFORMATION SAFETY INFORMATION OPERATING INSTRUCTIONS INSTALLATION INSTRUCTIONS ACCESSORY CONNECTIONS MOTOR CONTROL SCHEMATIC INSTALLATION LAYOUT EXAMPLES REVERSE OPERATION & MASTER / SLAVE CONNECTIONS MAINTENANCE PARTS LIST 15-24 TROUBLE SHOOTING... -
Page 3: Warnings
WARNINGS: Gate operator system designers, installers and users must take into account the possible hazards associated with each individual application. Improperly designed, installed or maintained systems can create risks for the user as well as bystanders. Gate systems installation and design must reduce public exposure to potential hazards. ... -
Page 4: General Information
GENERAL INFORMATION Your parking gate has been designed to provide many years of reliable service. It incorporates design features for all types of automatic parking control operations. WARRANTY: All equipment manufactured by Engineered Parking Systems is warranted against defects in material and workmanship for one full year from date of shipment. All equipment is tested and inspected before shipment. - Page 5 The Model 301 barrier gate operator in intended for use in Class II, III, and IV installations. UL325 ENTRAPMENT PROTECTION REQUIREMENTS This chart illustrates the entrapment protection requirements for each of the four UL325 classes.
-
Page 6: Operating Instructions
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS, USE THE OPERATOR ONLY WITH INTENDED LENGTH OF GATE ARM MODEL 301-10 = 10 FOOT WOODEN GATE ARM MODEL 301-12 = 12 FOOT WOODEN GATE ARM MODEL 301-14 = 14 FOOT WOODEN GATE ARM... -
Page 7: Installation Instructions
IMPORTANT INSTALLATION WARNING WARNING – TO REDUCE THE RISK OF SEVERE INJURY OR DEATH READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS. Install only the proper length and material of gate arm. An improper gate arm could cause severe injury. Have a qualified service person make repair to gate. -
Page 9: Accessory Connections
ACCESSORY CONNECTIONS All accessories are connected to the terminal panel. Disconnect power before connecting accessories. VEHICLE DETECTOR CONNECTIONS: Vehicle detectors are to be placed on the same shelf as the controller inside the gate housing. **Safety/Close Vehicle Detector-Connect power according to the manufacturer’s instructions. Connect presence relay common to terminal 7. -
Page 10: Motor Control
MOTOR CONTROL BOARD DESCRIPTION OF FUNCTION SWITCHES SETTING SWITCH# OPEN (OFF) Requires that open signal be set, then reset prior to opening gate. CLOSED(ON) When other conditions allow, initiates immediate opening after setting of open input. OPEN (OFF) Requires that close signal be set, then reset prior to closing gate. - Page 11 ENTRY CONTROL 1000 CONTROL BOARD DESCRIPTION OF L.E.D.’s INPUT LIGHTS LED 1: (USED WITH DOUBLE DIRECTION LOGIC ONLY) ILLUMINATES WHEN CLOSING LOOP IS ACTIVATED WHEN GATE IS WIRED FOR DOUBLE DIRECTION LOGIC. LED 2: (CLOSE) ILLUMINATES AS LONG AS CLOSE INPUT IS PRESENT. LED 3: (OPEN) ILLUMINATES AS LONG AS OPEN INPUT IS PRESENT.
- Page 13 STANDARD SYSTEM #4 SINGLE DIRECTION CARD OR EQUIVALENT ENTRANCE OR EXIT SYSTEM FUNCTION: The patron inserts the entry card into the card reader, which causes the gate arm to rise. When the vehicle leaves loop #1, the gate will return to the down position. Suggested control board switch setting: 1, 2, 3, 6, 8 = ON INCOMING POWER: 115 VAC 60 Hz 20 Amps NOTE: THE LOOP IS CENTERED IN THE LANE...
- Page 14 STANDARD SYSTEM #8 DOUBLE DIRECTION CARD OR KEY ENTRANCE/FREE EXIT SYSTEM FUNCTION: The patron inserts the entry card into the card reader. This will cause the gate arm to rise, permitting the vehicle to drive through. When the vehicle leaves loop #2, the gate arm will return to the down position.
- Page 15 REVERSE OPERATION In standard installations, the parking gate access door faces away from the lane. If you encounter an obstacle that prevents access to the door, or if the gate needs to be reversed for a master / slave application, follow these instructions for gate cabinet reversal. NOTE: REMOVE GATE ARM AND DISCONNECT MAIN POWER BEFORE ATTEMPTING ANY ADJUSTMENTS OR MODIFICATIONS.
-
Page 16: Maintenance
LUBRICATION AND GENERAL MAINTENANCE THE FOLLOWING ROUTINE MAINTENANCE SHOULD BE CARRIED OUT TO ENSURE YEARS OF TROUBLE FREE OPERATION. EVERY 30 DAYS: WASH AND WAX THE EXTERIOR SURFACE OF THE CABINET TO HELP MAINTAIN THE POWDERCOAT SURFACE. CHECK REBOUND SENSITIVITY AND ADJUST AS NECESSARY. EVERY 60 DAYS: CHECK AND TIGHTEN ALL NUTS, BOLTS, AND SCREWS THROUGHOUT THE GATE OPERATOR. - Page 18 PARTS LIST 301-10 PARKING GATE MAIN FRAME I.D. # QUANT. PART NUMBER DESCRIPTION 3/8-16 X 2” SOCKET HD. BOLT 016-2000A 9000-16-2 GATE ARM FLANGE COVER 9000-16-1 GATE ARM FLANGE 3/8-16 X 1” CARRIAGE BOLT 016-312-1000 050-8-2500 #8 X 2 ½ TAPER PIN 1 ¼”...
- Page 19 PARTS LIST SUPPLEMENT 301-12 PARKING GATE MAIN FRAME 10” SPEED REDUCER PULLEY 908-26 ADD: 542-4L360 4L360 V-BELT 9000-S12 12 FOOT WOODEN GATE ARM 8” SPEED REDUCER PULLEY 908-3 OMIT: 542-4L320 4L320 V-BELT 9000-S10 10 FOOT WOODEN GATE ARM PARTS LIST SUPPLEMENT...
-
Page 20: Parts List
PARTS LIST 301 PARKING GATE HOUSING I.D. # QUANT. PART NUMBER DESCRIPTION 9000-1-1 MAIN HOUSING, PARKING GATE 015-312-18WN 5/16-8 WING NUT 1051-24 EPS NAME PLATE 1051-24A EPS ELECTRICAL NAME PLATE 806-1A CAM LOCK NUT 806-1 CAM LOCK 806-1B... - Page 22 PARTS LIST FOLDING GATE ARM ASSEMBLY I.D. # QUANT. PART NUMBER DESCRIPTION 10’ TWO PIECE ARM ASSEMBLY 9000-S10-2 12’ TWO PIECE ARM ASSEMBLY 9000-S12-2 9600-F-02 SANDWICH PLATES 073-04 ROD END BEARING ¼” SPLIT LOCK WASHER 012-2 012-250-20NA ¼-20 HEX NUT 021-11-RNA 5/8-11 NYLOCK HEX NUT 018-500-13RNA...
- Page 23 PARTS LIST MODEL 301 PARKING GATE TERMINAL/CONTROL PANEL QUANT. PART NUMBER DESCRIPTION 080-750 #6 X ¾ NYLON SPACER 304-1 1 OHM, 55 WATT RESISTOR 425-10 10-AMP CIRCUIT BREAKER 480-13 SPDT TOGGLE SWITCH 526-3 3 TERMINAL BLOCK 526-12 12 TERMINAL BLOCK...
-
Page 24: Trouble Shooting
TROUBLE SHOOTING INSTRUCTIONS The following procedures should be followed if the gate fails to operate correctly: Check to see that the main circuit breaker switch is “ON”. Check the electrical gate function by activating the RAISE/LOWER switch to the RAISE position.
