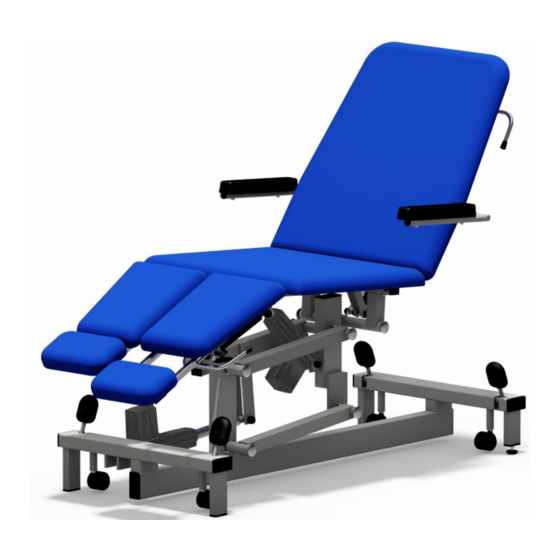

- Page 1 Podiatry Chair Models: 503C, 503CD, 503CT & 503CDT USER MANUAL...
-
Page 2: Table Of Contents
7. Maintenance 8. Guarantee and Service 9. Technical Specification 10. Revisions to Manual Plinth Medical Ltd is an ISO Audited company to ISO9001:2008 Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC P a g e... -
Page 3: Introduction
Podiatry Chair User Manual 1. Introduction Thank you for purchasing a product from Plinth Medical Ltd. We use the highest quality components and manufacturing techniques to ensure that our products are simple to use and will last a long time. It is recommended that all users read and retain this User Manual for reference. -
Page 4: Installation
Podiatry Chair User Manual 2. Installation Although this chair comes complete and is virtually ready to use it is important to remove all packaging and read the following before use. Retractable Castors The castors can be operated from either side of either end of the chair. Press the pedal down to engage the castors and lift the pedal to retract the castors. -
Page 5: Power Supply
Podiatry Chair User Manual Power Supply Ensure that hand or foot switch leads are clear of the moving parts of the chair before operation. Connect the chair to a normal domestic type power supply observing the following notes. WARNING Ensure that the mains lead, plug and socket are in good condition before connecting the equipment. -
Page 6: General Operation
Podiatry Chair User Manual 3. Operation Plinth Medical offers 4 models of Podiatry Chair; 503C (single leg 1 motor), 503CD (divided leg 2 motor), 503CT (single leg 2 motor) and 503CDT (divided leg 2 motor). Depending on the model you have some of the following features may not be present. -
Page 7: Manual Head Section
Podiatry Chair User Manual Manual Head Sections For versions that do not have a motorised head section. The operation is via a gas spring mechanism triggered with a lever as shown below: Press the lever to adjust the section. Support the section whilst adjusting and release the lever to lock in the desired... -
Page 8: Castor Operation
Podiatry Chair User Manual Retractable Castor Operation The castors fitted to this chair are 50mm retractable swivel castors. They are operated in pairs at each end of the chair via the black wheel pedals. NOTE – the castors are not designed for patient transport. Press the pedal down fully to operate the castors and lift the pedal... -
Page 9: Accessories Operation
Podiatry Chair User Manual 4. Accessories Operation A range of accessories are available as options to expand the use of the chair. The standard recommended accessories are detailed below. Many of these can be fitted retrospectively if required. Paper Roll Holder Paper roll is replaced by removal of one or the other of the plastic knobs, sliding the bar partially... -
Page 10: Fold Down Cot Sides
Podiatry Chair User Manual Fold Down Cot Sides Fold down cot sides are available as an option and may only be used with the podiatry armrests removed. They are operated as follows: To raise the cot side from the down position; lift and rotate the cot side towards you through a full 180°. -
Page 11: Cleaning And Decontamination
Podiatry Chair User Manual 5. Cleaning and Decontamination WARNING If contamination is suspected then decontaminate the chair before use. Torn or damaged upholstery should be replaced immediately. CAUTION Do not use Alkalis or other organic solvents for routine cleaning. Always cover the vinyl with paper towelling or chair covers if it can come into contact with bare skin. -
Page 12: Troubleshooting
Adjustable foot Check presence, condition and adjustment of foot All motors will not work Power disconnected Connect power supply (503C or 503CD the only motor will not Fuse Blown Replace fuse in plug work) Hand/ Footswitch Check the switch is fully... -
Page 13: Maintenance
Plinth products clean and regularly checked will assist in prolonging their working life. The following is a guide of simple checks that the user can carry out on a six monthly basis. We would also recommend an annual service visit by a Plinth Medical trained engineer. -
Page 14: Guarantee And Service
Podiatry Chair User Manual 8. Guarantee and Service (UK only) Plinth Medical Ltd offer a 5 year parts guarantee on all Premium Range products delivered from January 2013 and a lifetime frame guarantee. The only exclusion to this guarantee is for negligent damage or damage to upholstery coverings. This... -
Page 15: Technical Specification
Podiatry Chair User Manual 9. Technical Specifications 503C 503CD 503CT 503CDT Head Length (cm) Seat Length (cm) Foot Length (cm) Width (cm) Overall Length (cm) Height Range (cm) 53-100 53-100 53-100 53-100 Max Working Load 250kg 250kg 250kg 250kg Control... -
Page 16: Revisions To Manual
Barric Lane Occold Suffolk IP23 7PX ENGLAND Plinth Medical Ltd In association with Plinth 2000 are an ISO Audited company to ISO9001:2008 Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC 16 | P a g e...
