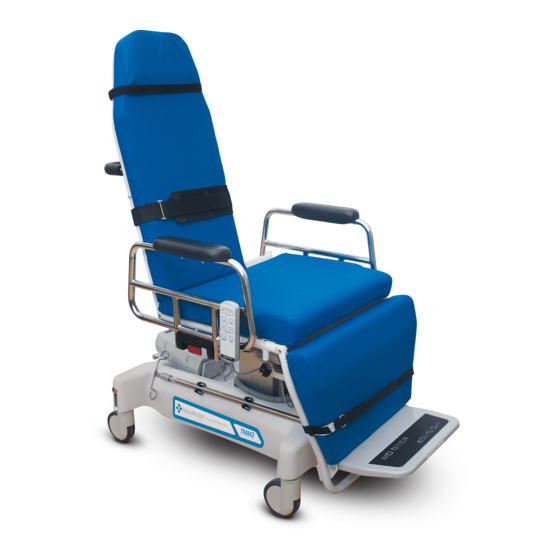

Video fluoroscopy chair
Hide thumbs Also See for TMM3 Series:
Table of Contents

Advertisement

Quick Links

OPERATION MANUAL
Model TMM3 Series
Video Fluoroscopy Chair
Options:
S
Short Base
F
Folding Footrest
E
Export
B
Battery
A
AC Power
1441 Wolf Creek Trail - PO Box 302, Sharon Center, OH 44274
Phone: 1-866-860-8447 - Fax: 1-330-239-4465
www.transmotionmedical.com
Page 1 of 25
Document No.: OM TMM3 SERIES
Revision: R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMM3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transmotion TMM3 Series

Summary of Contents for Transmotion TMM3 Series

  • Page 1 Video Fluoroscopy Chair Options: Short Base Folding Footrest Export Battery AC Power 1441 Wolf Creek Trail - PO Box 302, Sharon Center, OH 44274 Phone: 1-866-860-8447 - Fax: 1-330-239-4465 www.transmotionmedical.com Document No.: OM TMM3 SERIES Revision: R Page 1 of 25...

  • Page 2: Table Of Contents

    “B” OPTION: BATTERY PACK..........................20 “A” OPTION: AC POWER (for on-board batteries and charger) ................21 SWITCH SCHEMATIC .......................22 CLEANING INSTRUCTIONS .....................23 PAD REMOVAL INSTRUCTIONS .........................23 PREVENTIVE MAINTENANCE ....................24 SERVICE INFORMATION......................25 Document No.: OM TMM3 SERIES Revision: R Page 2 of 25...

  • Page 3: Important Notes About This Manual

    IMPORTANT NOTES ABOUT THIS MANUAL This Operations Manual is designed to assist you with operating your TransMotion Medical Product. Carefully read this manual before using the equipment or doing service / maintenance on it. If you are unable to understand the WARNINGS and CAUTIONS and instructions, contact TransMotion Medical customer service before attempting to operate or service the equipment.

  • Page 4: Safety Precautions

    Do not sit or stand on the ends of the stretcher-chair. Instruct patients to not stand on footrest during egress / ingress. Due to the unique nature of each patient’s body shape, caregiver should exercise sound judgment when positioning patient on the device. Document No.: OM TMM3 SERIES Revision: R Page 4 of 25...
  • Page 5 If mounting accessories to back surgical rails, ensure accessory is properly installed and securely engaged prior to transporting patient/chair, and prior to use. Only equipment approved by TransMotion Medical is to be mounted on surgical rails. TransMotion Medical is not responsible for damage, and assumes no liability, caused by the use of unapproved equipment or accessories.
  • Page 6 The max weight capacity of each back surgical bar is 50 pounds. To prevent personal injury to patient, do not mount equipment weighing more than 50 pounds to device. Weight of patient plus weight of equipment should not exceed 350 pound weight capacity of TransMotion Medical stretcher-chair. EMI CAUTION:...
  • Page 7 If chair is to be stored or not in use for more than 1.5 weeks, leave chair plugged into an AC wall outlet or unplug battery from control box. For more information, refer to “A” Option section below. Document No.: OM TMM3 SERIES Revision: R...

  • Page 8: Labeling Diagrams (Tmm3-B Shown)

    INSPECT LABELS PERIODICALLY Every three months, inspect all labels and ensure that they are legible, and not tattered, torn, or missing. Refer to label locations in figures below. If labels need to be replaced, contact TransMotion Medical Customer Service at 1-866-860-8447.
  • Page 9 Document No.: OM TMM3 SERIES Revision: R Page 9 of 25...

  • Page 10: Operating Instructions

    LEVER FUNCTIONING IMPROPERLY DURING AN EMERGENCY. To ensure proper operation, activate quick release every thirty days. If quick release does not operate properly, please contact TransMotion Medical Customer Service at 1-866-860-8447. Document No.: OM TMM3 SERIES Revision: R Page 10 of 25...

  • Page 11: Caster Brake Operation

    This mode locks caster (near patient’s right foot) parallel to base, but allows this wheel to spin. Other three casters swivel, and wheels spin freely. Document No.: OM TMM3 SERIES Revision: R Page 11 of 25...

  • Page 12: Side Rail Operation

    Remove cushion and seat pan by removing four pan head screws. NOTICE Do not discard seat pan, pan head screws, or additional hardware removed during this step. Parts will be reused after adjustment. Loosen top jam nut. Document No.: OM TMM3 SERIES Revision: R Page 12 of 25...
  • Page 13 To move inward, rotate bottom jam nut as shown. To move outward, rotate bottom jam nut as shown. Document No.: OM TMM3 SERIES Revision: R Page 13 of 25...
  • Page 14 5) Ensure top jam nut engages at least two full threads. Do not over tighten top jam nut (there is no need). Reattach seat pan and cushion. Document No.: OM TMM3 SERIES Revision: R Page 14 of 25...

  • Page 15: Pendant (Controller)

    Press left button to raise chair’s leg section and lower chair’s back, resulting in stretcher configuration. Press right button to lower chair’s leg section and raise chair’s back, resulting in chair configuration. Document No.: OM TMM3 SERIES Revision: R Page 15 of 25...

  • Page 16: Patient Ingress / Egress

    6. WITH PATIENT EXITING TO SIDE OF CHAIR, assist patient in rotating their body by placing their legs over one side of chair. 7. Assist patient into standing position from seated position. Document No.: OM TMM3 SERIES Revision: R Page 16 of 25...

  • Page 17: Patient Transfer

    Grasp push bar handle while pulling out red release knob. Lower push bar into “down” position. RAISING PUSH BAR Lift push bar handle until it is in “up” position. Red release knob will engage (lock) automatically. Document No.: OM TMM3 SERIES Revision: R Page 17 of 25...

  • Page 18: Seat Rotation

    3. Raise seat to highest height using pendant. 4. Pull out black seat lock knob located under back of seat section. 5. Rotate chair 90° counterclockwise (or 1/4-turn to operator’s right) until lock knob reengages. Document No.: OM TMM3 SERIES Revision: R Page 18 of 25...

  • Page 19: Options

    “A” option power cord is directly attached to chair. “B” option power cord is attached to battery charger (# TMA57-15). Power cords depicted in image may not match power cord shipped with your chair. Document No.: OM TMM3 SERIES Revision: R Page 19 of 25...

  • Page 20: B" Option: Battery Pack

    Additional battery may be stored in wall charger or on mobile battery stand. For more information related to the battery and charger, see Battery Charger Installation and Usage Instructions (IM TMA57- 15). Document No.: OM TMM3 SERIES Revision: R Page 20 of 25...

  • Page 21: A" Option: Ac Power (For On-Board Batteries And Charger)

    Then unplug the battery pack cord shown. Document No.: OM TMM3 SERIES Revision: R Page 21 of 25...

  • Page 22: Switch Schematic

    BACK SECTION ACTUATOR – PLUGS INTO PORT #3 LEG SECTION ACTUATOR – PLUGS INTO PORT #4 PORT #5 IS EMPTY SEAT ROTATION CORD PLUGS INTO PORT #7 PENDANT CABLE PLUGS INTO PORT #9 Document No.: OM TMM3 SERIES Revision: R Page 22 of 25...

  • Page 23: Cleaning Instructions

    All Medical As required Consult manual provided by accessory manufacturer. Accessories PAD REMOVAL INSTRUCTIONS When removing cushions, pull laterally. Do not pull from top to bottom. Document No.: OM TMM3 SERIES Revision: R Page 23 of 25...

  • Page 24: Preventive Maintenance

    Call TMM Test function of Service if each button pendant is not Pendants Every three months Inspect pendant functioning or label to ensure it label is is readable. unreadable Document No.: OM TMM3 SERIES Revision: R Page 24 of 25...

  • Page 25: Service Information

    Recommended to replace battery every two years or as required. Customer service and support are important aspects of each TransMotion Medical product. Prior to contacting TransMotion Medical for assistance with your chair, please HAVE YOUR CHAIR’S SERIAL NUMBER HANDY. (Refer to label diagram for location.) Contact TransMotion Medical Customer Service at: TransMotion Medical Inc.
