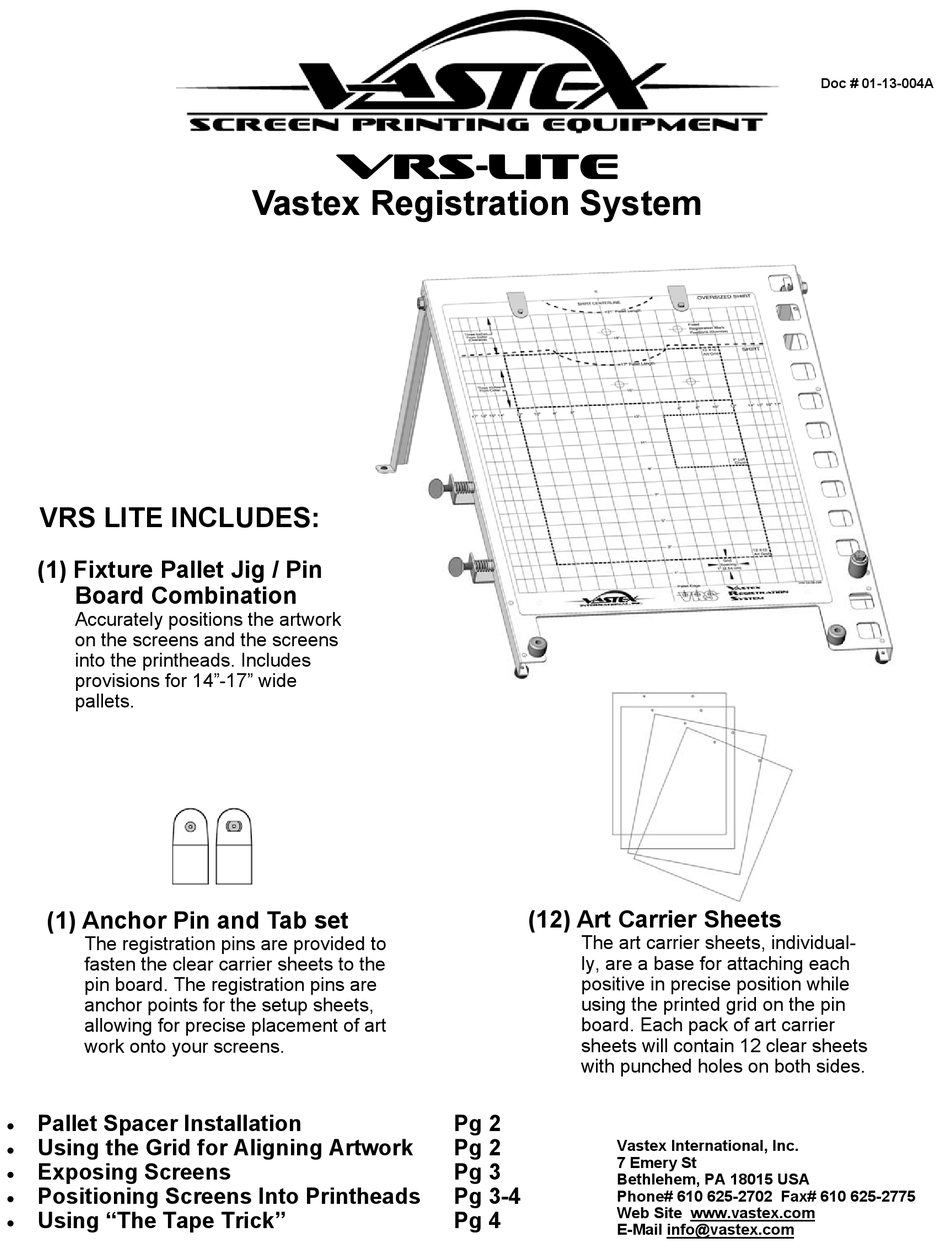

VRS LITE INCLUDES:

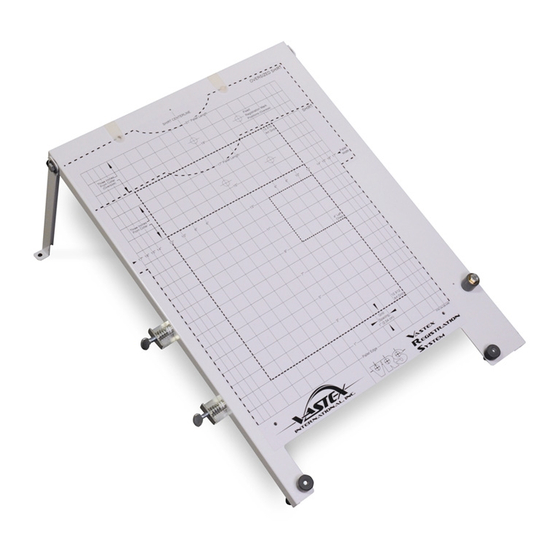

(1) Fixture Pallet Jig / Pin
Board Combination
Accurately positions the artwork
on the screens and the screens
into the printheads. Includes
provisions for 14"-17" wide
pallets.
(1) Anchor Pin and Tab set
The registration pins are provided to
fasten the clear carrier sheets to the
pin board. The registration pins are
anchor points for the setup sheets,
allowing for precise placement of art
work onto your screens.
Pallet Spacer Installation
Using the Grid for Aligning Artwork
Exposing Screens
Positioning Screens Into Printheads
Using "The Tape Trick"
VRS-LITE
Vastex Registration System
(12) Art Carrier Sheets
The art carrier sheets, individual-
ly, are a base for attaching each
positive in precise position while
using the printed grid on the pin
board. Each pack of art carrier
sheets will contain 12 clear sheets
with punched holes on both sides.
Pg 2
Pg 2
Vastex International, Inc.
7 Emery St
Pg 3
Bethlehem, PA 18015 USA
Pg 3-4
Phone# 610 625-2702 Fax# 610 625-2775
Web Site www.vastex.com
Pg 4
E-Mail info@vastex.com
Doc # 01-13-004A
