Millennium L-220-SL Instruction Manual

Millennium L-220-SL Instruction Manual

18' double ladderstand

Advertisement

Quick Links

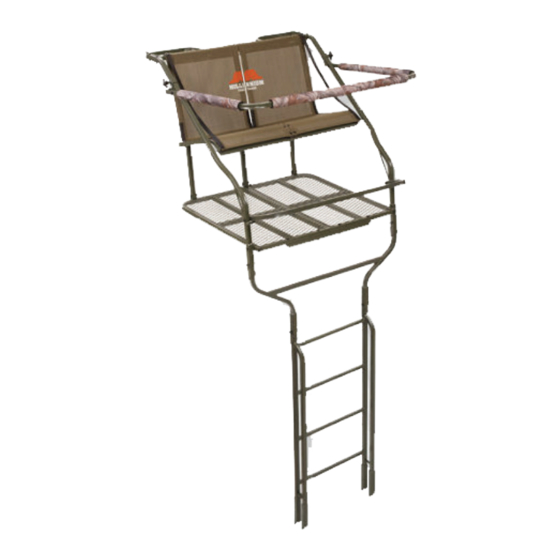

Millennium L-220-SL
18' Double Ladderstand
Maximum Weight Capacity - 500 pounds (227kg) (User and Equipment)
(Single User Weight Not to Exceed 300 (136 kg) Pounds Total)
WARNING! This product carries strict weight limitations. Do not use this product if you exceed this total weight limitation. Please note
this weight limit includes the user and equipment. Failure to follow these instructions may result in serious injury or death!
Maximum Weight Capacity - 500 pounds (227 kg) (User and Equipment)
Thank you for your purchase of this quality Millennium product! To ensure your personal safety, please take a moment to carefully read this product
Instruction Manual in its entirety before attempting to set-up, install and/or otherwise use this Millennium product. Failure to do so could result in serious
personal injury or death! This Millennium product has been designed, engineered and manufactured to provide you with years of trouble free service.
WARNING! You must use the full-body fall arrest harness which meets or exceeds industry standards recognized by the TMA (Trees-
tand Manufacturer's Association) and has been provided with this Millennium product(s) or an aftermarket full-body fall arrest harness
which meets or exceeds industry standards recognized by the TMA when installing, removing or using this Millennium product(s).
Your full-body fall arrest harness included with your new Millennium treestand has a service life of three (3) years past its date of manufacture.
This date of manufacture can be found on the sewn on label of each component of the fall arrest system. Replace this harness if the service life has
expired. Should you experience a fall while wearing your full body fall arrest harness return it to the manufacturer for free replacement. You must read the
full-body fall arrest harness Instruction Manual in it's entirety prior to attempting to use this Millennium product(s) in any manner.
MILLENNIUM L-220-SL 18' DOUBLE
LADDERSTAND INSTRUCTION MANUAL
Model Number: L-220-SL 18' Double Ladderstand
Model Number: L-220-SL Ladderstand
Failure to follow these instructions may result in serious injury or death!
Should you have any questions
about the installation and/or use of
this product, or any other Millenni-
um product(s) do not hesitate to call
one of our customer service rep-
resentatives at (601) 932-5832 or
visit us online at millenniumstands.
com. Our service representatives
will answer any questions you may
have about any of the complete line
of Millennium products.
5142019
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-220-SL and is the answer not in the manual?

Questions and answers

Summary of Contents for Millennium L-220-SL

  • Page 1 Maximum Weight Capacity - 500 pounds (227 kg) (User and Equipment) Thank you for your purchase of this quality Millennium product! To ensure your personal safety, please take a moment to carefully read this product Instruction Manual in its entirety before attempting to set-up, install and/or otherwise use this Millennium product. Failure to do so could result in serious personal injury or death! This Millennium product has been designed, engineered and manufactured to provide you with years of trouble free service.
  • Page 2 INJURY OR DEATH! WARNING! This Millennium product(s) is designed for adult use only. No one under the age of 16 shall attempt to use this or any other Mil- lennium® product(s) without direct adult supervision. Failure to follow these instructions may result in serious injury or death! WARNING! Prior to attempting to use this or any other Millennium product(s) you must take the time and become familiar with its assembly, setup, installation and removal.
  • Page 3 Millennium. Always use genuine factory authorized Millennium replacement parts. Use of any replacement parts other than genuine Millennium parts voids your warranty and may result in serious injury or death! WARNING! Prior to each hunt, make sure that you have a signaling device (e.g., mobile phone, radio, whistle, signal flare or Personal...
  • Page 4 WARNING! DO NOT attempt to use this or any other Millennium product(s) when ice, snow, and/or freezing rain has deposited or formed on any portion of the tree or stand you intend to climb. Do not attempt to use this or any other Millennium product(s) when thunderstorms are threatening and/or present within five (5) miles.
  • Page 5 WARNING! These Millennium product(s) were designed for installation on trees with a minimum diameter of nine (9) inches at tree- stand installation height (i.e., seat height). DO NOT use your Millennium product(s) on trees with trunk diameters that do not meet this minimum diameter requirement.
  • Page 6 (user and equipment ) of 300 pounds (136 kg). Additionally, your full-body fall arrest harness (and its compo- nents) must be replaced after three (3) years of service! Please contact Millennium for our full -body fall arrest harness replacement procedure should you experience a fall or shall it exceed the three (3) year service period.
  • Page 7 For your personal safety, please take a moment to carefully read this product Instruction Manual in its entirety before at- tempting to assemble, set-up, install and/or Otherwise use this Millennium product. At least annually, review the contents of this Instruction Manual and watch the treestand safety: it’s up to you DVD.
  • Page 8 Millennium Outdoors, LLC treestand product. Failure to follow these instructions will result in serious injury or death! WARNING! Use the Millennium full-body fall arrest harness provided with this product or a harness which meets or exceeds industry standards recognized by the TMA.
  • Page 9 Figure 6 Thread Waist Buckle Figure 7 Figure 8 Tighten Leg Loops/Positioned Full-Body Fall Arrest Harness Donned Snugly in Groin Area Correctly (Front and Rear Views) STEP 2. With both left and right legs in the leg loops, slip your right arm through the right shoulder strap as shown in Figure 3. With your right arm in the right shoulder strap, repeat this Step for your left arm.
  • Page 10 Millennium Outdoor product. You must keep the tether length as short as possible at all times to minimize the...
  • Page 11 A Suspension Relief Device, or SRD, has been provided with this Millennium product. It is provided to help relieve the pressure on your lower extremities in the unlikely event you experience a fall from an elevated hunting position.
  • Page 12 SAFE LINK 2 CLIMBING ROPE SYSTEM COMPONENTS DO NOT WASH THIS PRODUCT IN A WASHING MACHINE! A Safe Link 2 climbing rope system has been included with this product(s) for your use. Please note it is included for your optional use; its use is not mandatory. It is designed to compliment hang-on, fixed position, and ladderstands.
  • Page 13 STEP 3: While using a lineman’s belt per your full-body fall arrest harnesses Instruction Manual, climb to your hang-on or fixed position treestand. NOTE: The prusik hitch shall be snug on the climbing rope. Prior to use, check to ensure it is tight by sliding it a few feet along the climbing rope.
  • Page 14 SAFE LINK 2 SYSTEM USE/ASCENDING & DESCENDING (TWO USERS) NOTE: You MUST install your Safe Link 2 as described in the “SAFE LINK 2 CLIMBING ROPE SYSTEM INSTALLATION” section above. These instructions are provided to assist you in installing your Safe Link 2 climbing rope system safely. WARNING! You must read a follow the installation instructions in the “SAFE LINK 2 CLIMBING ROPE SYSTEM INSTALLA- TION”...
  • Page 15 MILLENNIUM L-220-SL 18’ DOUBLE LADDERSTAND ASSEMBLY Some assembly is required prior to your use of your Millennium treestand. NOTE: ALL assembly shall be performed with the ladderstand components laying flat on the ground. Tree Blade (2) Shooting Rail Adjusters Seat Assembly...
  • Page 16 Figure 18 Figure 16 Figure 17 Install Hinges to Seat Frame Bolt Platform Together Install Platform Reinforcement Tube to Platform STEP 1: Place the two (2) platform sections together as shown in Figure 16 and bolt together using four (4) 2 3/4” bolts, eight (8) wash- ers, and four (4) locknuts.
  • Page 17 INSTALLING MILLENNIUM L-220-SL 18’ DOUBLE LADDERSTAND WARNING! Prior to attempting to use this or any other Millennium product(s) you must take a moment and become fa- miliar with it’s setup and installation at ground level. You must practice installing, setting-up and using this product(s) at ground-level prior to attempting to use it at heights above ground-level.
  • Page 18 (i.e., seat height) and a maximum treestand installation diameter of 22” (56cm). DO NOT use your Millennium product(s) on trees with trunk diameters that do not meet this minimum diameter requirement. Failure to follow these instructions may result in serious injury or death! STEP 2: Locate the two (2) stabilizing straps as shown in Figure 15.
  • Page 19 WARNING! DO NOT use this, or any other Millennium product(s) to climb utility poles, telephone poles, structural columns or any other man-made structures. Never use this or any other Millennium product(s) around power generation (e.g., transformers, generators, substations, etc.) and/or power transmission equipment.
  • Page 20 Tree Trunk to Tree Trunk (Cutaway tree view) REMOVING L-220-SL 21’ DOUBLE LADDERSTAND WARNING! STOP NOW!!!!! Make sure that you are wearing your full-body fall arrest harness! Failure to follow these instructions may result in serious injury or death! WARNING! When climbing, always maintain three points of contact as you ascend (climb up) and while descending (climb down).
  • Page 21 (1) year from the date of purchase. Proof of purchase, plus, the return of your warranty application card to our home office, is required for any warranty claim. In the event this product is found to be defective within the warranty period, Millennium Outdoors, LLC only obligation and your exclusive remedy shall be replacement or repair of any defective parts at our discretion.
  • Page 22 Millennium Outdoors, LLC 201 Fairmont Plaza Pearl, Mississippi 39208 (601) 932-5832 millenniumstands.com Copyright © Millennium Outdoors, LLC 2016. All rights reserved. 5142019...
