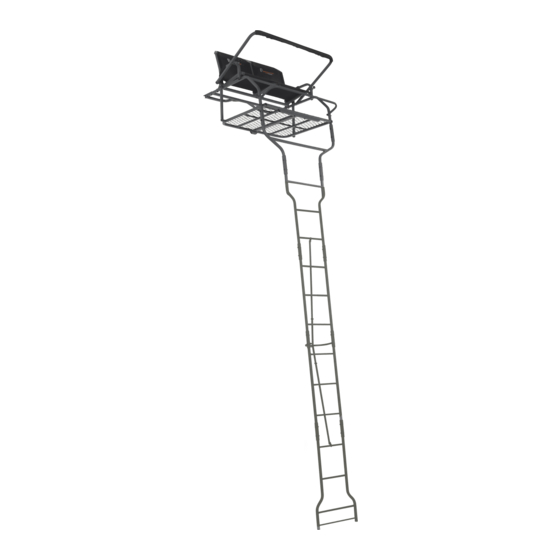

Ol'Man OL-22-00 Double Ladderstand
WARNING! This product carries strict weight limitations. Do not use this product if you exceed this total weight limitation. Please note
this weight limit includes the user and equipment. Failure to follow these instructions may result in serious injury or death!
Maximum Weight Capacity - 500 pounds (227 kg) (User and Equipment)
Thank you for your purchase of this quality Millennium product! To ensure your personal safety, please take a moment to carefully read this product
Instruction Manual in its entirety before attempting to set-up, install and/or otherwise use this Millennium product. Failure to do so could result in serious
personal injury or death! This Millennium product has been designed, engineered and manufactured to provide you with years of trouble free service.
WARNING! You must use the full-body fall arrest harness which meets or exceeds industry standards recognized by the TMA (Trees-
tand Manufacturer's Association) and has been provided with this Millennium product(s) or an aftermarket full-body fall arrest harness
which meets or exceeds industry standards recognized by the TMA when installing, removing or using this Millennium product(s).
Your full-body fall arrest harness included with your new Millennium treestand has a service life of three (3) years past its date of manufacture.
This date of manufacture can be found on the sewn on label of each component of the fall arrest system. Replace this harness if the service life has
expired. Should you experience a fall while wearing your full body fall arrest harness return it to the manufacturer for free replacement. You must read the
full-body fall arrest harness Instruction Manual in it's entirety prior to attempting to use this Millennium product(s) in any manner.
OL'MAN OL-22-00 DOUBLE LADDERSTAND
Model Number: OL-22-00 Double Ladderstand
Failure to follow these instructions may result in serious injury or death!
INSTRUCTION MANUAL
Should you have any questions
about the installation and/or use of
this product, or any other Millenni-
um product(s) do not hesitate to call
one of our customer service rep-
resentatives at (601) 932-5832 or
visit us online at millenniumstands.
com. Our service representatives
will answer any questions you may
have about any of the complete line
of Millennium products.
5082019
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OL'MAN OL-22-00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Millennium OL'MAN OL-22-00

  • Page 1 Maximum Weight Capacity - 500 pounds (227 kg) (User and Equipment) Thank you for your purchase of this quality Millennium product! To ensure your personal safety, please take a moment to carefully read this product Instruction Manual in its entirety before attempting to set-up, install and/or otherwise use this Millennium product. Failure to do so could result in serious personal injury or death! This Millennium product has been designed, engineered and manufactured to provide you with years of trouble free service.
  • Page 2 INJURY OR DEATH! WARNING! This Millennium product(s) is designed for adult use only. No one under the age of 16 shall attempt to use this or any other Mil- lennium® product(s) without direct adult supervision. Failure to follow these instructions may result in serious injury or death! WARNING! Prior to attempting to use this or any other Millennium product(s) you must take the time and become familiar with its assembly, setup, installation and removal.
  • Page 3 Millennium. Always use genuine factory authorized Millennium replacement parts. Use of any replacement parts other than genuine Millennium parts voids your warranty and may result in serious injury or death! WARNING! Prior to each hunt, make sure that you have a signaling device (e.g., mobile phone, radio, whistle, signal flare or Personal...
  • Page 4 WARNING! DO NOT attempt to use this or any other Millennium product(s) when ice, snow, and/or freezing rain has deposited or formed on any portion of the tree or stand you intend to climb. Do not attempt to use this or any other Millennium product(s) when thunderstorms are threatening and/or present within five (5) miles.
  • Page 5 WARNING! These Millennium product(s) were designed for installation on trees with a minimum diameter of nine (9) inches at tree- stand installation height (i.e., seat height). DO NOT use your Millennium product(s) on trees with trunk diameters that do not meet this minimum diameter requirement.
  • Page 6 (user and equipment ) of 300 pounds (136 kg). Additionally, your full-body fall arrest harness (and its compo- nents) must be replaced after three (3) years of service! Please contact Millennium for our full -body fall arrest harness replacement procedure should you experience a fall or shall it exceed the three (3) year service period.
  • Page 7 For your personal safety, please take a moment to carefully read this product Instruction Manual in its entirety before at- tempting to assemble, set-up, install and/or Otherwise use this Millennium product. At least annually, review the contents of this Instruction Manual.
  • Page 8 Millennium Outdoors, LLC treestand product. Failure to follow these instructions will result in serious injury or death! WARNING! Use the Millennium full-body fall arrest harness provided with this product or a harness which meets or exceeds industry standards recognized by the TMA.
  • Page 9 Figure 6 Thread Waist Buckle Figure 7 Figure 8 Tighten Leg Loops/Positioned Full-Body Fall Arrest Harness Donned Snugly in Groin Area Correctly (Front and Rear Views) STEP 2. With both left and right legs in the leg loops, slip your right arm through the right shoulder strap as shown in Figure 3. With your right arm in the right shoulder strap, repeat this Step for your left arm.
  • Page 10 Millennium Outdoor product. You must keep the tether length as short as possible at all times to minimize the...
  • Page 11 A Suspension Relief Device, or SRD, has been provided with this Millennium product. It is provided to help relieve the pressure on your lower extremities in the unlikely event you experience a fall from an elevated hunting position.
  • Page 12 Some assembly is required prior to your use of your Millennium treestand. NOTE: ALL assembly shall be performed with the ladderstand components laying flat on the ground. DO NOT attempt to assembly this Millennium treestand in the field as parts are easily lost there.
  • Page 14 OL’MAN OL-22-00 DOUBLE LADDERSTAND ASSEMBLY (Continued) Figure 16 Bolt Platforms Together STEP 1: Place two (2) sections of platform side-by-side and bolt together using four (4) ¼”x 2 ¾” bolts, and eight (8) washers as shown in Figure 16. Place one (1) washer under the head of each bolt and one (1) washer under each nut. Tighten nuts to 50 inch pounds. Figure 17 Install Platform Reinforcement Bracket STEP 2: Bolt the platform reinforcement bracket to the bottom of the platform using two (2) 2-½...
  • Page 16 Figure 20 Install Tree Blade Assembly STEP 5: Install the tree blade assembly using four (4) ¼ x 1 ¾ bolts, eight (8) washers and two (2) nuts as shown in Figure 20. Figure 21 Install Shooting Rail Adjusters STEP 6: Install the shooting rail adjusters on the arm rest as shown in Figure 21 and secure in place by tightening the knobs. 5082019...
  • Page 17 WARNING! DO NOT place more than fifteen (15) pounds (7 kg) of weight on the footrest, shooting rail or seat back. DO NOT attempt to use any of these as a handhold or to pull yourself up into or lower yourself while exiting the treestand. Doing so will result in an unsafe condi- tion.
  • Page 18 WARNING! DO NOT place more than fifteen (15) pounds (7 kg) of weight on the footrest, shooting rail or seat back. DO NOT attempt to use any of these as a handhold or to pull yourself up into or lower yourself while exiting the treestand. Doing so will result in an unsafe condi- tion.
  • Page 19 Figure 26 Seat Assembly STEP 11: This is the first step of assembly of the seat. You must follow these instructions exactly to avoid problems with assembly. First assemble the center seat hinge using one (1) ¼” x 3-1/4” bolt, four (4) washers and two (2) nuts. Place washers between the hinge and seat frame, under the head of the bolt and under the nut as shown in Figure 26.
  • Page 20 Figure 28 Install Outer Seat Frames STEP 13: Now you can attach all six (6) of the outer seat frames to the spreader bars using six (6) ¼” x 2-1/4” bolts, two (2) washers and one (1) nut on as shown in Figure 28. Install the nuts finger tight at this time. Figure 29 Seat Fabric Installation STEP 14: Make sure the seat fabric is pulled all the way to the end of each seat frame as shown in Figure 29.
  • Page 21 STEP 15: With the seat folded flat on a table or a flat surface you can tighten all the outer frame bolts, but only tighten all of them half way then go back and tighten them all until they are tight, failure to tighten in this manner will warp the seat and it will not function properly.
  • Page 22 Figure 33 Install Ladder Adapter to Bottom of Uprights STEP 18: Attach the ladder adapter to the bottom of the uprights below the base of the stand using four (4) ladder connectors and four (4) 5/16”x 2” bolts, eight (8) washers and four (4) nuts as shown in Figure 33. Do not tighten bolts yet. STEP 19: You can now tighten all the bolts that you have installed starting first with the tree blade bolts, second the upright to platform bolts, third the armrest to platform bolts, fourth the armrest to upright bolts, fifth the shooting rail to arm rest bolts, sixth the foot rest bolts, seventh the seat hinge to upright bolts and finally the ladder adapter bolts.
  • Page 23 OL’MAN OL-22-00 DOUBLE LADDERSTAND LADDER ASSEMBLY There are four (4) ladder sections, one (1) top section, two (2) middle sections (which are identical) and one (1) bottom section. The ladder also uses a bridge support in the rear of the ladder and there are four parts associated with it. NOTE: There are drain holes under the end of each step.
  • Page 24 Figure 36 Install Bridge Support to Ladder STEP 5: NOTE: One end of the bridge support is shorter than the other and the short end must go towards the top of the ladder. As- semble the bridge support to the ladder starting with one (1) ¼” eye bolt, two (2) washers, and one (1) nut to connect it to the bridge support U brace.
  • Page 25 INSTALLING OL’MAN OL-22-00 DOUBLE LADDERSTAND WARNING! Prior to attempting to use this or any other Millennium product(s) you must take a moment and become fa- miliar with it’s setup and installation at ground level. You must practice installing, setting-up and using this product(s) at ground-level prior to attempting to use it at heights above ground-level.
  • Page 26 (i.e., seat height) or a maximum treestand installation diameter of 22” (56 cm). WARNING! These Millennium product(s) were designed for installation on trees with a minimum diameter of 12” (30 cm) at treestand installation height (i.e., seat height) and a maximum treestand installation diameter of 22” (56 cm). DO NOT use your Millennium product(s) on trees with trunk diameters that do not meet this minimum diameter requirement.
  • Page 27 WARNING! DO NOT use this, or any other Millennium product(s) to climb utility poles, telephone poles, structural columns or any other man-made structures. Never use this or any other Millennium product(s) around power generation (e.g., transformers, generators, substations, etc.) and/or power transmission equipment.
  • Page 28 STEP 9: After reaching the top of the ladder immediately attach yourself to the tree with your full-body fall arrest tether to the tree trunk as shown in Figure 45. Now you can place the ratchet strap around the tree hooking one end to the left side of the tree blade and the other end to the right side of the tree blade and ratchet tight as shown in Figure 46.
