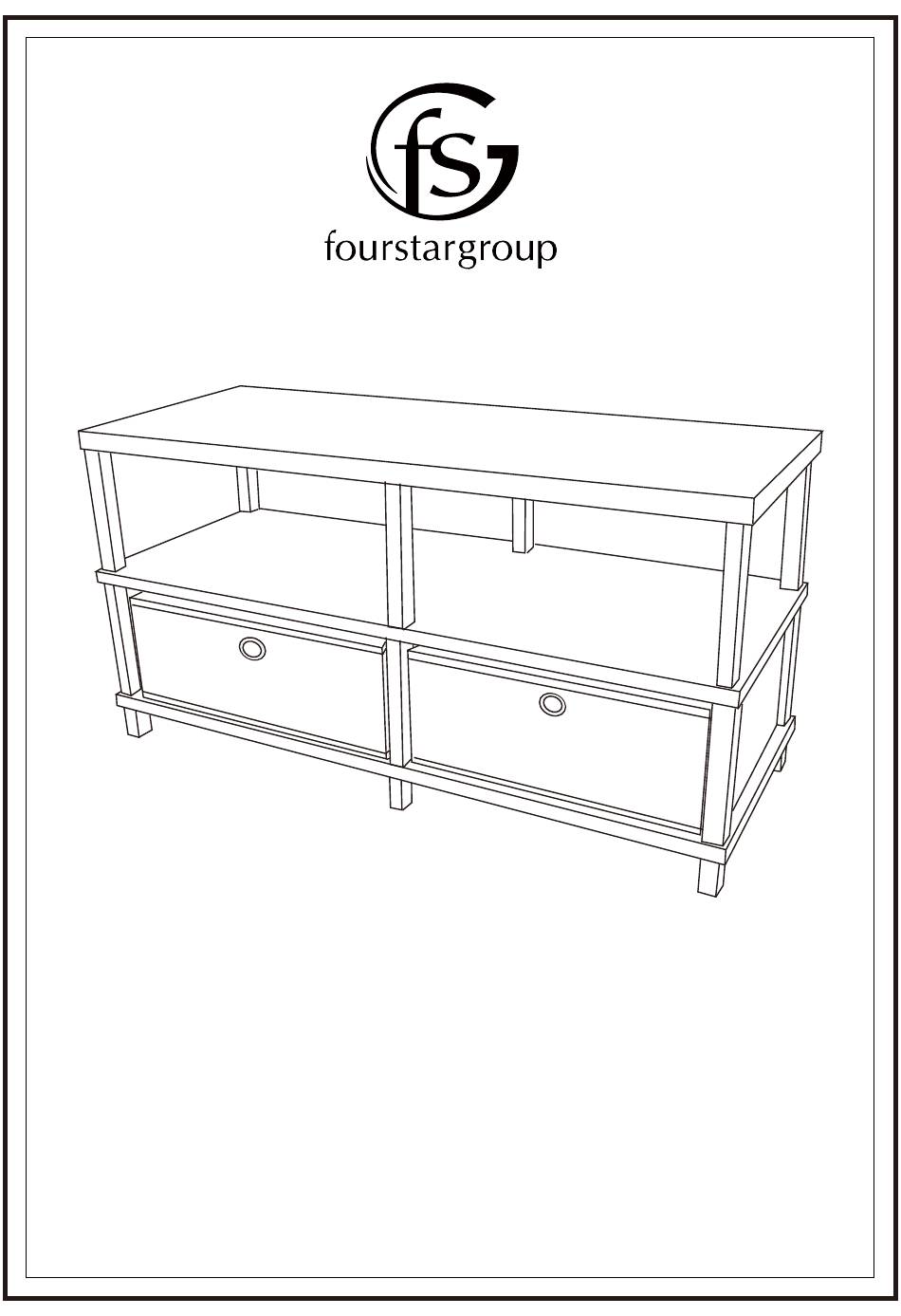

- Page 1 MODEL: 11224528V / MODELO: 11224528V TV STAND WITH STORAGE BIN ESTANTE PARA TV CON CAJONES DE TELA...
- Page 2 HARDWARE & PART LIST LISTA DE ACCESORIOS Y PARTES PARTS LIST LISTA DE PARTES Y ACCESORIOS TOP SHELF 1 PC ESTANTE SUPERIOR 1 PZ SHELF 2 PCS ESTANTE 2 PZS 2 PCS CAJON DE TELA 2 PZS TOP SPINDLE 6 PCS EJE SUPERIOR 6 PZS MIDDLE SPINDLE...
- Page 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSAMBLAJE STEP 1 PLACE THE TOP SHELF (A) SURFACE FACE DOWN ON A SOFT CLOTH/BLANKET IN ORDER TO PROTECT SURFACE, SCREW THE TOP SPINDLES (D) ON THE TOP SHELF. ATTACH 1 SHELF (B) BY USING MIDDLE SPINDLES (E). AFTER THAT, ATTACH THE OTHER SHELF (B) BY USING FEET (F) AS SHOWN.
- Page 4 STEP 2 TURN OVER THE FRAME, INSERT BINS (C) IN WHICH TIER YOU LIKE. PASO 2 DE VUELTA LA ESTRUCTURA, E INSERTE LOS CAJONES EN EL ESTANTE QUE GUSTE. 40 lbs(18.14 kg) 15 lbs(6.8 kg) Weight Maximum 70 lbs (31.8 kg) Peso Maximo 70 lbs (31,8 kg) 7.5 lbs(3.4 kg) PRECAUCIÓN:...
