PARK WAREHOUSE 622pg120 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

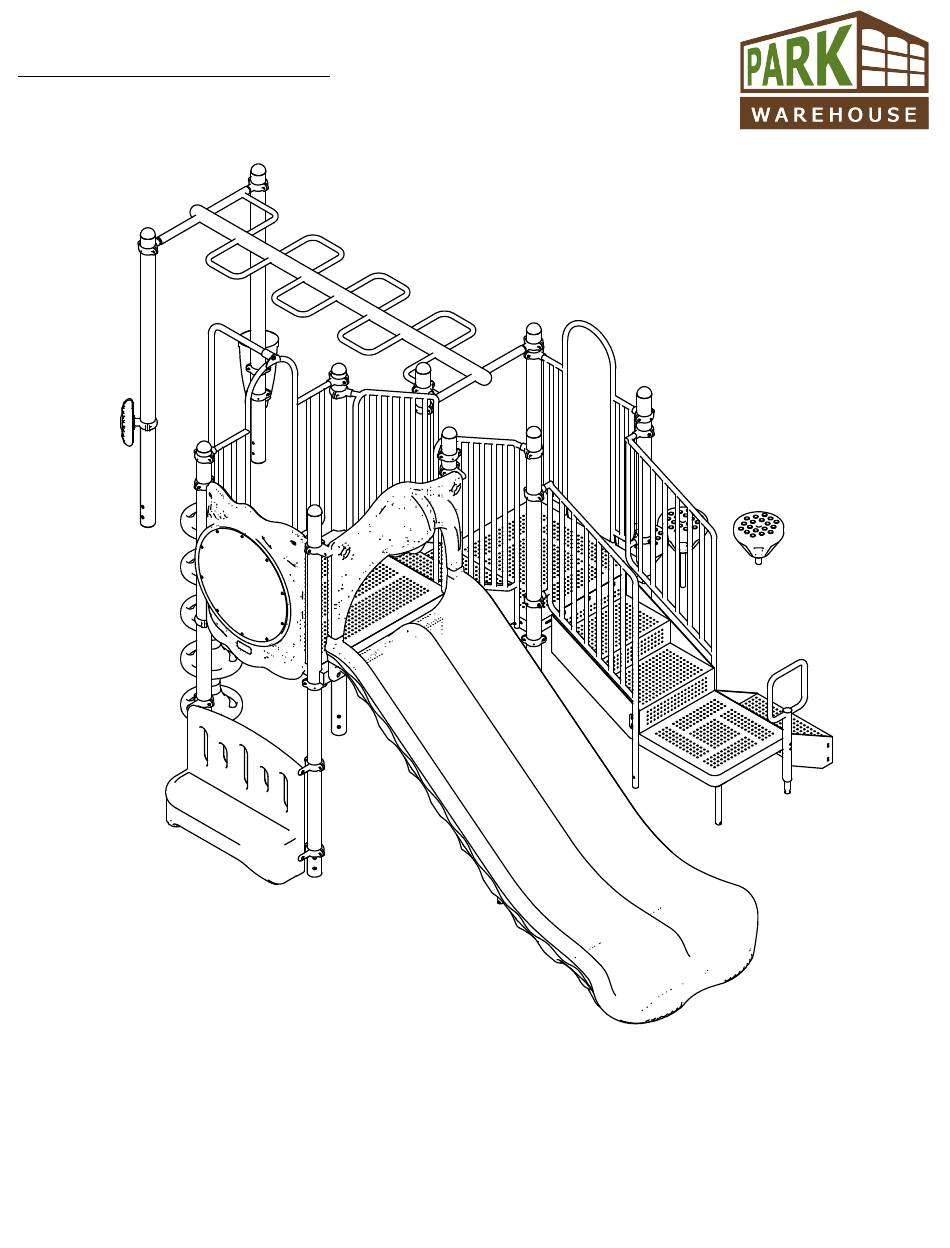

MADDIE ' S CHASE
20
SKU:
622pg1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 622pg120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PARK WAREHOUSE 622pg120

Summary of Contents for PARK WAREHOUSE 622pg120

  • Page 1 MADDIE ' S CHASE SKU: 622pg1...
  • Page 2 GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. Manufacturer STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.

  • Page 3: Overhead Obstructions

    GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Install Wood Mulch (EWF) at a depth of 12". Over time this mulch will compress to a depth of 9" as required by the U.S. Consumer Product Safery Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614. For more information on the proper surfacing materials, call the CPSC hotline at 1-800-638-2772.

  • Page 4: Routine Maintenance

    GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES TRIPPING HAZARDS: There should be no exposed concrete footings, abrupt changes in surface elevations, tree roots, tree stumps, and rocks, which can trip children and adults. Check for trip hazards, such as the balance beam support posts, or environmental trip hazards, such as rocks or roots in the play area. Make all necessary improvements or repairs.
  • Page 5 GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -All equipment should be free of rust and repainted with an appropriate lead-free paint whenever necessary to deter rusting. This should also be done for any chipped or peeling areas. -Regular checking of all parts, casting, etc., should be made. If part is broken or worn it should be replaced immediately.
  • Page 6 Maintenance Check Maintaining your playground equipment as well as its surrounding area is essential to minimiz ing the risk of injury to users as well as maximiz ing its useful lifespan. The manufacturer recommends the following maintenance procedures be followed: On a daily basis: A responsible individual should conduct a brief visual check for structural defects, signs of vandalism and litter of foreign matter that needs to be removed.
  • Page 8 Warranty Manufacturer warrants its products to be free from defects in materials and/or workmanship, subject to normal usage and installation, for a period of 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, manufacturer will replace the component at no cost within the first 12 months from date of shipment to the original customer.

  • Page 9: Warranty Exclusions

    This warranty is applicable to the original owner only. Warranties are non-transferable. Claim Procedure: To make a warranty claim, send your written statement of claim, photographs of defective equipment, and the original purchase invoice or invoice number to Park Warehouse. Within 60 days of notice of claim under warranty, we will make arrangements to replace the damaged product.
  • Page 10 GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. Designed to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playgr ound accidents.
  • Page 11 GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS TOOLS REQUIRED: Manufacturer supplies only the special wrenches and bits required to fasten the "tamper-resistant" hardware and components. You will need common wrenches and an Allen key set as well as a drill, string line, level, shovels, post hole digger, pry bar, washable felt tip marker, phillips head screw driver, utility knife, rubber mallet, and a tape measure.

  • Page 12: Safety During Installation

    GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS 7. CPSC guidelines mandate that there shall be no gaps present in the playground equipment that fall between 3-1/2" and 9". The positioning of certain components by the installer can affect this criteria, so you should always measure distances created when attaching components in order to avoid these spaces which can cause entrapment of a child using the equipment.
  • Page 13 WARNING LABEL APPLICATION INSTRUCTIONS The enclosed Warning Labels must be affixed to your playground equipment. At least one Warning Label is needed per play structure, permanently affixed in a conspicuous location within easy view of users. INSTRUCTIONS: 1. Fully assemble and install your playground equipment per the accompying installatioin instructions.

  • Page 14: Tools Required

    TOOLS REQUIRED...

  • Page 15: Hardware Reference

    INCH HARDWARE REFERENCE M8 B.H.C.S. Bolts 100mm 40mm 45mm 50mm 70mm 25mm 30mm 35mm 13mm 20mm 4" 1-3/4" 2" 2-3/4" 1" 1-3/16" 1 3/8" 1-9/16" 1/2" 3/4" (33-11-0109) (33-11-0107) (33-11-0113) (33-11-0104) (33-11-0105) (33-11-0106) (33-11-0114) (33-11-0103) (33-11-0101) (33-11-0102) M8 Barrel Nut (33-11-0501) M8 Flat Washer (33-11-0300)
  • Page 16 UPRIGHT PLACEMENT UPRIGHTS LIST DESCRIPTION PART NUMBER 6'-11" UPRIGHT 02-07-5074 7'-6" UPRIGHT 02-07-5075 02-07-5076 8'-8" UPRIGHT 6'-11" UPRIGHT (02-07-5074) 7'-6" UPRIGHT (02-07-5075) 8'-8" UPRIGHT (02-07-5076)

  • Page 17: Top View

    USE ZONE 3FT STEP POD (02-07-5067) OVERHEAD LADDER (02-07-5042) SQUARE DECK (02-07-5001) BASS DRUM (02-07-5023) 3FT ADA STEPS RAINWHEEL (02-07-5039) (02-07-5022) 27'-7" 2FT STAIRS 6'-0" (02-07-5020) 5FT BEANSTALK CLIMBER -WIDE- (02-07-5060) RECTANGLE DECK (02-07-5038) 6'-0" BENCH PANEL WINDOW PANEL (02-07-5014) (02-07-5010) 5FT DOUBLE STRAIGHT SLIDE (02-07-5065)

  • Page 18: Site Preparation

    FOOTING DETAIL - IN GROUND Parts List DESCRIPTION PART NUMBER INGROUND FOOTER 02-07-0049 3/8" x 1 1/4" P.B.H.C.S. w/PATCH 33-05-0019 3/8" FLAT WASHER 33-02-0002 3/8" HEX NUT 33-01-0002 IMPORTANT: UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO ACCOMODATE 2"...
  • Page 19 INCH FOOTING DETAIL - IN GROUND 1. Attach Inground Footer to Upright Post using 3/8" x 1 1/4" P.B.H.C.S., 3/8" Flat Washer, and 3/8" Hex Nut. Refer to Footing Table and Footing Layout page for Hole/Footer location. See Detail 069. 2.
  • Page 20 MADDIE'S CHASE Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 PANEL CLAMP 02-07-0040 SQUARE DECK 02-07-5001 WINDOW PANEL 02-07-5010 BENCH PANEL 02-07-5014 2FT. STAIRS 02-07-5020 RAINWHEEL w/TUBE CLAMP 02-07-5022 BASS DRUM w/TUBE CLAMP 02-07-5023 RECTANGLE DECK 02-07-5038 3FT ADA STEPS 02-07-5039 02-07-5042 OVERHEAD LADDER...

  • Page 21: Finished Assembly

    MADDIE'S CHASE PANEL CLAMP 2FT STAIRS (02-07-0040) (02-07-5020) 8'-8" UPRIGHT OVERHEAD LADDER (02-07-5076) 7'-6" UPRIGHT (02-07-5042) (02-07-5075) BASS DRUM (02-07-5023) 5F DOUBLE STRAIGHT SLIDE (02-07-5065) TUBE CLAMP (02-07-0039) SQUARE DECK (02-07-5001) 3FT STEP POD RECTANGLE DECK (02-07-5067) 3FT ADA STEP (02-07-5038) (02-07-5039) FINISHED ASSEMBLY...
  • Page 22 252 in [640.18 cm] FOOTING TABLE Hole No. Hor. Dim. Ver. Dim. Diagonal 36 3/4" 56 3/4" 22 1/2" 61" 39 1/2" 22 1/2" 45 1/4" 90 1/2" 11 1/4" 91 1/4" 90 1/2" 33 3/4" 96 1/2" 36 3/4" 45"...

  • Page 23: Installation Instructions

    6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 6'-11" LG. 02-07-0196 UPRIGHT FOOTER 02-07-0042 HARDWARE COMPLETE 33-12-0026 33-11-0011 M10 x 80mm (3 1/8") BHCS BOLT M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 24 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 3-1/2" UPRIGHT, 6'-11" LG. (02-07-0196) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL...
  • Page 25 INCH 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER...
  • Page 26 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 7'-6" LG. 02-07-0197 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 27 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 3-1/2" UPRIGHT, 7'-6" LG. (02-07-0197) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL...
  • Page 28 INCH 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) TOP (2) HOLES USED M10 x 80mm (3 1/8") BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER...
  • Page 29 SQUARE DECK 02-07-5001 Parts List DESCRIPTION PART NUMBER SQUARE DECK 02-07-0003 HARDWARE COMPLETE 33-12-0019 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004* M10 FLATWASHER 33-11-0200* M10 LOCK NUT 33-11-0400* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 30 SQUARE DECK 02-07-5001 SQUARE DECK (02-07-0003) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 31 INCH SQUARE DECK 02-07-5001 M10 FLATWASHER (33-11-0200) M10 LOCK NUT (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004)
  • Page 32 TUBE CLAMP 02-07-0039 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 33 INCH TUBE CLAMP 02-07-0039 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET. (33-11-0700)
  • Page 34 OVERHEAD LADDER 02-07-5042 Parts List DESCRIPTION PART NUMBER OVERHEAD LADDER 02-07-0158 3 1/2" UPRIGHT w/OUT CLAMP, 6'-11" LG. 02-07-0159 TUBE CLAMP 02-07-0039 UPRIGHT FOOTER 02-07-0042 HARDWARE COMPLETE 33-12-1032 M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 LOCKWASHER 33-11-0301* M8 LOCK NUT 33-11-0500* M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011*...
  • Page 35 OVERHEAD LADDER 02-07-5042 UNDERNEATH OVERHEAD LADDER (02-07-0158) TUBE CLAMP (02-07-0039) UPRIGHT FOOTER (02-07-0042) 3 1/2" UPRIGHT w/OUT CLAMP 6-11" LG. (02-07-0159) COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY = INSTALLATION DETAIL...
  • Page 36 INCH OVERHEAD LADDER 02-07-5042 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) M8 LOCKWASHER (33-11-0301) TUBE CLAMP CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT LARGE HOLE...
  • Page 37 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 Parts List DESCRIPTION PART NUMBER 02-07-0198 3 1/2" UPRIGHT, 8'-8" LG. UPRIGHT FOOTER 02-07-0042 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 38 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 3-1/2" UPRIGHT, 8'-8" LG. (02-07-0198) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL...
  • Page 39 INCH 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER...
  • Page 40 RECTANGLE DECK 02-07-5038 Parts List DESCRIPTION PART NUMBER RECTANGLE DECK 02-07-0184 33-12-0019 HARDWARE COMPLETE M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004 M10 FLATWASHER 33-11-0200 33-11-0400 M10 LOCK NUT Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 41 RECTANGLE DECK 02-07-5038 RECTANGLE DECK (02-07-0184) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 42 INCH RECTANGLE DECK 02-07-5038 M10 FLATWASHER (33-11-0200) M10 LOCK NUT (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004)
  • Page 43 2FT. STAIRS 02-07-5020 Parts List DESCRIPTION PART NUMBER TOWER STAIR 02-07-0007 LEFT HANDRAIL 02-07-0009 RIGHT HANDRAIL 02-07-0096 TUBE CLAMP 02-07-0039 HARDWARE COMPLETE 33-12-0074 M10 x 25mm (1") BHCS BOLT 33-11-0003 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 M10 FLATWASHER 33-11-0200 33-11-0400 M10 LOCK NUT M10 x 50mm (2") BHCS BOLT...
  • Page 44 2FT. STAIRS 02-07-5020 UNDERNEATH RIGHT HANDRAIL TUBE CLAMP (02-07-0096) (02-07-0039) LEFT HANDRAIL (02-07-0009) UNDERNEATH UNDERNEATH TOWER STAIR (02-07-0007) UNDERNEATH COMPONENTS SHOWN IN FINISHED ASSEMBLY = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 45 INCH 2FT. STAIRS 02-07-5020 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) M8 LOCKWASHER M8 x 25mm (1") BHCS (33-11-0301) CLAMP RIVET BOLT (33-11-0103) (33-11-0700) M8 x 25mm (1") BHCS DRILL THROUGH PRE-DRILLED BOLT (33-11-0103) HOLE IN CLAMP INTO UPRIGHT...
  • Page 46 INCH 2FT. STAIRS 02-07-5020 M10 FLATWASHER (33-11-0200) HANDRAIL M10 LOCK NUT (33-11-0400) DECK M10 x 50mm (2") BHCS BOLT (33-11-0010)
  • Page 47 3FT. ADA STEPS 02-07-5039 Parts List DESCRIPTION PART NUMBER BARRIER LEFT 02-07-0157 BARRIER RIGHT 02-07-0156 1" FOOTER 02-07-0043 ADA TRANSFER STAIR 02-07-0155 ADA DECK 02-07-0004 ADA DECK SUPPORT POST 02-07-0047 ADA HANDHOLD 02-07-0011 ADA STEP 02-07-0006 8 1/4" EXTENSION POST 02-07-0060 15"...
  • Page 48 3FT. ADA STEPS 02-07-5039 7. Attach ADA Transfer Step to Barriers using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 032. 8. Attach Barrier Footer to ADA Deck Support using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 028. 9.
  • Page 49 3FT. ADA STEPS 02-07-5039 UNDERNEATH BARRIER LEFT BARRIER RIGHT (02-07-0157) (02-07-0156) UNDERNEATH ADA HANDHOLD (02-07-0011) ADA STEP (02-07-0006) ADA TRANSFER STAIR (02-07-0155) ADA DECK UNDERNEATH (02-07-0004) ADA DECK SUPPORT POST UNDERNEATH (02-07-0047) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 50 INCH 3FT. ADA STEPS 02-07-5039 BARRIER M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT TUBE CLAMP (33-11-0005) SUPPORT POST M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER (33-11-0301) FOOTER M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 LOCK NUT UPRIGHT (33-11-0400)
  • Page 51 INCH 3FT. ADA STEPS 02-07-5039 M10 LOCK NUT (33-11-0400) M10 FLATWASHER DECK M10 LOCK NUT (33-11-0200) (33-11-0400) M10 x 25mm (1") M10 FLATWASHER BHCS BOLT (33-11-0200) (33-11-0003) DECK SUPPORT STAIR BARRIER M10 FLATWASHER (33-11-0200) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT STEP...
  • Page 52 INCH 3FT. ADA STEPS 02-07-5039 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE...
  • Page 53 3FT STEP POD 02-07-5067 Parts List DESCRIPTION PART NUMBER ENTRY ARCHWAY 02-07-0031 SMALL POD 02-07-0204 MEDIUM POD 02-07-0194 TALL POD 02-07-0195 33-12-1037 HARDWARE COMPLETE CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M10 x 25mm (1") BHCS BOLT 33-11-0003...
  • Page 54 3FT STEP POD 02-07-5067 BEHIND ENTRY ARCHWAY (02-07-0031) TALL POD (02-07-0195) MEDIUM POD (02-07-0194) SMALL POD (02-07-0204) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...

  • Page 55: Plan View

    3FT STEP POD 02-07-5067  12 in [30.48 cm]  12 in REF. 6 in [30.48 cm] [15.24 cm] (3 PLCS) 36 13/16 in [93.50 cm] 15 3/8 in 15 in [39.13 cm] [38.10 cm] 34 1/4 in [87.00 cm] 53 1/2 in [135.89 cm] PLAN VIEW...
  • Page 56 INCH 3FT STEP POD 02-07-5067 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS M8 LOCKWASHER BOLT (33-11-0103) (33-11-0301) DRILL THROUGH PRE-DRILLED...
  • Page 57 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 Parts List DESCRIPTION PART NUMBER 5FT BEANSTALK CLIMBER 02-07-0165 ENTRY ARCHWAY WIDE w/SOCKET 02-07-0163 EXTENSION PIPE 02-07-0203 FOOTER PLATE 02-07-0046 HARDWARE COMPLETE 33-12-1034 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M10 x 20mm (3/4") BHCS BOLT 33-11-0002...
  • Page 58 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 MAINTENANCE PROCEDURE: Periodically check hardware for tightness, and tighten as necessary. Always check all parts for breakage or wear, and immediately put equipment out of service until any faulty parts found are repaired or replaced. Also Check all metal parts for rust, paint loss and touch-up if necessary with paint.
  • Page 59 INCH 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) M8 x 25mm (1") BHCS CLAMP RIVET BOLT (33-11-0103) M8 LOCKWASHER (33-11-0700) (33-11-0301) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103)
  • Page 60 INCH 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 PIPE w/INSERT M10 FLATWASHER (33-11-0200) ENTRY ARCHWAY w/SOCKET M10 x 20mm (3/4") BHCS BOLT (33-11-0002) M12 LOCKWASHER (33-11-0203) CLIMBER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) EXTENSION...
  • Page 61 PANEL CLAMP - SINGLE 02-07-0040 Parts List PART NUMBER DESCRIPTION PANEL CLAMP 02-07-0040 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 62 INCH PANEL CLAMP - SINGLE 02-07-0040 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 63 WINDOW PANEL 02-07-5010 Parts List DESCRIPTION PART NUMBER 02-07-0019 WINDOW PANEL HARDWARE COMPLETE 33-12-0034 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 M12 LOCKWASHER 33-11-0203 M10 FLATWASHER 33-11-0200 M8 x 25mm (1") BHCS BOLT 33-11-0103 33-11-0110 M8 x 55mm (2 3/16") BHCS BOLT M8 LOCK NUT 33-11-0500 M8 BARREL NUT...

  • Page 64: Installation Detail

    WINDOW PANEL 02-07-5010 WINDOW PANEL (02-07-0019) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 65 INCH WINDOW PANEL 02-07-5010 M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) M10 FLATWASHER (33-11-0200) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M12 LOCKWASHER (33-11-0203) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS DECK BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED...
  • Page 66 5FT DOUBLE SLIDE 02-07-5065 Parts List DESCRIPTION PART NUMBER 5FT DOUBLE STRAIGHT SLIDE 02-07-0173 DOUBLE SLIDEHOOD 02-07-0174 DOUBLE SLIDE DECK FILLER 02-07-0192 02-07-0193 CLAMP DOUBLE SLIDE MID SUPPORT BRACKET 02-07-0191 BOTTOM BRACKET 02-07-0190 EXTENSION TUBE 02-07-0202 FOOTER PLATE 02-07-0046 1" FOOTER 02-07-0043 HARDWARE COMPLETE 33-12-1036...
  • Page 67 5FT DOUBLE SLIDE 02-07-5065 7. Insert Double Slide Hood into top holes in Double Slide, and attach Clamps Double Slide to Uprights using M8 x 25mm B.H.C.S. Bolt and M8 Lock Nut. See Detail 073. (Do not install Clamp Rivet until entire unit is assembled.) 8.
  • Page 68 INCH 5FT DOUBLE SLIDE 02-07-5065 M10 LOCK NUT M10 LOCK NUT (33-11-0400) (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT DECK (33-11-0005) M10 FLATWASHER (33-11-0200) LARGER HOLE M10 FLATWASHER (33-11-0200) CENTER SUPPORT POST M10 x 25mm (1") DECK FILLER BHCS BOLT (33-11-0003) FOOTER EXTENSION TUBE...
  • Page 69 INCH 5FT DOUBLE SLIDE 02-07-5065 UPRIGHT M8 LOCK NUT CLAMP DOUBLE SLIDE UPRIGHT (33-11-0500) (02-07-0193) M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 x 25mm (1") BHCS BOLT (33-11-0103) CLAMP RIVET M8 x 30mm (1 3/16") SLIDE HOOD (33-11-0700) M8 LOCK NUT BHCS BOLT (33-11-0500) (33-11-0104)
  • Page 70 BENCH PANEL 02-07-5014 Parts List DESCRIPTION PART NUMBER BENCH PANEL 02-07-0015 PANEL CLAMP 02-07-0040 HARDWARE COMPLETE 33-12-0031 M8 x 30mm (1 3/16") BHCS BOLT 33-11-0104 M8 LOCKWASHER 33-11-0301 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCK NUT 33-11-0500 CLAMP RIVET 33-11-0700 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number...
  • Page 71 BENCH PANEL 02-07-5014 PANEL CLAMP (02-07-0040) BENCH PANEL (02-07-0015) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 72 INCH BENCH PANEL 02-07-5014 M8 x 25mm (1") BHCS ROTOMOLD BOLT (33-11-0103) PANEL CLAMP M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER CLAMP RIVET (33-11-0301) (33-11-0700) M8 x 25mm (1") BHCS M8 x 30mm (1 3/16") BOLT (33-11-0103) BHCS BOLT (33-11-0104) DRILL THROUGH PRE-DRILLED...
  • Page 73 RAIN WHEEL w/TUBE CLAMP 02-07-5022 Parts List DESCRIPTION PART NUMBER RAIN WHEEL ASS'Y 02-07-0012 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 74 RAIN WHEEL w/TUBE CLAMP 02-07-5022 UPRIGHT RAIN WHEEL ASS'Y (02-07-0012) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 75 INCH RAIN WHEEL w/TUBE CLAMP 02-07-5022 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET.
  • Page 76 BASS DRUM w/TUBE CLAMP 02-07-5023 Parts List DESCRIPTION PART NUMBER BASS DRUM BRACKET 02-07-0091 TUBE CLAMP 02-07-0039 BASS DRUM 02-07-0013 HARDWARE COMPLETE 33-12-0021 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 FLATWASHER 33-11-0300...
  • Page 77 BASS DRUM w/TUBE CLAMP 02-07-5023 UPRIGHT BASS DRUM BRACKET (02-07-0091) UNDERNEATH BASS DRUM TUBE CLAMP (02-07-0013) (02-07-0039) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY...
  • Page 78 INCH BASS DRUM w/TUBE CLAMP 02-07-5023 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 x 25mm (1") BHCS (33-11-0500) BOLT (33-11-0103) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER CLAMP RIVET (33-11-0301) (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103)
