Temper Koban KDP-DC1 Manual

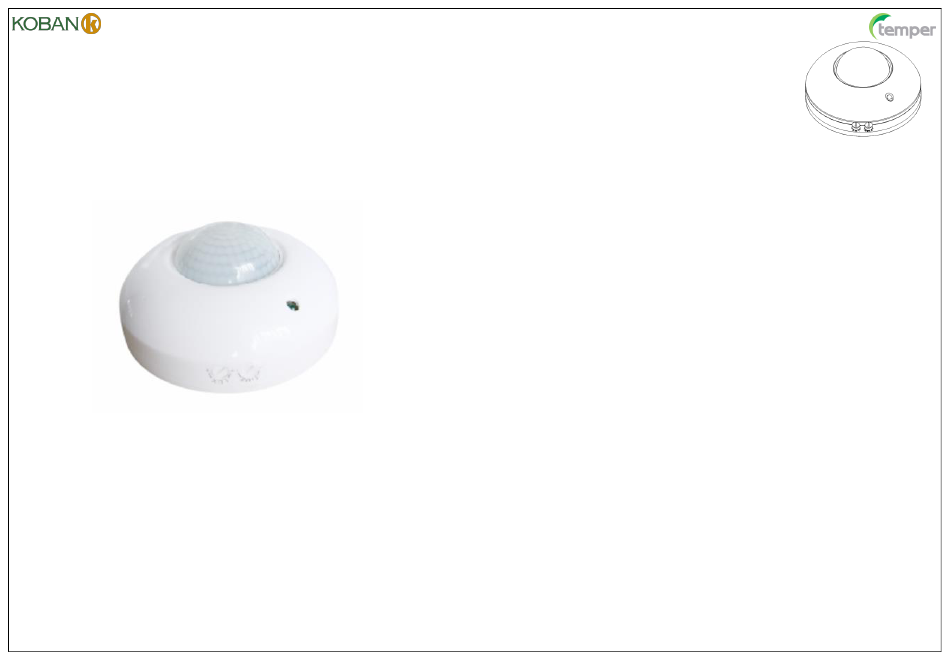

Infrared motion sensor
KDP-DC1
0767966
Manual
Welcome to use Infrared motion sensor!
The product is a new saving-energy switch; it adopts good
sensitivity detector, integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practicality functions. The
wide detection field is consisting of detectors. It works by
receiving human motion infrared rays. When one enters the
detection field, it can start the load at once and identify
automatically day and night; its installation is very convenient and
its using is very wide. It has functions of power indication and the detection indication.
SPECIFICATION:
Power Source: 24V/DC
Detection Distance: 6m max (24℃)
Ambient Light: <10-2000LUX (adjustable)
Time-Delay: min: 10sec±3sec
Max: 7min±2min
Rated Load:120W (incandescent lamp)
120W (energy-saving lamp or LED )
FUNCTION:
➢
Can identify day and night: The consumer can adjust work ambient light. It can work in the
daytime and at night when it is adjusted on the "sun" position (max). It can work in the
ambient light less than 10LUX when it is adjusted on the "moon" position (min). As for the
adjustment pattern, please refer to the testing pattern.
➢
Time-Delay is added continually: When it receives the second induction signals after the first
induction, it will compute time once more on the basic of the first time-delay rest.
➢ Time–Delay is adjustable. It can be set according to the consumer's desire. The minimum
time is 10sec±3sec. The maximum is 7min±2min.
INSTALLATION: (see the figure)
➢
Switch off the power.
➢
Turn clockwise the bottom-stand and take off it. The power wire cross the hole in the
middle of bottom-stand.
➢
The bottom-stand is fixed on the selected position with inflated screw.
Detection Range: 360°
Working Temperature: -20℃~+40℃
Working Humidity: <93%RH
Installation Height: 2.2-4m
Power Consumption: <0.5W (work)
<0.5W (static)
Detection Motion Speed: 0.6 ~1.5m/s
