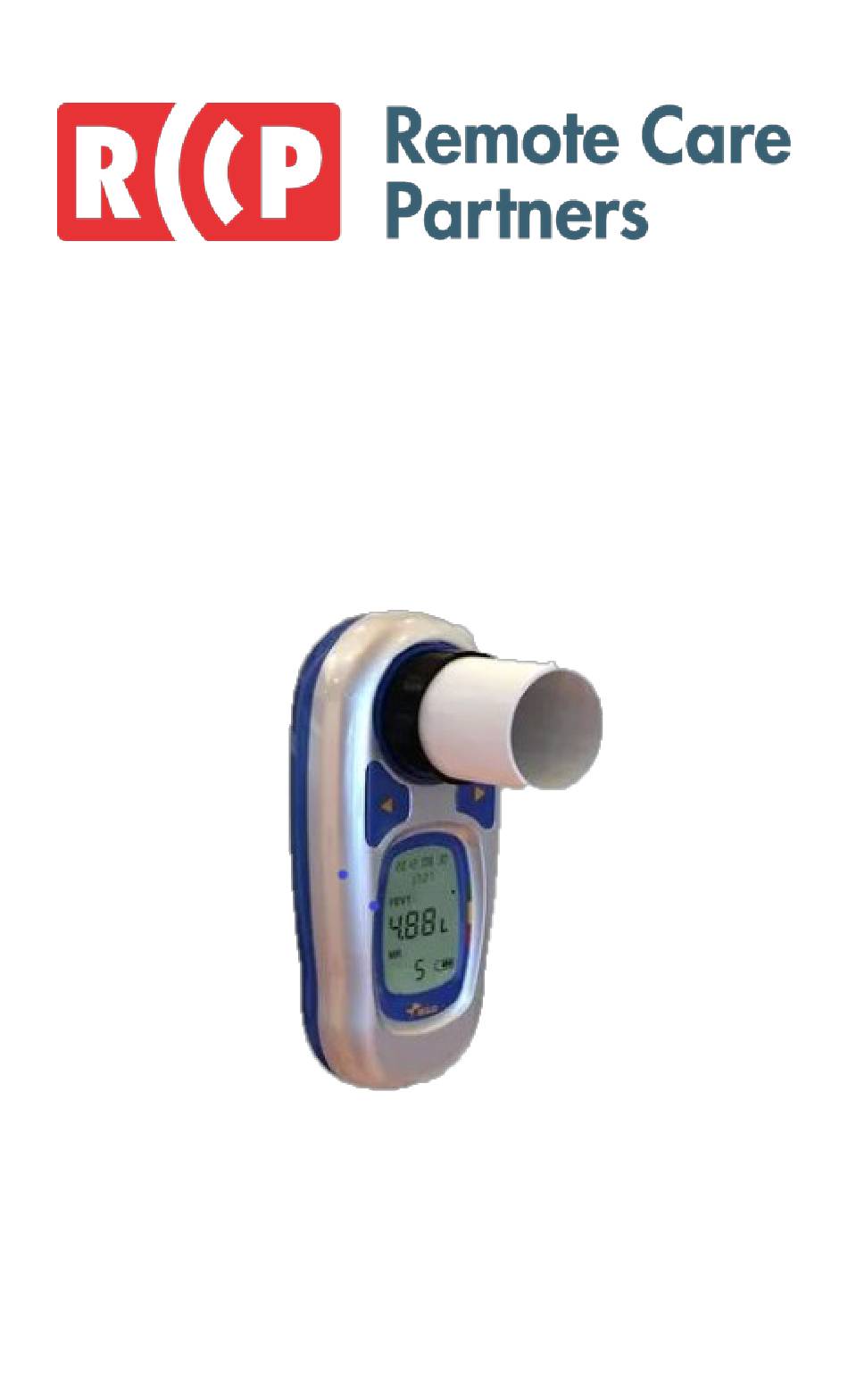

- Page 1 Wireless Spirometer Model # ADF-MSA1000...
-
Page 2: Table Of Contents
Wireless Spirometer TABLE OF CONTENTS INTRODUCTION .............. 3 NOTES ON SAFETY ............3 INTENDED USE ..............4 QUICK START ..............5 YOU SHOULD PERFORM THREE MEASUREMENTS SEQUENTIALLY..............5 PRODUCT OVERVIEW ............ 6 Features ..............6 Display ................ 7 PREPARATION BEFORE USE ..........9 TURNING ON THE DEVICE .......... -
Page 3: Introduction
Model # ADF-MSA1000 INSTRUCTION MANUAL INTRODUCTION This Wireless Spirometer is provided to you by Remote Care Partners (RCP), for use exclusively with the health monitoring program from your provider. Please read this manual carefully and keep it handy for future reference... -
Page 4: Intended Use
Wireless Spirometer INTENDED USE This device is intended for pediatric to adult patients. The device is used to monitor lung conditions such as asthma or chronic obstructive pulmonary disease (COPD). The user should be under the care of a licensed healthcare provider. -
Page 5: Quick Start
Wireless Spirometer Do not allow other people to use your spirometer. The spirometer is specifically assigned to you and you only. Allowing other people to use your spirometer can mislead your provider. QUICK START Avoid smoking, eating, or exercising for 30 minutes before taking measurements 1. -
Page 6: Product Overview
Wireless Spirometer PRODUCT OVERVIEW Features • Auto-off Power Saving Feature Operated by 2 AAA batteries • V1.1 REMOTE CARE PARTENRS PAGE 6... -
Page 7: Display
Wireless Spirometer Display Four rows digit display, indicating individually date, time, measurement value, and record number Current Day or Day of Measurement V1.1 REMOTE CARE PARTENRS PAGE 7... - Page 8 Wireless Spirometer Month Current Month or Month of Measurement Current Time or Time of Measurement Current Year or Year of Measurement Indicates that PEF Value is showing on screen FEV1 Indicates that FEV1 Value is showing on screen Replace Battery Symbol L/min Unit of PEF value...
-
Page 9: Preparation Before Use
Wireless Spirometer PREPARATION BEFORE USE Insert the batteries New batteries were installed in your device before shipping. Unless instructed by a support person, skip this section 1. Slide the cover down 2. Insert two AAA batteries in the shell following symbol inside 3. -
Page 10: Turning On The Device
Wireless Spirometer Assemble the device First, insert the mouthpiece into the turbine sensor. Second, place the assembled mouthpiece and turbine into the main unit and turn clockwise until it locks into place and can be turned no further. TURNING ON THE DEVICE When looking at the LED screen, the power/confirm button on the right side of the device. -
Page 11: Setting The Time/Date
It is not necessary to set the time/date on the device. The time and date of each measurement are recorded by your RCP Hub. If you want the local date and time on the device to be correct, follow these instructions. - Page 12 Wireless Spirometer lock in the date. Once you set the year, the MONTH begins flashing Use the left and right key to adjust the MONTH in the same way you did the YEAR. Press the power button to lock in the MONTH. You can now set DAY, HOUR, and MINUTE the same way.
-
Page 13: Taking A Measurement
Wireless Spirometer Do not allow other people to use your spirometer. The spirometer is specifically assigned to you and you only. Allowing other people to use your spirometer can mislead your provider. TAKING A MEASUREMENT Before every measurement, clean the mouthpiece. 1. -
Page 14: Understanding The Results
Wireless Spirometer UNDERSTANDING THE RESULTS Your age, gender, height, and race are all used to determine your target ranges for this test. Please consults with your provider for your target ranges. V1.1 REMOTE CARE PARTENRS PAGE 14... -
Page 15: Cleaning
Wireless Spirometer CLEANING Don’t use high-pressure water or running water to rinse the turbine. This may damage the turbine and result in inaccurate readings. The meter should be cleaned within 30 minutes after each use. Separate mouthpiece and turbine from the main body. Disconnect mouthpiece and turbine. -
Page 16: Memory Functions
Wireless Spirometer MEMORY FUNCTIONS View Past Readings When the device is powered on and indicates that it is “READY” to take a measurement, press the left or right key, to view past readings. If you keep pressing the button you can browse through all the records. -
Page 17: Delete Past Readings
Wireless Spirometer Delete Past Readings When the device is powered on and indicates that it is “READY” to take a measurement, press the left and right key simultaneously for five seconds. All records will be deleted, and the screen will show the “dEL” message. -
Page 18: Troubleshooting
Wireless Spirometer TROUBLESHOOTING Cause Remedy Message The PEF result is higher than 900L/min, or FEV1 This is a very good result result is higher than 9.99L Records address exceeds the limit, or record date and time Restart system is in error, or software has failed Records do not exist No records... -
Page 19: Storage And Maintenance
Wireless Spirometer STORAGE AND MAINTENANCE Keep the unit away from direct sunlight, • extreme temperature, humidity, or moisture. Use a dry, soft cloth to clean the unit, or if • desired, use a cloth lightly dampened with water. • Do not use alcohol, benzene, thinner, or other volatile liquids to clean the unit. -
Page 20: Specifications
Wireless Spirometer SPECIFICATIONS ADF-MSA100 Wireless spirometer is a handheld pulmonary function measuring medical device that measures your maximum possible exhalation which is called peak expiratory flow (PEF) and forced expiratory volume in 1 second (FEV1). The parameters are displayed on the LCD screen. - Page 21 Wireless Spirometer Repeatability ±5% or ±10L/min FEV1 ±3% or ±0.05L Wireless Wireless technology Bluetooth Low Energy Output Watts 0.0003 Operating Range 0 m~ 6m Frequency Range (MHz) 2402.0 – 2480.0 Modulation GFSK Display Screen Size 1.8 inches Type Control Standard Power/confirm key, left/right key V1.1 REMOTE CARE PARTENRS...
- Page 22 Wireless Spirometer Environment specification Power source AAA1.5×2 batteries Design Interval, ordinary device Battery work Maximum one year time Connection Where available, Bluetooth for phone connection. Operation Temperature 10°C～40°C Humidity 25%~85% Atmosphere 860hPa～1060hPa Storage Temperature -10°C～55°C 15%~93% Humidity 500hPa～1060hPa Atmosphere Zoning Green/Yellow threshold 80% of reference...
-
Page 23: Contact Information And Notices
Wireless Spirometer CONTACT INFORMATION AND NOTICES Remote Care Partners 855-477-7000 www.remotecarepartners.com AndseFit LTD Unit 513 Lakeside 1, No. 8 Science Park West Ave Hong Kong Science Park Hong Kong FCC Compliance Statement This device complies with part 15 of the FCC Rules. - Page 24 Wireless Spirometer FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
