Falconeyes LPW-600TD Installation Manual

3. Save function: 5 momery slots(A,B,C,D,E), save button and delete button are located at the
bottom of the apps
① Save current setting to memory slots: choose the slots and then press save button.Recall
settings by press any memory slots for 2 seconds.
② Refer to Fig. 13, RED slot represents memory stored, BLUE represents slot memory is
recalling BLACK represent slots are free to store memory.
③ Choose any memory slots then press delete button,
any stored data will be erased.
Ⅱ、 LED Display (Fig.14)
1. Turning the upper button to adjust Color Temperature of the light.
Pressing the upper button to switch between multi- light and
single-light mode(Press 3 s for multi-light mode, 6s for sing light-
mode)
2. Turning the lower button to adjust the brightness. Pressing the
lower button to enter or exit stand by mode.
3. Press the up and down arrows on the screen to adjust brightness
and color temperature respectively.

D) Specifications:

LPW-600TD
Model no.：
600pcs x 0.06W
No. of LED bulbs
Power
Color Temperature 3000K-8000K（ Adjustable）
2M(735)/1M(2900)/0.5M(9950)
LUX（LUX)
AC Adaptor SP-AC15(15V/5A)
Lamp Base
Dimensions (LxWxH)
Battery Holder
Beam Angle
Color Filter
LCD Display
Weight

E) Attention

1.Make sure the power is off after use.
2.Do NOT plug/unplug when the power is still connected.
3.Since there can be high voltage inside the unit, Do NOT open or repair the unit yourself. If
there is any defect, please contact an experienced technician.
4.Keep the environment dry and ventilated when using the product. Do not leave or use the
flash in humid or dusty environment.
5.For best performance of LEDs, maintain cleanliness of LEDS by wiping the surface softly
with clean cloth.
6.Do NOT apply pressure to the product.
7.Read this manual carefully before using the product.
3
Fig
LPW-1505TD
150pcs x 0.5W
36w 75w
3000K-8000K（ Adjustable）
2M(1330)/1M(5380)/0.5M(20200)
SP-AC15(15V/7A)
U-Bracket
34x 23.5x 6.2cm
√
45°
Transparent & Orange
√
1.8kg 2.2kg
FM1709_LPW-600TD_LPW-1505TD_eng

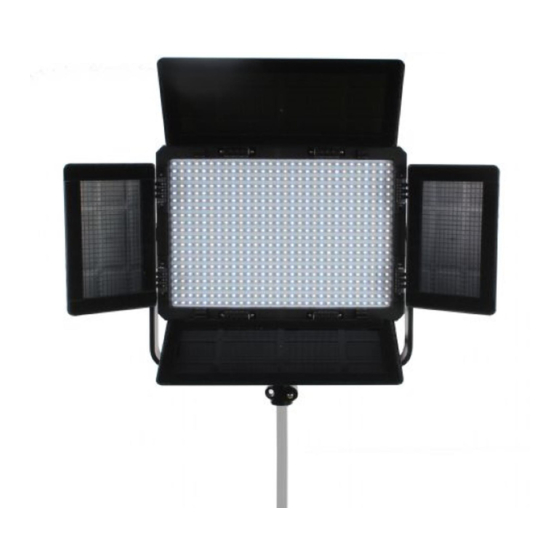

LPW-600TD / LPW-1505TD
LED Instruction Manual
13、
Fig 14、
Thank you for purchasing FalconEyes' products.
For further details of our related products, please contact your
local distributor or visit our webpage at www.falconeyes.com.cn
Thank you.
Please read this manual carefully before using this product.
E-mail: sales@falconeyes.com.cn
Website: www.falconeyes.com.cn
