FourStarGroup 12504043 Assembly Instructions Manual

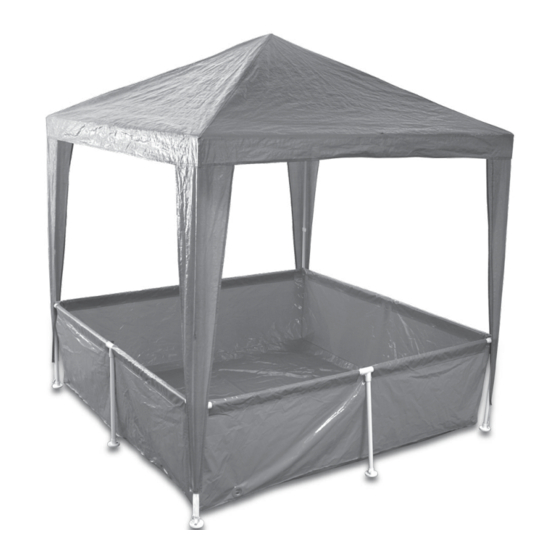

Kid's pool gazebo

MODEL: 12504043

KID'S POOL GAZEBO

Table of Contents

Need help?

Do you have a question about the 12504043 and is the answer not in the manual?

Page 1 MODEL: 12504043 KID’S POOL GAZEBO...
Page 2 PARTS LIST AND HARDWARE HARDWARE LIST TUBE 1 8 PCS TUBE 2 8 PCS TUBE 3 4 PCS TUBE 4 4 PCS TUBE 5 4 PCS TUBE 6 4 PCS TUBE 7 4 PCS FOOT CAP 8 PCS 3 WAY CONNECTOR 4 PCS 4 WAY BASE CONNECTOR 4 PCS...
Page 3 ASSEMBLY INSTRUCTIONS PRECAUTIONS: 1. CHECK ALL PARTS AND HARDWARE LISTED ON THE PARTS LIST. LAY THEM ON A CLEAR AND LEVEL SURFACE PRIOR TO ASSEMBLY. 2. IT IS RECOMMENDED TO HAVE 2 PEOPLE FOR ASSEMBLY. STEP 1 CONNECT ALL THE 8 PCS OF TUBE 1 TO FOOT CAP (A) AS WELL AS 3 WAY CONNECTOR (B) AND 4 WAY CONNECTOR (C).
Page 4 STEP 2 CONNECT THE REST TUBES AS THE FIGURE BELOW SHOWS TO FINISH THE MAIN FRAME OF THE ITEM. FIG. 2...
Page 5 STEP 3 COVER THE PE CANOPY (G). FASTEN THE HOOK ON THE PE CANOPY TO THE FOOT CAP, AND FIX THE PE CANOPY TO THE POLE AS FIG 3. NOW THE ASSEMBLY OF THIS ITEM IS FINISHED. FIG. 3...
Page 6 WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.
