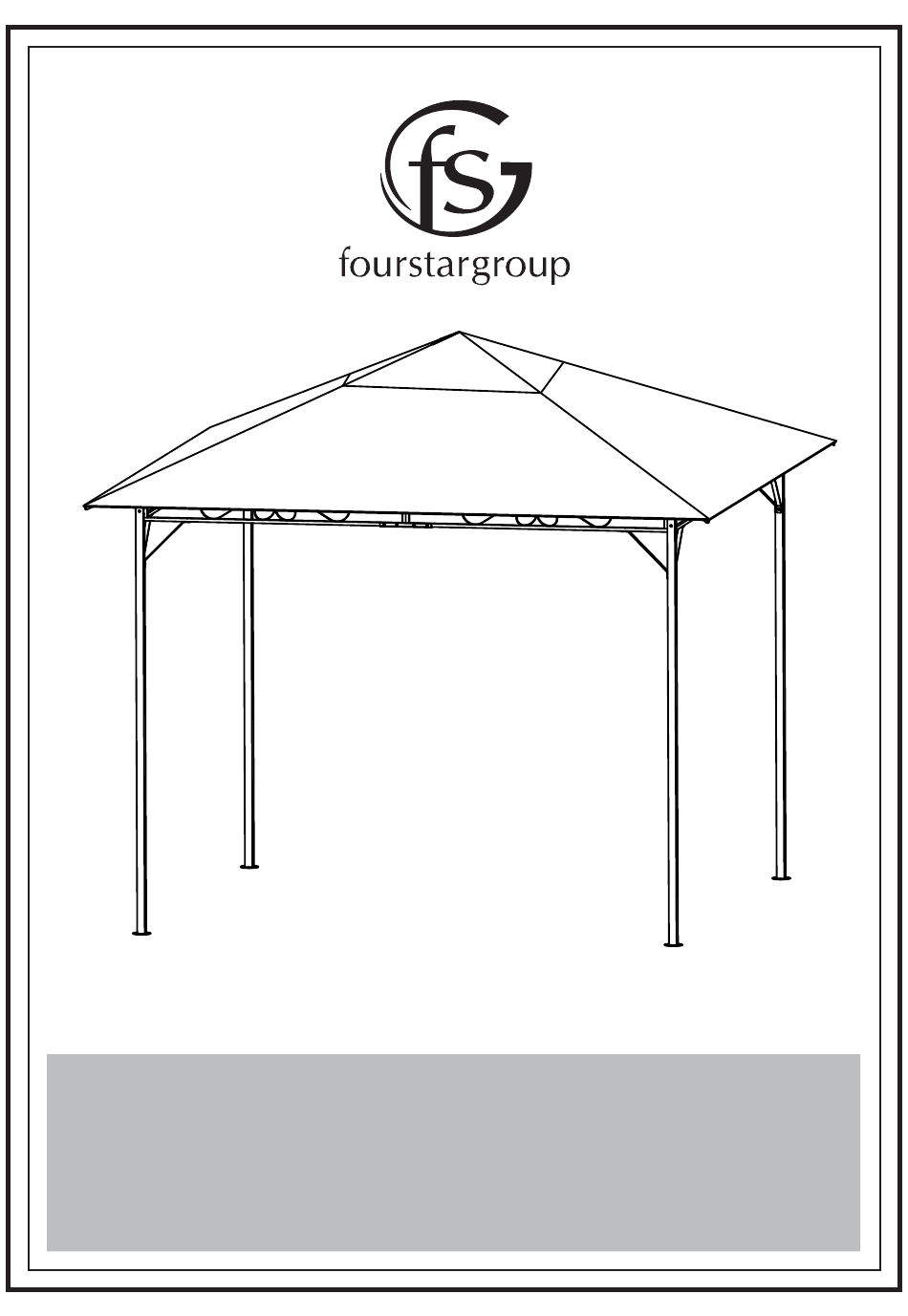

MODEL: 12504683N / MODELO: 12504683N
GAZEBO / GAZEBO
Precautions:
1. Check all parts and hardware listed on the part list.
2. It is recommended to have 2 people for assembly.
3. Step stool is also recommended during the assembly process.
Precauciones:
1. Revise todas las piezas y herrajes que figuran en la lista de piezas.
2. Se recomienda tener 2 personas para el montaje.
3. Taburete de paso también se recomienda durante el proceso de montaje.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 12504683N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FourStarGroup 12504683N

Summary of Contents for FourStarGroup 12504683N

  • Page 1 MODEL: 12504683N / MODELO: 12504683N GAZEBO / GAZEBO Precautions: 1. Check all parts and hardware listed on the part list. 2. It is recommended to have 2 people for assembly. 3. Step stool is also recommended during the assembly process.
  • Page 2 PARTS LIST PARTES Y ACCESORIOS PARTS LIST / LISTA DE PARTES MAIN LEG 4 PCS PIERNA PRINCIPAL 4 PZS SIDE BAR 8 PCS BARRA LATERAL 8 PZS TOP RIB 4 PCS 4 PZS BARRA SUPERIOR TOP CONNECTOR 1 PC CONECTOR SUPERIOR 1 PZ LEG SUPPORT BAR 8 PCS...
  • Page 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ASAMBLEA BEFORE BEGINNING, PLEASE REVIEW ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. ANTES DE INICIAR, LEA DETENIDAMENTE LAS INSTRUCCIONES DE ASAMBLEA Y SIGALAS PASO A PASO. STEP 1-1 / PASO 1-1 CONNECT THE SIDE BARS (2) WITH METAL CONNECTORS (6) USING 1¹⁄ "...
  • Page 4 STEP 2-1 / PASO 2-1 INSERT THE TOP RIBS (3) TO TOP CONNECTOR (4) AS SHOWN. INSERTE LA BARRA SUPERIOR (3) AL CONECTOR SUPERIOR (4) COMO SE MUESTRA. STEP 2-2 / PASO 2-2 ATTACH THE STEP 2-1 FINISHED RIBS (3) TO MAIN LEGS (1) USING 1" BOLTS (9), SPRING WASHERS (11) AND BOLT NUTS (12) AS SHOWN.
  • Page 5 STEP 3 / PASO 3 ATTACH THE TOP COVER (15) TO STEP 2-3 FINISHED FRAME FROM THE TOP AS SHOWN. ADJUNTE LA CUBIERTA (15) AL PASO 2-3 TERMINADO COMO SE MUESTRA.
  • Page 6 STEP 4 / PASO 4 FIX EACH TOP COVER CORNER (15) INTO THE RIB ENDS (3), AND FASTEN IN SECURITY BY CLOSING ZIPPERS AS SHOWN. AJUSTE CADA ESQUINA DE LA CUBIERTA (15) A LAS BARRAS LATERALS (3), Y AJUSTE POR SEGURIDAD CERRANDO EL CIERRE COMO SE MUESTRA.
