- Page 1 User Manual VLHDMISP1X2 HDMI 2.0 1x2 Splitter with 4K to 1080P Down- scaling All Rights Reserved Version: VLHDMISP1X2_2018V1.2...
- Page 2 HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
-
Page 4: Table Of Contents
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling Table of Content 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Packing List ....................... 2 2. Technical Specification ....................3 3. Panel Description ......................4 3.1 Front Panel ......................4 3.2 Rear Panel ...................... -
Page 5: Product Introduction
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 1. Product Introduction Thanks for choosing the HDMI 2.0 1x2 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D, and multichannel audio formats. -
Page 6: Packing List
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 1.2 Packing List 1x HDMI 2.0 1x2 Splitter 4x Plastic Cushions 1x Power Adapter (5V DC 1A) 1x User Manual Note: Please contact your dealer immediately if any damage or defect in the components is found. -
Page 7: Technical Specification
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 2. Technical Specification Video Input Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.2, 1.4 compliant Supported Video Output Output (2) HDMI Output Connector... -
Page 8: Panel Description

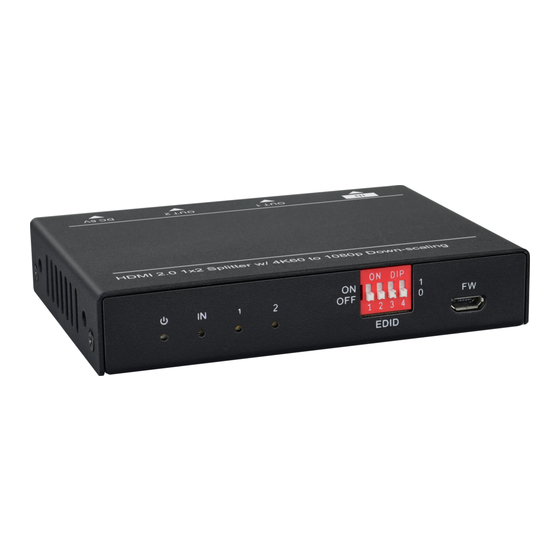

HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 3. Panel Description 3.1 Front Panel 1 2 3 4 EDID ① POWER LED: The LED illuminates red when power is applied. ② INPUT LED: The LED illuminates blue when there is HDMI input. ③... -
Page 9: System Connection
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 4. System Connection 4.1 Usage Precaution Ensure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 10: Dip Switch Operation
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 5. DIP Switch Operation 5.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. -
Page 11: Hdcp Mode
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 1080P DTS/Dolby 3840x2160@30Hz HDR LPCM 3840x2160@30Hz HDR DTS/Dolby 3840x2160@60Hz HDR LPCM 3840x2160@60Hz HDR DTS/Dolby 5.2 HDCP Mode Put the switch 4 on the “ON” position to select HDCP Active mode, or on the “OFF” position for HDCP Passive mode. -
Page 12: Firmware Upgrade
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 6. Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. 2) Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”. -
Page 13: Panel Drawing
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 7. Panel Drawing HDMI 2.0 1x2 Splitter w/ 4K60 to 1080p Down-scaling 96.0 mm 1 2 3 4 EDID... -
Page 14: Troubleshooting & Maintenance
HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling 8. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables Check whether the cables may not be connected are connected correctly and correctly or it may be Colour losing or no in working condition. -
Page 15: Customer Service
Remarks: For any questions or problems, please try to get help from your local distributor, or contact Customer Support at info@vivolink.net...
