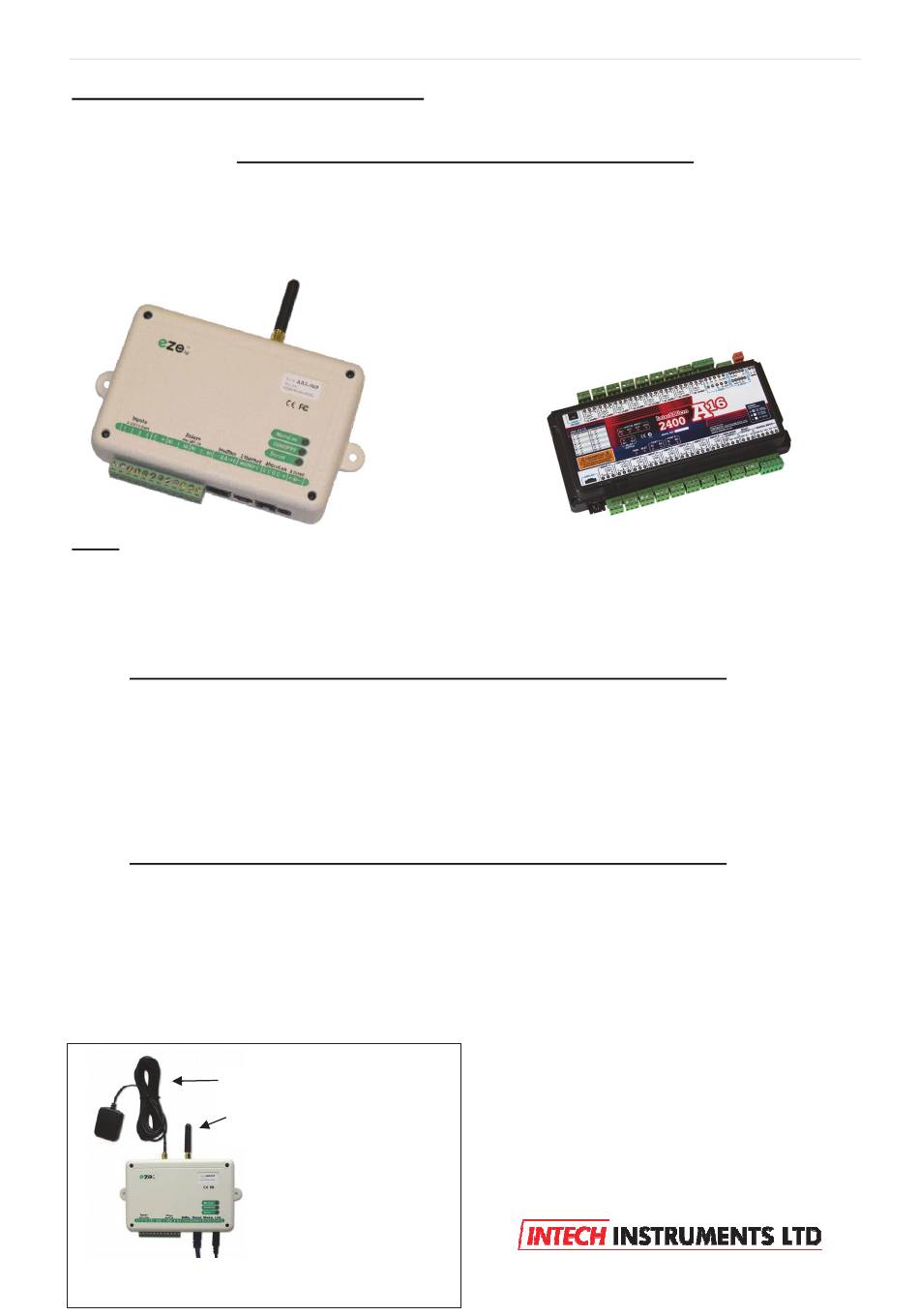

Eze Cloud Based Monitoring Systems.
Important Supplementary Manual to the main Ezeio manual.
Index:
Page
2.
Section 1:
Ezeio Controller input configurations.
3.
Ezeio Configuration of the Ezeio Controller inputs.
5.
Section 2a:
Introducing the 2400 input and output expansion field stations.
6.
Configuring the 2400-A16 and connecting to the Ezeio Controller.
7.
Setting the 2400-A16 Station number, Polling Address.
8.
Configuring the Ezeio with the 2400-A16.
10.
2400-A16 input examples on the Ezeio.
11.
Section 2b:
Introducing the 2300 input and output expansion field stations.
15.
Calibration Offset adjustment during a calibration survey
16.
Digital on/off inputs.
17.
Alarm options and configuration, including alarm relay outputs, alarm text messages, and
alarm email messages.
19
Activating GSM sims in the ezeio Controller
GPS (Positioning) Antenna
GSM/3G (communication) antenna
Antennas on GSM model only
Created by Intech Instruments Ltd
Ezeio Controller and the 2400-A16 input expansion.
Ezeio v9 - 120317
December 2014
