LDI Spaces SAFCO 1872 Assembly Instructions

LDI Spaces SAFCO 1872 Assembly Instructions

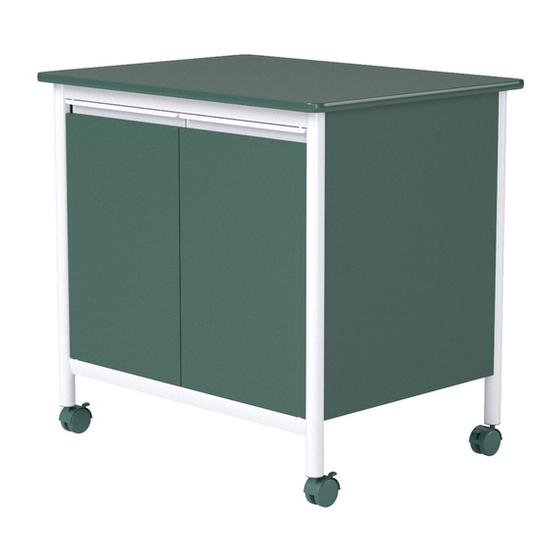

Deluxe machine stand

Advertisement

Quick Links

an LDI Spaces Company
Minneapolis, MN 55428
www.safcoproducts.com

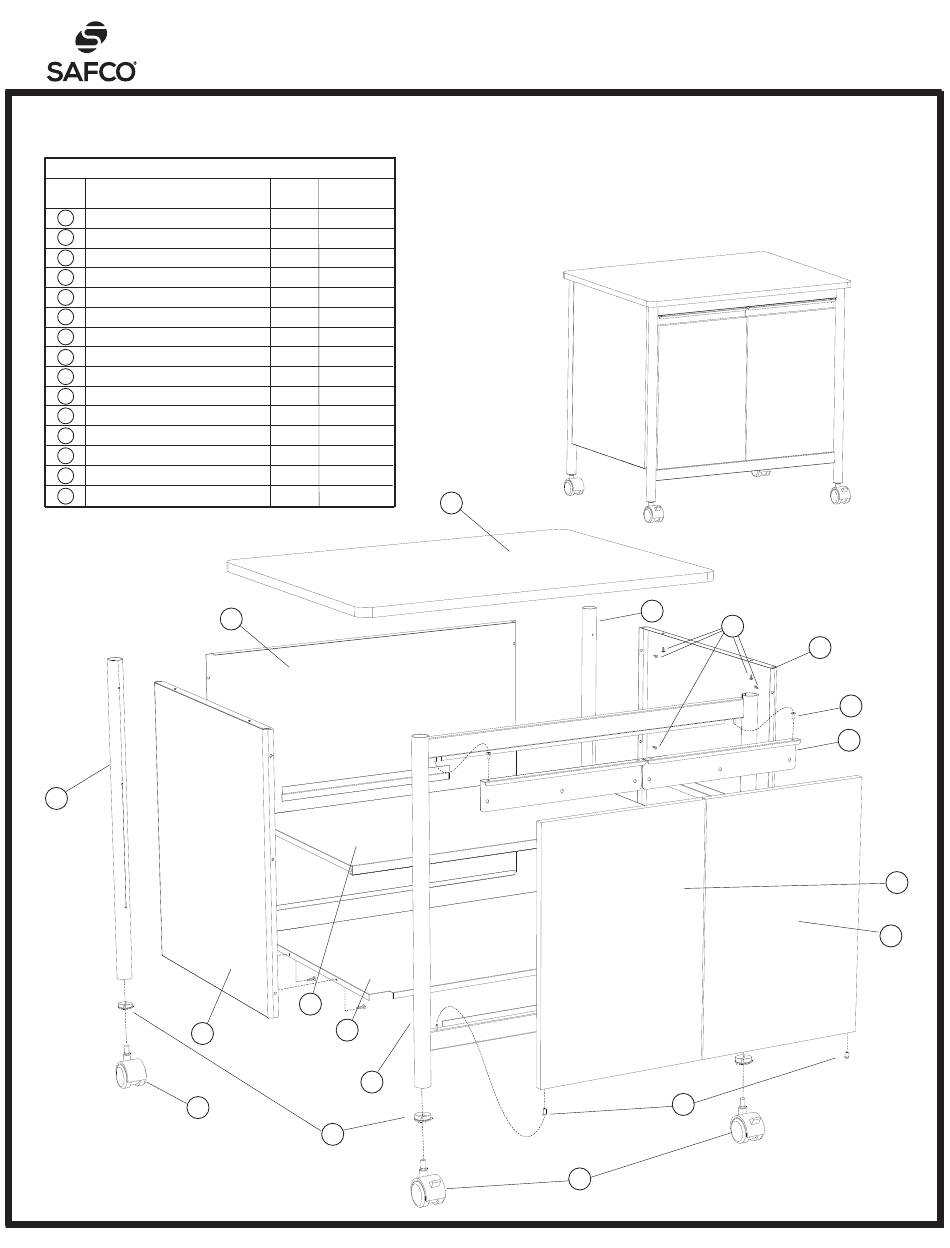

PARTS LIST
LETTER
DESCRIPTION
CODE
A
Top Panel
B
Front Leg Frame
C
Side Panel
D
Back Panel
E
Rear Leg
F
Bottom Shelf
G
Inner Shelf
H
Door Handle
I
Plastic Bushing
J
Left Door Panel
K
Right Door Panel
L
Screw
M
Caster Insert
N
Caster without Brake
O
Caster with Brake
TOOLS REQUIRED: Phillips Screwdriver,
Hammer or Rubber Mallet
E
100187237: 1 of 2; Rev A: Rev Date 27-JUN-2016
Deluxe Machine Stand
ASSEMBLY INSTRUCTIONS
PART NO.
1
1872-01
1
1872-02
2
1872-03
1
1872-04
2
1872-05
1
1872-06
1
1872-07
2
1872-08
4
1872-32
1
1872-09
1
1872-10
26
1872-23
4
1872-22
2
1874-25
2
1874-24
D
G
F
C
B
N
M
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 7:30 AM to 5:00 PM (Central Time)
(English-speaking operators)
A
O
Safco Products Company, New Hope, MN 55428
MODEL NUM-
BER
ASSEMBLED
UNIT
E
L
C
I
1872
I
H
J
K

Advertisement

loading
Need help?

Need help?

Do you have a question about the SAFCO 1872 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LDI Spaces SAFCO 1872

  • Page 1 Deluxe Machine Stand 1872 MODEL NUM- ASSEMBLY INSTRUCTIONS an LDI Spaces Company Minneapolis, MN 55428 www.safcoproducts.com For questions or concerns, please call PARTS LIST Safco Consumer Hot Line 1-800-664-0042 LETTER DESCRIPTION PART NO. available Monday-Friday 7:30 AM to 5:00 PM (Central Time)
  • Page 2 Work on a smooth, clean surface. Place the A Top Panel face Slide the D Back Panel into position between the Side Panels down with the holes up. Position one C Side Panel on one as shown in the inset. Keep the Back Panel inside the fl anges end of the Top Panel with the fl...
