APT 750c Display
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APT 750c Display and is the answer not in the manual?

Questions and answers

Related Manuals for CYCMOTOR APT 750c Display

Summary of Contents for CYCMOTOR APT 750c Display

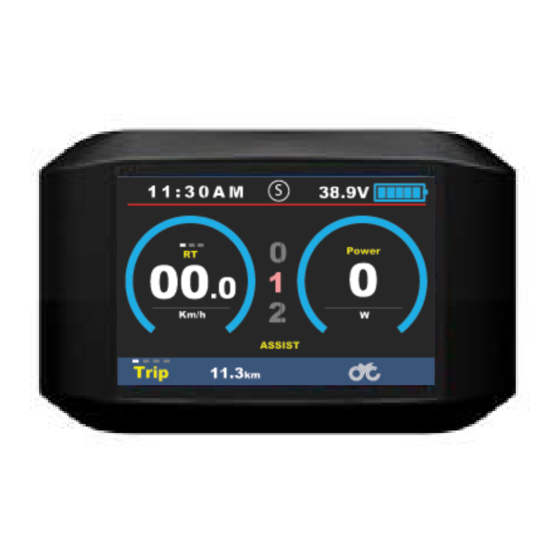

  • Page 1 APT 750c Display User’s Guide...

  • Page 2: Table Of Contents

    APT 750C DISPLAY APT 750c Display User’s Guide PRODUCT SPECIFICATIONS ..........................2 ............................2 LECTRICAL ARAMETERS & M ............................2 IMENSIONS ATERIALS ................................2 EATURES MAIN FUNCTIONALITIES ..........................3 ..............................3 OWER ............................... 3 WITCH ............................4 SSIST EVEL PERATING ............................

  • Page 3: Product Specifications

    APT 750C DISPLAY Product Specifications Electrical Parameters • 3.2inch IPS screen • 36V/48V/52V/72V battery supply • Rated operating current : 40mA • Off leakage current < 1uA • Max output current to controller : 100mA • Operating temperature : -20 – 70 °C •...

  • Page 4: Main Functionalities

    APT 750C DISPLAY • Ergonomic external button design, easy to operate. • Speed display : AVG SPEED, MAX SPEED, SPEED (Real-time). • Kilometre / Mile : Can be set according to user’s preference. • Smart battery indicator : Provide a reliable battery indication.

  • Page 5: Assist Level Operating

    APT 750C DISPLAY Assist Level Operating Short press the UP/ DOWN button to change the assist level. The top assist level is 9 where 0 is neutral. The amount of assist levels can be adjusted according to the user’s preference.

  • Page 6: Parameter Settings

    APT 750C DISPLAY Parameter Settings Button Navigation Double press the MENU button to get into the settings menu. The press interval must be less than 0.3 seconds. Press the POWER button to change between the Display Settings & Basic Settings.
  • Page 7 APT 750C DISPLAY Brightness Press the UP/ DOWN button to change the brightness of the display’s backlight. “I” is the darkest & “IIIII” is the brightest. Auto off Press the UP/DOWN button to change the auto power off time. This can be set between 1 to 9 minutes or off.

  • Page 8: Basic Settings

    APT 750C DISPLAY Clock Press the MENU button get into the clock setting menu. Then, press the UP/DOWN button to set Year/ Month/ Day/ Hour/ Min/ Sec. Basic Settings Wheel Press the UP/DOWN button to change the wheel settings. The optional wheel diameter is 16 to 29 inch.
  • Page 9 APT 750C DISPLAY Start password Press the MENU button to get into the password setting menu. Start input ON will switch on password upon start-up. You need to input the right password before start within 30 seconds. The display will power off automatically if the password is entered incorrectly three times.
  • Page 10 APT 750C DISPLAY The power output will be distributed evenly across the chosen number of assist levels (or gears) according to the Assist Level Configuration and Speed Limit Assist settings on your CYC Motor (BAC) mobile app: Note that the App Assist Level shown below can be customized in the app.

  • Page 11: Error Codes

    APT 750C DISPLAY Press the MENU button to select Product Infor. This menu will show you the display’s information including its hardware and software versions as well as the display’s serial number. Press the MENU button to select Battery Infor. This menu will show you all the battery information provided that the information is supported by the battery communication system.

  • Page 12: Assembly Information

    APT 750C DISPLAY Assembly Information M4*10 M3*8 Torque requirements: Torque requirements: STD = 0.1 N.m. STD = 0.25 N.m. MAX = 0.2 N.m MAX = 0.4 N.m Note the torque requirements described above as excessive torque can cause damage. Compatibility The clamps are suitable for 3x different handlebar sizes: 31.8mm, 25.4mm, and 22.2mm.

  • Page 13: Pin Layout

    APT 750C DISPLAY Pin Layout Red wire : Anode(36V to 72V) Black wire : GND Yellow wire : TxD (display -> controller) Green wire : RxD (controller -> display) Blue wire : Power cord to the controller Certification CE / IP65 (waterproof) / ROHS.

  • Page 14: Step 3

    APT 750C DISPLAY STEP 3 Set up the correct information on your display. You will need to enter your wheel diameter, battery voltage (if incorrect), & your preferred number of assist levels. Be sure to contact technical_support@cycmotor.com if further assistance is needed.
