Observe all local plumbing and building codes.
·
Prior to installation, unpack the new lavatory and inspect it
for damage. Return the lavatory to its protective carton
until you are ready to install it.
·
All information in these instructions are based the latest
product information available at the time of publication.
Kohler China reserves the right to make changes in
product characteristics, packaging, or availability at any
time without notice.
IMPORTANT:
Make sure that the wall and floor are square
and plumb to ensure proper installation.
ORDERING INFORMATION
REACH Vanity Top 105 .....................................K-18571T
REACH Vanity Top 70 .......................................K-18572T
REQUIRED MATERIALS/
(NOT SUPPLIED)
·
Level
·
Drill with
6mm
bit
·
14mm wrench
·
Framing square
·
Channel lock pliers
·
Tape measure
·
Pencil

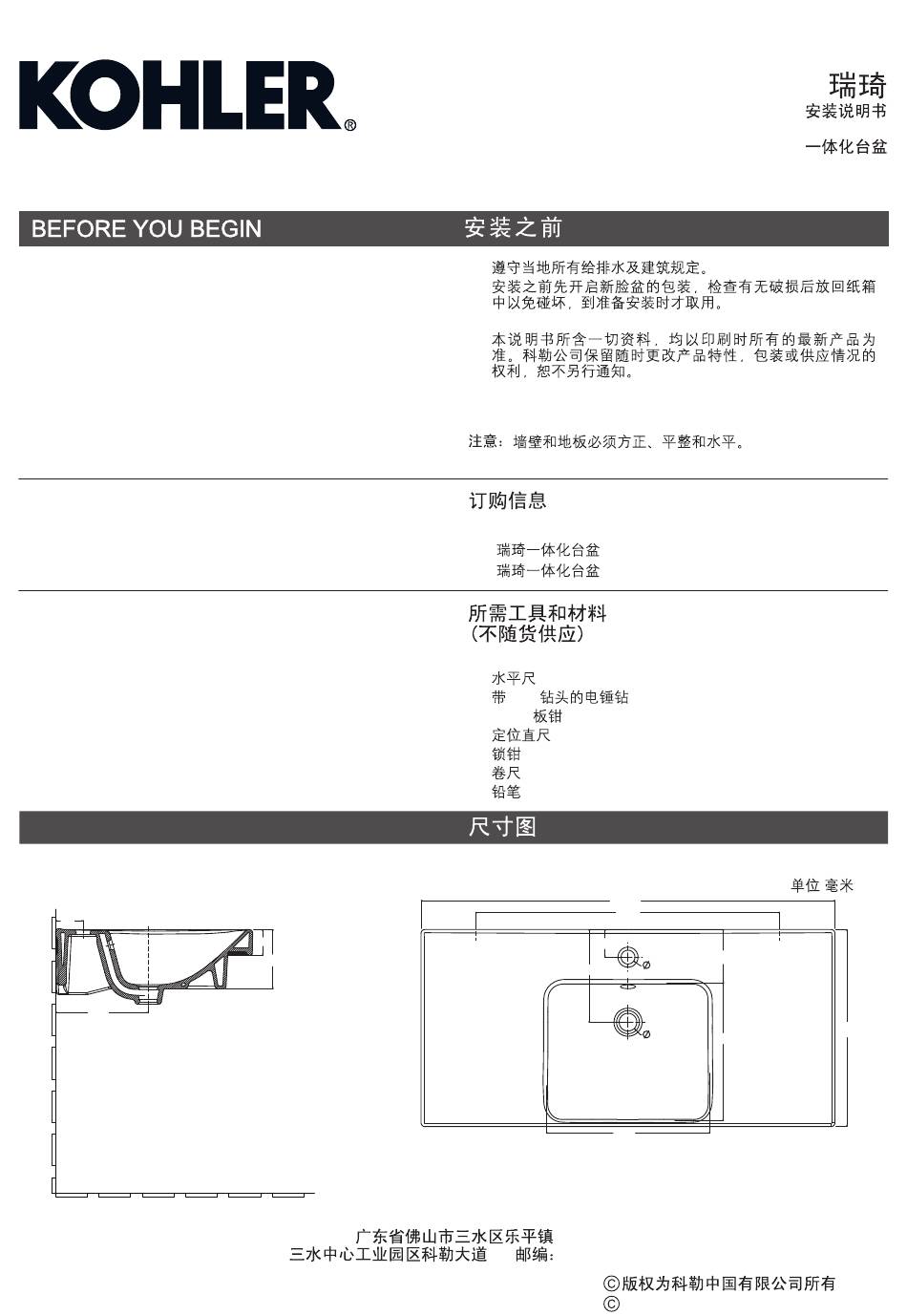

ROUGHING-IN DIMENSIONS
ROUGHING-IN DIMENSIONS
70
235
1119169-T01-A
TOOLS
K-18571T
65
150
·
·
·
105 ............................................K-18571T
70 ..............................................K-18572T
·
·
6mm
·
14mm
·
·
·
·
1055
70
235
528137
-1-
REACH
INSTALLATION INSTRUCTIONS
K-18571T, K-18572T
770
135
35
45
350
415
Copyright Kohler China Ltd., 2009
VANITY TOP
UNIT: mm
:
500
