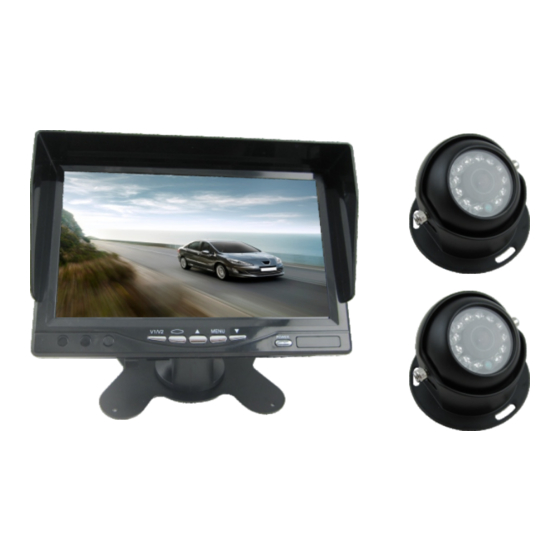

- Page 1 PLCMTR7250 PLCMTR7250 Waterproof Rearview Backup Camera & Video Monitor System Kit, Angle Adjustable Night Vision Cam, 7" Display, Front and Rear Vehicle Mounting...
- Page 2 Please read instructions carefully before installation and use. Installation should be performed by a professional installer. To ensure your safety, the driver should not watch videos or operate features on the monitor while driving. There are no serviceable parts in this unit, do not disassemble or try to repair this unit.
- Page 3 Wiring & Connection (V1 front view image) The Reverse trigger cable is for the Ch1 and Ch2, connect the front view camera to the Ch2,connect the reverse backup camera to the Ch1, when the truck in reverse status, the reverse camera would be priority.
- Page 4 Cut for Reverse View: Connect for Front View: Monitor Buttons: 1. V1/V2: change the mode, 1 ch, 2ch display This button for reverse the picture image left and right 3. Menu: Adjust the color, brightness, etc. 4. Power button Increase/Decrease Monitor Stand Mounting：...
- Page 5 1. Set the mount stand in the desired location, then use screws to secure the mount stand into location. Please make sure as to set a location free from vehicle obstruction including any wiring, or location where it may obstruct the driver's view, driving conditions, etc.
