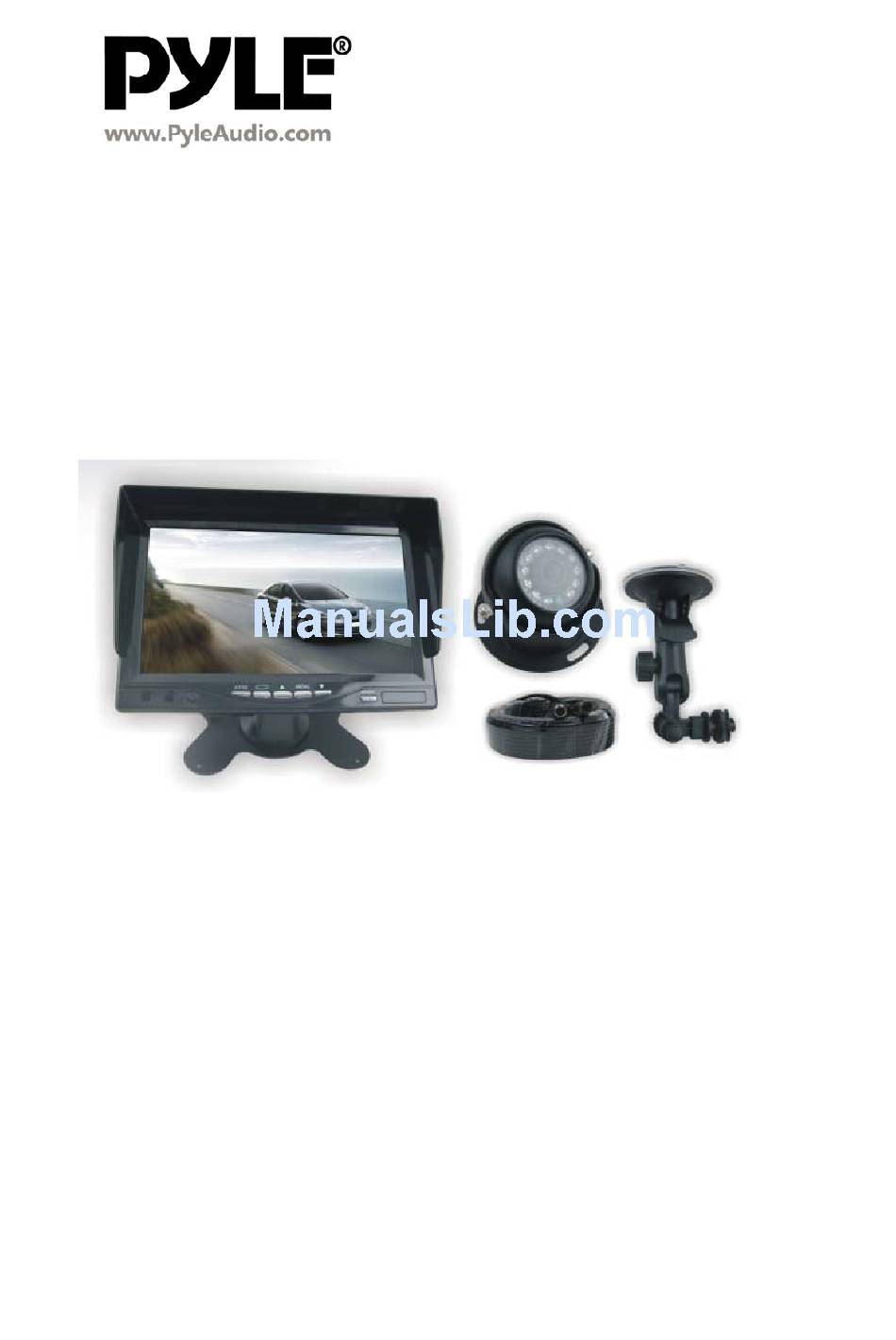

- Page 1 PLCMTR70 MANUAL 7” HD Dual Mount Monitor & Waterproof Rearview Backup Camera System, TFT LCD Digital Panel, Dual DC 12-24V (for Bus, Truck, Trailer, Van, etc.)
- Page 2 Please read instructions carefully before installation and use. Installation should be performed by a professional installer. To ensure your safety, the driver should not watch videos or operate features on the monitor while driving. There are no serviceable parts in this unit, do not disassemble or try to repair this unit.
- Page 3 Versatile Mounting Installation Wiring & Connection...
-
Page 4: Remote Control
The Reverse trigger cable is for the Ch1, so please connect the reverse backup camera to the Ch1, so when the truck in reverse status, the reverse camera would be priority. Monitor Buttons: 1. V1/V2: Switch the ch1 and ch2 This button for reverse the picture image left and right 3. - Page 5 Monitor Stand Mounting 1. Set the mount stand in the desired location, then use screws to secure the mount stand into location. Please make sure as to set a location free from vehicle obstruction including any wiring, or location where it may obstruct the driver's view, driving conditions, etc.
