Optional Item

6

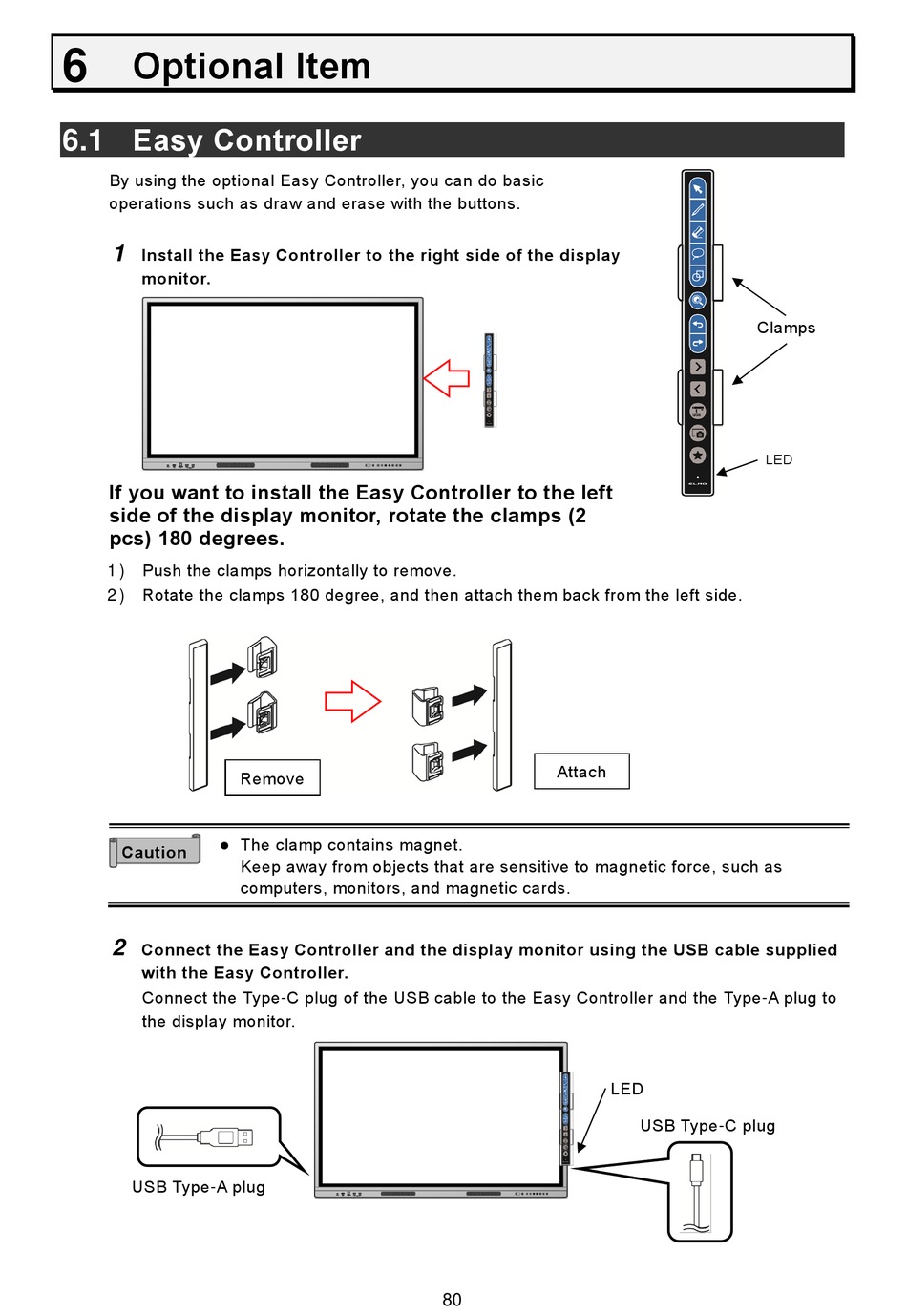

6.1 Easy Controller

By using the optional Easy Controller, you can do basic
operations such as draw and erase with the buttons.
1
Install the Easy Controller to the right side of the display
monitor.
If you want to install the Easy Controller to the left
side of the display monitor, rotate the clamps (2
pcs) 180 degrees.
Push the clamps horizontally to remove.
1 )
Rotate the clamps 180 degree, and then attach them back from the left side.
2 )
⚫
Caution
2
Connect the Easy Controller and the display monitor using the USB cable supplied
with the Easy Controller.
Connect the Type-C plug of the USB cable to the Easy Controller and the Type-A plug to
the display monitor.
USB Type-A plug
Remove
The clamp contains magnet.
Keep away from objects that are sensitive to magnetic force, such as
computers, monitors, and magnetic cards.
Attach
LED
80
Clamps
LED
USB Type-C plug
