OPERATION, INSTALLATION AND MAINTENANCE MANUAL

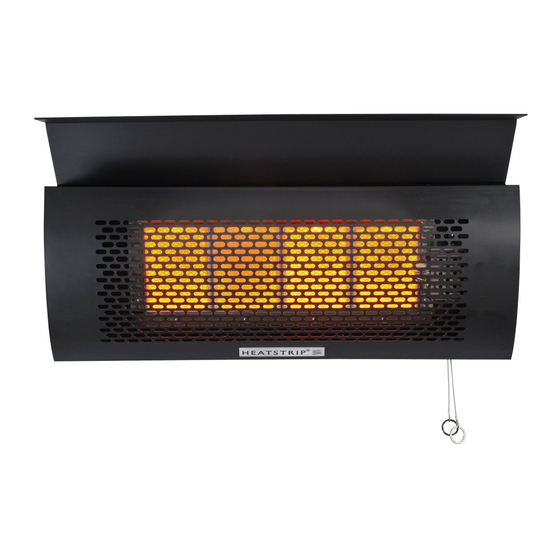

Wall Mounted Radiant Gas Heater
DANGER
!
If you smell gas:
1.
Shut off gas to the appliance.
Extinguish any open flame.
2.
If odor continues, keep away from the
3.
appliance and immediately call your gas
supplier or your fire department
DANGER
!
Do not store or use flammable liquids or vapors in the
vicinity of this appliance.
Manual # P80196016A - Date:2018/12/28
!
!
Improper Installation, adjustment,
alteration, service, or maintenance can
cause property damage, injury or death.
Read this operating and assembly
instruction thoroughly before installing
.
or serving this heater.
!
!
FOR OUTDOOR AND NON-RESIDENTIAL INDOOR
USE ONLY.
THIS APPLIANCE MUST NOT BE INSTALLED OR
USED IN RESIDENTIAL DOMESTIC INDOORS.
Appliance is to be protected from rain.
TO BE INSTALLED ONLY BY AN AUTHORIZED
PERSON.
TGH34WN-2 (Natural Gas)
TGH34WL-2 (Propane)
WARNING
WARNING
!
!
Advertisement
Table of Contents
Related Manuals for HEATSTRIP TGH34WN-2
Summary of Contents for HEATSTRIP TGH34WN-2
- Page 1 OPERATION, INSTALLATION AND MAINTENANCE MANUAL TGH34WN-2 (Natural Gas) Wall Mounted Radiant Gas Heater TGH34WL-2 (Propane) DANGER WARNING If you smell gas: Improper Installation, adjustment, Shut off gas to the appliance. alteration, service, or maintenance can Extinguish any open flame. cause property damage, injury or death.
-
Page 2: Table Of Contents
Table of Contents Primary Safety Warnings.........................3-5 Product Preview............................7 Part Diagrams and Lists......................8-10 Installation Instructions........................11-12 Use and Care Instruction........................13 Lighting Instruction..........................14 Troubleshooting.............................15 Cleaning and Maintenance......................15 Warranty Terms........................Back Cover For the repair or replacement parts You need to contact Thermofilm Australia Pty Ltd 17 Johnston Court, Dandenong South, Victoria 3175, Australia Telephone: (03) 9562 3455 8:30am-5:00pm Mon-Fri (EST) -
Page 3: Primary Safety Warnings
WARNING WARNING 1. This appliance must be used only for outdoor and 16. Burner and circulation air passageways of the non-residential indoor use. This appliance must not be heater must be kept clean. Frequent cleaning may be installed or used in residential indoor areas.This appliance required as necessary. - Page 4 OUTDOOR AREAS SAFTY APPLIANCE LOCATIONS APPENDIX This appliance is for outdoor and non-residential indoor use only. This appliance must not be installed or used in residential indoor areas. This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.
- Page 5 FOR YOUR SAFTY LPG CYLINDER USE AND SAFETY IMPORTANT HOSE AND REGULATOR SAFETY Ÿ The regulator and hose assembly supplied with the heater are suitable for natural gas. Ÿ READ THIS MANUAL CAREFULLY before installing or operating this product. Ÿ Inspect the gas hose before each use and Ÿ...
- Page 6 FOR YOUR SAFETY LPG CYLINDER USE AND SAFETY HOSE AND REGULATOR SAFETY LPG CYLINDER USE AND SAFETY Ÿ Ÿ Close LPG cylinder valve whenever the heater The regulator and hose assembly supplied with is not in use. the heater are suitable for liquefied petroleum gas.
-
Page 7: Product Preview
This appliance must only be used in a well ventilated Wall Mounted Radiant Gas Heater area. The following clearance should be followed: Model Type Wall Mounted Model No TGH34WN-2 TGH34WL-2 The heater should not be installed: - Where heat ignition can cause damage to gas Gas Type Propane cylinders/lines - Near other combustible materials. -
Page 8: Part Diagrams And Lists
Hardware Pack Parts List PART # PART DESCRIPTION PURPOSE OF PART P06033006A Hardware Pack For use in assembly of TGH34WN-2 & TGH34WL-2 S112M05102 Pan Head Screw M5 x 10mm Install Heat Deflector to Head P05501166D Pin Φ6 x 150mm P05501164B R Cotter Pin... - Page 9 Parts Diagram...
- Page 10 Parts List PART NO. DESCRIPTION QTY. Protective Guard P03351045D Name Plate P00408001A Pilot Burner Assembly - NG Y0040027 Pilot Burner Assembly - LPG Y0040026 Orifice (NG) P06536035A Orifice (LP) P06536034A Thermocouple with wire P05308006B Electrode with wire P02618081A Thermocouple wind shield P033510234 Burner Assembly P02005035D...
-
Page 11: Installation Instructions
Installation Instructions CAUTION: To assemble this heater, you should obtain assistance from another person when handling the larger, heavier pieces. Please refer to the Page 6 "Dimension and Clearance Detail" before installing this heater. Install Heat Deflector Remove all the packing materials. Install the Heat Deflector to the Head using 3 Pan Head Screws M5x10mm, then tighten all the screws securely. - Page 12 Install Wall Mounting Bracket Install the wall mounting bracket to the wall with appropriate fixings for the material to be attached (Masonry, wood, metal etc.), using 6 appropriate fasteners (not included), then tighten all the screws securely. Install Heater Install the Heater to the Wall Mounting Bracket using 1 Pin Φ6*150mm with 1 R Cotter Pin, using 1 Bolt M6*150mm with 1 Plan Washer M6 and 1 Wing Nut M6.
-
Page 13: Use And Care Instruction
USE AND CARE INSTRUCTIONS Check For Gas Leaks GAS REQUIREMENTS Never test for leaks with an open flame. Prior to first TGH34WN(NG) Model: use, at the beginning of each season, you must check for gas leaks. Follow these three steps: This appliance is for use with Natural Gas only. -
Page 14: Lighting Instruction
LIGHTING INSTRUCTIONS Heater Lighting Instructions Before each use, check all hoses for cracks, nicks, cuts, burns or abrasions. If a hose is damaged in any way, do not use your heater before replacing the hose with an authorized part from the Parts List. Also make sure all gas supply connections are securely tightened. -
Page 15: Troubleshooting
TROUBLE SHOOTING Fault Causes Remedy (a) Air in gas line Purge gas line (b) Blockage in gas line Trace back and clear Pilot or main burner will not light (c) Igniter not sparking Repair lead, electrode, piezo or replace battery (d) Cylinder turned off Turn on (e) Cylinder empty... -
Page 16: Warranty Terms
WARRANTY TERMS Thermofilm warrants to the original owner that HEATSTRIP products will be free from defects in materials and workmanship for a period of 24 months from the date of purchase in accordance with the following warranty terms and conditions.
