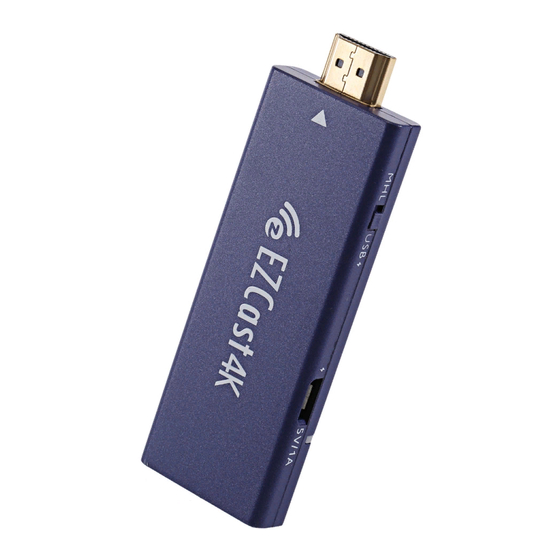

EZCast4K Wireless Display Receiver
Quick Start Guide
Rev 2.0
Product information is subject to change without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EZCast 4K

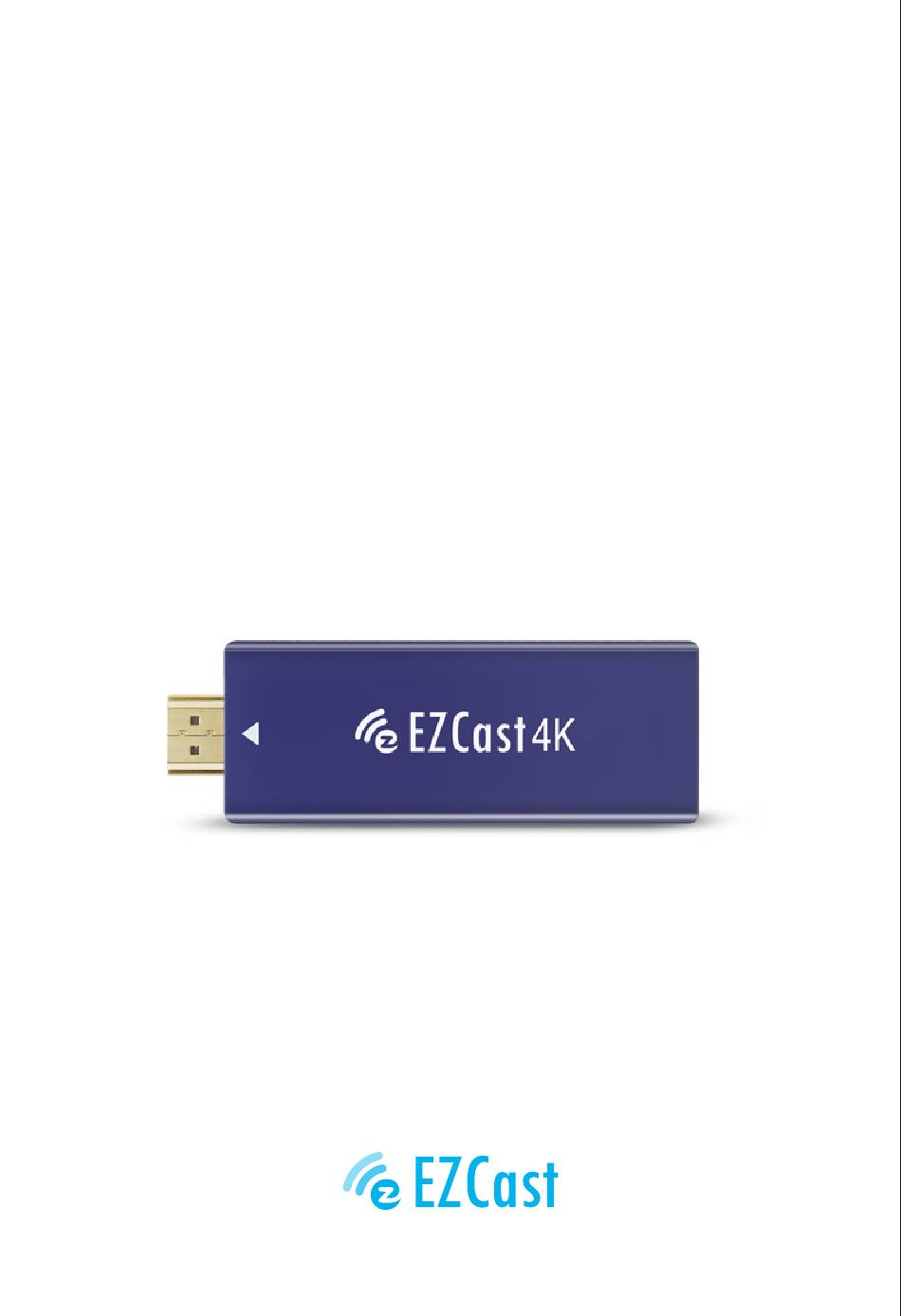

  • Page 1 EZCast4K Wireless Display Receiver Quick Start Guide Rev 2.0 Product information is subject to change without prior notice.
  • Page 2: Software Installation

    Introduction EZCast supports multiple wireless display standards, including EZCast, Miracast, DLNA and EZAir (compatible with iOS and macOS). Ongoing firmware upgrades are provided to support latest operating systems. Please read this guide to install and setup your EZCast. Happy Casting!
  • Page 3: Hardware Installation

    Hardware Installation EZCast to power Plug the micro USB cable to EZCast dongle, and power it up by connecting USB cable to an adapter (5V/1A). There is a power switch on the side of EZCast device, please make sure to switch ON before using.
  • Page 4 Scan QRCode on TV screen or search “EZCast” on Google Play/App Store. Connect to device (1) Launch EZCast App and follow the guide to add device. If the guide doesn’t pop out, click at the upper right and click “+” at the upper left.
  • Page 5 EZCast/ Mirror (Android 5.0 above) Click the Mirror icon on the top bar. Note: For EZCast/ Mirror, it only captures the screen without sound due to limitations in Android. To mirror the sound to your TV, please use EZMirror instead.
  • Page 6 Screen Mirroring for iOS EZAir Screen mirroring may be done by EZAir on iOS smart devices. Swipe and click Screen Mirroring, and choose EZCast4K-xxxxxxxx. Note: Make sure that EZCast and your iOS device are both connected to same WiFi. Screen Mirroring Screen Mirroring...
  • Page 7 Change device name of EZCast. EZChannel (Auto play): Automatically start video streaming which created at your EZChannel playlist once your EZCast dongle is connected to WiFi. EZAir Mode (only for iOS): Switch mirroring mode of EZCast between “mirror only” and “mirror + streaming”...
  • Page 8 Features of EZCast EZChannel: Create an EZCast account and bind with your EZCast 4K dongle to get advance functions. (1) Discover and personalize your video channels. (2) Search videos across different media sites. (3) Auto-play: Automatically start video streaming which are created at your EZChannel playlist once your EZCast dongle is connected to WiFi.
  • Page 9 EZCast4K-xxxxxxxx by entering PSK password on TV screen. EZCast4K-12345678 Mon 09:30 AM 2019/07/01 (2) Launch EZCast application and find your EZCast device. Click Settings icon on the left side of SSID, select Internet, and connect to your WiFi. EZCast4K-12345678 Mirror...
  • Page 10 Mirror/ Extend Screen for Mac Connect to EZCast dongle Connect to EZCast dongle from wifi setting on the top bar: directly connect to EZCast4K-xxxxxxxx or connect to the same wifi as the dongle 100% Fri 09:30 AM EZCast4K-12345678 Same wifi as EZCast dongle...
  • Page 11 ©2019 Actions Microelectronics Co., Ltd. All right reserved. EZCast are trademarks of Actions Microelectronic Co., Ltd., registered in US, Europe, and other countries. Other product and company names mentioned herein may be trademarks other respective companies. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
  • Page 12: Product Informations

    Product informations Model EZcast 4K Network 802.11AC 2.4/5GHz with Bluetooth Display Output HDMI 4K/30p, 1080/60p, 720/60p EZCast, EZAir, DLNA, Miracast, Function Google Home, Voice Control Android/ iOS/ Windows/ Support OS MacOS/ ChromeOS Color Blue Power DC 5V/1A Learn More Visit https://www.EZCast.com...
