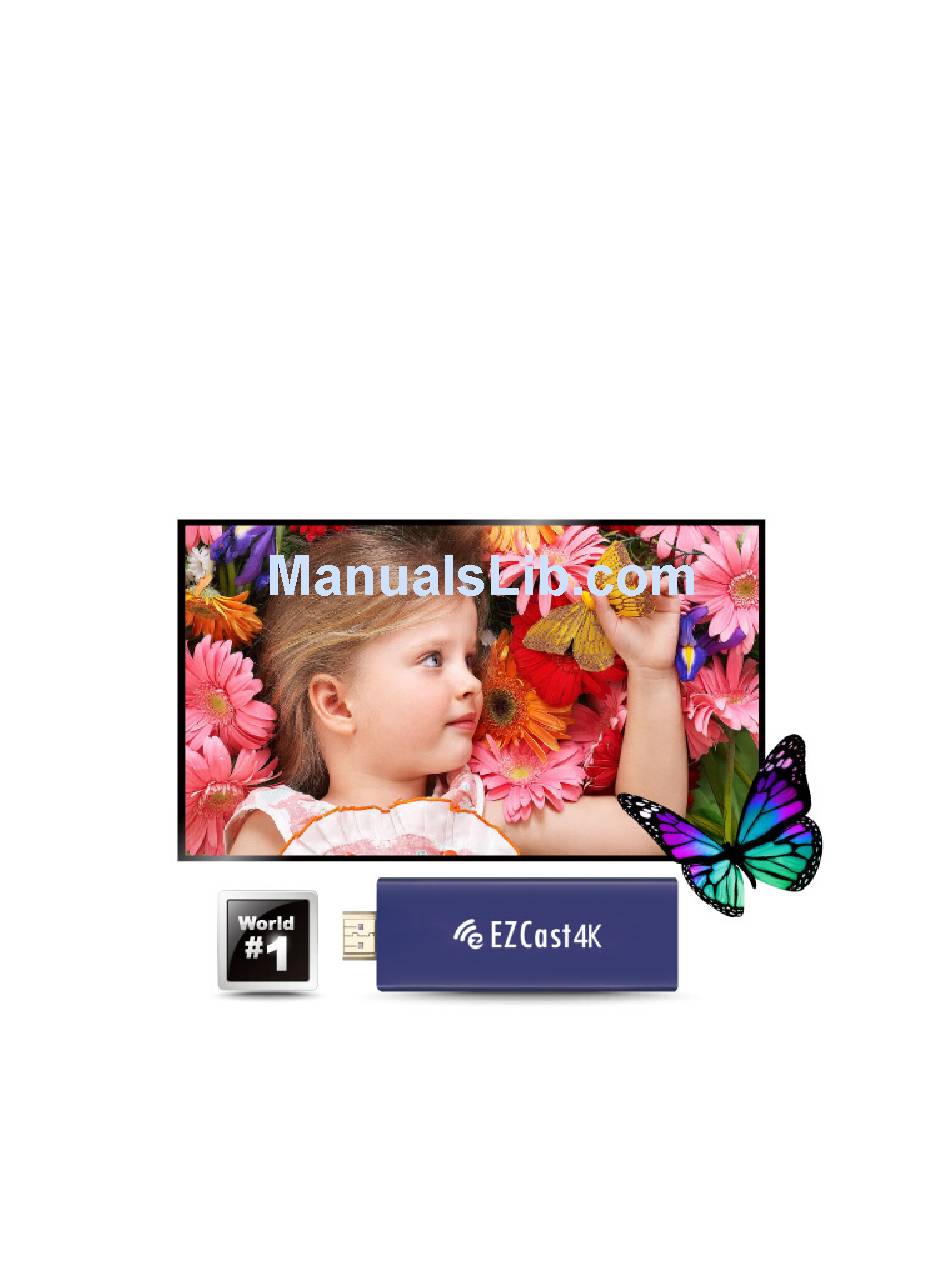

Page 1: Quick Start Guide

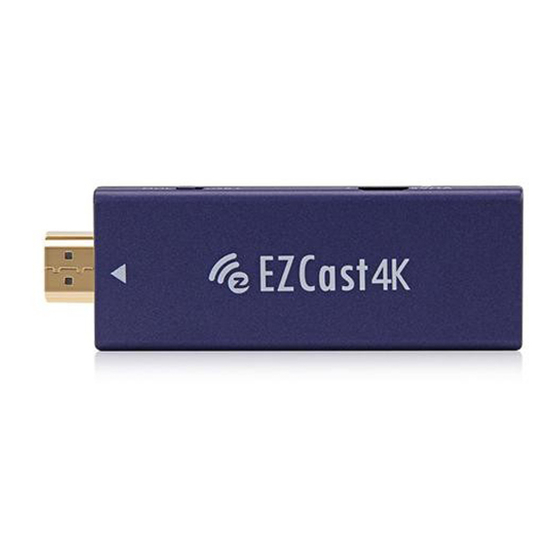

User manual Model:EZCast 4K,MiraScreen 4K,AnyCast 4K, MiraDisplay 4K,EZCast PRO 4K Brand:EZCast,EZCast PRO,MiraScreen,AnyCast, MiraDisplay Worldwide 1st 4Kx2K Wi-Fi display dongle Quick Start Guide Manufacture:SAGE ELECTRONICS TECHNOLOGY LIMITED... - Page 2 Thanks for choosing EZCast! EZCast 4k dongle is the 4Kx2K Wi-Fi display dongle which is a media streaming device that plugin into the HDMI port on your TV. EZCast 4K supports a reliable Wi-Fi 802.11ac dual band of 2.4G/5G connection for larger bandwidth and multiple Wi-Fi display standards, including Miracast, DLNA and Airplay.
- Page 3 Installation EZCast 4K dongle is compatible with MHL interface. There are TWO ways to connect with EZCast 4K dongle with your receiver devices like TV, Monitor or Projector. Picture 1.0...
- Page 4 Power On your TV, Monitor or Projector, if the MHL source is set iii. correctly, a welcome tone follow by EZCast main menu setup will appear on your screen. You could see the SSID and Password (PSK) on screen. (Refer Pic 1.0)
- Page 5 5V/1A power adapter. iv. Power On your TV, Monitor or Projector, if the HDMI source is set correctly, a welcome tone follow by EZCast main menu setup screen will appear on your screen. You could see the SSID and Password (PSK) on screen.
- Page 6 Press button Picture 1.3 Short press: Switch AP hotspot of 5GHz / 2.4GHz. Long press: Press more than 10 seconds to Reset to Default. Power on: The blue light will lit up. Note: If the router is connected or switch on to 5GHz hotspot, 5G icon will appear below the adapter icon which located at the top right corner of the display TV/Projector.
-
Page 7: Software Installation
(a) Mac or Microsoft Windows: 1. Visit to EZCast Website : http://www.iezvu.com 2. At EZCast Homepage, click the Download button to go to the download page. 3. At Download page, click EZCast Button and then select the OS software you prefer to download. - Page 8 STEP 1-4: **(Refer Picture 2.0) Picture 2.0 1. Go to your device Wi-Fi setting. 2. Find and select the EZCast 4k dongle SSID which appear on your Wi-Fi Networks. 3. Key in your EZCast 4K SSID Password (PSK) 4. Click Connect Note: Your EZCast 4K dongle SSID and Password are display on the setup screen.
- Page 9 5. Launch your EZCast 2.0 app after your device Wi-Fi successfully connect with the dongle SSID. 6. Click the Arrow Down icon. 7. EZCast 4K dongle SSID will be listed on the drop down list. 8. Select your EZCast 4K dongle on the list.
- Page 10 9. Message “Connected to EZCast 4K-XXXXXX” will prompt out once your connection is successful. 10. If your EZCast dongle has no connection with a Wi-Fi AP Router, EZCast 4K Settings will pop out automatically to let you select your AP.
- Page 11 STEP 11: **(Refer Picture 2.3) Picture 2.3 11. Please select appropriate AP, and enter the password correspondingly.
- Page 12 STEP 12-15: **(Refer Picture 2.4) Picture 2.4 12. After EZCast dongle connected to Internet, it will inquire the firmware version from EZCast server. 13. If a new version is found, pop out message will remind you to upgrade your dongle firmware.
- Page 13 EZCast 2.0 APP Picture 3.0 After setting up your EZCast 4 step-by-step, you may start to use EZCast 2.0 App features below: • EZChannel: **(Refer Picture 3.0) Discover and personalize your video channels. You can search video across multiple video sites such as YouTube, Dailymotion, Vimeo and etc.
- Page 14 Fantastic Autoplay function. You can automatically play your favorites show without phone involvement once you plug in your EZCast 4K to HDMI/MHL port then power on your EZCast 4K dongle. How to use Autoplay function? 1. Power-On your Autoplay function 2.
- Page 15 ● Camera: Live camera allows you to stream live video from mobile device’s camera to your TV. ● Web: Browse WWW on your TV. ● Setting: Configure your EZCast 4K dongle. ● Comment: Leave comments to EZCast customer service team.
- Page 16 Mirror On/Off: Picture 3.2 Only available for Android. Mirror on allows you to mirror your Android mobile device’s screen to your TV/Projector. How to use Mirroring Function? **(Refer Picture 3.2) 1. Mirror Off button: Showing the mirroring status. 2. Press Mirror Off Button. 3.
- Page 17 EZMirror (Miracast) Picture 3.3 Picture 3.4...
- Page 18 Windows device. • How to use EZMirror? **(Refer Picture 3.3) 1. Click the Setting, which locate at side bar. 2. Click Miracast function button on EZCast 4K Setting page. **(Refer Picture 3.4) 3. Turn on “Miracast” Function. 4. Click Ok.
- Page 19 Picture 3.5 ● DLNA allows you to stream multimedia formats through Wi-Fi/LAN. Furthermore, you can also use another appropriate DLNA App to push multimedia files to EZCast 4K for streaming. • How to use DLNA? **(Refer Picture 3.5) 1. When you click DLNA button, there will be a pop-up support list, if you...
- Page 20 Compatible with AirPlay EZCast 4K compatible with AirPlay, which allows you to mirror your Apple device’s screen to your TV/Projector. • How to use this function? **(Refer Picture 3.6) Picture 3.6...
- Page 21 EZCast 2.0（ Windows/Mac） • How to connect EZCast 2.0 Windows/Mac with EZCast 4K Dongle? Go to your PC/Mac Wifi setting. Find and select the EZCast 4k dongle SSID which appear on your Wi-Fi Networks. Key in your EZCast 4K SSID...
- Page 22 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
