GINEERS 4080 Series User Manual

Voltmeter

Advertisement

Quick Links

5. The package contains

-
V4080 - 1 pcs.
-
Mounting kit - 1 pcs.
-
User manual - 1 pcs.

6. Manufacturer

Gineers Ltd
7 "Iskarsko shausse" blvd, TCE, building 4
1528, Sofia
Bulgaria
tel./fax: +359 2 975 81 05
URL: http://www.gineers.com
e-mail: office@gineers.com

7. Fault Table

#
Date
Fault
Description of the repairs
Voltmeter V4080
V4080 is digital fully programmable device from series 4080. It measures voltages from 0V to
270VAC/ 380VDC (if ordered specifically - 600VAC/ 800VDC). V4080 can measure its own power supply
(base, without options, minimum voltage 55VAC/80VDC) or voltage at additional external input (version
"L" or "H"). The device can be purchased with potential-free contacts for remote signalization if
measured voltage goes out of certain programmable limits (option "R"). V4080 is designed to be
mounted on boards in control rooms of electrical substations.

1. Main technical parameters

- measured voltage – alternating/direct
- min input voltage - 0 VAC/VDC 55 VAC/80 VDC
- max input voltage - 250 VAC/ 380 VDC 600 VAC/ 800 VDC
Signatu
- input resistance – min 200kΩ
re
- display – super bright red, 4 digits, view area 75х22mm, purple filter
- measurement error - <0.5 % rdg + 2 digit
- single measurement cycle - < 1 s
- menu access protection – yes/no
- user menu access code: 1342/..........
- potential-free contacts number – 3 N.O. – yes/no
- max. contact voltage/current – 220 VAC, 6 AAC
- power consumption - max 3 W
- work ambient temperature - 0÷50 °C
- storage temperature - -50÷+90 °C
- влажност на въздуха - 40÷90 %
- dimensions (H/W/D) –48/96/85 mm (w/o plugs attached) и 48/96/95 mm (w/t plugs attached)
- mounting hole (H/W) – 43/90 mm, centered
- IP protection class – IP42 front (mounted on board), IP31 back
- weight – 220 g

2. V4080 Work

V4080 starts working immediately after power up as described:
Initialization Mode
Decimal point of least significant digit lights for
-
about 0.2s
Display shows moving "Gineers" - for about 3s.
-
The device enters normal work mode – shows
-
instant measured current, one of the LEDs
(low/normal/high) is lit, and if the device is with
"R"-option – one of the relay contacts is closed.
Work mode
The device shows the instant measured voltage
on its display. It continuously monitors and signals if value
is within certain programmed limits (low/hi) via front panel LEDs and relay contacts. If the value is
outside these limits, the display blinks with frequency about 2-3Hz (blinking can be turned off via user
menu). The device will alarm for value outside limits after period of time, set as number of consecutive
measurements out of the limits. It is made this way in order to avoid the possibility of false short-time
Series 4080
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4080 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GINEERS 4080 Series

  • Page 1 Initialization Mode Decimal point of least significant digit lights for about 0.2s Display shows moving “Gineers” - for about 3s. The device enters normal work mode – shows instant measured current, one of the LEDs (low/normal/high) is lit, and if the device is with “R”-option –...

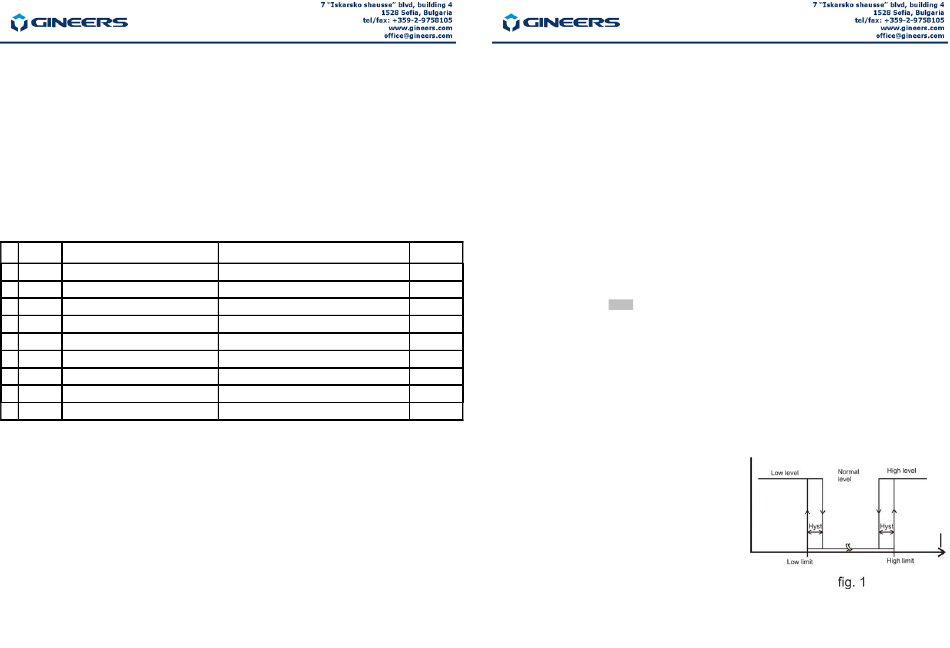

  • Page 2 signaling. Then, for entering back into normal limits, the voltage must be within the limits plus This table shows the factory default settings and limits for all the parameters in the menu: programmed hysteresis value, as shown on fig.1. There is no time delay when returning to “within Parameter(submenu) Display Limits...
