Mini Gadgets OmniRadar User Manual

Omnieye radar detector with hidden camera
Hide thumbs

Advertisement

Quick Links

Download this manual

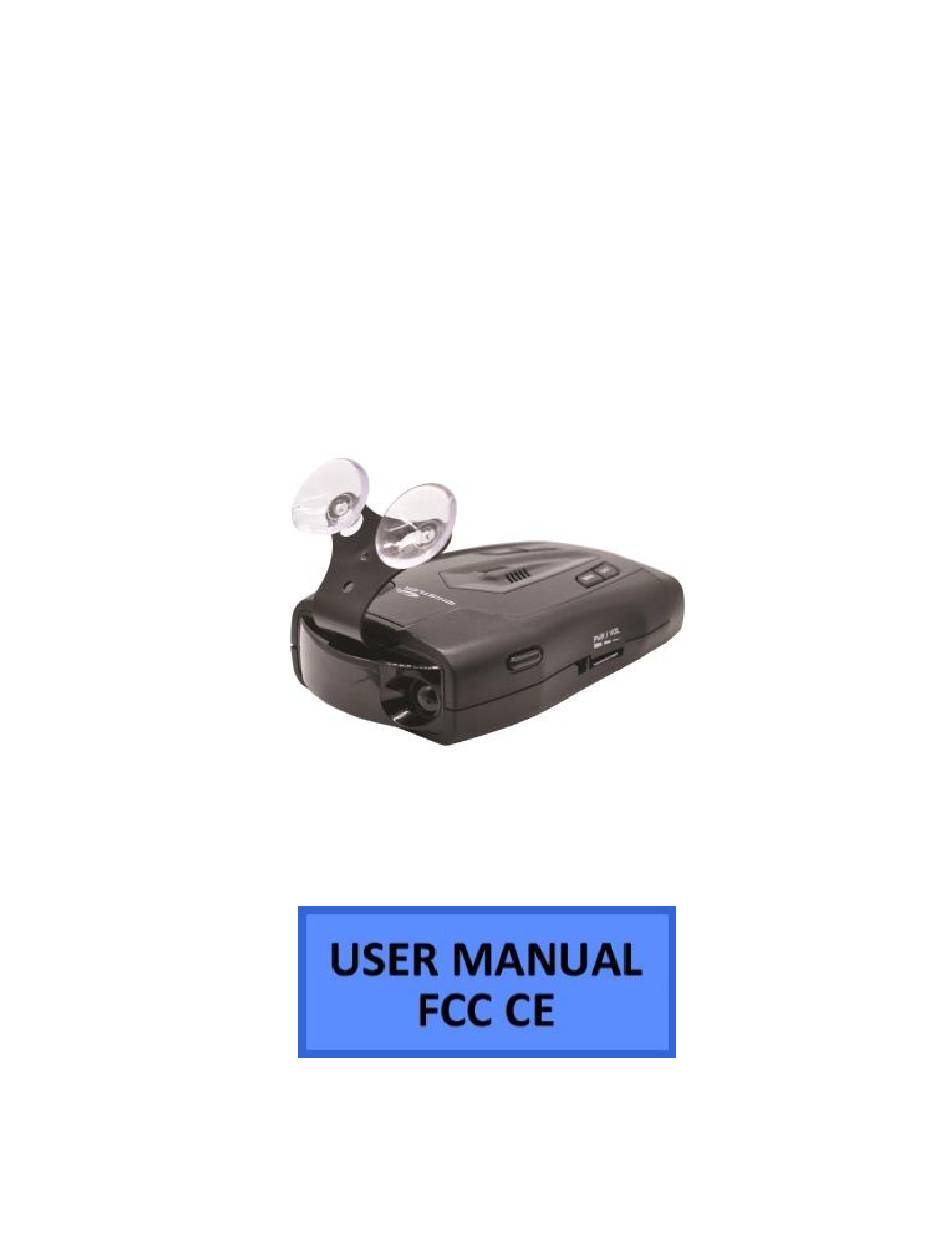

OmniEye Radar Detector with
Hidden Camera
SKU: OmniRadar
1
Version 1.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the OmniRadar and is the answer not in the manual?

Questions and answers

Related Manuals for Mini Gadgets OmniRadar

Summary of Contents for Mini Gadgets OmniRadar

  • Page 1 OmniEye Radar Detector with Hidden Camera SKU: OmniRadar Version 1.4...
  • Page 2 THANK YOU FOR PURCHASING THE OMNIRADAR HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include:  1 x OmniRadar  1 x AC Wall Charger  1 x Manual  1 x A/V Cable ...
  • Page 3 GET FAMILIAR WITH YOUR OMNIRADAR HIDDEN CAMERA Version 1.4...
  • Page 4 Version 1.4...
  • Page 5 Version 1.4...
  • Page 6 Version 1.4...
  • Page 7 The OmniRadar operates by battery only: 1. Connect the 3.5mm cable to the included AC Wall Adapter.
  • Page 8 3. Plug the AC Wall Adapter into a functional wall outlet. Please allow the device to charge 6-8 hours. OPERATING THE CAMERA HOW TO TURN ON THE CAMERA 1. Once your device has finished charging, unplug it from its cables. 2.
  • Page 9 3. To put the device into standby mode, press the “Motion Detection Button” one time. The green light will come on, and the device will be in standby mode. HOW TO RECORD VIDEO 1. When the camera is in Standby Mode, press the “Continuous Recording Button”...
  • Page 10 1. When the camera is in Standby Mode, press the “Photo Button” (see page 6). The green light will turn red while the photo is being taken. 2. Once the photo is taken, the light will turn back to green, and the device is back in standby mode.
  • Page 11 detection mode, wave your hand in front of the camera lens, and the unit will flash the red light 2 times. Then the light will turn off confirming that the device detected your motion and is now recording video. HOW TO STOP MOTION DETECTION MODE 1.
  • Page 12 CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniRadar comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. 1. Connect your device to a monitor/TV using the provided A/V Cable.
  • Page 13 3. Press the Motion Detection Button to stop recording and put the device in standby mode. 4. Press the “MENU” button on the remote. 5. A menu will display on the screen with various options (Use OK, UP, Down, and Menu on the remote to navigate the menu system): a.
  • Page 14 recording capabilities, you can turn audio recording ON or OFF here. f. Motion Detection – Adjust motion detection sensitivity here. g. Setup – Enter this menu for additional settings. h. Setup -> Format – Use this to format your MicroSD card. All data on the disk will be permanently erased.
  • Page 15 m. Setup -> Date Input – Set the current date. n. Setup -> Time Input – Set the current time in military format. o. Setup -> System Reset – Use this to factory reset the device. p. Setup -> FW Upgrade – This is not active on this device.
  • Page 16 the unit or the MicroSD card itself will be damaged. 2. To remove the SD card, gently push the card in so that it clicks. The internal spring tension will eject the card. MicroSD cards 65GB and above will require special formatting to work.
  • Page 17 1. Remove the MicroSD Card from the device and plug it into your computer using the included SD card reader. (See page 4 to locate the MicroSD card.) 2. Locate “Removable Disk” inside the (My) Computer folder.  AutoPlay Removable Disk > Open folder to view files Or…...
  • Page 18 Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. 4. Open the [folder name] folder. 5. Double click the file you want to view.  VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
  • Page 19 COPYING AND DELETING YOUR FILES The video files created are just like any other file on your computer, and can be managed in the exact same manner.  To save a file, you want to select the file, right click your mouse on the file name, and then choose “Copy”...

  • Page 20: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the battery is fully charged. THE DEVICE HAS CRASHED  Press the reset button one time while the device is on. See page 4 to locate the reset switch. DEVICE CONTINUALLY RECORDS IN MOTION MODE ...
  • Page 21 SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per 30 fps Second Vision Angle 65° Battery Life 10 Hours Continuous Recording Up to 30 Days in PIR Mode (if applicable) Motion 8 meters for straight-line Detection distance Photo 2560x1920 Resolution Photo Format .JPG Type of Memory...
  • Page 22 Recording Usage 10mins per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.4...
  • Page 23 Version 1.4...
  • Page 24 QUALITY CONTROL CHECKLIST ☐ Remote ☐ Wall AC Adapter ☐ ___GB MicroSD Card ☐ 3.5mm to USB Cable ☐ A/V Cable ☐ MicroSD Card Reader ☐ OmniRadar QC Tech: _____________________________________ Date: ________________________________________ Leave Us A Review! Version 1.4...
