Summary of Contents for Mini Gadgets OmniXSmoke

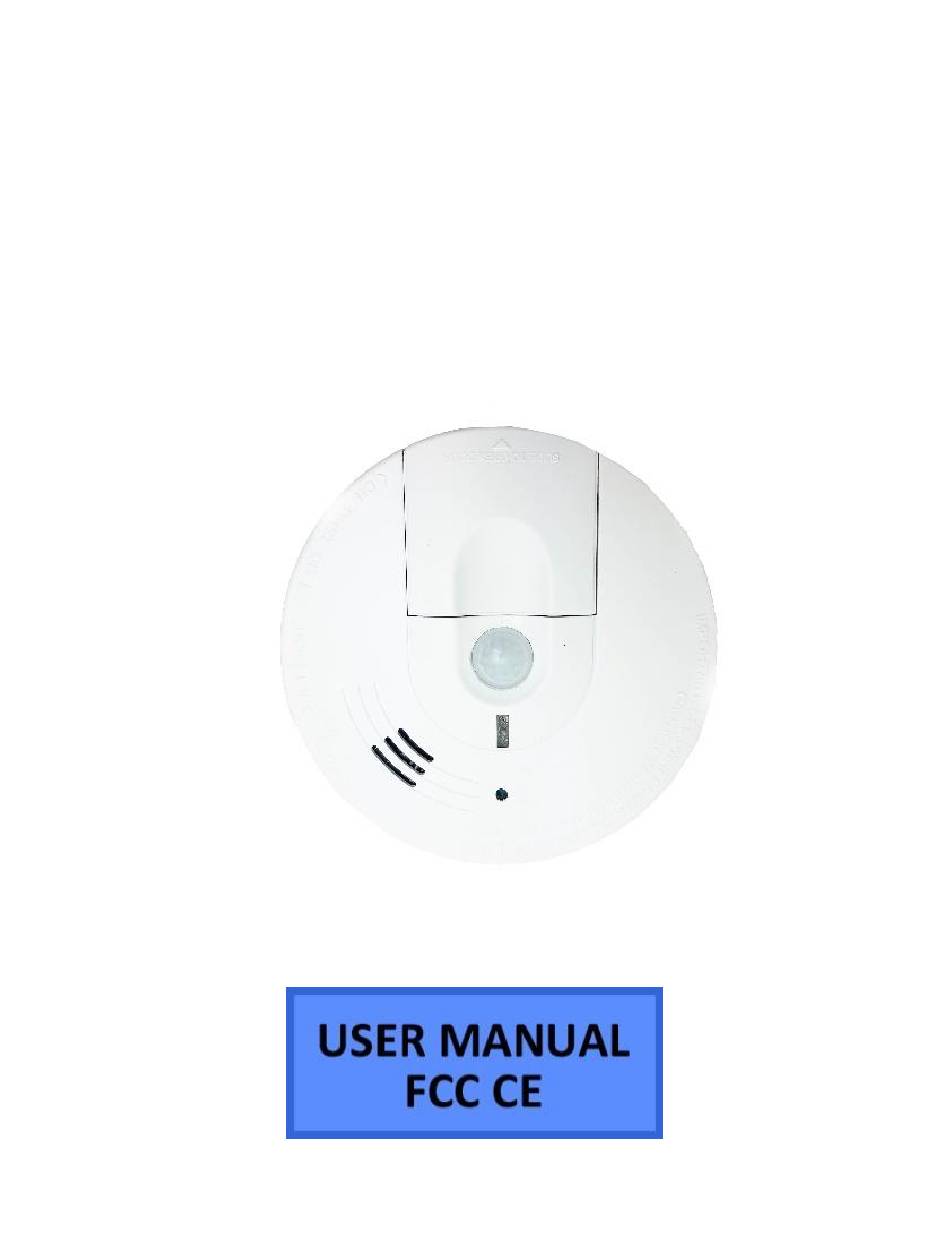

- Page 1 OmniXSmoke Detector Hidden Camera SKU: OmniXSmoke Version 1.0...
- Page 2 THANK YOU FOR PURCHASING THE OMNIXSMOKE DETECTOR HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include: 1 x OmniXSmoke 1 x Manual 1 x 16GB MicroSD Card 1 x MicroSD Card Reader 1 x 3.5mm to USB Cable...
- Page 3 GET FAMILIAR WITH YOUR OMNIXSMOKE HIDDEN CAMERA Version 1.0...
- Page 4 Version 1.0...
- Page 5 IMPORTANT WARRANY INFORMATION: If the warranty sticker on your device has been removed or tampered with, your lifetime warranty will be voided. You may be charged fees or denied a return should this happen. HOW TO CHARGE THE CAMERA Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product.
-
Page 6: Operating The Camera
OPERATING THE CAMERA HOW TO TURN ON THE CAMERA 1. Point the remote at the device, and press the power button on the remote. The Green light will blink once and then the Red light will blink 3 more times and turn off (if motion is detected immediately). - Page 7 1. When the camera is in Standby Mode, press the “Continuous Recording Mode” button (see page 4). The Indicator LED will flash two times. 2. Once the Indicator LED turns off, the camera is now recording video. HOW TO STOP RECORDING VIDEO 1.
- Page 8 1. When the camera is in Standby Mode, press the “Motion Detection” button (see page 4). 2. If motion is detected, the Red light will flash 2 times and turn off. 3. If there is no motion after 1 minute, the device will return to detection standby mode until motion is detected again.
- Page 9 1. While the camera is recording motion detection, press the “Motion Detection” button once more. (The Indicator LED will turn on.) 2. The camera has stopped recording motion detection and is now in Standby Mode. HOW TO RECORD WITH THE PIR SENSOR Note: The “Motion Detection”...
- Page 10 CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniXSmoke comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. See page 3 to locate the AV port on your device.
- Page 11 a. Resolution – Select from different resolutions. b. Time Stamp – Use this option to enable or disable the date/time stamp on videos. c. Loop Record – Choose whether you want the device to automatically overwrite the oldest file on the memory card if the memory becomes full.
- Page 12 h. Setup -> Format – Use this to format your MicroSD card. All data on the disk will be permanently erased. i. Setup -> Language – Choose your language. j. Setup -> TV Output – Select between NTSC or PAL for video output. We recommend you do not adjust this setting.
- Page 13 p. Setup -> FW Upgrade – This is not active on this device. q. Setup -> FW Version – Displays the firmware version of the device. MICROSD CARD SLOT To access the MicroSD Card Slot, you must open the battery compartment of your device. See page 3 to locate the MicroSD card.
- Page 14 MicroSD cards 65GB and above will require special formatting to work. The device will not function with these cards if they are not properly formatted beforehand. Visit www.mgidownloads.com/Software and download the “guiformat.zip” file. Extract the files and follow the instructions in the “64GB SD Card Formatting.pdf” document.
- Page 15 Or… Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. Version 1.0...
- Page 16 4. Open the [folder name] folder. 5. Double click the file you want to view. VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
- Page 17 To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A” on your keyboard. If you are using MAC OS X, you must empty the trashcan after you delete a file.
-
Page 18: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Make sure the battery is charged. DEVICE CONTINUALLY RECORDS IN MOTION MODE Motion detection is measured by changing pixels during recording. Any kind of motion including shifting shadows or changing lighting conditions can set off motion detection. Try adjusting the motion detection sensitivity via the setup menu. -
Page 19: Specifications
SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per Up to 30 FPS Second Vision Angle 65° Battery Life Up to 30 days in PIR Mode 20 Hours Continuous Recording Motion 8 meters for straight-line Detection & PIR distance Sensor Photo 2560x1920 Resolution... - Page 20 Recording Usage 10mins per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.0...
- Page 21 Version 1.0...
- Page 22 Version 1.0...
- Page 23 Version 1.0...
- Page 24 QUALITY CONTROL CHECKLIST ☐ Remote ☐ AC Adapter ☐ 3.5mm to USB Cable ☐ AV Cable ☐ Manual ☐ MicroSD Card Reader ☐ ____GB MicroSD Card ☐ OmniXSmoke Detector QC Tech: ____________________________________ Date: _______________________________________ Leave Us A Review! Version 1.0...
