MULTI-PLATFORM STEREO REPLACEMENT
WITH STEERING WHEEL CONTROL INTERFACE
FOR CHRYSLER, GM, FORD & TOYOTA JBL

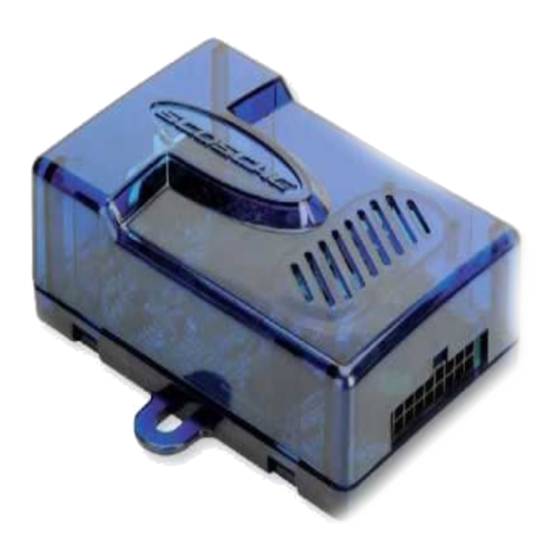

The cutting edge S3-1 interface from Scosche allows you to replace your
factory OEM stereo while retaining all necessary safety & warning features as
well as retaining your original steering wheels controls (if vehicle is equipped).
NO Steering wheel programming is required! The S3-1 Interface has
built-in protocols for popular aftermarket stereos including:
A vehicle-specific harness is required for installing the S3-1 interface (*sold separately).
Verify your vehicle's compatability by checking the list included with vehicle-specific
harness.
S3CR02
S3CR04
S3FD23
S3GMCL2
S3GM11C
S3GM11L
S3GMLAN
S3TA03
TECH SUPPORT:
Technical Assistance with the installation, or the most
current applications, please call
©2011 SCOSCHE INDUSTRIES, INC.
STEERING WHEEL CONTROLS
ALPINE
KENWOOD
S3-1 INSTALLATION HARNESSES*
2005-10 Select Chrysler S3-1 harness
2007-UP Select Chrysler S3-1 harness
2005-UP Select Ford, Linc, Merc S3-1 harness
2003-UP Select GM Class II S3-1 harness
2004-UP Select GM LAN11 24Pin S3-1 harness
2006-UP Select GM LAN11 14/16Pin S3-1 harness
2006-UP Select GM LAN29 14/16 Pin S3-1 harness
2004-UP Select Toyota JBL S3-1 harness
If you have any questions or need
CLARION
PIONEER
1-800-621-3695x3
JVC
SONY
SI - S3-1 (3000553) 6/11
S3-1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Scosche S3-1
Summary of Contents for Scosche S3-1
- Page 1 WITH STEERING WHEEL CONTROL INTERFACE FOR CHRYSLER, GM, FORD & TOYOTA JBL The cutting edge S3-1 interface from Scosche allows you to replace your factory OEM stereo while retaining all necessary safety & warning features as well as retaining your original steering wheels controls (if vehicle is equipped).
-
Page 2: Component Overview
PRELIMINARY S3-1 Functionality by vehicle platForm: Steering Premium ACC/R.A.P. Warning Wheel Sound Make Fade F/R Power Chimes Controls Activation Chrysler Not required Ford Not required GM LAN Std. Bose only GM Class II Std. Bose only Toyota Not required Not required... -
Page 3: Installation Overview
INSTALLATION OVERVIEW AFTERMARKET STEREO 3.5MM STEERING WHEEL OUTPUT CABLE (Alpine, Clarion, JVC, Pioneer, Sony) BLUE STEERING WHEEL OUTPUT WIRE (Kenwood) S3-1 VEHICLE-SPECIFIC WIRE HARNESS (sold separately for Chrysler, Ford, GM, Toyota) S3-1 MAIN MODULE STEERING WHEEL MODULE TO VEHICLE... -
Page 4: Wire Color Codes
Orange/White = Auto illumination (Data controlled lighting output on some GM LAN applications with AUTO headlights enabeled) NOTE: The RED Accessory output wire from the S3-1 interface is rated at 10A Max output for most aftermarket head unit demands. We do NOT recommended connecting additional +12V switched accessories to this output source as it may cause damage to the S3-1 module itself. - Page 5 The color codes on the Scosche harness are designed to match most aftermarket stereos. • Take note that some of the wires for your new stereo come from the S3-1 interface box itself and not the vehicle connectors.
- Page 6 Low fuel POWER UP (Initialization procedure) In order to ensure the proper functionality of the S3-1’s +12V RED Accessory wire, we recommend that the following procedure be followed; in sequence. 1. Disconnect the Scosche Interface from the vehicle radio harness.
- Page 7 STEERING WHEEL MODULE STEERING WHEEL MODULE SETUP The Scosche S3-1 offers “plug and play” steering wheel control setup. No complicated learning, programming or splicing wires is required. Setup can be completed in just seconds! (Tool is provided by Scosche.) 1. Break off the small flat blade...
- Page 8 STEERING WHEEL CONTROLS: CHRYSLER CHRYSLER / DODGE / JEEP Version 1 STEERING WHEEL LEGEND 2005-08 SEEK UP PRESET VOLUME SEEK DOWN SOURCE VOLUME Sony Kenwood Clarion Alpine Pioneer Vol Up + Vol + Vol + Vol + Vol + Vol + Vol + Vol Down - Vol -...
- Page 9 STEERING WHEEL CONTROLS: GM SEEK UP/ SOURCE GENERAL MOTORS PRESET UP LAN STEERING WHEEL LEGEND VOL UP 2006-UP MUTE VOL DOWN SEEK DN/ PRESET DN PRESET/BAND Sony Kenwood Clarion Alpine Pioneer Vol Up Vol Up Vol Up Vol Up Vol Up Vol Up Vol Up Vol Down...
- Page 10 STEERING WHEEL CONTROLS: GM GENERAL MOTORS GM LAN 11 BIT STEERING WHEEL LEGEND MUTE VOL UP VOL DOWN SEEK UP/TRACK UP SEEK DOWN/TRACK DOWN Sony Kenwood Clarion Alpine Pioneer Vol Up+ Vol Up Vol Up Vol Up Vol Up Vol Up Vol Up Vol Down- Vol Down...
- Page 11 STEERING WHEEL CONTROLS FORD STEERING WHEEL LEGEND VOL DOWN VOL UP SEEK DOWN SEEK UP MEDIA SOURCE Sony Kenwood Clarion Alpine Pioneer Vol Up+ Vol Up Vol Up Vol Up Vol Up Vol Up Vol Up Vol Down- Vol Down Vol Down Vol Down Vol Down...
-
Page 12: Limited Warranty
The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective within the warranty period, return the product with proof of purchase to Scosche Industries Inc. Scosche, at its option, will replace or repair the product free of charge and return the product postage paid.
