1850W

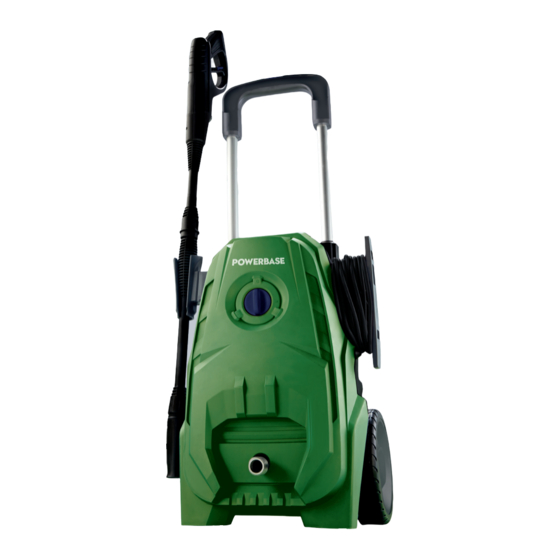

Pressure Washer 577601
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PowerBase Q1W-SP19-1900H
Summary of Contents for PowerBase Q1W-SP19-1900H
- Page 1 Instruction Manual 53cm Self Propelled Petrol Rotary Lawn Mower IMPORTANT! 1850W Please read these Pressure Washer 577601 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
-
Page 2: Table Of Contents
Contents Safety information...................3 In the box..../ / /./....................19 Assembly......................21 O p e r a t i o n ..// ............Application../ /......... - Page 3 Description of symbols The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the pressure washer. Caution/Warning. Read operator’s manual. Wear ear protection. Disconnect the mains plug if the cord becomes damaged or entangled.
- Page 4 General safety WARNING! High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine it- self. WARNING! Do not use the machine within range of persons unless they wear protective clothing.
- Page 5 WARNING! Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devic- es, high pressure hoses or trigger guns. WARNING! Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground.
- Page 6 IMPORTANT! • Keep this instruction manual in a safe place for future reference. • Read the instructions carefully. Be familiar with the controls and how to properly use the equipment. • Never use the machine while people, espe- cially children, or pets are nearby. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
- Page 7 reatening risk. Keep the jet at a distance of at least 30cm! • The appliance is not designed for connect- ing to tap water. If necessary, • Please use only with a water backflow pre- venter or inlet hose-set approved by IEC 61770.
- Page 8 • Inadequate extension cords can be danger- ous. If an extension cord is used, it should be suitable for outdoor use, be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60mm above the ground.
- Page 9 your finger on the On/Off switch when it is connected to the mains. WARNING Remov- ing the plug from the socket: - When you are not using the equipment. - When transporting equipment. - When left unattended. - When checking or cleaning equipment. - When removing blockages or performing maintenance or changing accessories.
- Page 10 For heavy work, do not use a machine with insufficient • power. Do not use your appliance for pur- poses other than those specified. Maintenance and storage safety • Retrofitting or making any unauthorised changes to the machine, as well as the use of unapproved parts will invalidate your war- ranty.
- Page 11 • Only use accessories, replacement parts and detergents which are compatible with this pressure washer. • Observe the instructions provided with these detergents. • Any use of the machine that deviates from its intended use and is not included in these instructions is considered unauthorized use and relieves the manufacturer from his or her legal liability.
-
Page 12: In The Box
In the box Parts Detergent bottle High pressure washer Cord bracket Gun holster High pressure hose Turbo lance Spray lance Spray gun Patio brush Patio brush lance Triangular brush Water inlet adapter Nozzle pin Operating manual... -
Page 13: Assembly
Assembly Strech out the transport handle Strech out the transport handle to the top postion.. Assemble cord bracket and gun holster Assemble the cord bracket(3)and gun holster(4)onto pressure washer. Connect the hose and pressure washer Attach high pressure hose(5) to the machine’s water outlet (hand tighten only). - Page 14 Push the high pressure hose (5) into the spray gun(8) until it locks audibly. Note:Check the secure conncetion by pulling on the high pressure hose. Fit the gun extention to spray gun Push the the turbo lance(6) or spray lance(7)or triangular brush( 11) into the gun spray(8) Fit the gun extention to spray gun Push the the patio brush (9) and patio brush lance (10) into the...
- Page 15 Attach water inlet adapter(12) to the machine’s water inlet. Hand tighten only. Connect garden hose and inlet adapter Attach a hose with a quick connect coupling (not included) to the high pressure washer. Connect garden hose and water supply. Attach garden hose to water supply and turn water on.
- Page 16 OFF position Make sure the ON(1) /OFF(0) switch is in the OFF(0) position. Connect socket Insert the main plug into the socket.
-
Page 17: O P E R A T I O
Operation WARNING! Wear suitable clothing, ears and eyes protecting when working with the equipment. Ensure that the equipment is functional before each use. Ensure that the mains voltage value matches the label on the equipment. Check the safe condition of the machine: Check it for visual defects. - Page 18 Stopping: A. Release the trigger. B. To switch the machine off, set the On/Off switch to OFF. C. Close the water inlet valve Attention! Risk of machine damage! Never operate the machine without water inlet as dry running may damage the pump. Use a water filter if the inlet water is contami- nated.
- Page 19 Adequate information about the nozzles to be used, the danger of the kickback force and the sudden torque on the spray assembly when opening the trigger gun; Clogging of the spray tips causes the pump pressure to be too high and cleaning is immediately required. You can clean the spray tips by carefully inserting a needle, or a thin, sharp instrument (e.g.
-
Page 20: Application
APPLICATION High pressure working. Hold the hand-held spray gun and the jet tube firmly with both hands. Be aware of the recoil when switching on the high-pressure jet. Unlock the safety button and press the trigger on the handheld spray gun. The high pressure pump starts running as soon as you operate the hand held spray gun. - Page 21 Gently pull the detergent containers out of storage posi- tion, and fill with detergent. Push the containers back into storage position. -Turning the nozzle to low pressure marking as shown, configuring the machine to LOW PRESSURE. Unlock the trigger. Do not use the detergent bottle in horizontal position.
-
Page 22: Technical Data
Technical Data Model Q1W-SP19-1900H Input voltage rating 230-240V, 50 Hz Input power 1850W Working pressure 10.3MPa Max pressure 13MPa Rated flow 5.5l/min Max. flow 7l/min Degree of protection against liquids IPX5 Safety class Class II Inlet pressure: 0.6MPa Supply water temperature (max.):... -
Page 23: Troubleshooting
Maintenance The machine is maintenance-free. Storing, transport Storing Store the machine where it is dry and well ventilated. When placing the machine out of service for an extended period of time, remove the cleaning agent and drain all the water left in the hoses. - Page 24 Problem Possible cause Solution 1. No Power. • Check if the plug • Please contact the socket, cable, line after sales and plug are in support team at good condition. 01904 727509. • If any of the parts are defective, such as the On/Off switch / motor etc.
-
Page 25: Disposal
DISPOSAL Disposing of the machine Machines which are labeled with the adjacent symbol must not be disposed of in household rubbish. You must dispose of such old electrical and electronic appliances separately. Please check with your local authority about the possibilities for correct disposal.
