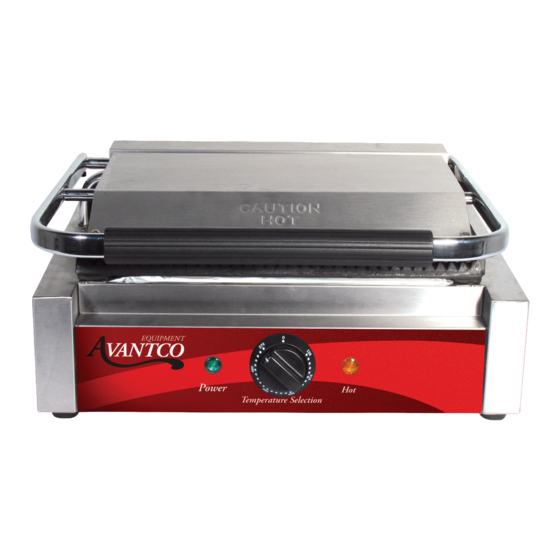

- Page 1 User Manual User Manual Panini Grills Models: 177P78, 177P84, 177P70S, 177P75SG, 177P85S, 177P88SG 04/2020 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
- Page 2 User Manual Thank you for purchasing and using our Panini/Sandwich Grill. To make best use of this product and avoid damage and injury, please read this manual carefully before using the machine, and keep it handy for future reference. The Sandwich Grill design combines the advantages of stylish design, efficient construction, ease of operation and simple maintenance.
-
Page 3: Important Features
User Manual Notes 1. This product is intended for commercial use only. 2. Do not disassemble or modify the machine. 3. Lift the upper grill assembly smoothly; jerking it up may cause damage or injury. 4. Before cleaning, disconnect power and allow machine to cool. 5. -
Page 4: Specifications
User Manual Specifications Single Panini Grill Single Panini Grill Double Sandwich Grill Model Number P60S, P65SG, P68 P78, P70S, P75SG P84, P85S, P88SG Voltage 120V, 60 Hz 120V, 60 Hz 120V, 60 Hz Power 1.75 Kw 1.75 Kw 2x1.75 Kw Temp. -
Page 5: Cleaning And Maintenance
User Manual Cleaning and Maintenance 1. Disconnect machine before cleaning and allow to cool. 2. Use only a damp towel with non-corrosive cleaner. Do not immerse or flush with water. 3. Wipe down outside surface to remove any soil. 4. Store in a dry clean area when not in use. Attack tough grease, oil, and carbon with this ready to use decarbonizer and degreaser. -
Page 6: Troubleshooting
User Manual Troubleshooting Problem Possible Cause Action Grill plates do not heat even though power Defective controller Replace controller indicators are lit. Defective heater(s) Replace heater(s) Temperature can not be controlled. Defective controller Replace controller Heating appears normal but power indicators Defective indicator(s) Replace are not lit. - Page 7 User Manual Parts Key Single Grill Diagram # and Part Name Replacement Part Item # 1. Green "Power" Light 177PLIGHTGRN (P60S, P65SG, P68, P78, P75SG, P70S) 2. Temperature Control Knob 177PKNOB (P60S, P65SG, P68, P78, P75SG, P70S) 3. Screw M4x6 4.
- Page 8 User Manual Diagram # and Part Name Replacement Part Item # 15. Slotted Screw M4x8 16. Spring Pin 17. Ground Screw M6x15 18. Power Cord 177FCORD (P60S, P65SG, P68, P78, P75SG, P70S) 19. Bottom Plate 177P7BTMFLT (flat), 177P7BTMGRV (grooved), (P78, P75SG, P70S) 20.
- Page 9 User Manual Parts Key Double Grill Diagram # and Part Name Replacement Part Item # 1. Green "Power" Light 177PLIGHTGRN (P84, P85S, P88SG) 2. Temperature Control Knob 177PKNOB (P84, P85S, P88SG) 3. Screw M4x6 4. Orange "Hot" Light 177PLIGHTORG (P84, P85S, P88SG) 5.
- Page 10 User Manual Diagram # and Part Name Replacement Part Item # 14. Rear Upper Cover 15. Slotted Screw M4x8 16. Spring Pin 17. Ground Screw M6x15 18. Power Cord 177FCORD (P84, P85S, P88SG) 19. Bottom Grill Plate 177P8BTMFLT (flat), 177P8BTMGRV (grooved), (P84, P85S, P88SG) 20.
- Page 11 User Manual User Manual www.AvantcoEquipment.com www.AvantcoEquipment.com...
- Page 12 User Manual User Manual www.AvantcoEquipment.com www.AvantcoEquipment.com...
- Page 13 Avantco reserves the right to approve or deny the repair or replacement of any part or repair request. The warranty is not transferable. Avantco Equipment installed in/on a food truck or trailer will be limited to a period of 30 days from the original date of purchase.
