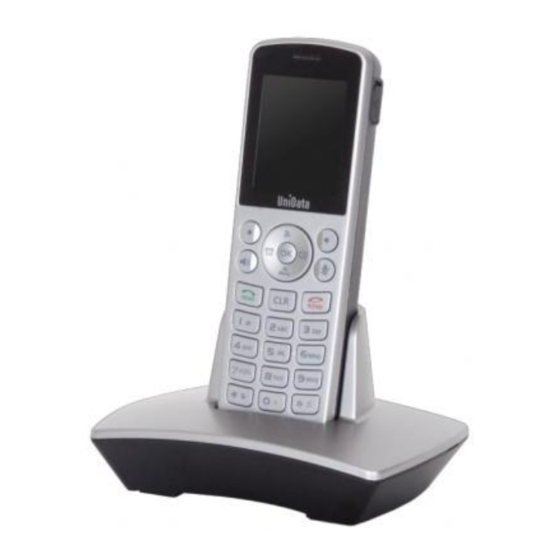

UniData Communication Systems 7800 Quick Reference Manual

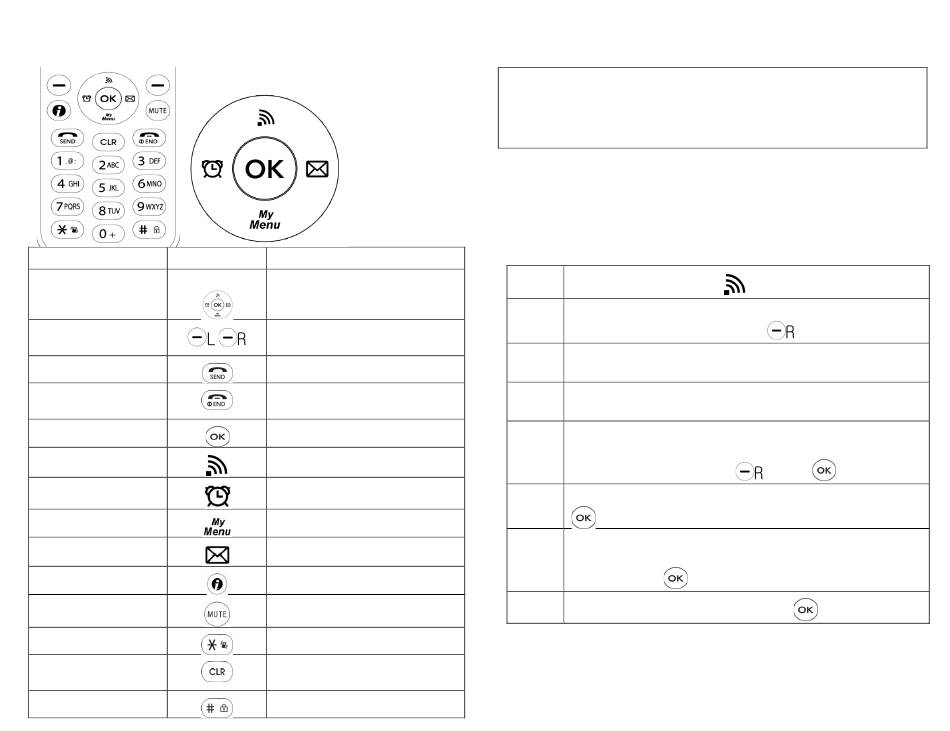

Phone layout Guide

Key Name Icon
▲▼◄►
Direction/Navigation
Key
Left soft key; Right soft
key
Send key
End key
OK key
AP search key
Alarm key
My menu key
Message key
Google Service key
Mute key
Vibration key
Clear key
Lock key
Basic Functions
Used for menu viewing, Can be
pressed up and down, left and right
Submenu operation etc
Used for receiving and making calls
Used to end a call and to switch the
power ON/OFF
Use to confirm
Used for searching Access Point
Alarm/ Wake up call
Using user-defined function
Using message function
Using Google service
Mute ON/OFF
Vibration ON/OFF
Removing characters or figures /
moving to previous screens
Locks/ Unlocks button
IMPORTANT NOTICE
When the Unidata 7800 will not be used for more than a month
please remove the battery from the handset and store it. The battery
pack may become unusable due to self-discharge. Please store the
battery at less than 20°C in a low-humidity environment that is clean
and free of dust.

Unidata 7800 Setup Instructions

Network / Security Setup

1
Press the AP search key
Navigate down ▼ and select the wifi network you wish to
2
connect. Press the right soft key
Enter Password 000000. If the wifi network does not
3
require encryption key jump to step 7
Select wifi encryption mechanism using the navigation
4
keys ◄► ( WEP / WPA) in Security Setting screen
Scroll down ▼ and enter the key or passphrase. Please
5
note that you can shift to numeric or alphanumeric entry
mode with the right softkey
Select No for „Configure 802.1x authentication?‟ Press
6
At the Network setup screen, using the ▲▼◄► buttons
7
select DHCP or Static IP. In the later case enter the Ip
settings. Press
8
At the Profile Setting screen, press
to Add
. Press
to end network setup.
to save.
