Accessing The Rtc Backup Battery.; Removing The Rtc Backup Battery.; Inserting The Replacement Battery.; Reassembling The Fit-Pc4. - CompuLab Fit-pc4 Battery Replacement Manual

Hayetsira St. 17, Yokneam, Israel

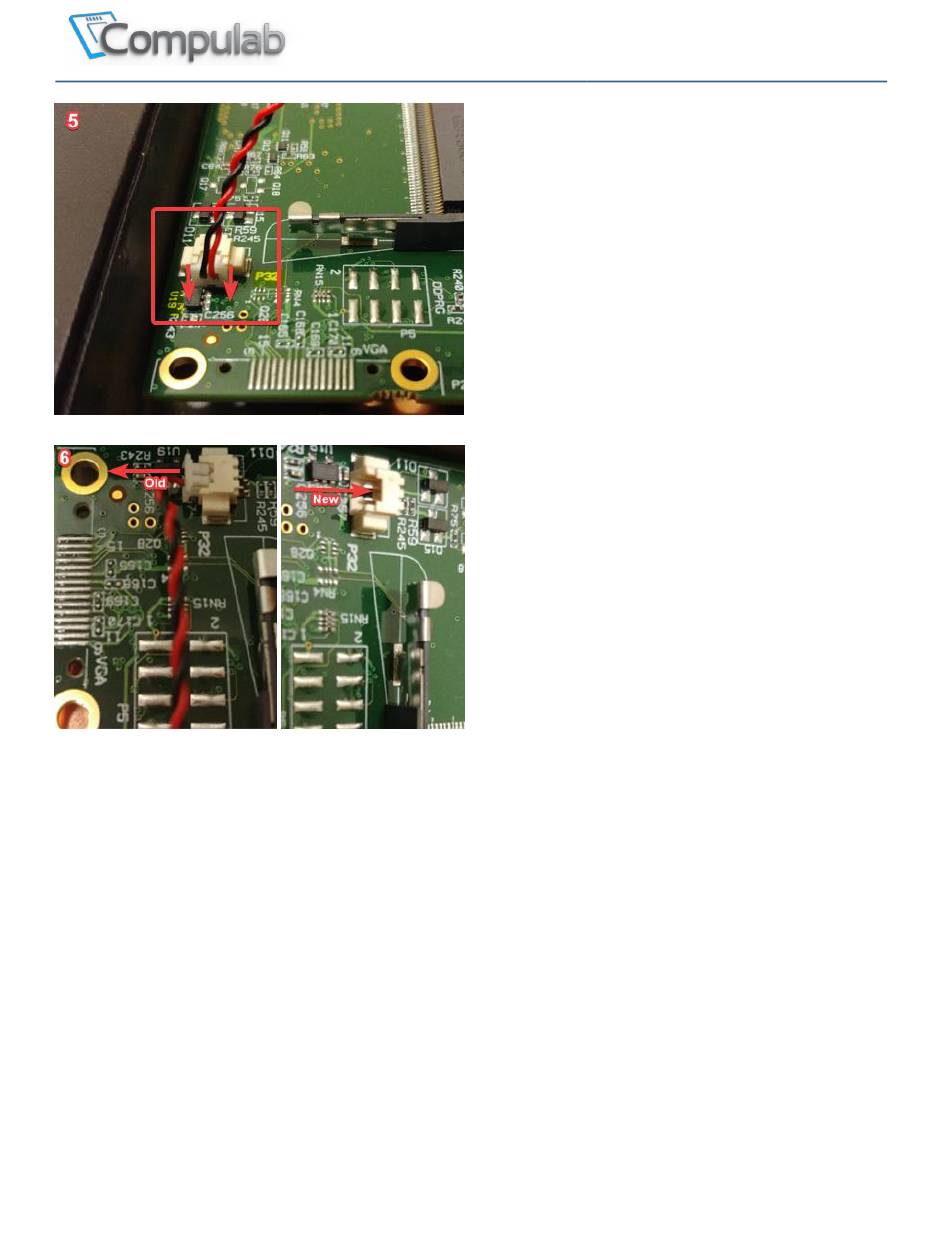

Now you have easy access to the RTC backup
battery, attached to the P32 connector.
To remove the battery, you need slightly to
lift up the battery plug attached to the P32
connector and pull away the plug from the
P32 connector.
Please use extra care, not to damage U19 IC
located between
connector.
Insert the replacement battery into P32
connector
Assemble back the face module, the back
panel and the service door, performing in
the reverse order steps 1 to 4.
Tel: +972-48-290-100
Fax: +972-48-325-251
www.compulab.co.il
P32 and battery
