Owners Manual
Submersible Light Kits
LISTED

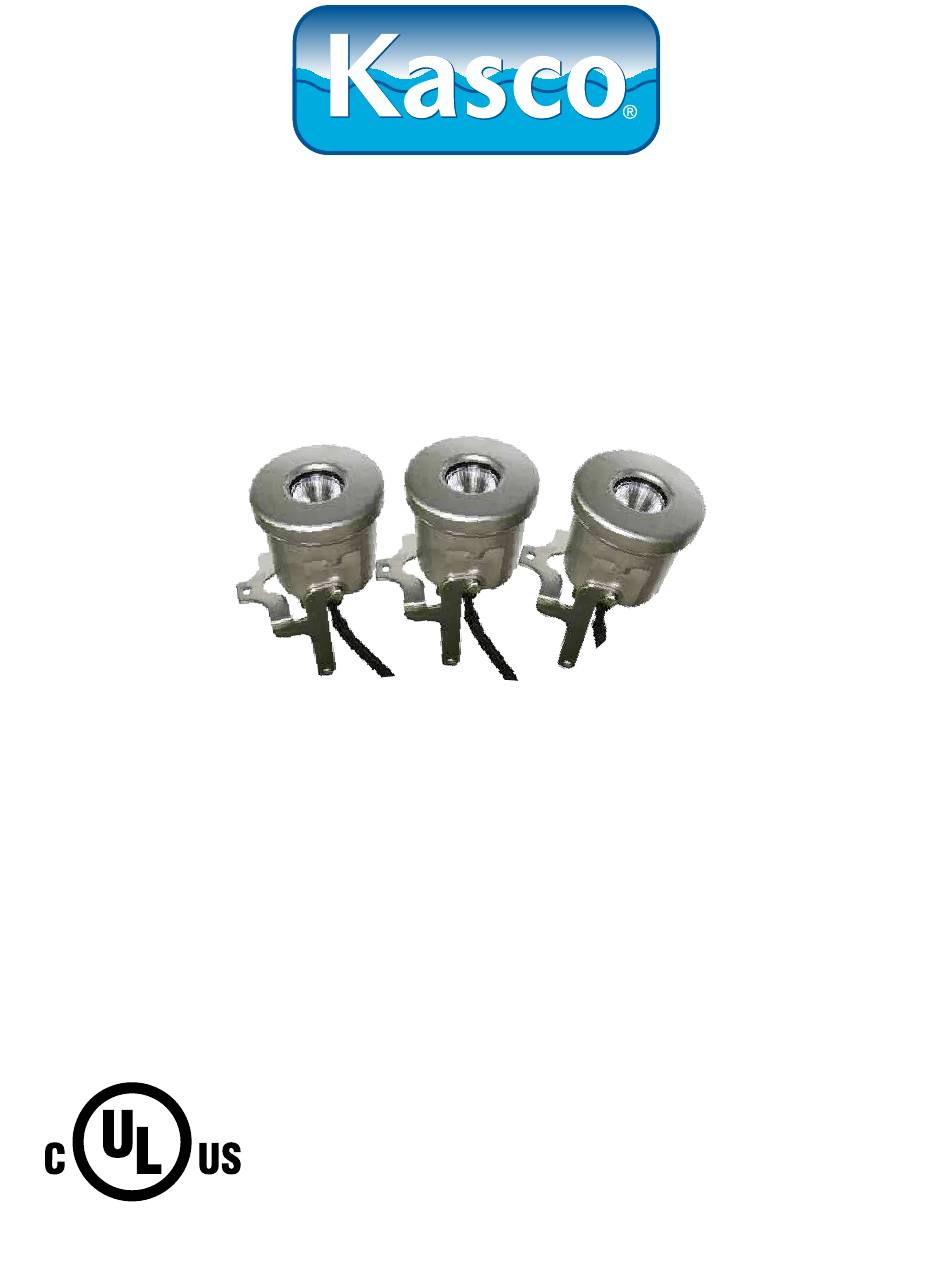

Submersible luminaire
E478088
Models LED3S19 & LED6S19
Important Safety. . . .
General Instructions. . . .
Parts Included. . . .
LED3S19 Assembly Instructions. . . .
Instructions For Mounting LED6S19. . . .
Maintenance Recommendations. . . .
Warranty Policy. . . .
Troubleshooting Tips. . . .
Replacement Parts. . . .
Customer Repair Form. . . .
Registration Information. . . .
Kasco Marine, Inc.
Prescott, WI 54021
PH (715) 262-4488
FAX (715) 262-4487
www.kascomarine.com
Contents
800 Deere Rd.
pg2
pg2
pg2
pg3
pg5
pg6
pg6
pg8
pg9
pg10
pg12
Rev. 01/31/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED3S19 and is the answer not in the manual?

Questions and answers

Related Manuals for Kasco marine LED3S19

Summary of Contents for Kasco marine LED3S19

  • Page 1 Contents Important Safety..General Instructions..Parts Included..LED3S19 Assembly Instructions..Instructions For Mounting LED6S19..Maintenance Recommendations..Warranty Policy..Troubleshooting Tips..

  • Page 2: Inspect The Shipment

    THANKS with drop-offs, drastic slopes, or soft bottom mate- We at Kasco Marine, Inc. would like to both thank and rial. congratulate you on your purchase of the Submersible • Do not use a canoe or boat that tips easily during LED Light Kit.
  • Page 3 LED3S19 Assembly Instructions For ease of assembly, make sure the Aerating Fountain is completely assembled. Place the assembly upright. Instructions for mounting LED3S19 on models: 3. Place rubber caps over the light ixtures as shown. 2400VFX, 3400VFX, 3400HVFX, 3400JF, 3400HJF,...
  • Page 4 ¼” Nut against the underside of the loat tab as shown in Fig. 5. Tighten the nut until snug using the 7/16” Instructions for mounting LED3S19 on models: wrench. 8400VFX, 800JF, 2.3VFX, 2.3JF, 3.1JF, 3.3JF, Fig 5 5.1JF, 5.3JF, 5.1VFX, 5.3VFX, 7.3JF...
  • Page 5 ¼” Nut against the underside of the loat tab as shown your LED light kit to your ield installed GFCI in Fig. 10. Tighten the nut until snug using the 7/16” protected outlet and timer. wrench. Fig 10 Instructions For Mounting LED6S19 Instructions for attaching brackets on the loat prior to mounting the light ixtures on 2 HP or larger Kasco units.

  • Page 6: Maintenance Recommendations

    WARRANTIES, EXPRESSED OR IMPLIED, AND ANY OTHER OBLIGATION OR LIABILITY WHATEVER OBSERVATION: Operating equipment should be observed ON THE PART OF KASCO MARINE, INC. AND IN NO on a regular basis (daily, if possible) for any reduction or EVENT SHALL KASCO MARINE, INC. BE LIABLE variation in performance.
  • Page 7 Any expedited shipping method for the return of the unit is at the customer’s expense. Kasco Marine will return units repaired under warranty at our expense via ground freight Non-Warranty Repairs: Most failed equipment can be repaired at substantially lower costs than replacement with new.

  • Page 8: Troubleshooting Tips

    Troubleshooting Tips Troubleshooting tips - light kit The following is provided to help diagnose a probable source of trouble. It is a guideline only and may not show all causes for all problems. For additional troubleshooting help contact your local distributor or visit www.kascomarine.com for additional help. NOTE: you may need to refer to your owners manual that was provided with your fountain for additional control panel settings and adjustments.

  • Page 9: Replacement Parts

    Replacement Parts ITEM NO . PA RT NUMBER DESC RIPTIO N Q TY. 451126 SC REW, 1/ 4-20x1/ 2" 840537 LO C K WA SHER, 1/ 4" 346065 BRA C KET, S.S. LED MO UNTING 346090 C A P, LENS, S-19 LED LIG HT 345559 LENS KIT, 4 C O LO RS DO NOT ATTEMPT TO OPEN!

  • Page 10: Customer Repair Form

    All repairs sent in MUST be accompanied by a copy of this completed sheet! • • Address your Repair to Kasco Marine, Attn: Repairs (or to your Authorized Repair Center. • Shipping to Kasco or an Authorized Repair Center is paid for by the customer.
  • Page 12 Registration Information Fill in the information below and keep for your records. Model # (Ex. LED3S19)_______________________________ Serial # (Ex. 2101LEDS3001)____________________________ Purchase Date:_____________________ Purchased From:___________________________________ Registration Date: ___________________________ Kasco Marine, Inc. 800 Deere Rd. Prescott, WI 54021 Phone (715) 262-4488 • Fax (715) 262-4487 www.kascomarine.com •...
