Owners Manual
Submersible Light Kits
Models LED3125, LED4125, LED6125
LED3C11, LED4C11, LED6C11
Important Safety. . . .
General Instructions. . . .
Parts Included. . . .
Assembly Instructions. . . .
Instructions For Mounting LED6125 and LED6C11. . . . pg5
Maintenance Recommendations. . . .
Warranty Policy. . . .
Troubleshooting Tips. . . .
LED125 Replacement Parts. . . .
LEDC11 Replacement Parts. . . .
Repair Contact Form. . . .
Registration Information. . . .
Contents
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
PH (715) 262-4488
FAX (715) 262-4487
www.kascomarine.com
pg2
pg2
pg2
pg3
pg6
pg7
pg8
pg9
pg10
pg11
pg12
Rev. 02/01/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED3125 and is the answer not in the manual?

Questions and answers

Related Manuals for Kasco marine LED3125

Summary of Contents for Kasco marine LED3125

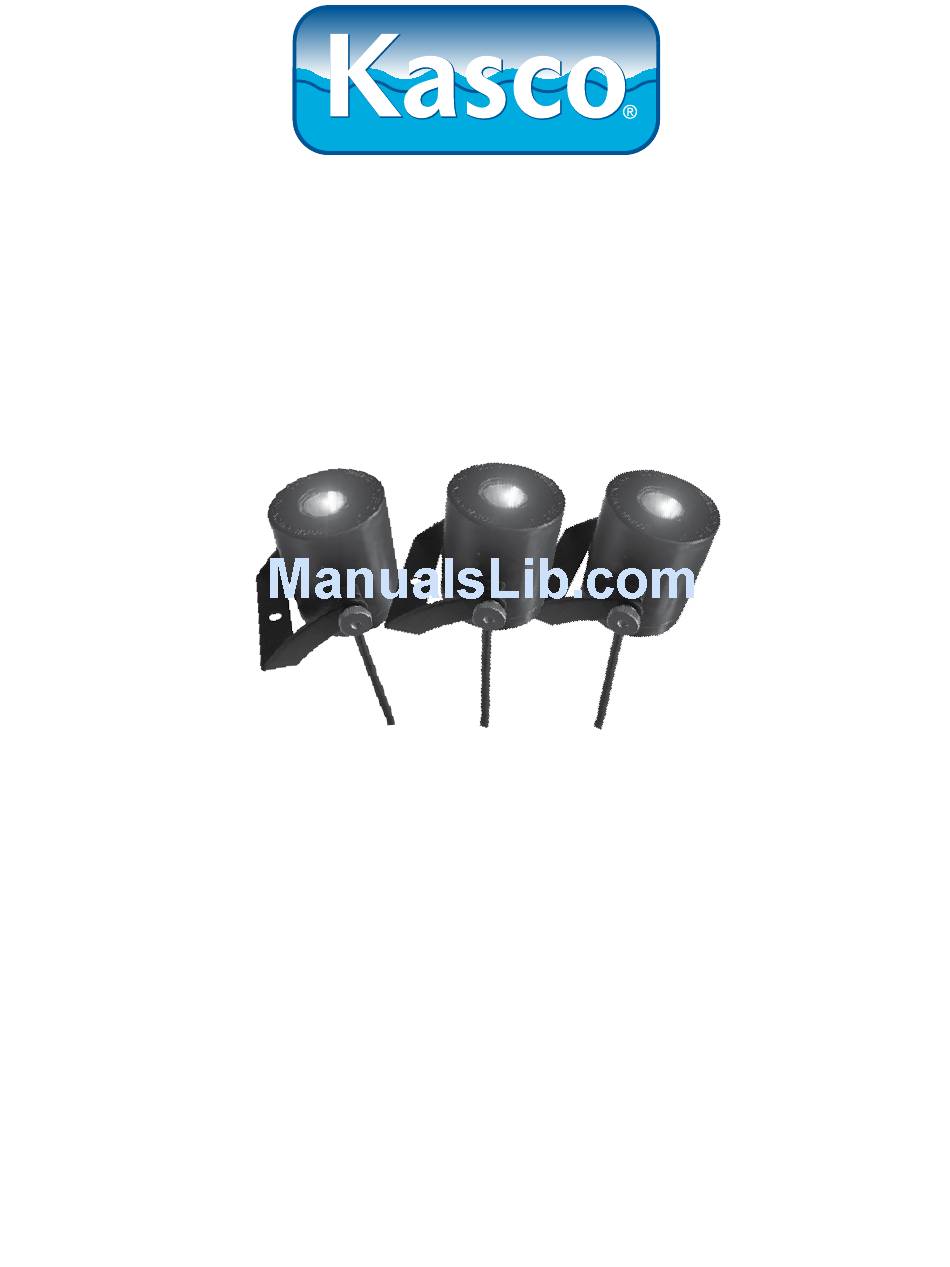

  • Page 1 Owners Manual Submersible Light Kits Models LED3125, LED4125, LED6125 LED3C11, LED4C11, LED6C11 Contents Important Safety..General Instructions..Parts Included..Assembly Instructions..Instructions For Mounting LED6125 and LED6C11..pg5 Maintenance Recommendations.

  • Page 2: Inspect The Shipment

    THANKS with drop-offs, drastic slopes, or soft bottom mate- We at Kasco Marine, Inc. would like to both thank and rial. congratulate you on your purchase of the Submersible • Do not use a canoe or boat that tips easily during LED Light Kit.

  • Page 3: Tools And Supplies Needed

    3. Place rubber caps over the light ixtures as shown. LED6125 / LED6C11 • A. Includes two (2) sets of LED3125 or LED3C11 Ensure the rubber cap is seated all the way down onto the ixture housing. If this is not on a new light kit, (see parts included in LED3125 / LED3C11 B.
  • Page 4 6. Adjust the angle of the light as desired and tighten Fig 8 the two brass thumb screws on the sides of the ixture until snug. Do not over tighten. It is best to have all three ixtures at the same angle. 7.
  • Page 5 5. Install the 1/4” Flat Washer, 1/4” Lock Washer and Fig 11 Check for orange oring 1/4” Nut as shown in Figure 10. Tighten the nut until snug using the 7/16” Wrench. Fig 10 Fig 12 lat washer lock washer 1/4”...

  • Page 6: Maintenance Recommendations

    3. Follow the instruction on the previous page depending on conditions. In most cases a power washer (LED3125 Assembly instructions) to mount the light will be suficient if the unit and algae are still wet. Also kit to the brackets.

  • Page 7: Warranty Policy

    Kit to be free from defects in material or workmanship un- Non-Warranty Repairs: der normal use and service. The Kasco Marine, Inc. obliga- Most failed equipment can be repaired at substantially tion under this warranty is limited to replacing or repairing lower costs than replacement with new.

  • Page 8: Troubleshooting Tips

    Troubleshooting Tips Troubleshooting tips - light kit The following is provided to help diagnose a probable source of trouble. It is a guideline only and may not show all causes for all problems. For additional troubleshooting help contact your local distributor or visit www.kascomarine.com for additional help. NOTE: you may need to refer to your owners manual that was provided with your fountain for additional control panel settings and adjustments.

  • Page 9: Led125 Replacement Parts

    345053 KIT, LED COLORED LENS KIT CONTAINS 4 EACH OF 5 DIFFERENT COLORS ITEMS 7-10 REQUIRED FOR SMALL FLOAT MOUNTING (1/2HP-1HP) ITEMS 8-12 REQUIRED FOR LARGE FLOAT MOUNTING (2HP & LARGER) LED REPLACEMENT PARTS FOR MODELS: LED3125, LED4125 AND LED6125...
  • Page 10 LEDC11 Replacement Parts ITEM NO. PART NO. DESCRIPTION QTY. 345500 ASSEMBLY, LED LIGHT 345559 LENS KIT, 4 COLORS 345551 LENS CAP 345035 O-RING, LED CORD CONNECTOR 1 345043 10-32 THUMB NUT 771037 WASHER, #10 SPLIT LOCK 345042 SCREW, 10-32 X 1/2", HEX HEAD 345007 BRACKET 584692...

  • Page 11: Repair Contact Form

    Repair Contact Form                                          800 Deere Rd  Prescott, WI 54021  Phone: 715‐262‐4488 Fax: 715‐262‐4487  www.Kascomarine.com   Sales@kascomarine.com    Repair Contact Form   Kasco requires all Repairs sent in MUST be accompanied by this form and marked to Repairs  attention. (ex. Attn: Repairs)    Repairs returned should include upper pump housing or wire basket for Aerators and De‐Icers. These  parts protect the motor during shipping.    Kasco is NOT responsible for shipping damage accrued in return shipment.    It is the responsibility of customer to ship and pay freight to Kasco.    Do not ship float or control panel with unit, unless otherwise instructed   A fee of $60 per hour will be assessed for cleaning excessively dirty units and float disassembly   Refer to the Owner’s manual for easy‐to‐follow troubleshooting rule out site issue.   Note: Contact Information Should be that of the person or company to contact for repair.    Company   First Name  Last Name        Address  City  State       ...

  • Page 12: Registration Information

    Registration Information Fill in the information below and keep for your records. Model # (Ex. LED3125)_______________________________ Serial # (Ex. 2101LEDA3001)____________________________ Purchase Date:_____________________ Purchased From:___________________________________ Registration Date: ___________________________ Kasco Marine, Inc. 800 Deere Rd. Prescott, WI 54021 Phone (715) 262-4488 • Fax (715) 262-4487 www.kascomarine.com •...
