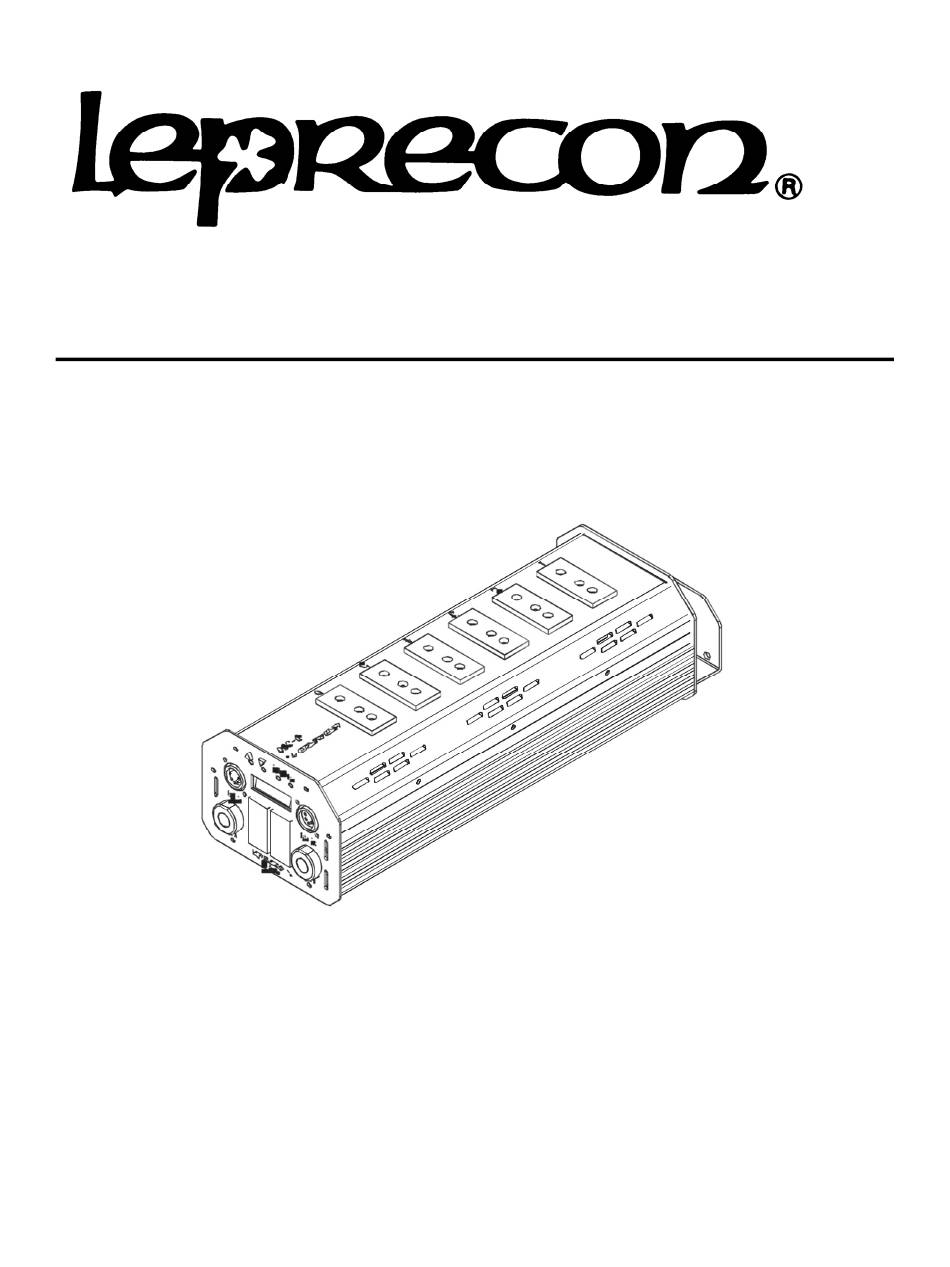

- Page 1 ULD-340DMX-HP USER’S MANUAL...
-
Page 2: Table Of Contents
Table of Contents Endplate Illustration – ULD-340DMX-HP ............3 1) Introduction......................4 2) Specifications..................... 4 Power Connection ....................4 Ambient Temperature ..................4 Power Capacity ....................4 Control input ....................... 5 3) Installation ......................6 Mounting......................6 Power Connection ....................6 Load Connection .................... -
Page 3: Endplate Illustration - Uld-340Dmx-Hp
Endplate Illustration – ULD-340DMX-HP DMX In DMX Out Enter Menu d 0 0 Data Out Data In Line A Line B ULD Series Breaker ‘A” WKt Z /EWhd > ^... -
Page 4: Introduction
Introduction The new ULD series dimmer is designed to be a capable and reliable solution for temporary and portable dimming requirements. With the menu-based interface, the dimmer can be configured for different applications, including stand-alone use without a controller. Default values can be restored at any time, clearing the internal memory back to the standard values. -
Page 5: Control Input
250K baud; for this reason the use of microphone cable is NOT recommended. DMX rated cables are available pre- manufactured from your Leprecon dealer. For more information on the DMX standard and acceptable cable, see the Appendix at the end of this manual. -
Page 6: Installation
Power Connection Leprecon LD340 series dimmers are supplied with line cords which have standard TLG plugs attached. Each line of the LD340 should be connected to a service capable of supplying 15 amps @ 100% duty cycle and protected by a properly sized circuit breaker. -
Page 7: Front Panel Controls
5) Front Panel Controls The ULD-340 dimmer uses a 4 digit display and four entry switches to set pack functions, and display operating status. Resetting the ULD-340 to default values: The unit can be Reset to original factory settings by depressing and holding the ENTER switch while turning on the first breaker. -
Page 8: Channel Mode Menu
The UP/DOWN keys change the value for the start address. The ULD-340 uses the changed value immediately and permanently saves it after 10 seconds or if the Enter or Menu key is pressed. After power on, the ULD-340 remains in the Address Menu in its simple interface mode. -
Page 9: Status Menu
Status Menu When the ULD-340 is in the Channel mode, pressing ‘MENU’ again will start the Status mode. When Status mode starts, the state of each channel will be shown in sequence, with the display cycling from Channel 1 to Channel 4, then automatically cycle back to channel 1. - Page 10 Once the input levels for all dimmer channels have been shown, the display will then indicate the output level for each channel. This is indicated by the letter ‘o’ in the display, followed by channel number, followed by output level. Output will be shown as a percentage, with 100% indicated b the letters ‘FF’...
-
Page 11: Configuration Data
Configuration Data If you press the Menu button while in the status display, various factory configuration data will be seen. These features are not fully defined at this point, but include software version, power configuration, and analog calibration data for the microprocessor. 6) Error conditions The ULD-340 will protect itself if the line voltage or operating temperature exceeds safe limits. -
Page 12: Service
7) Service Service policy The LD340 DMX is designed for a long, trouble free life. If you suspect that you have a dimmer problem, the first step is to check all other system components and connections. The easiest test is to substitute a known good dimmer in place of the suspected unit.
