- Page 1 AT5000 OPSW Optical Switch Quick Reference Guide Revision C...
- Page 2 AT5000 1RU Optical Switch with RF ACT AT5000 1RU Optical Switch Quick Reference Guide ACT Document Number: ACT AT5000 OPSW QRG Revision C Quick Reference Guide Revision C Copyright © 2017 Ascent Communication Technology Limited. All rights reserved. Reproduction in any manner whatsoever without the express written permission of Ascent Communication Technology is strictly forbidden.
- Page 3 AT5000 1RU Optical Switch with RF Table of Contents 1 Features ..........................4 2 Before Installation ........................6 3 Specifications ......................... 6 4 Panel Guide ..........................7 5 LED Display ..........................9 6 WEB Management Interface (Web GUI) ................12 Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 3 of 21...
- Page 4 HFC network and also high density FTTX networks to achieve the strict reliability requirement. AT5000 OPSW receiver is equipped with intuitive front panel LCD display to make operator’s life easier. The optical receiver is packaged in a self-contained 19” sub-rack of 1 RU with universal mains power supply and SNMP management.
- Page 5 AT5000 1RU Optical Switch with RF 1. Has both auto and manual function In auto mode, the default main input is input A with input B for backup. Once there is a failure or the optical power is lower than the set value, it will switch to the backup line. Once conditions are back to normal and the main line is functional again, it will switch to the main line automatically.
- Page 6 AT5000 1RU Optical Switch with RF 1. Please examine this machine, shelf and the power to see if the power supply is good. Keep space at least 4.5 cm in the shelf. 2. Keep the machine good grounded. 3. Please make sure the connector is clean before installation. Please clean the fiber connector with pure alcohol before insert the fiber.
-
Page 7: Front Panel Guide

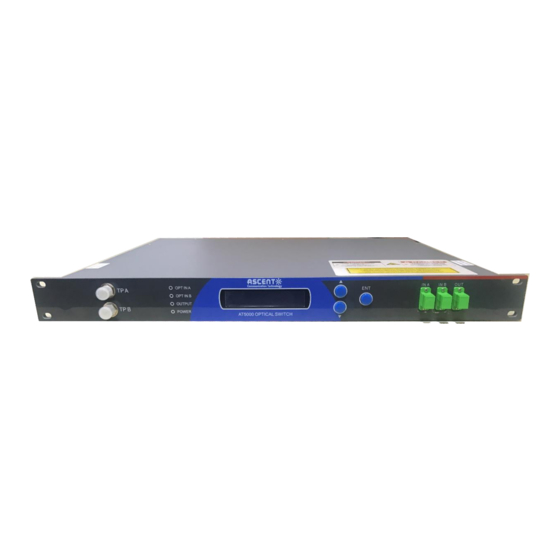

AT5000 1RU Optical Switch with RF Front panel guide: TP A and TP B TP A: RF test port of channel A TP B: RF test port of channel B OPT IN A Green: Input A working Red: Input A warning OPT IN B Green: Input B working Red: Input B warning... - Page 8 AT5000 1RU Optical Switch with RF Rear Panel Guide: PS1 (AC or DC) Power Supply 1: -48 V or 220 V , 2 A for fuse Console Port standard local management port ETHERNET Port standard SNMP management port PS2 (AC or DC) Power Supply 2: -48 V or 220 V , 2 A for fuse...
- Page 9 AT5000 1RU Optical Switch with RF Press ↑ ↓and ENT button, you can see the following information AT-50-OPSW L: output power ≤5dBm Outpwr L/H H: output power ≥5dBm -60.0dBm: No output power Working Channel Channel A/B CH A Input Power L-60.0dBm 1.
- Page 10 AT5000 1RU Optical Switch with RF +5V Power Left Parameter Info +5.1V +5V Power Right +5.1V Serial Number 180628086590 Manufacture Date 2018/06/xx Firmware Version TX01100BV3.0.6 IP Setting Setup IP Setting Info 192.168.0.122 192.168.0.122 Enter code Code: 1234 xxxx SET OK Mask Setting Setup Mask 255.255.0.0...
- Page 11 AT5000 1RU Optical Switch with RF Setup Gateway Gateway Setting 192.168.0.1 192.168.0.1 Enter code 1234 SET OK CHA Switch Power CHA SPWR Setting +00.0dBm +00.0 dBm Enter code Set channel A and B 1234 switch threshold, the range is -15 dBm to +23 dBm SET OK CHB Switch Power...
- Page 12 AT5000 1RU Optical Switch with RF Notes: 1. When the mode is set in “Manual”, the machine can switched automatically, so we advise to set it in “auto”. 2. In order to protect the fiber connector, turn on the power after the fiber connected. 2.
- Page 13 AT5000 1RU Optical Switch with RF Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 13 of 21...
- Page 14 AT5000 1RU Optical Switch with RF Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 14 of 21...
- Page 15 AT5000 1RU Optical Switch with RF 2. Open web browser, input the IP address, For example: 192.168.0.22 Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 15 of 21...
- Page 16 AT5000 1RU Optical Switch with RF Log in to the page. Default user name and password: User name: ASCENT Password: 123456 3. Device status: 4. Items guide on the left, click to enter: Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 16 of 21...
- Page 17 AT5000 1RU Optical Switch with RF Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 17 of 21...
- Page 18 AT5000 1RU Optical Switch with RF Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 18 of 21...
- Page 19 AT5000 1RU Optical Switch with RF Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 19 of 21...
- Page 20 AT5000 1RU Optical Switch with RF Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 20 of 21...
- Page 21 Phone: +84 243 795 5917 WEB: www.ascentcomtec.com EMAIL: sales@ascentcomtec.com Specifications and product availability are subject to change without notice. Copyright © 2017 Ascent Communication Technology Limited. All rights reserved. Ver. ACT_1RU_OPSW_QRG_V1c_Jul_2017 Solutions Provider for FTTx, RFoG and HFC www.ascentcomtec.com Page 21 of 21...
