Installation Options

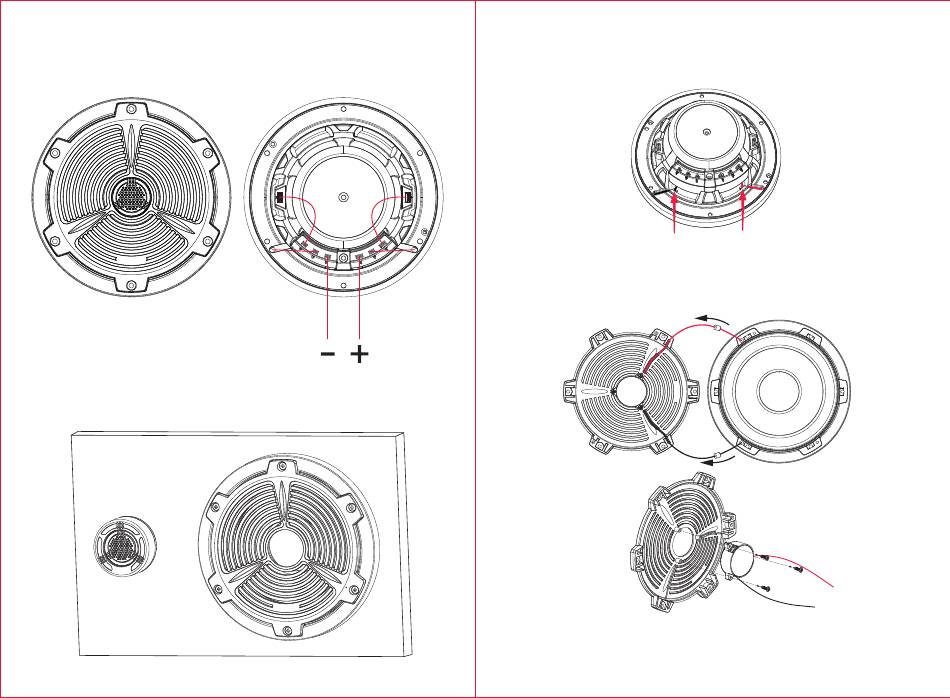

Option A - Install As A 2-Way Coaxial Speaker. This Is How
They Come Packaged, Ready to Mount.
Option B – Install As A 2-Way Component Speaker. Tweeter
Removed and Installed Onto A Surface.
PAGE 3
STEP1.
With the speaker facing down, gently pull the red and black tweeter
wires (red arrows below) from the bottom of the speaker. Remove
the wires from the groove.
STEP2.
The speaker grill is removable. Pull the grill up slowly then the red and
black tweeter wires will be pulled out with rubber plugs from the speaker
unit. Put the grill upside down and unscrew the three screws around the
tweeter cover. Pull the wires out of the grooves then the tweeter can be
removed completely.
